10 дюймов Риса Резиновый Валик используется для Husker
- Категории: Rubber Rollers >>>
- Поставщик: VIET,ROLL,RUBBER,ROLLS,CO.,LTD
Поделиться:
Описание и отзывы
Характеристики
Product Description
The rice rubber roller is used as spare assembly equipment in the Rice milling machine (Rice husking machine). When the system of the rice paddle rotates, the grain will pass through and peel the hull to produce the rice grain easily without damaging the rice.
Item | NBR Rice rubber rollers made in Viet Nam |
Material | NBR rubber |
Color | Cream, Light green, Brown |
Size | 10" x 10” |
Usage | Replacement parts of automatic rice mill |
Production basis | Product drawing |
Process Technic | Mixing, extrusion, injection, vulcanization |
Tolerance | ±0.05mm |
Service | OEM or ODM |
Lead Time | 7-15 days for mass production |
Payment Terms | TT 30% deposit in advance, the balance before shipment |
Application | Mechanical equipment, Agricultural products |

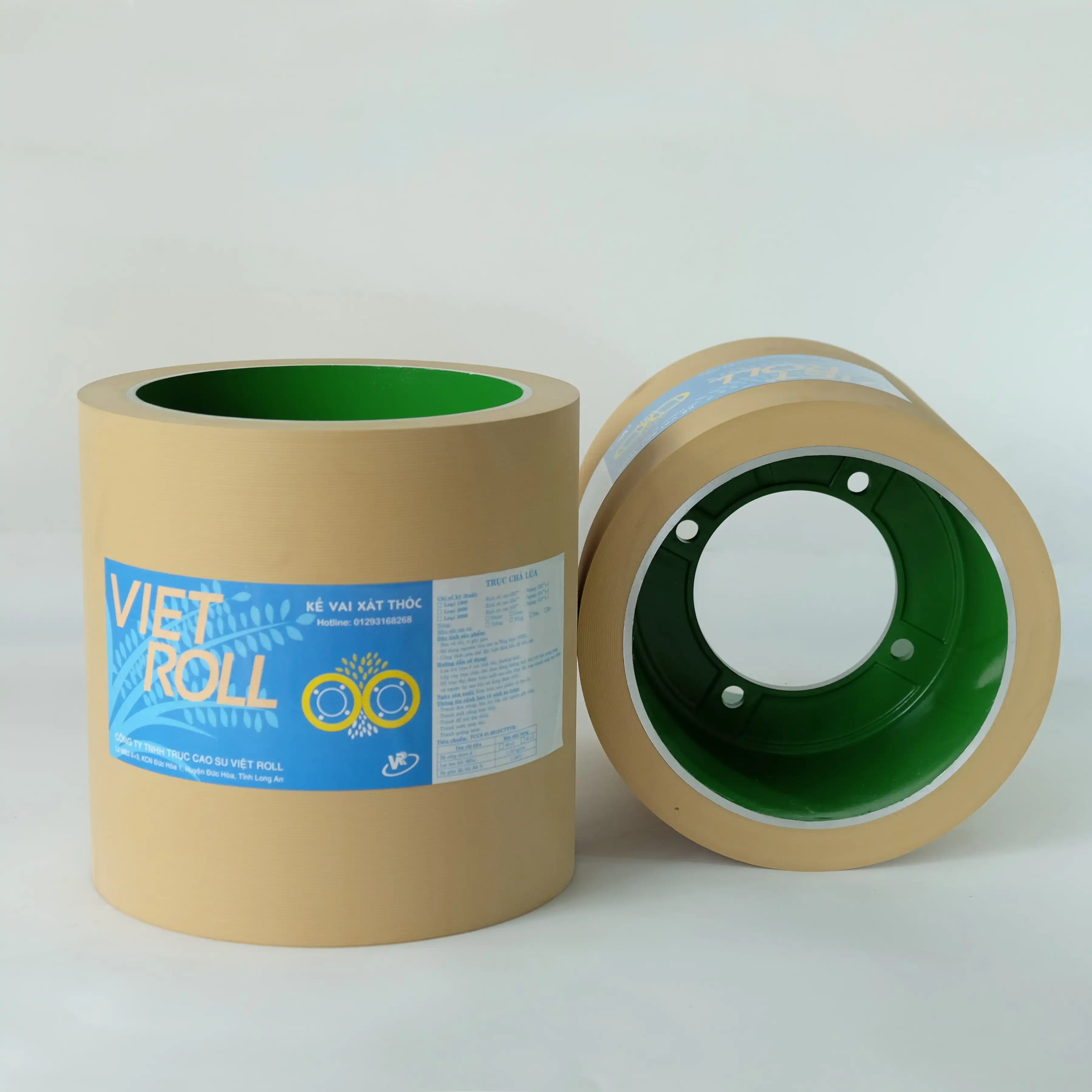

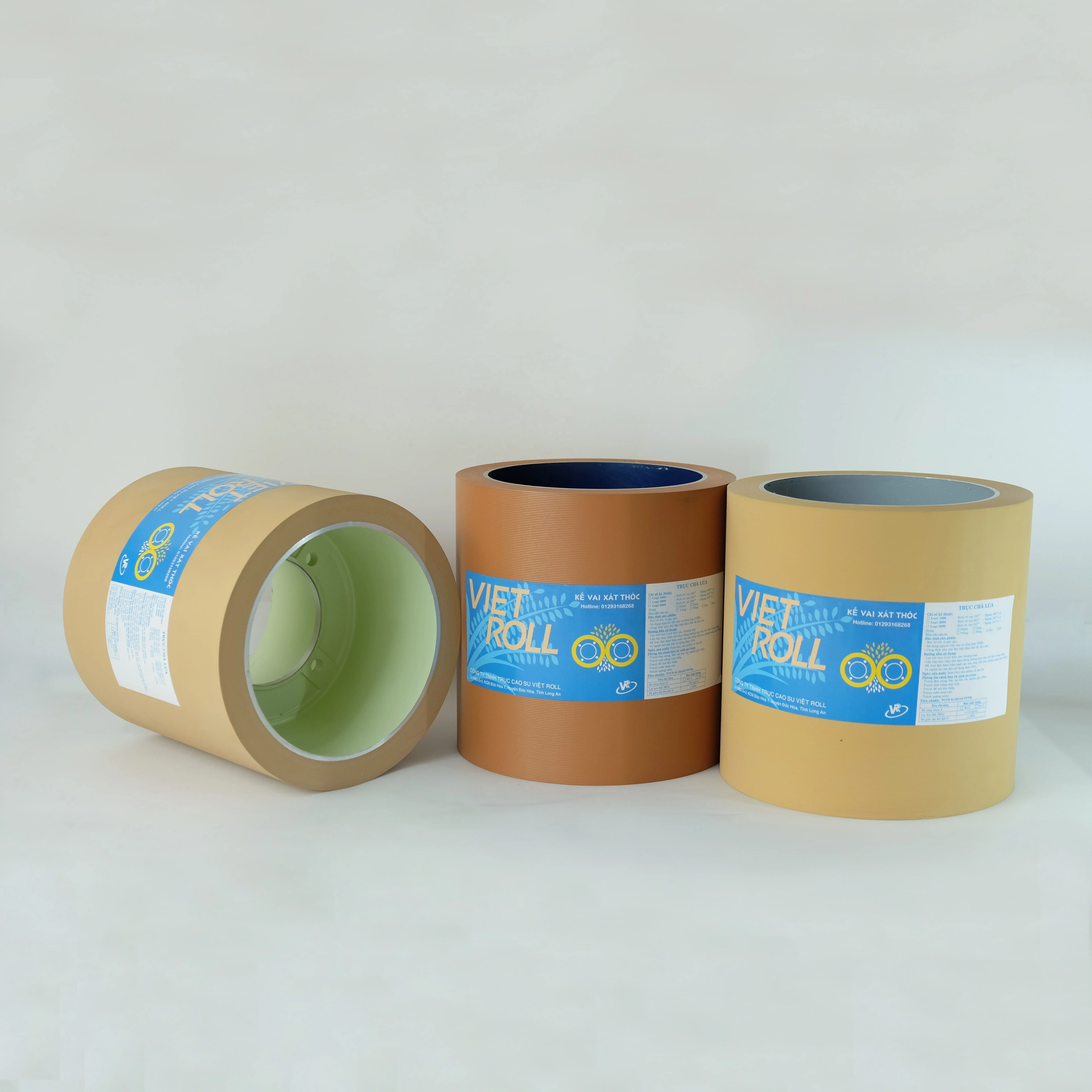

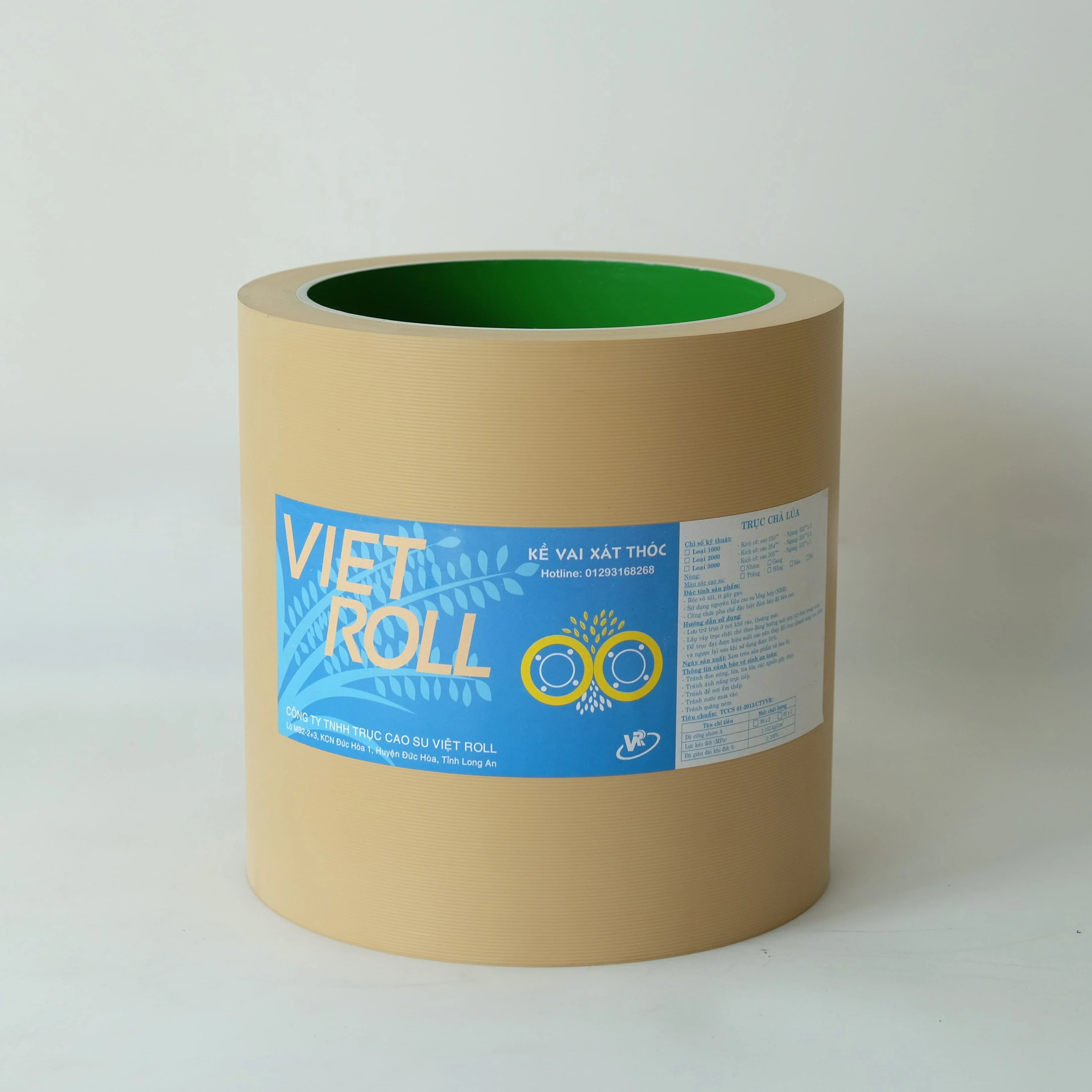

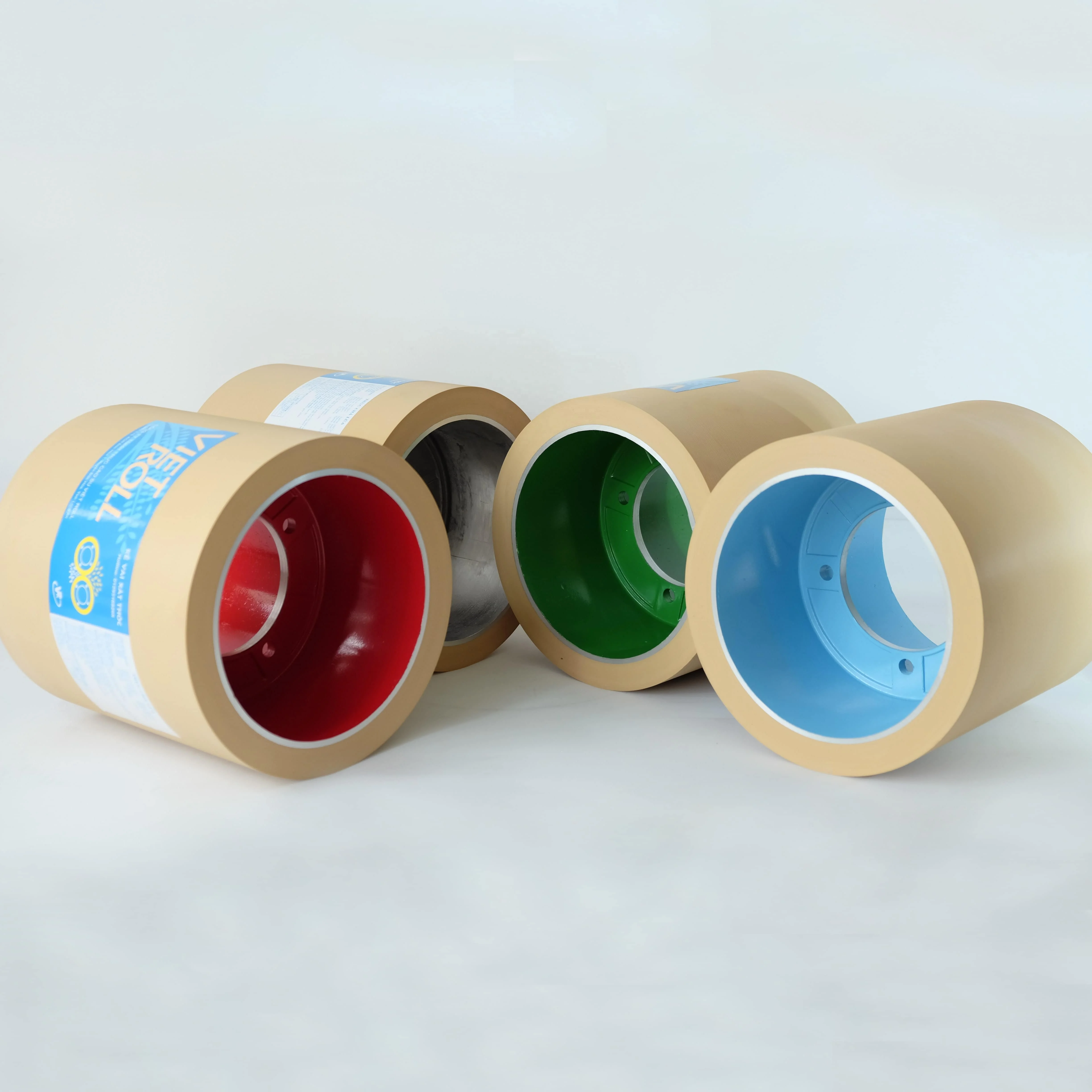

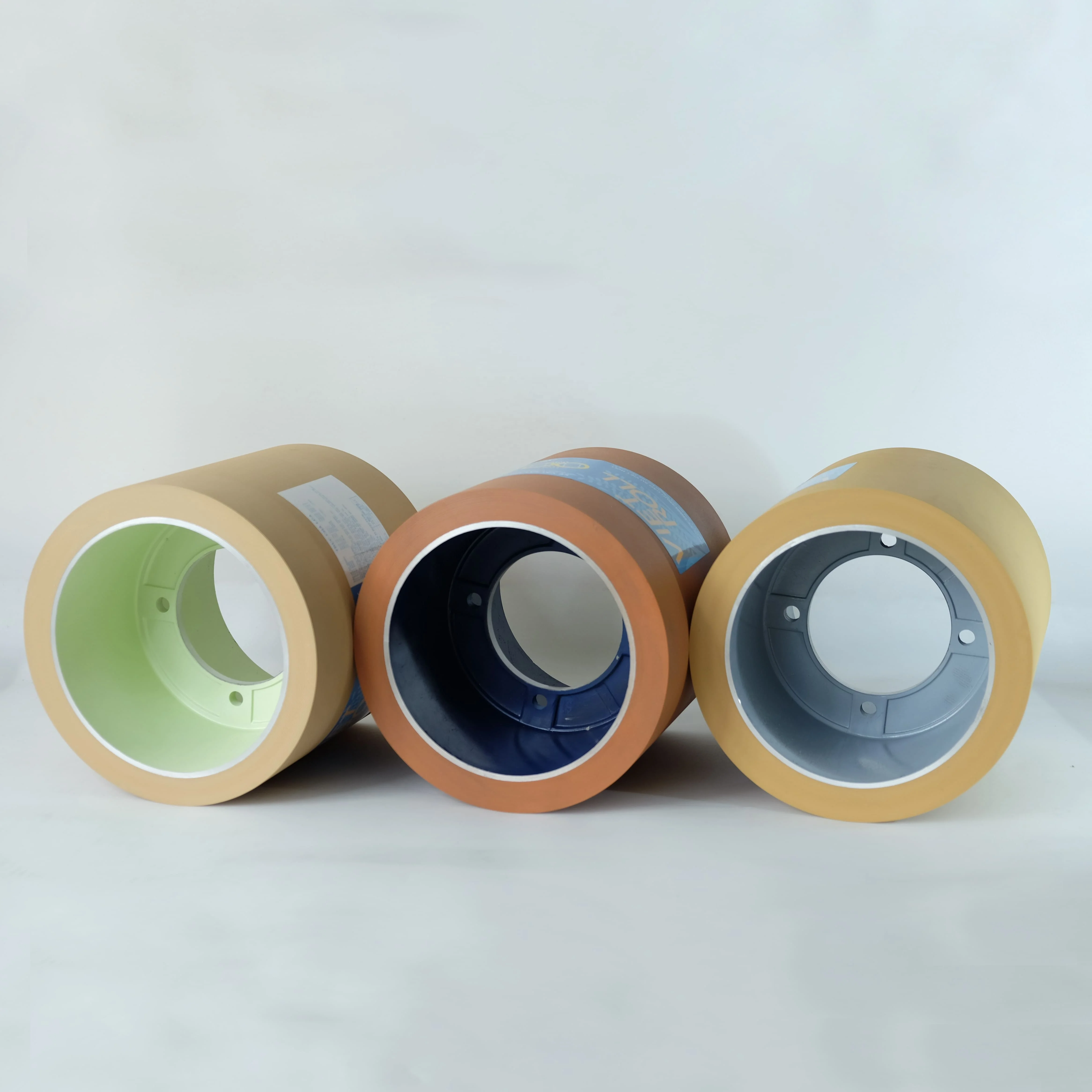

Detail Images

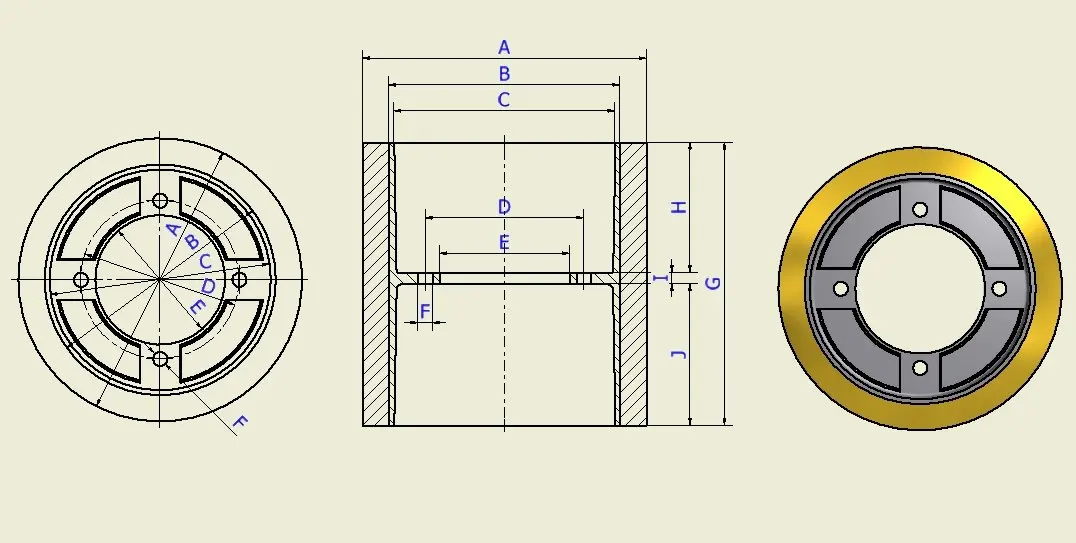

Specification
Description | 10" x 10" Aluminum (4 Holes) 207 | 10" x 10" Aluminum (4 Holes) 203 | 10" x 10" Aluminum (4 Holes) 194 | 10" x 10" Cast Iron (4 Holes) 207 | 10" x 10" Cast Iron (4 Holes) 203 | ||
Outer Dia. of roller | A (mm) | 254 | 254 | 254 | 254 | 254 | |
Outer Dia. of drum | B (mm) | 207 | 203 | 194 | 207 | 202 | |
Inter Dia. of drum | C (mm) | 198 | 194 | 185 | 197 | 193 | |
Dia. of bolt-holes | D (mm) | 142 | 142 | 142 | 142 | 142 | |
Dia. of central hole | E (mm) | 116.2 | 116.2 | 116.2 | 116.2 | 116.2 | |
Dia. of bolt-hole | F (mm) | 4- 13 | 4- 13 | 4- 13 | 4- 13 | 4- 13 | |
Height of roller | G (mm) | 254 | 254 | 254 | 254 | 254 | |
Height to upper bolt-face | H (mm) | 117 | 117 | 117 | 117 | 117 | |
Thickness of bolt-face | I (mm) | 10 | 10 | 10 | 10 | 10 | |
Height to inferior bolt-face | J (mm) | 127 | 127 | 127 | 127 | 127 | |
Transport

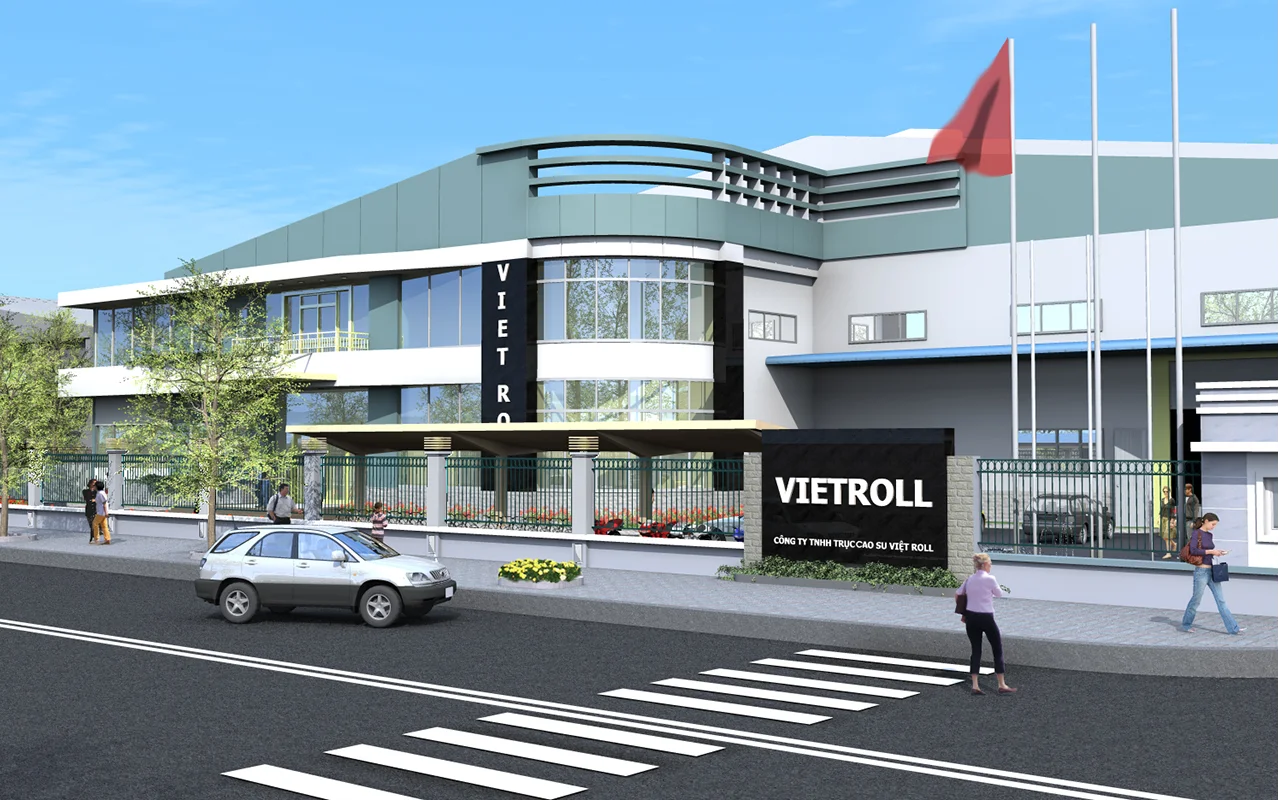

Company Profile
Viet Roll Company is one of the well-known manufacturers of rice huller rubber roller in Vietnam rice industry.
The products are sold widely in the domestic and export to the international market.
Processing
Our processing asks for specialized expertise to manage and control, as well as provide the most advanced products and services to customer.
Manufacturing
We have been engaged with modern units for all production processes in order to utilize the development of 4.0 technology.
Shipping
Once the production is completed on schedule, we will continue to proceed the shipping to customer on timing.
The products are sold widely in the domestic and export to the international market.
Viet Roll has supplied several of products for consumers to choose; in accordance with the specification of requirement and type of rice grain varieties in different condition areas.
Along with the formulation of our products are brilliantly gained the trust and appreciated from high satisfaction of customers.
Along with the formulation of our products are brilliantly gained the trust and appreciated from high satisfaction of customers.
Advantage:
Planning
Manufacturer is strategically equipped fully on various types of mechanization and automation technology right before proceed to mass production.
Manufacturer is strategically equipped fully on various types of mechanization and automation technology right before proceed to mass production.
Processing
Our processing asks for specialized expertise to manage and control, as well as provide the most advanced products and services to customer.
Manufacturing
We have been engaged with modern units for all production processes in order to utilize the development of 4.0 technology.
Shipping
Once the production is completed on schedule, we will continue to proceed the shipping to customer on timing.
