Идентификация отпечатков пальцев, анализ отпечатков пальцев
US $520.00-$730.00
Отличный анти-деформационный квадратный датчик отпечатков пальцев | Hatz-marka sentдоступный
- Категории: Fingerprint Scanner >>>
- Поставщик: MIDAS,TOUCH,SOLUTIONS,INC.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Features of Hatz-marka sentsore kapazitiboa
* Spatial resolution 508 DPI
* 2D sensor array of 192×192 pixels
* Sensing area 9.6 mm x 9.6 mm
* SIP package size：12.8mm x 12.8mm x 0.7mm
* Built-in 8-bit ADC for digitizing the image
* The built-in programmable voltage reference
* High-speed SPI interface
* 0.8 sec readout time(TBD)
* Support 160-byte on-chip data FIFO
* 65Volt ~ 3.6Volt for I/O communication
* Advanced SiP package to reduce the size and provide better water and dust protection
* Windowing function to crop the smaller image
* Finger detection function to detect the finger on the sensor
* Interrupt pin to wake up host when the finger on the sensor at standby mode
* 1mA power consumption at standby mode
* 1uA power consumption at power-down mode
The operation of the MFC-1502 fingerprint sensor is as following, a fingerprint image captured by pixel array, delivery
fingerprint ridge or valley signals to A/D converter and digital processor, then to the serial peripheral interface for
data-reading. The image quality of the MFC-1502 fingerprint sensor can be adjusted by setting gain, offset and reference voltage parameters internally. In addition, the internal operation parameters and interface speed can also be configured to meet various finger conditions.
MFC-1502 capacitive fingerprint sensor also has a finger detection function and windowing function for different applications such as door lock or access control. This sensor is 100% made in Taiwan. We also provide the custom ROM service.
Fingerprint Recognition Algorithm Support
* Good adaptability to dry, wet, or fuzzy fingerprint
* Repair the fractured fingerprints automatically
* Great anti-deformation ability
* Supporting 360 °Authentication
* Self-learning during usage
* Fingerprint Template Size < 1KB
* Verification speed < 700 ms
* Spatial resolution 508 DPI
* 2D sensor array of 192×192 pixels
* Sensing area 9.6 mm x 9.6 mm
* SIP package size：12.8mm x 12.8mm x 0.7mm
* Built-in 8-bit ADC for digitizing the image
* The built-in programmable voltage reference
* High-speed SPI interface
* 0.8 sec readout time(TBD)
* Support 160-byte on-chip data FIFO
* 65Volt ~ 3.6Volt for I/O communication
* Advanced SiP package to reduce the size and provide better water and dust protection
* Windowing function to crop the smaller image
* Finger detection function to detect the finger on the sensor
* Interrupt pin to wake up host when the finger on the sensor at standby mode
* 1mA power consumption at standby mode
* 1uA power consumption at power-down mode
Overview
The MFC-1502 fingerprint sensor is based on capacitive-touch technology with a hardened surface and enhanced ESD strength. The built-in analog and digital circuitries minimize the number of external components and provide easy-to-use, standard SPI interface to microprocessors.
The MFC-1502 fingerprint sensor is based on capacitive-touch technology with a hardened surface and enhanced ESD strength. The built-in analog and digital circuitries minimize the number of external components and provide easy-to-use, standard SPI interface to microprocessors.
The operation of the MFC-1502 fingerprint sensor is as following, a fingerprint image captured by pixel array, delivery
fingerprint ridge or valley signals to A/D converter and digital processor, then to the serial peripheral interface for
data-reading. The image quality of the MFC-1502 fingerprint sensor can be adjusted by setting gain, offset and reference voltage parameters internally. In addition, the internal operation parameters and interface speed can also be configured to meet various finger conditions.
MFC-1502 capacitive fingerprint sensor also has a finger detection function and windowing function for different applications such as door lock or access control. This sensor is 100% made in Taiwan. We also provide the custom ROM service.
Fingerprint Recognition Algorithm Support
* Good adaptability to dry, wet, or fuzzy fingerprint
* Repair the fractured fingerprints automatically
* Great anti-deformation ability
* Supporting 360 °Authentication
* Self-learning during usage
* Fingerprint Template Size < 1KB
* Verification speed < 700 ms

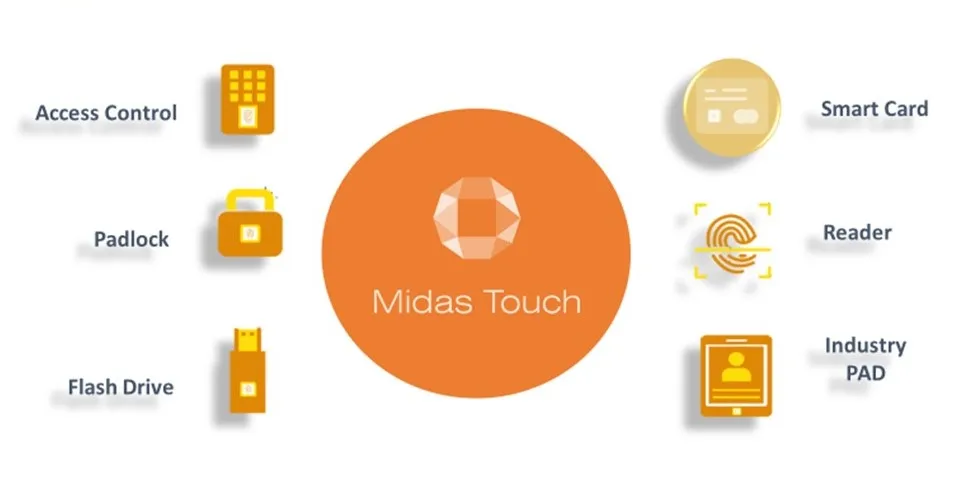

Applications
* Biometric authentication on card/Smart Card/Cold Wallet
* Fingerprint Reader/Fingerprint Scanner
* Identification Card/Driver License Card/ID Card
* Personal handheld devices (Mobile/Tablet/Notebook)
* Fingerprint padlock, fingerprint jewelry box, USB fingerprint reader
* Biometric authentication on card/Smart Card/Cold Wallet
* Fingerprint Reader/Fingerprint Scanner
* Identification Card/Driver License Card/ID Card
* Personal handheld devices (Mobile/Tablet/Notebook)
* Fingerprint padlock, fingerprint jewelry box, USB fingerprint reader

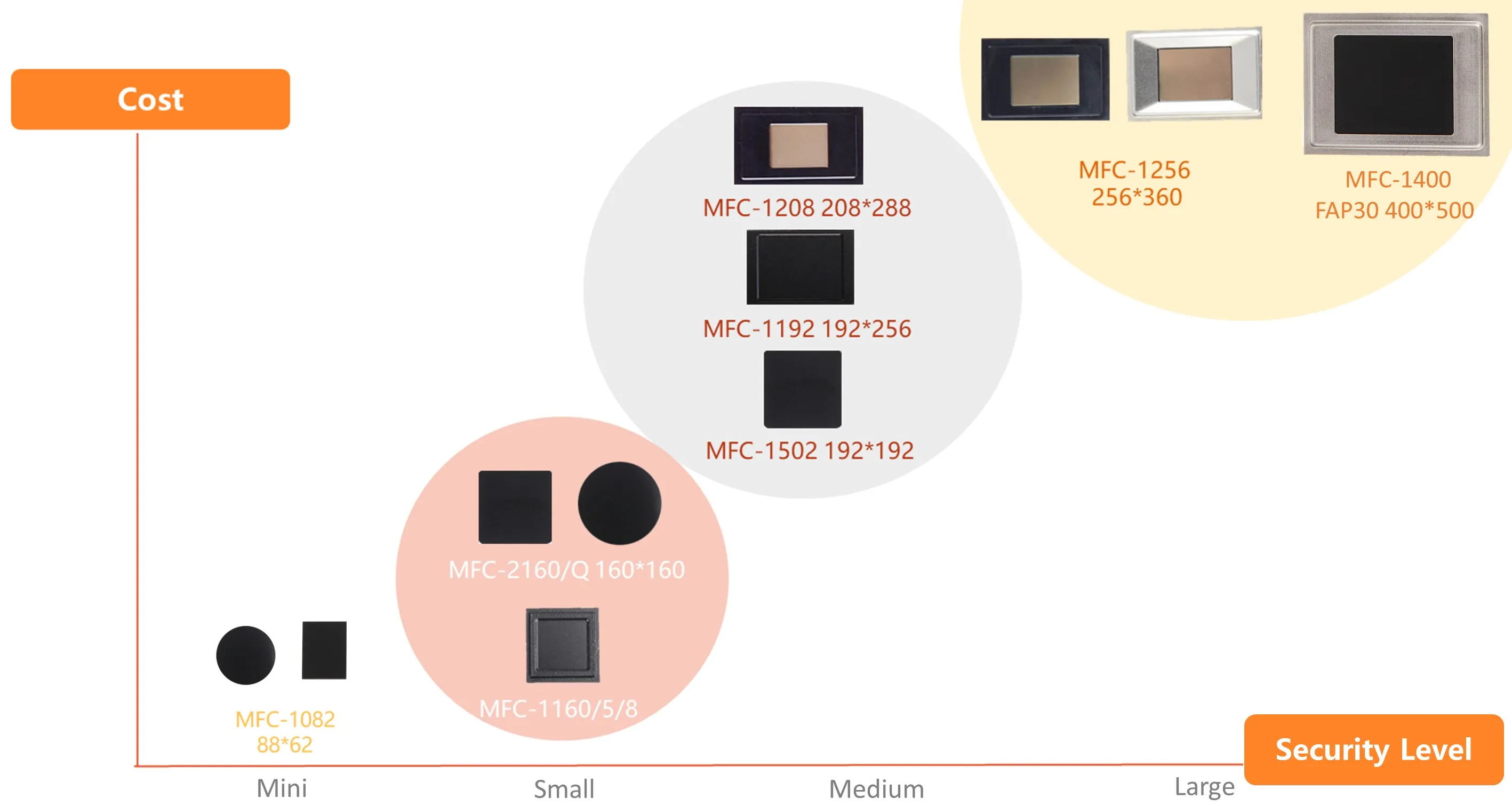

MFC-1502 | MFC-1192 | MFC-1208 | |
Sensor | 192*192 Pixel | 192*256 Pixel | 208*288 Pixel |
Cost/Performance | Good | C/P | High |
Algorithm | +MCU | +MCU | +MCU |
Function | parts | parts | parts |
Application | Smart Card/ Door lock / Access control | Lock/Access Control | Access Control |
Ordering Information | ||||||||
MFC-1502 | 192*192 pixel square capacitive fingerprint sensor with IP67 | |||||||
MFC-1502Q MOQ Required | 192*192 pixel circular capacitive fingerprint sensor with IP67 | |||||||
Note: All specifications are subject to change without furthur notice.
Company Profile
Our Advantages
Exhibition
Winning experience
Oversea Extend
Certificates
FAQ
Q1: What is Midas Touch core competence?
Q2:Why we should choose you?
A2:

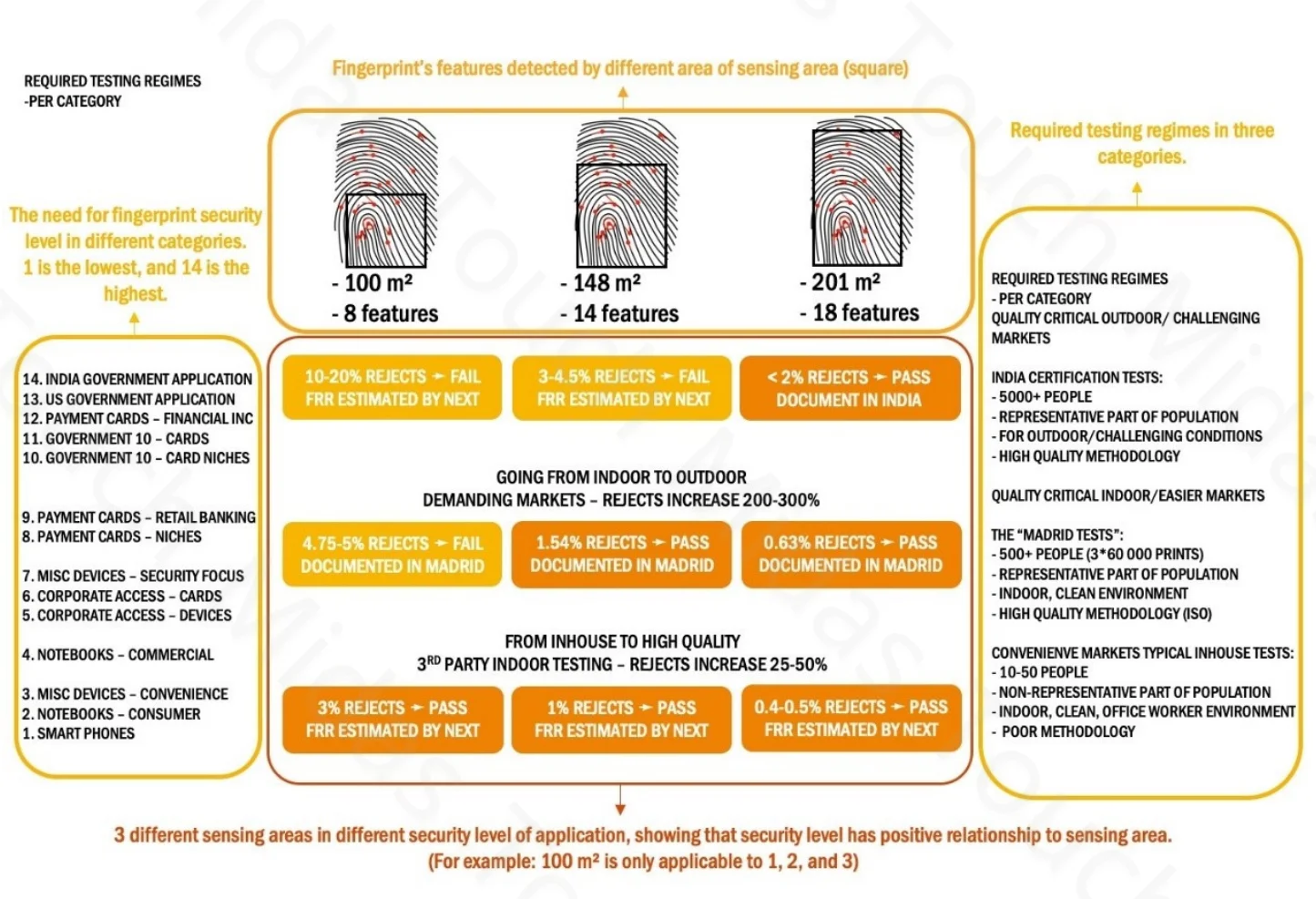

● Size: Size is really mater. It will cause the FAR/FRR rate. Please refer the attachment. FRR/FAR: Ours is FRR:1.5% and FAR :/100,000. Mobile security level is only 1. Ours is about level 3 to 4. Please refer the following chart. FRR/FAR is lower
which is better.
● Size: Size is really mater. It will cause the FAR/FRR rate. Please refer the attachment. FRR/FAR: Ours is FRR:1.5% and FAR :/100,000. Mobile security level is only 1. Ours is about level 3 to 4. Please refer the following chart. FRR/FAR is lower
which is better.
● ESD: most of the sensor in the market is only+-8KV, ours is +-15KV which is standard. https://en.ppt-online.org/14877
● 100% made in Taiwan. Our factory is VIS which invested by TSMC. TSMC provides the chipset to Apple.
The above three major issues will cause your customer service loading and brand image in the future.
● 100% made in Taiwan. Our factory is VIS which invested by TSMC. TSMC provides the chipset to Apple.
The above three major issues will cause your customer service loading and brand image in the future.
Q3:What is Midas Touch sensor advantage?
A3: Spatial Resolution 508 DPI Data Encryption Short Read Out Time Multiple Options Available in Different Pixel size 360 Degree.
Matching Low Power Consumption High-Speed SPI Interface IP 67 ApprovedWhat is Midas Touch sensor advantage?
●Spatial Resolution508 DPI
●Short Read Out Time
●Multiple Options Available in Different Pixel size
●360 Degree Matching
●Low Power Consumption
●High-Speed SPI Interface
●IP67 Approved
A3: Spatial Resolution 508 DPI Data Encryption Short Read Out Time Multiple Options Available in Different Pixel size 360 Degree.
Matching Low Power Consumption High-Speed SPI Interface IP 67 ApprovedWhat is Midas Touch sensor advantage?
●Spatial Resolution508 DPI
●Short Read Out Time
●Multiple Options Available in Different Pixel size
●360 Degree Matching
●Low Power Consumption
●High-Speed SPI Interface
●IP67 Approved
Q4: This following is Midas Touch expertise field.
Q5: How about the shipping cost?
A5: For the sample, we provide the DHL/Fedex/UPS. For the large quantity, we can provide the forwarder for you.
Q6: How about the price?
A5: For the sample, we provide the DHL/Fedex/UPS. For the large quantity, we can provide the forwarder for you.
Q6: How about the price?
A6: The price depends on the quantity you want.Finally quotation according to your specifications.
Q7: How about the sample lead time? What is the payment?
A7: The lead time for the sample is about 3-5 working days after receipt of your payment.We accept the sample amount less than
USD$1000 pay by PayPal.
Q7: How about the sample lead time? What is the payment?
A7: The lead time for the sample is about 3-5 working days after receipt of your payment.We accept the sample amount less than
USD$1000 pay by PayPal.
