Products Description
LUMIBOARD L-100
LUMIBOARD L-100 is a rigid calcium silicate board for heat insulation and thermal resistant.
It offers outstanding non-wettability, heat insulation, and durability, used at locations in direct contact with molten aluminum during aluminum molding and processing processes.
Since it does not contain asbestos, it can be used as a replacement for asbestos cement board.
Size of Blank Material :
Thickness : 12.7～101.6mm
Length X Width : 1260X1275mm 1260X2550mm
Applications :
Float for aluminum casting
Spouts for aluminum casting
Gutter for aluminum casting
Insulation material for holding furnace for aluminum casting
Heat (Thermal) resistant material for machine parts
Delivery Form of LUMIBOARD L-100 :
Please choose from among the following three types of the delivery form of LUMIBOARD L-100.

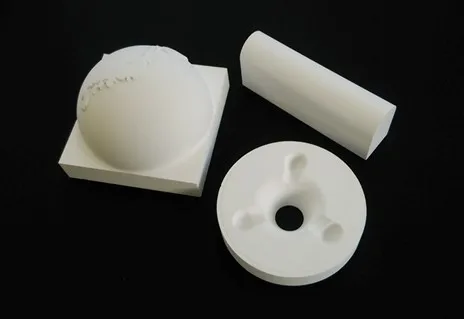

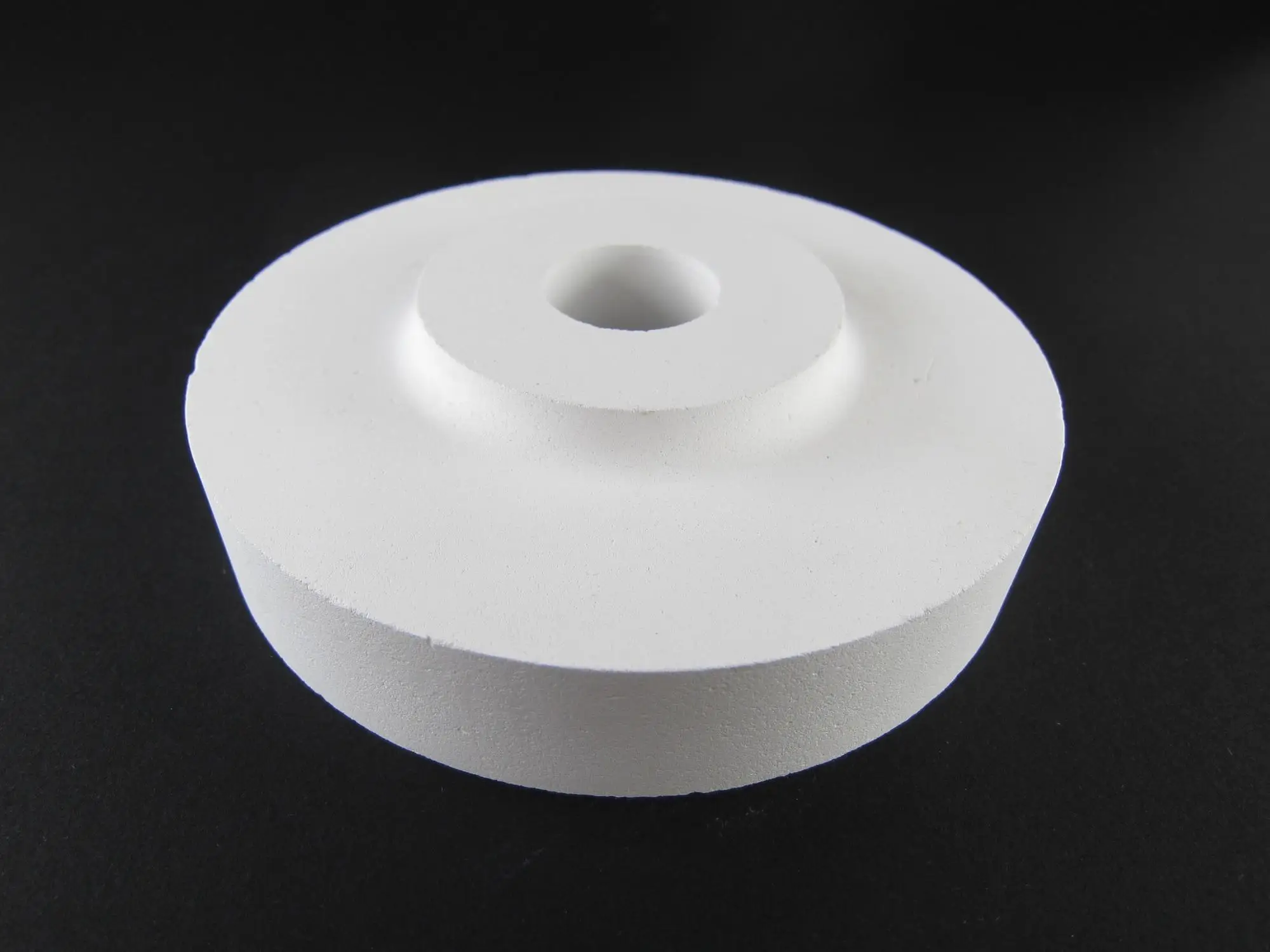

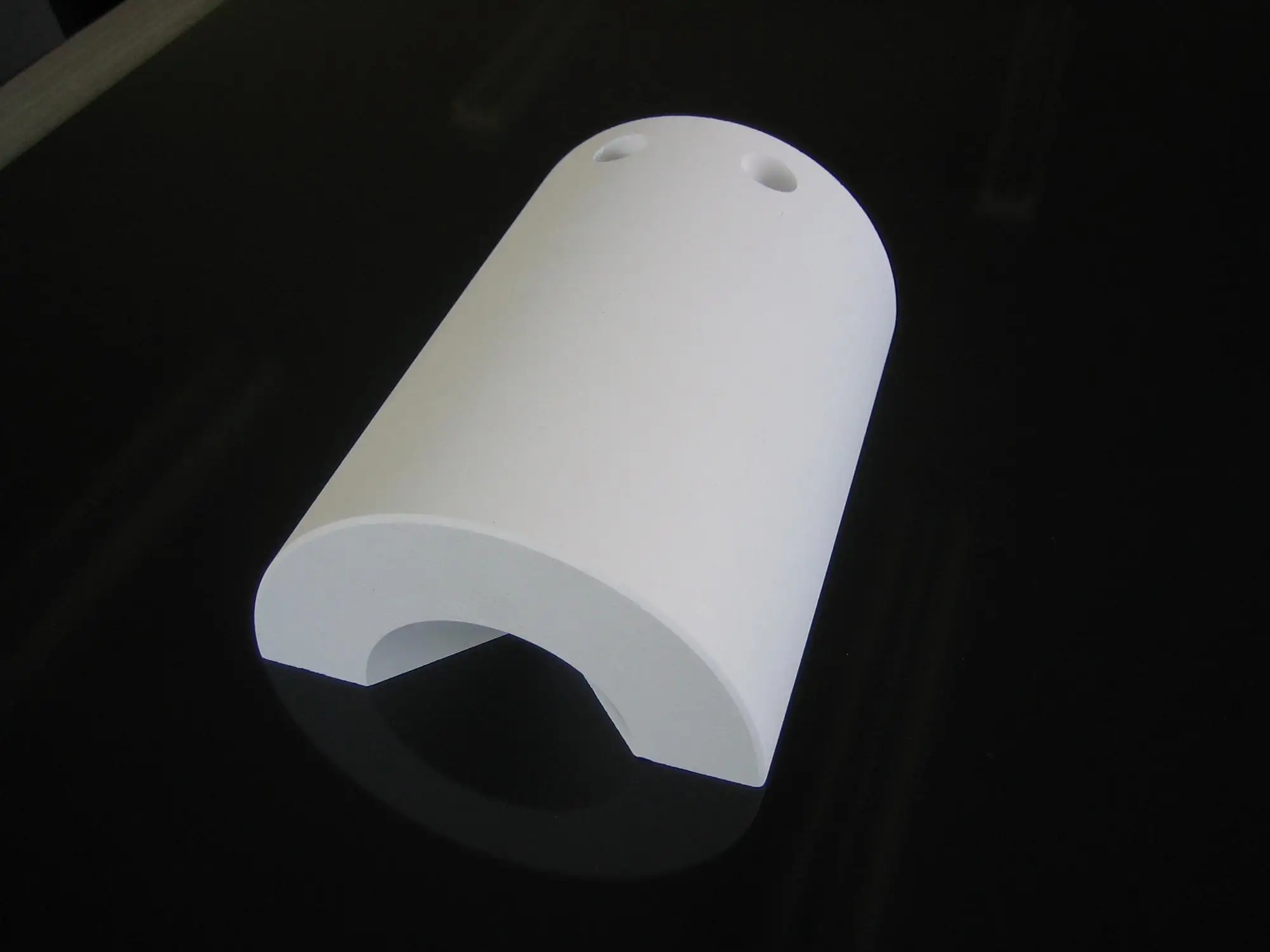

Finished Product
Finished product after machining such as cutting, grinding and drilling based on your drawing will be supplied.
Board Cut to Specified Dimensions
Board without machining such as drilling, etc. and in the form of simply cutting the material according to the specified dimensions will be supplied.
Blank Material
Blank material without any machining will be supplied.
It offers outstanding non-wettability, heat insulation, and durability, used at locations in direct contact with molten aluminum during aluminum molding and processing processes.
Since it does not contain asbestos, it can be used as a replacement for asbestos cement board.
Size of Blank Material :
Thickness : 12.7～101.6mm
Length X Width : 1260X1275mm 1260X2550mm
Applications :
Float for aluminum casting
Spouts for aluminum casting
Gutter for aluminum casting
Insulation material for holding furnace for aluminum casting
Heat (Thermal) resistant material for machine parts
Delivery Form of LUMIBOARD L-100 :
Please choose from among the following three types of the delivery form of LUMIBOARD L-100.
Finished Product
Finished product after machining such as cutting, grinding and drilling based on your drawing will be supplied.
Board Cut to Specified Dimensions
Board without machining such as drilling, etc. and in the form of simply cutting the material according to the specified dimensions will be supplied.
Blank Material
Blank material without any machining will be supplied.
Our Advantages
1.MACHINABLE
Can be machined by using Machining Centers and NC lathes
2.HIGH HEAT RESISTANT TEMPERATURE
Heat resistant temperature : 1000 degrees celsius
3.NON-WETTABILITY WITH MOLTEN ALUMINUM
Non-wettability used in direct contact with molten aluminum during aluminum molding and processing
Can be machined by using Machining Centers and NC lathes
2.HIGH HEAT RESISTANT TEMPERATURE
Heat resistant temperature : 1000 degrees celsius
3.NON-WETTABILITY WITH MOLTEN ALUMINUM
Non-wettability used in direct contact with molten aluminum during aluminum molding and processing
Product Paramenters
Units | LUMIBOARD L-100 | |
Heat Resistant Temperature | degrees celsius | 1000 |
Coefficient of Thermal Conductivity | W/m・k | 0.19 |
Thermal Expansion Rate | 1/degrees celsius | 4.4X10-6 |
Bending Strength | Mpa | 9.3 |
Specific Gravity | 0.80 |
Listed values are measured, it is not a guaranteed value.
Heat resistant temperature is for reference only, and varies depending on the operating conditions.
Company Introduction
We are experts in manufacturing and supplying plastics, ceramics and heat(thermal) insulation/heat(thermal) resistant materials products mainly for machinery parts.
We use machine tools such as Machining Centers and NC lathes to process a variety of plastics, ceramics and heat(thermal) insulation/heat(thermal) resistant materials.
Our product line encompasses a wide range of plastics, ceramics and heat (thermal) insulation materials and we are especially adept at using materials that are difficult to machine including the following ;
1.Heat (thermal) insulation and heat (thermal) resistant materials (rigid heat insulation boards that are generally made of glass fiber, cement and mica as the main raw material)
2.Composite of glass fiber or carbon fiber and plastics (FRP, GFRP and CFRP).
3.Fine ceramics
We use machine tools such as Machining Centers and NC lathes to process a variety of plastics, ceramics and heat(thermal) insulation/heat(thermal) resistant materials.
Our product line encompasses a wide range of plastics, ceramics and heat (thermal) insulation materials and we are especially adept at using materials that are difficult to machine including the following ;
1.Heat (thermal) insulation and heat (thermal) resistant materials (rigid heat insulation boards that are generally made of glass fiber, cement and mica as the main raw material)
2.Composite of glass fiber or carbon fiber and plastics (FRP, GFRP and CFRP).
3.Fine ceramics
