Пневматический сварочный аппарат для проволочной

 5-12mm pneumatic welding wire mesh welding  machine

This is our new developed pneumatic welding machine . The (5-12mm) welding speed can be up to maximum 80 times/min.It has advantage of easier machine maintenance, less machine problem, easier to learn and operate, save power and consumption, less welding spark etc.

The welding host is a device that pressurizes the positioned vertical and horizontal lines and energizes them to form solder joints.

uThe precision casting threading groove is used to connect with the electrode to ensure the accuracy of the mesh.

The threading groove has an elastic lifting function, which effectively reduces the wear of the electrode block and extends the electrode insertion.

uProvide horizontal line detection device to ensure the correct position of horizontal line drop.

The single resistance welding transformer has a power of 150KVA and is equipped with a cooling water circulation and temperature control detection switch to prevent the transformer from burning out.

1. It adop the japan smc air cylinder ,speed fast ,improve 50% effeiciency

2. Work stable and welding the mesh firm

3. New techonlogy with power consumption

4. All electric appliciance are import famous brand

3-6mm pneumatic wire mesh welding machine

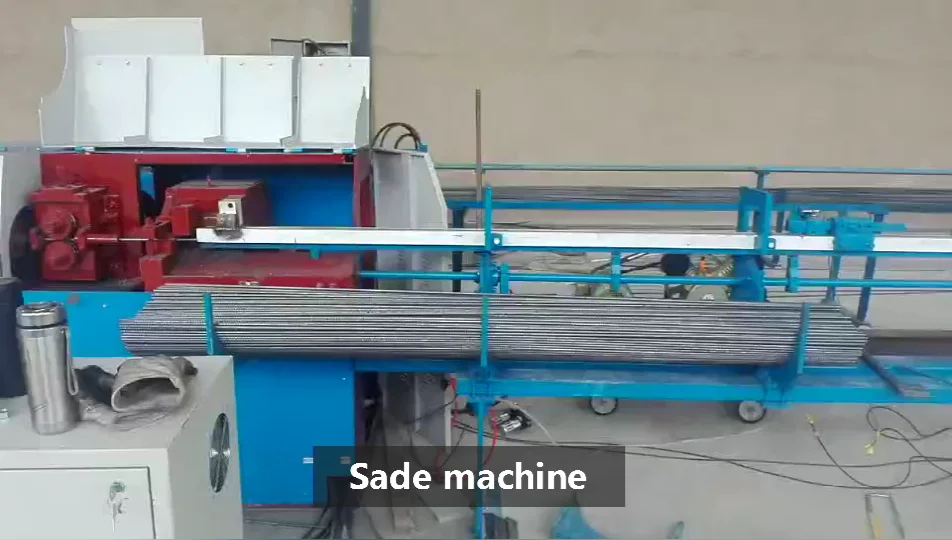

High speed straight wire machine

Please contact us for more details
