 NC control horizontal glass drilling machine glass processing machinery



The Y-axis and x-axis of this product are controlled by servo motor, it can automatically positions multiple holes and automatcally process them. It has high position accurancy and its processing is convenient.



Since the processing speed is adjustable, the processing speed of the drilling can be set according to the processing frequency of the double edging machine.



It can effictively avoid the accumulation of the work piece during processing and the vacant workers.



One work can operate several machines.



The machine has several working modes: both single station and two stations can realise single cycle or multi-cycle productions. (That means the two working heads can work individually for differnet productions, or work together for same piece of glass at the same time)



Machine Data:



Model Number	YD-NCHD-2000
Hole diameter(mm)	4~80
Glass thickness(mm)	4~19
Min distance between the holes	350
X-stroke	2000mm/750mm
Y-stroke	800mm
size of glass	2000*800mm/1000*800mm
Single/double station continously driiling holes numbers	36/18pcs
Power (kw)	6.9kw
Outer dimension (mm)	2500*1800*1800
Weight (kg)	1800

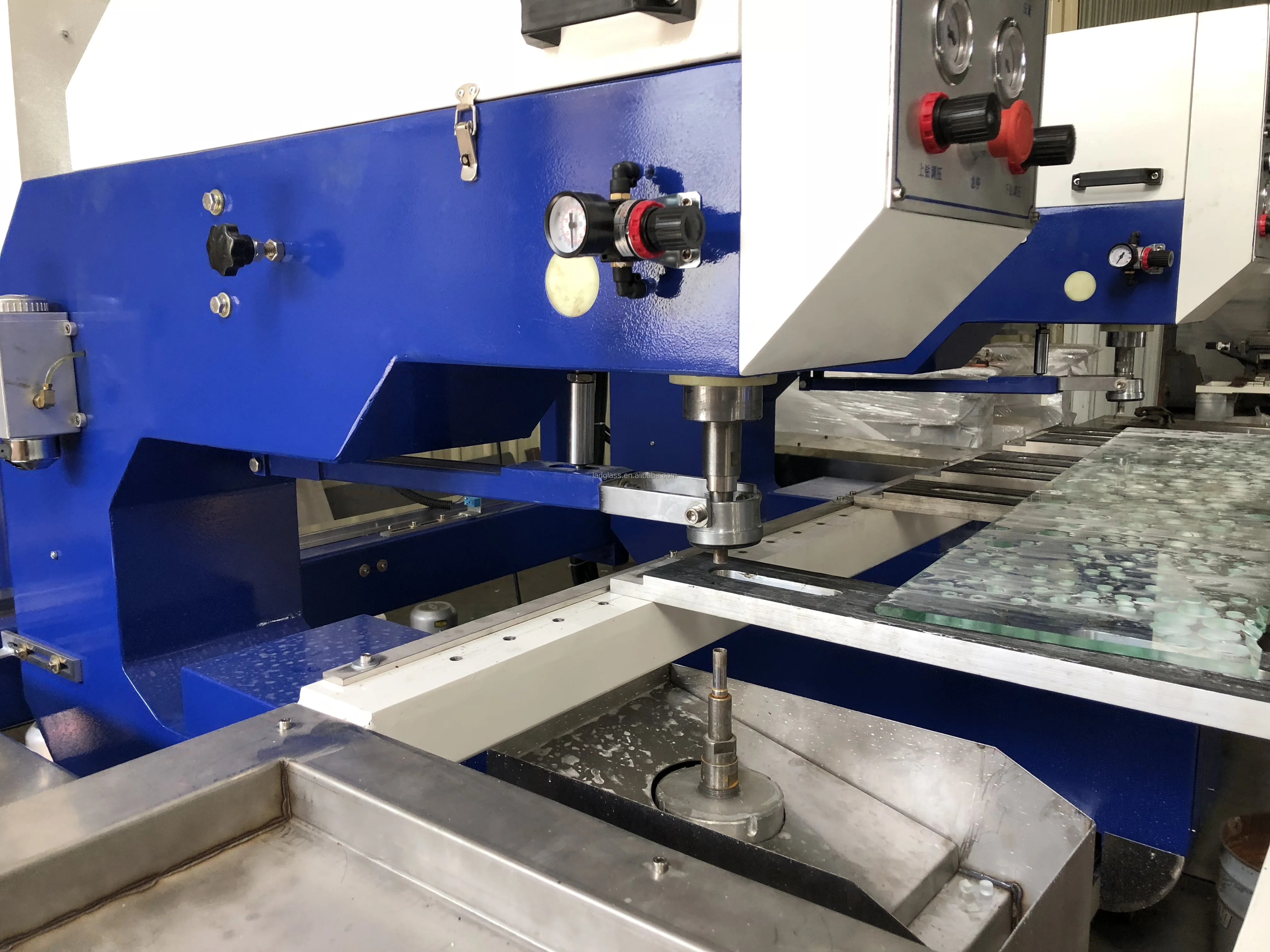

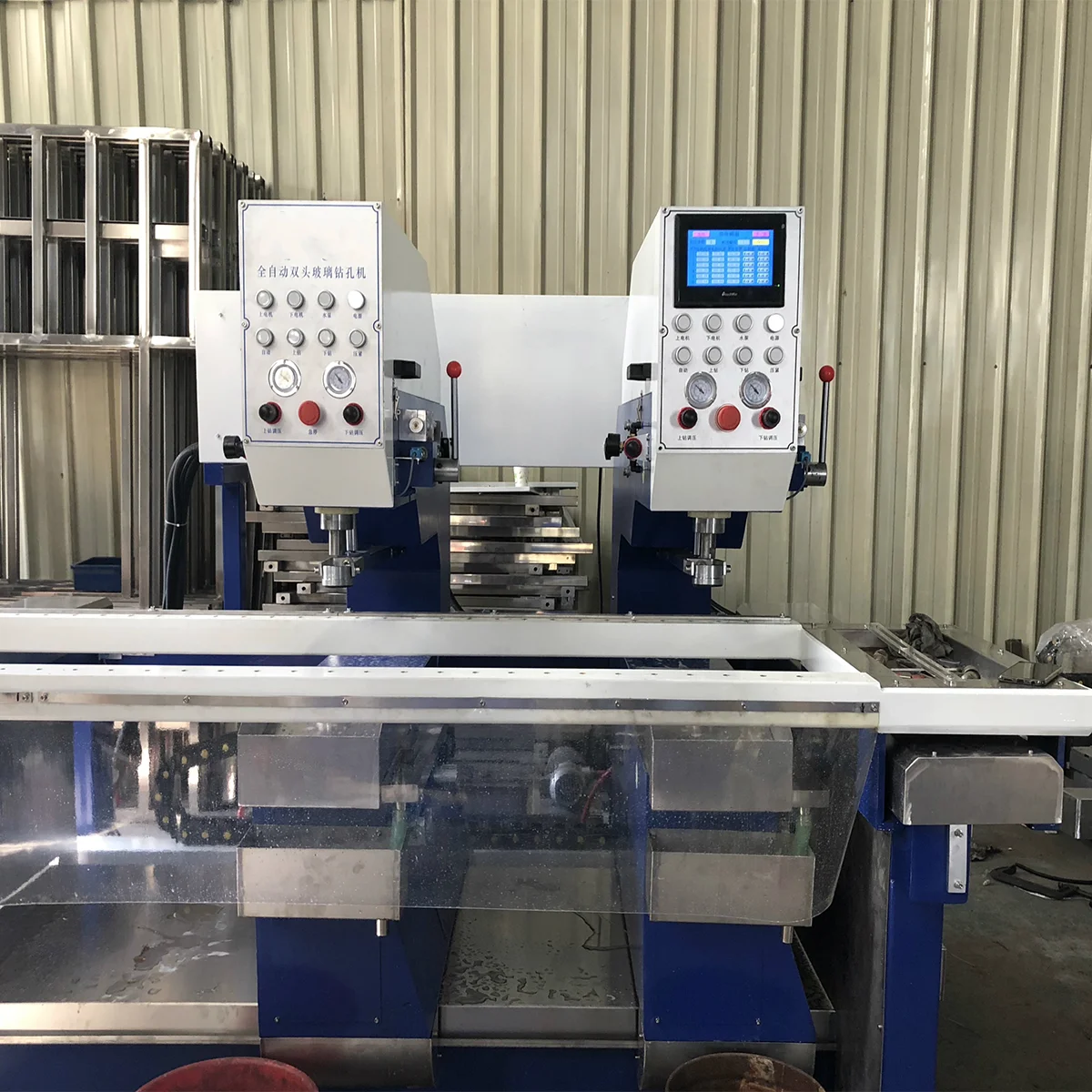

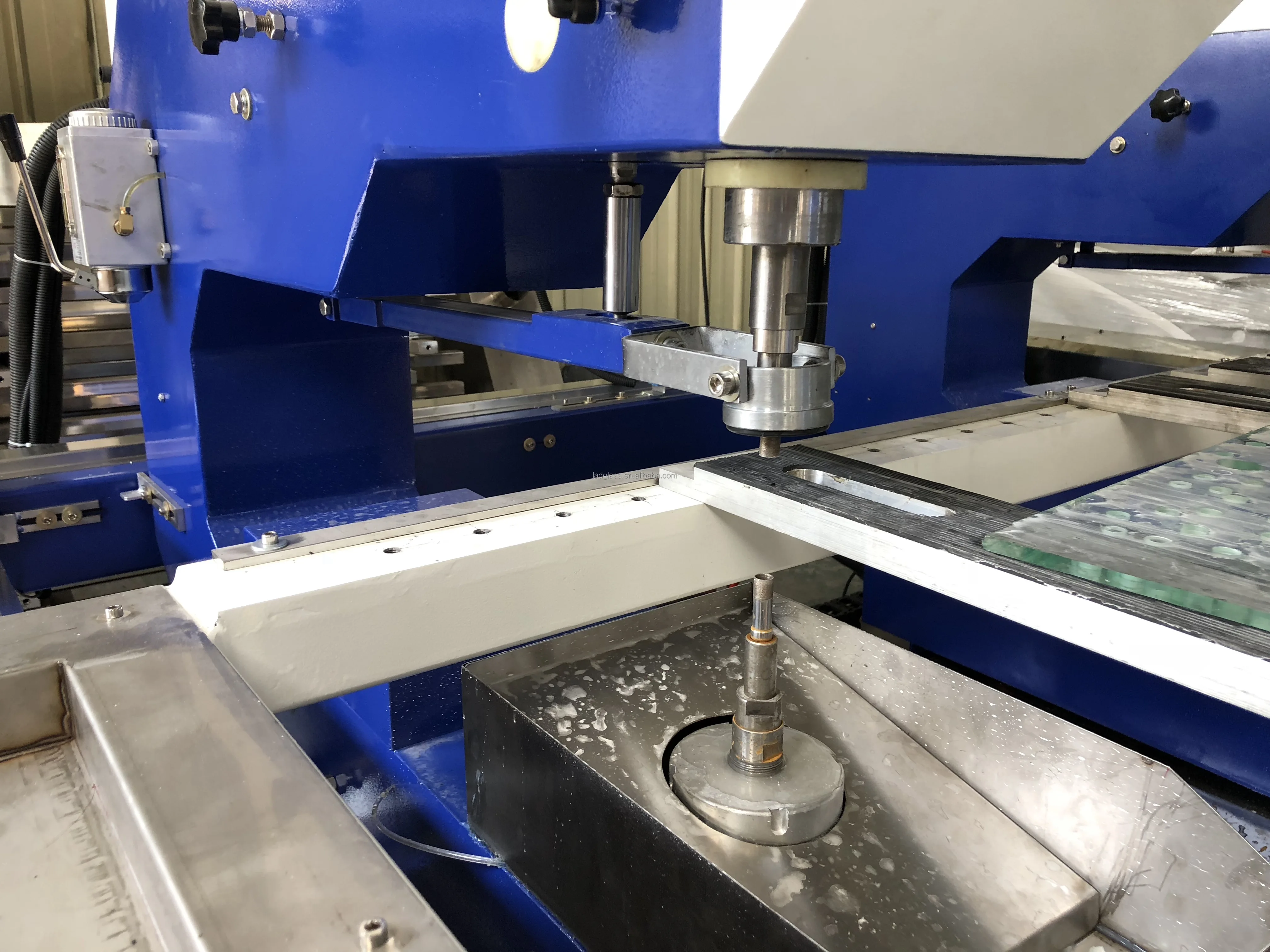

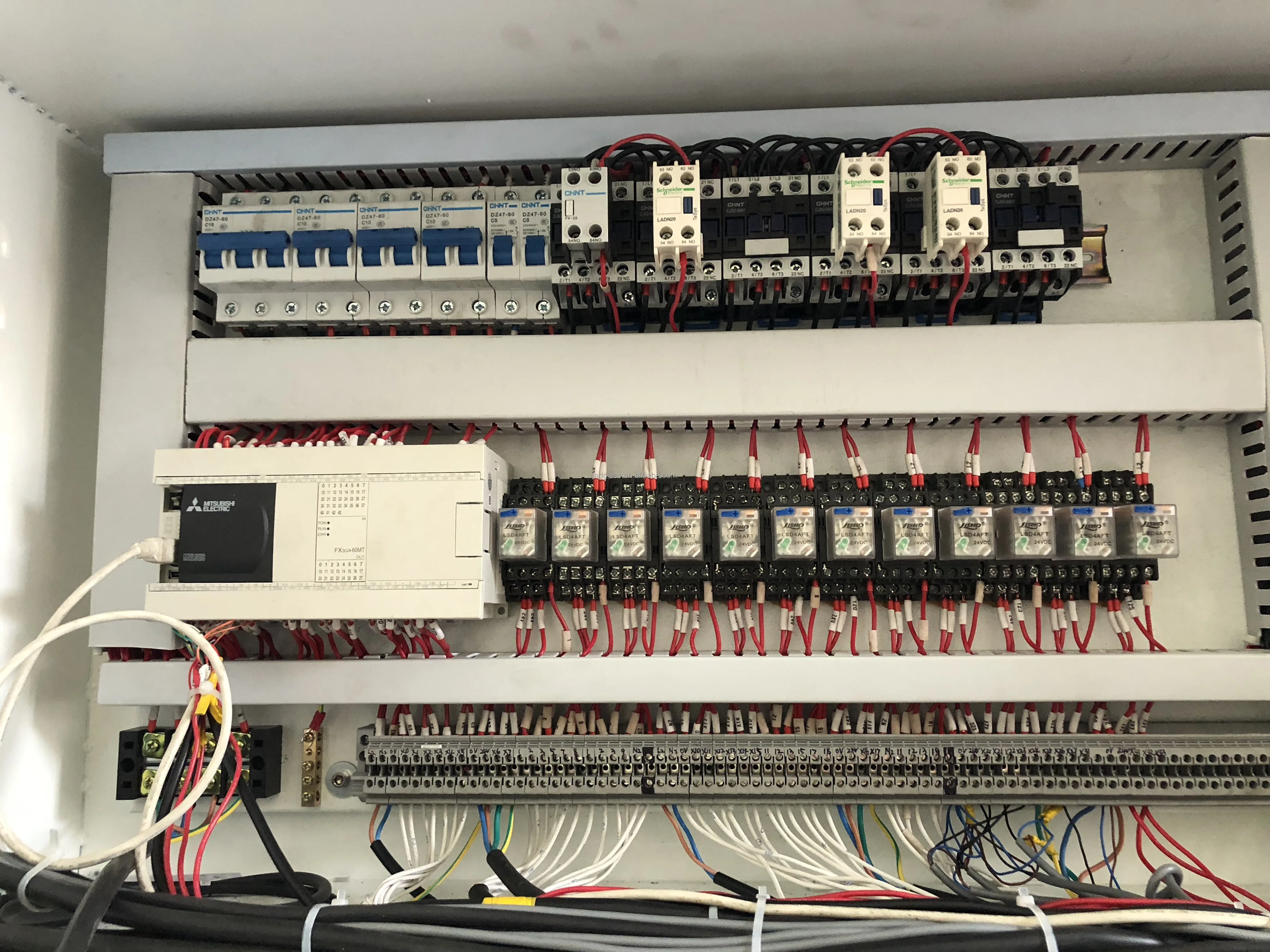

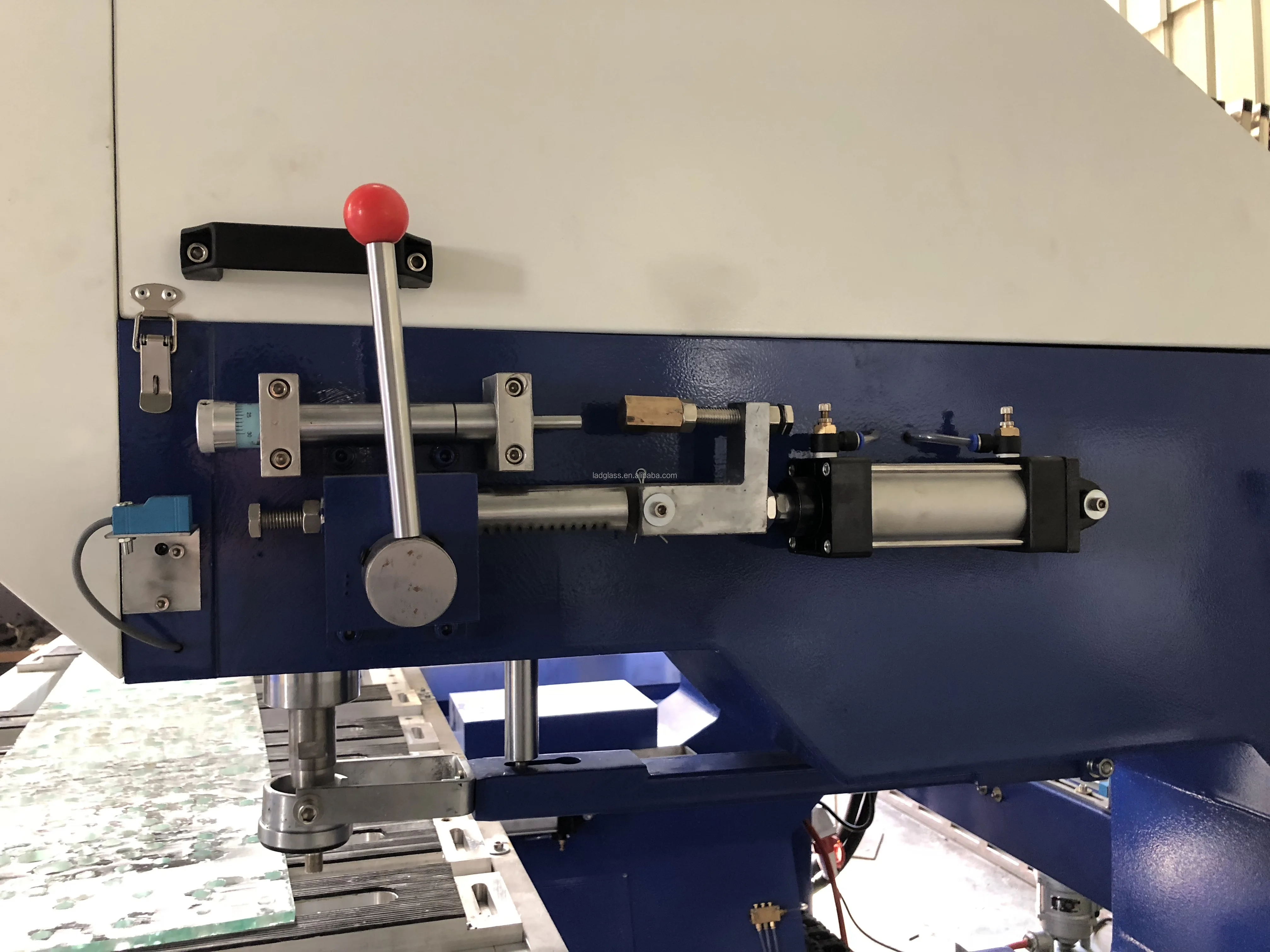

Photos of the machine

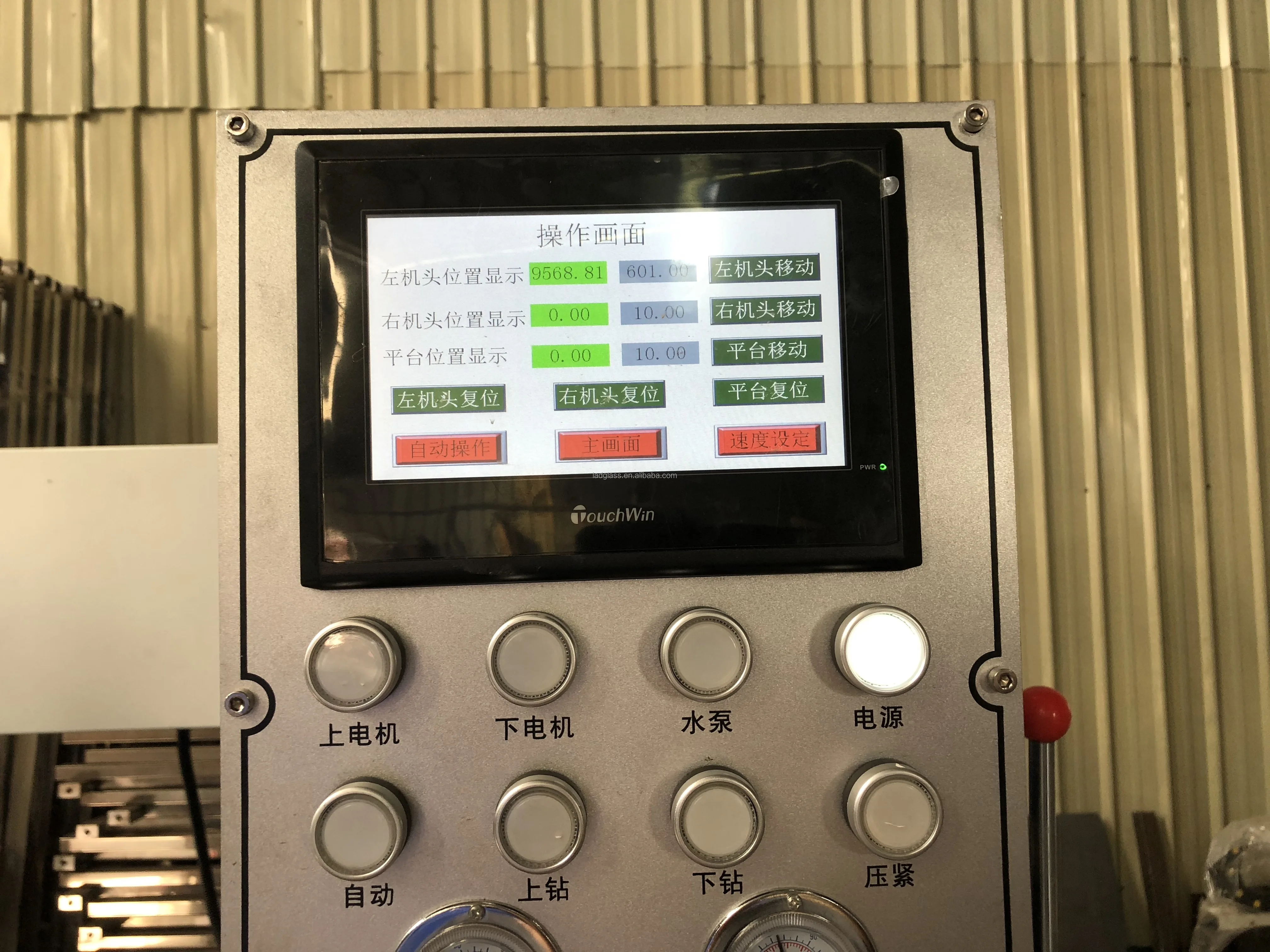

Can be both Chinese / English languages.
