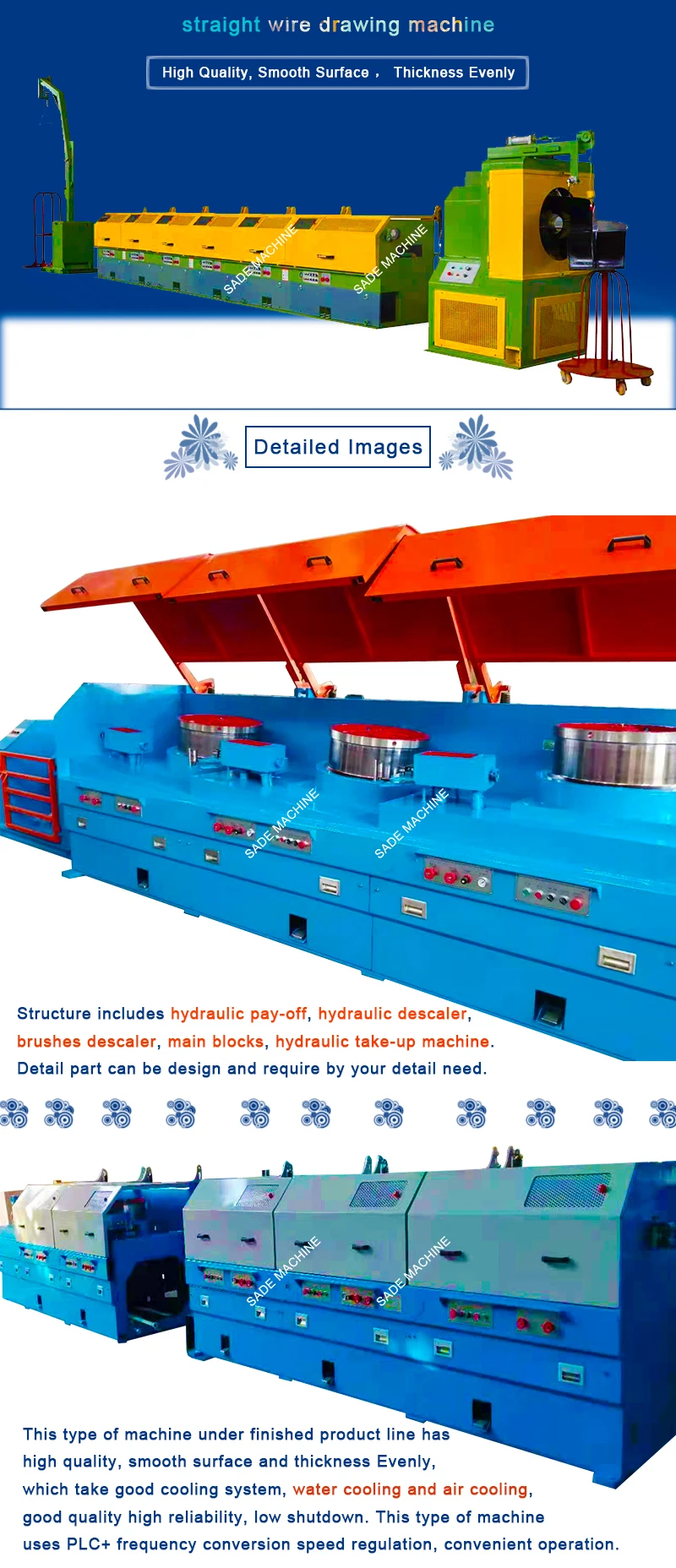

low corbin and high corbin straight line wire drawing machines straight line brass wire drawing machine
Common models of wire drawing machine include pulley wire drawing machine, straight line wire drawing machine, water tank wire drawing machine and so on.It is Suitable for drawing materials with welding rods, welding wires, steel wires, wires, cables, alloys and other metal wires.
Technical Parameters
Item Des./Type | LN9-900 | LN9-800 | LN9-700 | LN10-600 | LN10-400 |
Drum Dia./mm | 900 | 800 | 700 | 600 | 400 |
Drawing Passes/time | 9 | 9 | 9 | 10 | 10 |
Max. Inlet Wire Dia./mm | 8-14 | 8-10 | 6.5-8 | 5.5-6.5 | 1.8-2.5 |
Min. Outlet Wire Dia./mm | 3-5 | 3-4 | 2.5-3 | 1.8-2 | 0.75-1 |
Drawing Speed/ m/min | 300 | 360 | 480 | 750 | 840 |
Inlet Wire Strength/kg/mm2 | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
Total Compressibility/% | 85.94-87.24 | 84-85.94 | 85.21-85.94 | 89.29-90.53 | 87.24 |
Average Compressibility/% | 19.58-20.48 | 18.42-19.58 | 19.13-19.58 | 21.00-21.02 | 18.61 |
Motor Power/kW | 90-110 | 55-90 | 55-75 | 22-37 | 7.5-15 |
Usage:

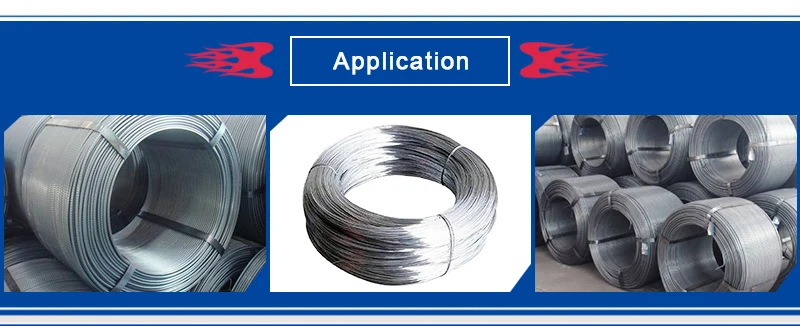

Wire drawing processing for high, medium and low carbon steel wire, stainless steel wire, copper wire, alloy copper wire, aluminum alloy copper wire, etc.
Advantage :
1.Water cooling reduces the heat generated in the drawing process and reduces
Mold loss, improve wire quality.
2. high quality of finished line, smooth surface, thickness uniform.
3. Tungsten carbide spray the drums, long service life
4. High speed with inverter speed adjustable
