Product Description
Artemis TI-CS-T1P Infrared Thermal Camera
Artemis TI-CS-T1P Infrared Thermal Camera is a lightweight, easy-to-use, long-distance and high-performance thermal imaging camera that can measure temperatures accurately at safe distances(up to 30 meters). It supports -20℃～+250℃ (Standard) and 200℃ ~ +600℃ (Optional) temperature ranges.
It has the characteristics of accurate temperature measurement, real-time imaging, automatic high temperature tracking, fast aiming, etc. It is widely used in electricity and other industry applications.
Specification Table
Detector Data | ||
Type | Uncooled FPA | |
IR resolution | 160×120 | |
Pixel pitch | 17µm | |
Spectral range | 7.5～14µm | |
NETD/Sensitivity | 70mK | |
Lens | ||
FOV/Minimum imaging distance | 24°x18°/20cm | |
IFOV | 2.62mrad | |
Focus | Auto/Motor | |
Lens(optional) | 45°x34°/50cm, 12°x9°/1m, 6°x4.5°/4m | |
Image Performance | ||
Display | 3.2”, 270°tiltable LCD, 800x480 pixels | |
Visual camera | 3.0 mega pixel | |
Frequency | 50Hz/60Hz | |
Zoom | 1×～4× continuous | |
Color palettes | 12 palettes(including iron,rainbow,white hot and black hot etc.) | |
Contrast /brightness | Auto/Manual | |
Measurement | ||
Temperature range | -20℃～+250℃(Standard), 200℃ ~ +600℃(Optional) | |
Distance | Up to 30 meters | |
Temperature accuracy | ±2℃/ ±2% (reading) | |
Spotmeter | 4 adjustable spots | |
Line profle | Vertical/Horizontal | |
Area | 3 adjustable boxes with max./min./avg temperature value | |
Isotherms analysis | Capture high/low temperature/interval | |
Alarm | Voice, color | |
Measurement correction | Auto/Manual | |
Emissivity correction | Adjustable from 0.01 to 1.0 or selected from list of materials | |
Background temperature correction | Auto | |
Atmospheric transmissivity correction | Auto | |
Setting function | Date/time; Temperature unit ℃/℉/K; Language | |
Languages | 10 languages (English, French, Italian, German, Spanish, Portuguese, Russian, Korean, Japanese, Simplifed Chinese & Traditional Chinese) | |
Image Storage | ||
Storage media | Built-in ash card, ＞700 images | |
8G SD card, ＞11200 images | ||
Storage mode | Auto/manual store image in frame | |
Thermal image format | JPEG, with 14-Bit radiometric image | |
Visible image format | JPEG or stored with themal image | |
Voice annotation | 40s voice record,stored with per image via built-in microphone | |
Periodic image storage | User defned, 7s at least | |
Laser Point | ||
Grade/Type | Class2,1mW/635nm Red | |
Laser Point Interfaces | ||
Power interface | Yes | |
SD card slot | Yes | |
Video output | CVBS | |
Audio output | Yes | |
USB | USB 2.0 radiometric images,measurement data and voice are transfered to PC | |
Tripod | 1/4″--20 | |
Power System | ||
Battery type | Lithium battery | |
Battery operating time | 2hours | |
External power | DC: 5V±5％ | |
Charging system | Charger or in camera | |
Power saving | Yes | |
Enviroment Parameters | ||
Operation temperature range | -20℃～+50℃ | |
Storage temperature range | -40℃～+70℃ | |
Humidity | ≤95%（Non- condense） | |
Vibration | 2G（IEC60068-2-6） | |
Shock | 25G（IEC60068-2-29） | |
Encapsulation | IP54 (IEC60529) | |
Physical Data | ||
Size | 128mm×62mm×154mm | |
Weight | ≤0.4Kg(with battery and standard lens) | |
Packing | ||
Standard | Thermal imaging camera with standard IR lens, 2 Li-ion batteries, Battery charger, Adapter, USB cable, SD card, card reader, Software CD, Warranty card ,calibration certifcate | |
Option | Laptop, SLR camera | |
Company Profile
Chengdu Meixiang Technology is an affiliate of CreativeStar Solutions, a Massachusetts-based company providing essential technology, software, and services for businesses.
Not only does our reliable technology and software help businesses reopen and prepare them for future unexpected events, but our people are there to help every step of the way, helping you find the most suitable solution. Our solution-based company is dedicated not only to keeping employees and customers safe but also to safeguarding the future of your business for unexpected events.
Not only does our reliable technology and software help businesses reopen and prepare them for future unexpected events, but our people are there to help every step of the way, helping you find the most suitable solution. Our solution-based company is dedicated not only to keeping employees and customers safe but also to safeguarding the future of your business for unexpected events.

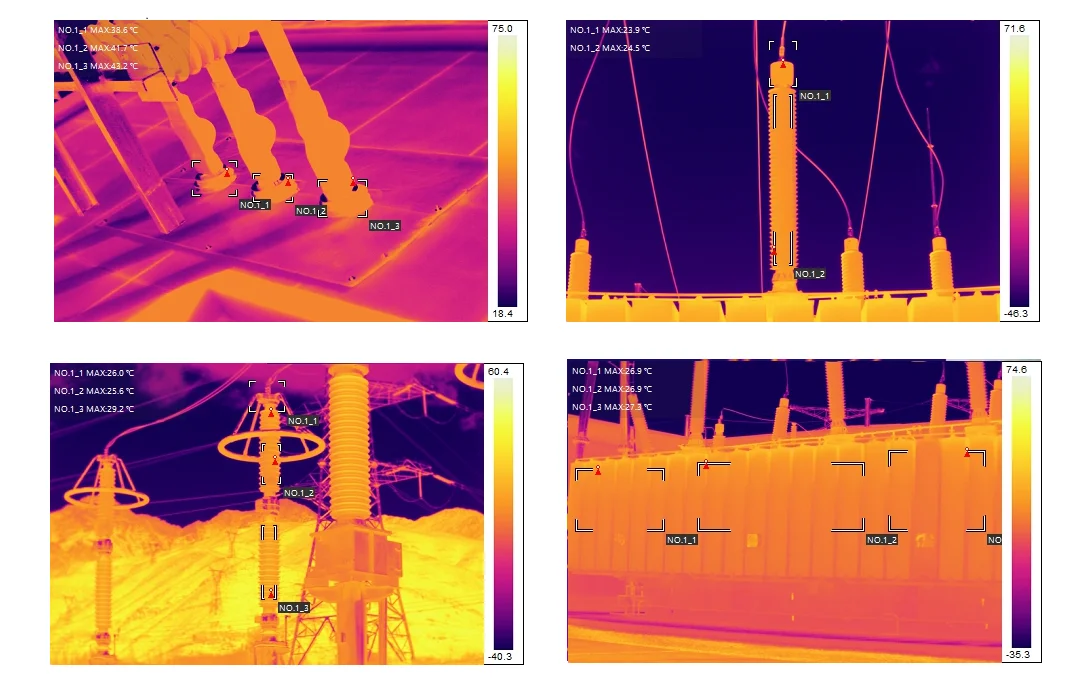

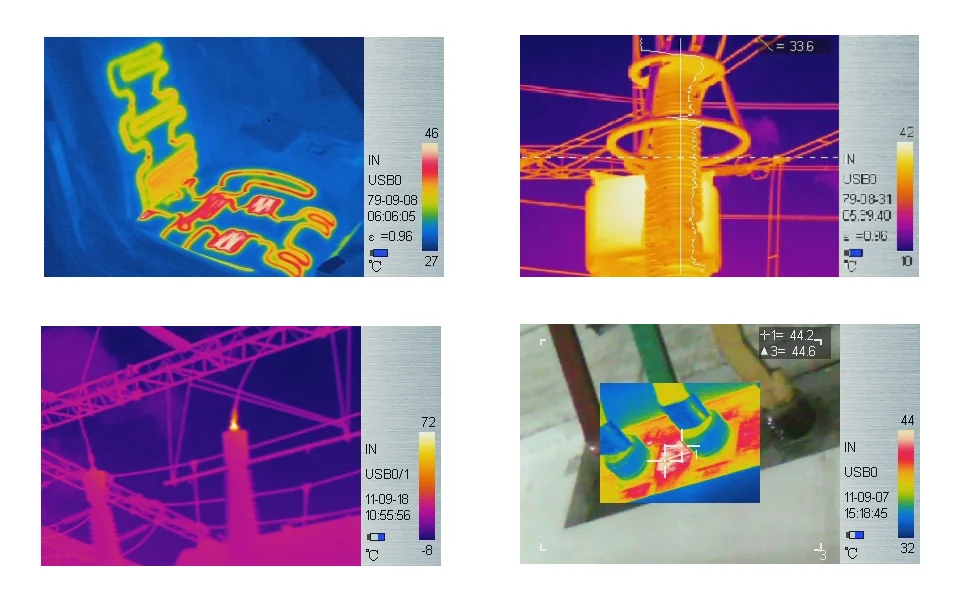

Product Usage
