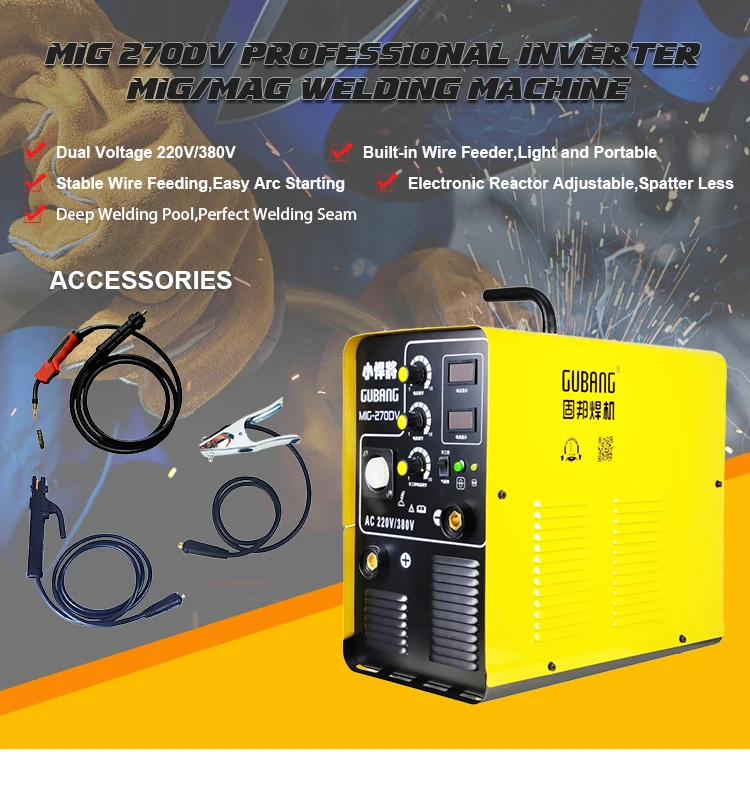

Новый дизайн двухвольтный 220 В/380 В инвертор портативный сварочный аппарат MIG
- Категории: MIG Welders >>>
- Поставщик: Shenzhen,Gubang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

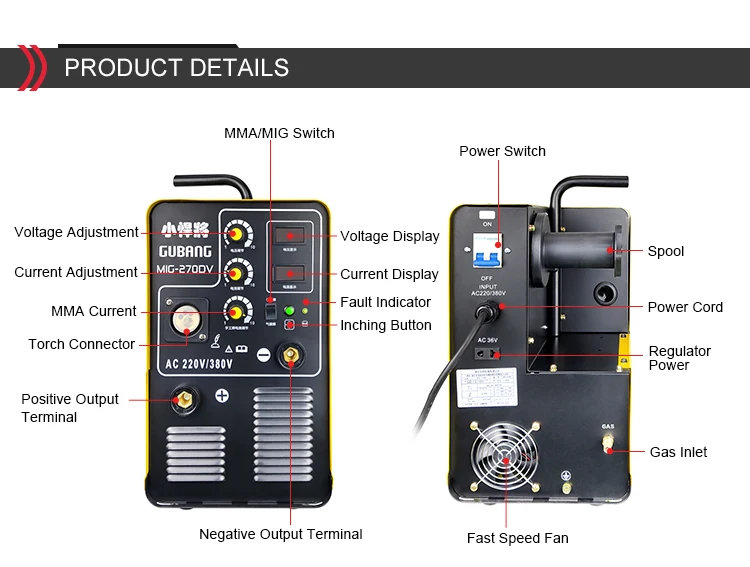

Features：
* Most advanced IGBT inverter technology.* Compact design with 15kg size inbuilt wire spool accepted.
* Adjustable inductance for controlling arc to optimize weld performance.
* Digital display for current and voltage.
* Convertible wire polarity for Gas Metal Arc Welding and Flux Cored Arc Welding.
* High welding efficiency.
Model | MIG-270DV |
Type | IGBT INVERTER MIG MAG,Built-in Wire feeder |
Power Supply(V) | Single phase 220V or Two phase AC380V +-15% |
Rated Input Power Capacity(KVA) | 9.4 |
Input Frequency(Hz) | 50/60 |
Non-load Voltage(V) | 65 |
Output Current Range(A) | 20-270A |
Wire feeder | Bulit-in |
Spool(kg) | 15 |
Wire diameter(mm) | 0.8/1.0/1.2 |
Rated Duty Cycle(%) | 60 |
Efficiency(%) | 85 |
Power Factor | 0.93 |
Insulation Grade | F |
Protection Grade | IP21 |
Electrode Diameter(mm) | 1.6/2.5/3.2/4.0 |
N.W./G.W.(kg) | 18/20 |
Dimension(L*W*H)/mm | 450*245*480 |
Packing Size(L*W*H mm)/1 pcs | 602*407*H562mm/ Brown carton |
Accessories | MIG torch,earth cable |
Company Profile
Factory Workshop
Certifications
Exhibition
Packaging
FAQ
