Products Description
Product name | TOMBO No.9007-SC |
Brand name | TOMBO |
Place of Origin | Japan |
TOMBO No. 9007-SC

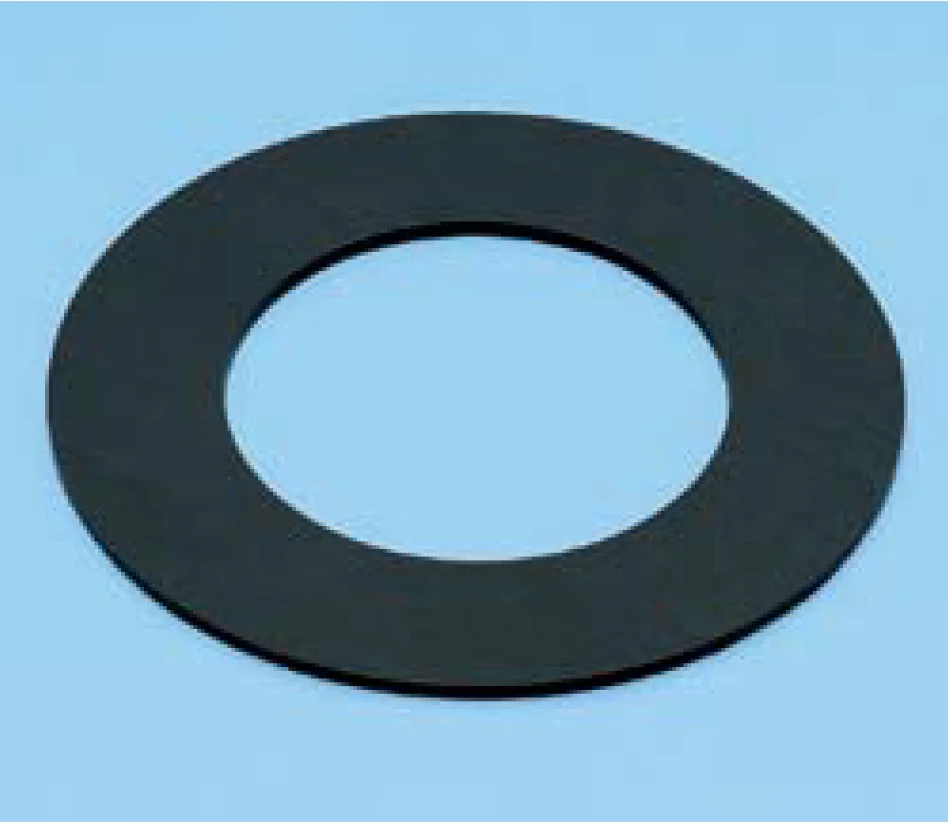

NAFLON™ special carbon filler filled PTFE cut gasket
NAFLON™ special carbon filler filled PTFE cut gasket
■Features
Can be used with strong alkaline fluids. (It cannot be used with nitric acid, concentrated sulfuric acid, chromic acid, or other oxidizing fluids.)
■Construction
Main constituents: PTFE, carbon
■Applicable fluid
Water、Steam、Hot water、Brine、Seawater、Petroleum hydrocarbon、Alcohol、Animal and mineral oil、Thermal oil、Aromatic hydrocarbons (benzene, toluene, xylene, etc) / organic solvents / thermal oils、Organic solvent、Weak acid、Weak alkalis、Saline、Strong alkali、Air、Exhaust gas、Combustible gas、Toxic gas、Hydrogen gas、Ammonia、Oxygen、Cryogenic fluids such as liquefied gas etc.
■Inapplicable fluid
Oxidizing acid (sulfuric acid, concentrated sulfuric acid, chromic acid, etc.)、PTFE corroding fluids (e.g. Molten alkali metal) etc.

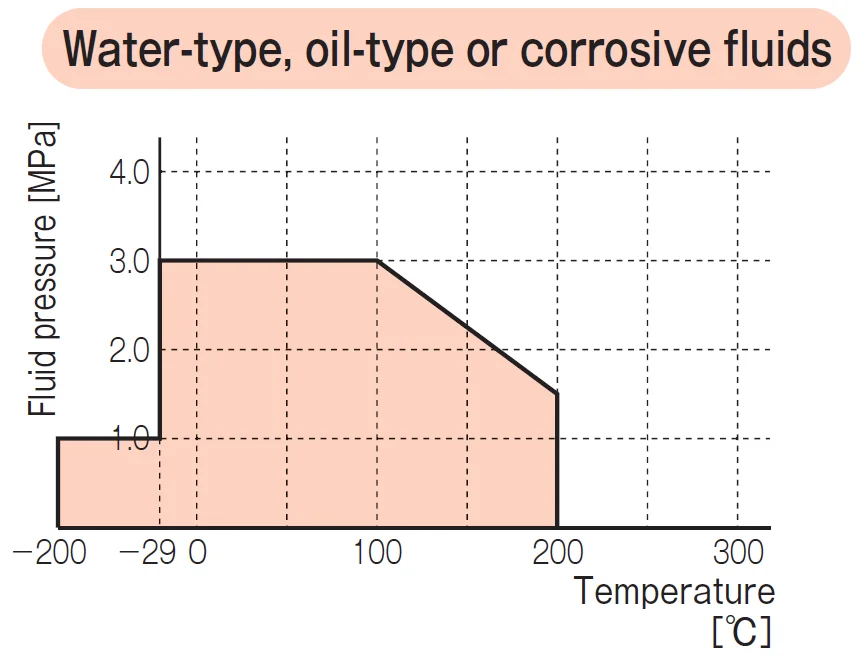

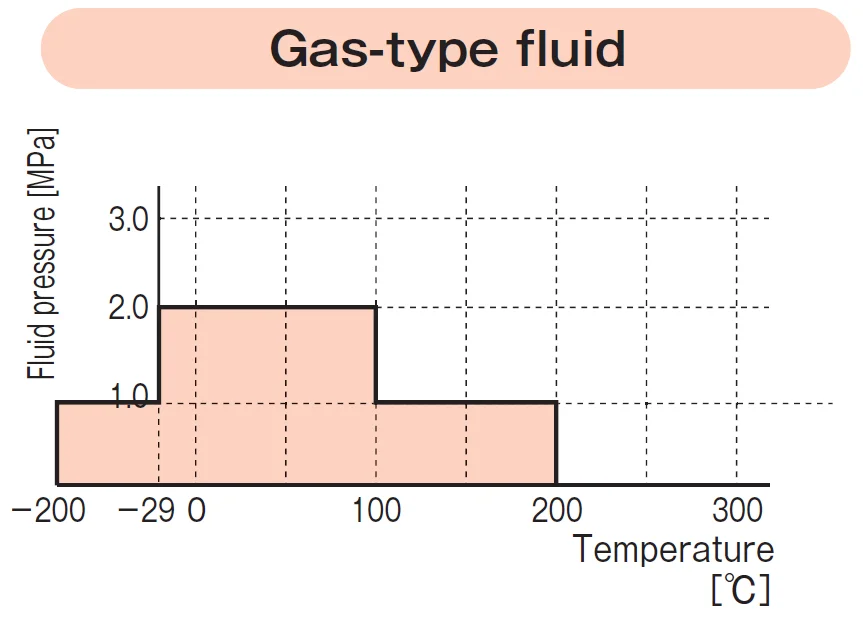

■Service range
Can be used with strong alkaline fluids. (It cannot be used with nitric acid, concentrated sulfuric acid, chromic acid, or other oxidizing fluids.)
■Construction
Main constituents: PTFE, carbon
■Applicable fluid
Water、Steam、Hot water、Brine、Seawater、Petroleum hydrocarbon、Alcohol、Animal and mineral oil、Thermal oil、Aromatic hydrocarbons (benzene, toluene, xylene, etc) / organic solvents / thermal oils、Organic solvent、Weak acid、Weak alkalis、Saline、Strong alkali、Air、Exhaust gas、Combustible gas、Toxic gas、Hydrogen gas、Ammonia、Oxygen、Cryogenic fluids such as liquefied gas etc.
■Inapplicable fluid
Oxidizing acid (sulfuric acid, concentrated sulfuric acid, chromic acid, etc.)、PTFE corroding fluids (e.g. Molten alkali metal) etc.
■Service range

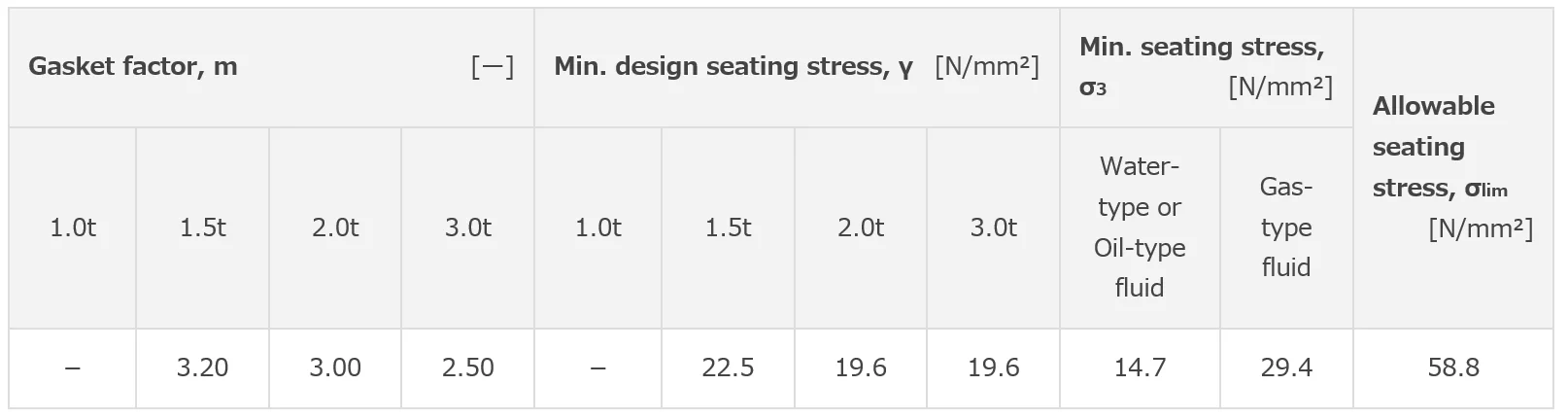

■Design criteria

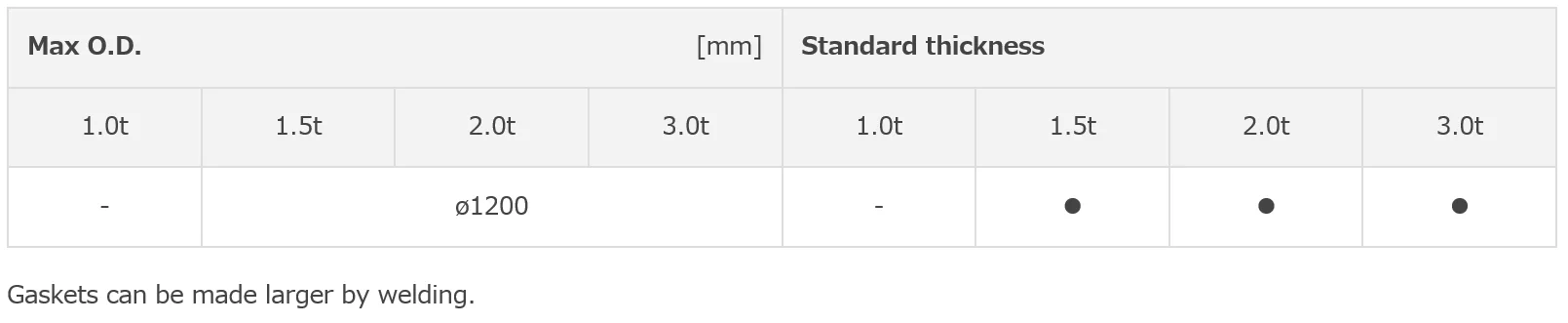

■Standard dimensions
■Applicable industry
Chemical、Oil and Gas、Paper mills、Food and beverage plants、Air conditioning and sanitation equipment、Industrial etc.

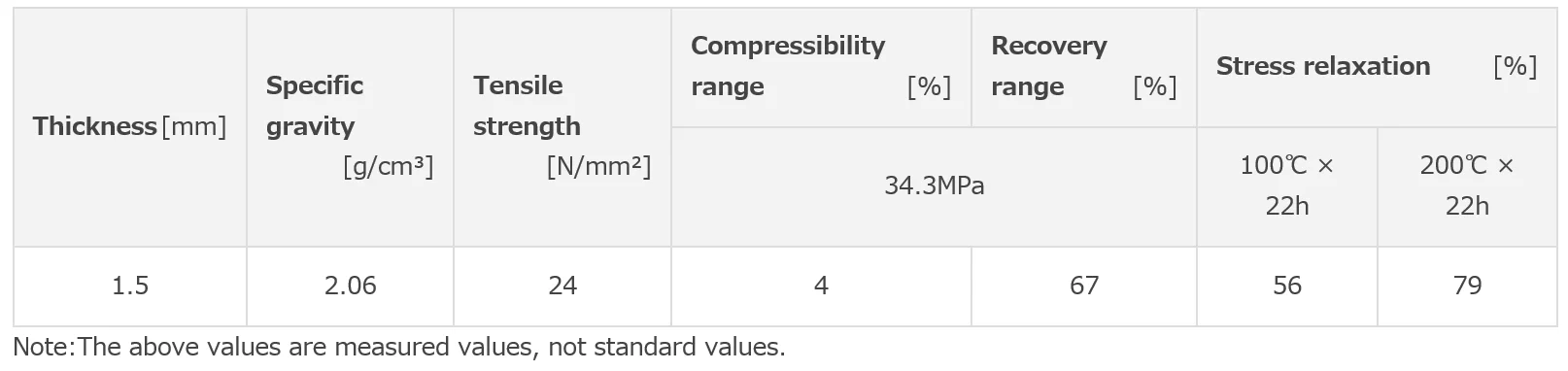

■Basic physical properties
Chemical、Oil and Gas、Paper mills、Food and beverage plants、Air conditioning and sanitation equipment、Industrial etc.
■Basic physical properties
■ Precautions for use
1) Fluids for which a fluoropolymer gasket is not suitable.
・ Do not use a PTFE gasket with molten alkali metal, high-temperature fluorine, chlorine trifluoride or other fluid that corrodes PTFE.
・ When a fluororesin gasket is used with a monomer-based fluid, the fluid may permeate into the gasket, resulting in polymerization. In such a case, it is recommended that you either replace the gasket at shorter intervals, or use a VORTEX gasket.
2) Gas-type fluid
When using a fluoropolymer gasket to seal gas, use TOMBO No.9400 (NAFLON paste) together in order to improve the sealing performance.
・ Do not use a PTFE gasket with molten alkali metal, high-temperature fluorine, chlorine trifluoride or other fluid that corrodes PTFE.
・ When a fluororesin gasket is used with a monomer-based fluid, the fluid may permeate into the gasket, resulting in polymerization. In such a case, it is recommended that you either replace the gasket at shorter intervals, or use a VORTEX gasket.
2) Gas-type fluid
When using a fluoropolymer gasket to seal gas, use TOMBO No.9400 (NAFLON paste) together in order to improve the sealing performance.
