Decapower новый 4 в 1 CO2 безгазированный ARC MMA TIG MAG MIG сварочный аппарат 180 Ампер с регулировкой индуктивности для
- Категории: >>>
- Поставщик: Taizhou,Lemin,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Features of Proudct:
The NEOMIG welder is an inverter-based portable full-bridge welding machine combined with GMAW,FCAW,SMAW and DC LIFT TIG WELDING.Easy Stepless adjustment of voltage and wire feed brings quick setting of welding parameters giving excellent and professional welding results.
The unit works with elecrode for stick welding also.DC LIFT TIG is available trough scratching arc start byoptional TIG-17V torch.
Quick ARC-START and Wave control for MIG/MAG welding
Stabilized the small current trgnsitien, Reduce the splash of large current by 70% ~80%, The constant current arc starting improves the arc starting to 100%.Adopt analog circuit high-speed and accurate control technology, to achieve precise control of each droplettransfer and high-speed welding. High penetration rateand excellent weld bridging ability, realize the wide gapwelding and high weld quality.Ultra-low heat input cancontrol the formation of weld and minimize the deformation.
The unit works with elecrode for stick welding also.DC LIFT TIG is available trough scratching arc start byoptional TIG-17V torch.
Quick ARC-START and Wave control for MIG/MAG welding
Stabilized the small current trgnsitien, Reduce the splash of large current by 70% ~80%, The constant current arc starting improves the arc starting to 100%.Adopt analog circuit high-speed and accurate control technology, to achieve precise control of each droplettransfer and high-speed welding. High penetration rateand excellent weld bridging ability, realize the wide gapwelding and high weld quality.Ultra-low heat input cancontrol the formation of weld and minimize the deformation.

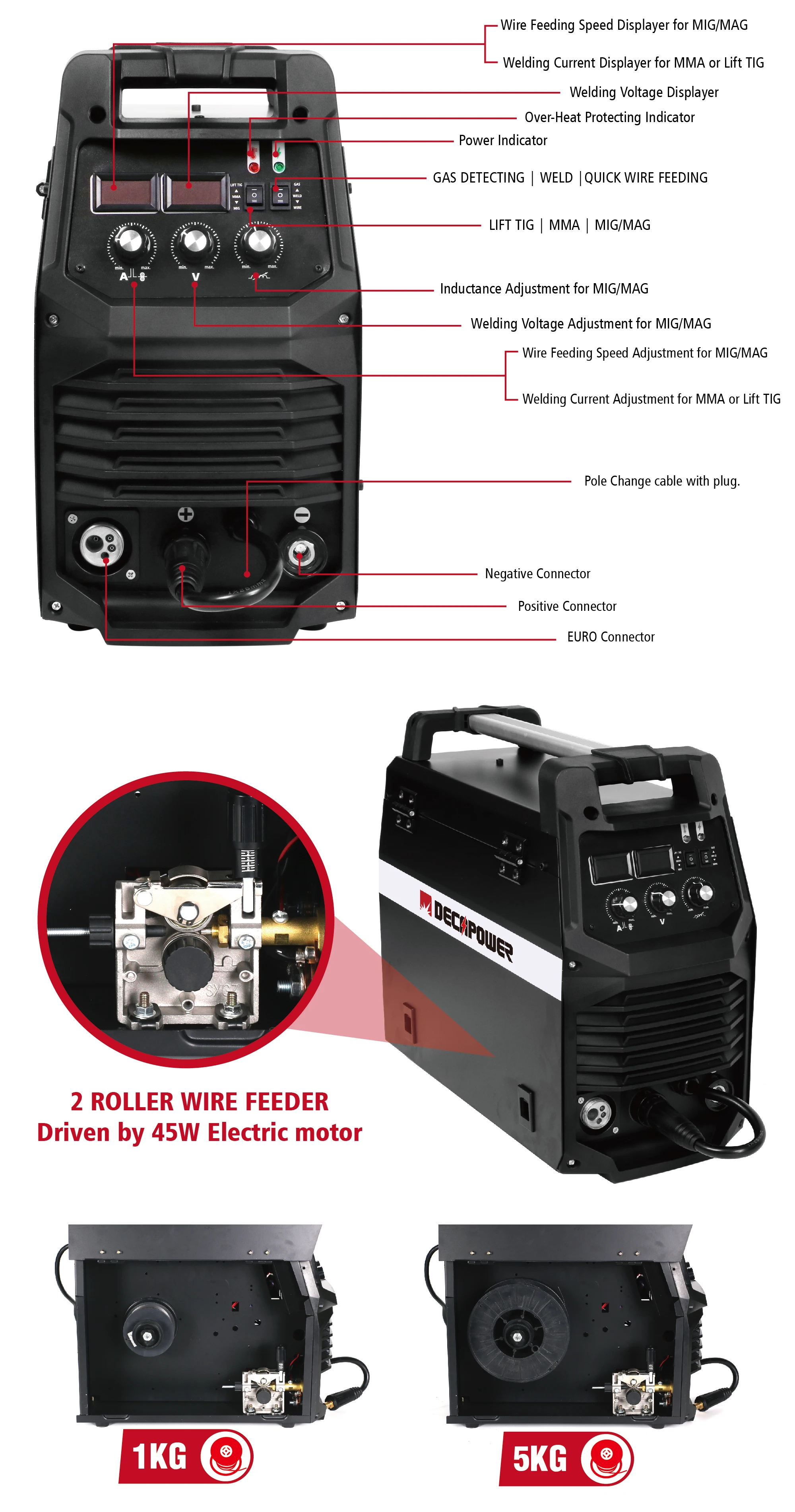

Poweful wire feeder driven by 45Watt electric motor,and it supplies high effeciency and stable feedingspeed, up to 15m/min.
Smooth-start provides a smooth, spatter-free arcstarting.
Details Images

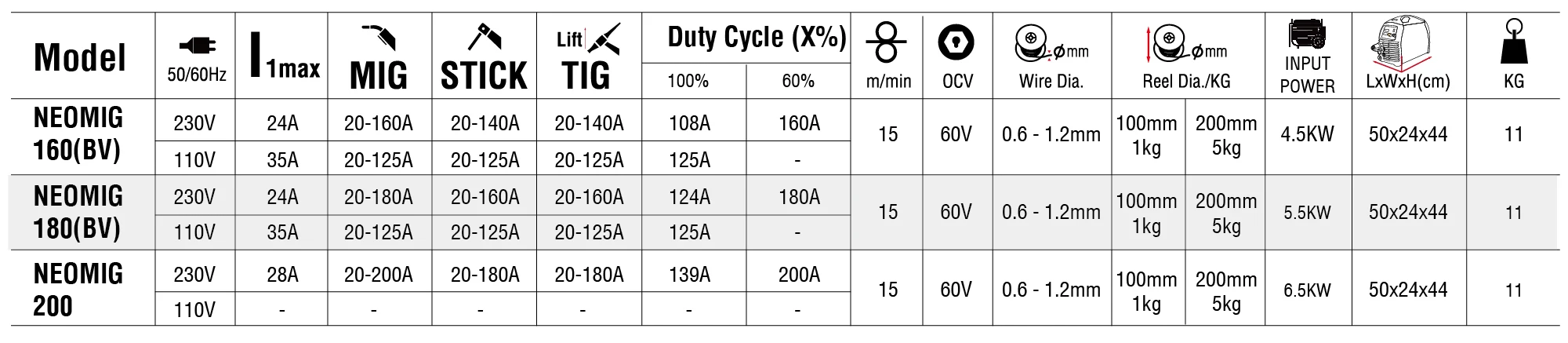

Product Parameter
Item | NEO MIG-180 |
Type | IGBT Inverter Technology |
Input Voltage | AC~ 230V +/- 10% |
Input Power | 6.5Kw |
Open Circuit Voltage | 60V |
Wire Melting Type | Short Circuit Transfer |
Output Current (MIG) | 20 - 180A |
Duty Cycle @40°C (MIG) | 60% @ 180A |
Output CUrrent (MMA) | 20 - 180A |
Duty Cycle @40°C (MMA) | 60% @ 180A |
Wire Feeding Speed | 15m/min |
Suggested Electrode Rod. | 1.6mm/2.5mm/3.2mm/4.0mm |
Suitable Welding Wire Size | 0.6mm/0.8mm/1.0mm/1.2mm |
Shell Protection Grade | IP21S |
Quick Connctor size | DKJ30-50 (Dia. = 13mm.) |
MIG Torch Connector | EURO type |
Machine Diemension | 580x280x420mm |
Packaging | 1pc/Brown Carton or Honeycomb Carton |
Master Carton Size | 660x320x510mm |
Warranty Period | 12 months |
Packing & Delivery
To ensure the safety of your goods,
1.For Retail, We delivery you the machine with strong honeycomb BOX packaging.
2.For Wholsale, the packaging is to be negotiated.
Recommend Products
Company Profile
Our Manufacturer
TAIZHOU LEMIN WELDING EQUIPMENT CO., LTD is the manufacturer of DECAPOWER company group.We're focusing on developing and producing reliable quality Inverter Welding Machines and Air Plasma Cutter with favorable price, such as MMA/ARC WELDER, TIG WELDER, MIG WELDER and AIR PLASMA CUTTER which has been approved by CSA, CCC, CE certificate.
Core Target
Tailor client's assortment products with innovation, competitive price and well presentation.
People
We're culturally diverse globally gained. Our Knowledge and Industry focused terms are driven to satify and exceed customer's
expectations.
expectations.
Culture
Our "CAN-DO" and "YES.WHY NOT" philosophy defines DECAPOWER's global approach. Our customer-centric spirit makes it easy to work
and being partner with us.
and being partner with us.
FAQ
1. Who are we?
We are the professional manufacturer of welding machines and plasma cutters since 2011.
3. How can we guarantee the quality?
Always a pre-production sample before mass production;
Always 100% final Inspection before shipment.
5. Why choose us?
OEM/ODM is available.
Small order is acceptable, even 1 piece.
Quick Delivery is available in 45 days.
Overseas Warehouse (Russia & West-Europe) supports Fast dispatch.
We are the professional manufacturer of welding machines and plasma cutters since 2011.
We're located at Wenling City of Zhejiang Province in maindland of China.
2. What do we manufactur?
We're mianly producing Inverter Welding Machine of
We're mianly producing Inverter Welding Machine of
MMA welders from 100 Amp to 500Amp (DIY or Industry purpose).
TIG welders from 160Amp to 300Amp, (DC or AC/DC).
MIG/MAG welders from 120Amp to 230A, (Gas or Gasless).
Air Plasma Cutter from 40Amp to 120Amp, (Pilot or HF arc strike).
3. How can we guarantee the quality?
Always a pre-production sample before mass production;
Always 100% final Inspection before shipment.
4. What is your warranty terms?
We provide 1 year warranty time for the whole machine since you received it.
We provide 1 year warranty time for the whole machine since you received it.
During the time, we will supply you the free spare parts for maintanence.
Meanwhile, we offer on-line technical supports for operating guide and troubleshooting.
5. Why choose us?
OEM/ODM is available.
Small order is acceptable, even 1 piece.
Quick Delivery is available in 45 days.
Overseas Warehouse (Russia & West-Europe) supports Fast dispatch.
