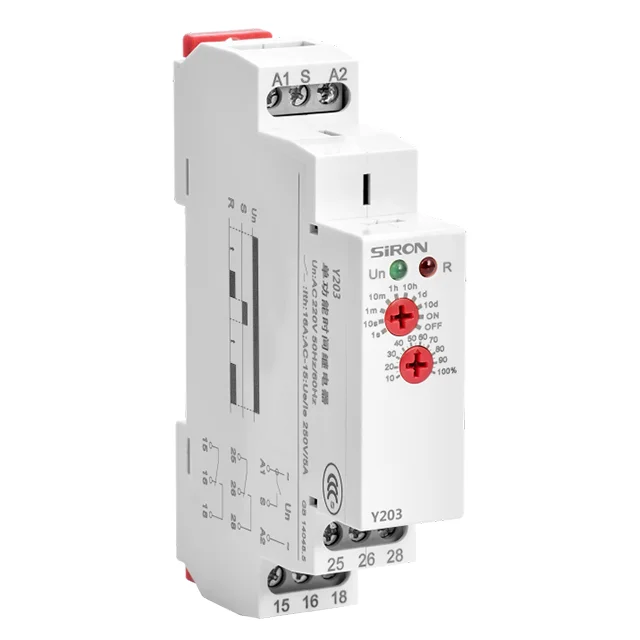

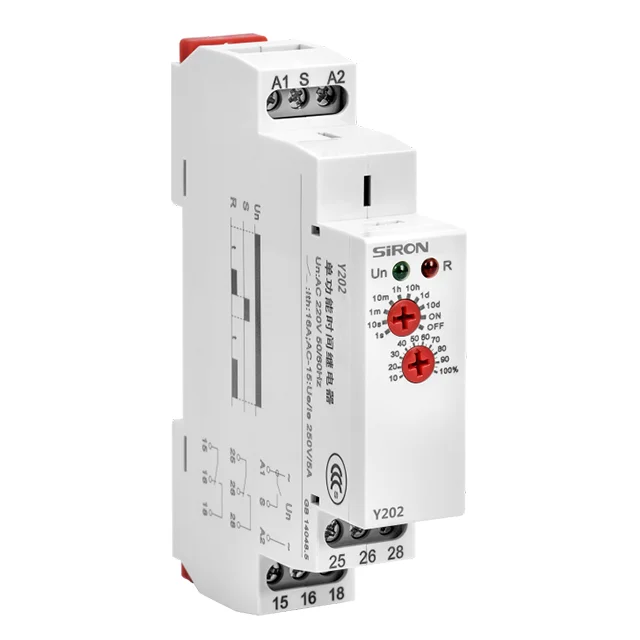

SIRON Y20 Din Rail Single Function Time Delay On
- Категории: Relays >>>
- Поставщик: Shenzhen,Siron,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Features
*High costperformance,single function time relay, delay can be straight through the panelknobConnectthe setting, convenientand intuitive;
*With 1 group ofdelay, 2 groups of delay,1 group ofdelay +1 group of transient specifications optional;*Ultra-wide delay range,0.1SEC-10 days can be set (10 gears);
*Optional AC/DC12V-240Vultra wide working voltagespecification;
*Delay switching on oroff acircuit, such as controllingthe poweron time of a heating element,Pumpworking time, fan delay d isconnect.
*With 1 group ofdelay, 2 groups of delay,1 group ofdelay +1 group of transient specifications optional;*Ultra-wide delay range,0.1SEC-10 days can be set (10 gears);
*Optional AC/DC12V-240Vultra wide working voltagespecification;
*Delay switching on oroff acircuit, such as controllingthe poweron time of a heating element,Pumpworking time, fan delay d isconnect.
Products Description
Product Parameters
Specifications | ||||||||||

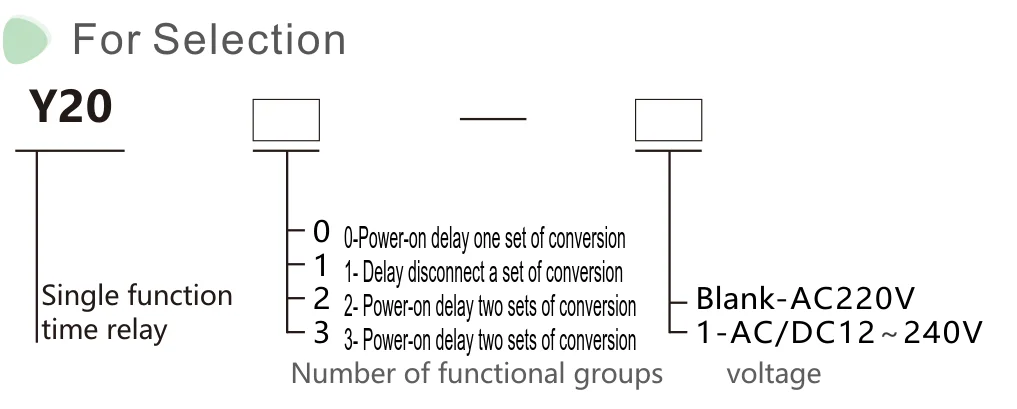

Model | Electricity delay | Y200 | Y200-1 | Y202 | Y202-1 | |||||
Delay to disconnect | Y201 | Y201-1 | Y203 | Y203-1 | ||||||

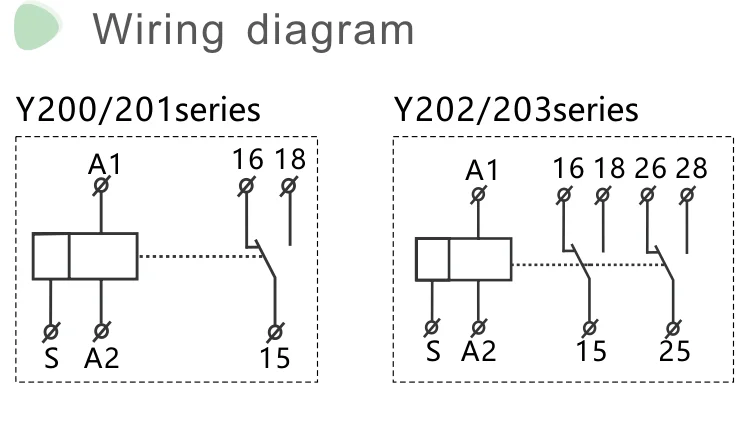

Output number of contact groups | A set of conversions | Two sets of conversion | ||||||||
Output contact current | 1×16A(AC1) | 2×16A(AC1) | ||||||||
Output contact voltage | 250VAC/24VDC | |||||||||
Rated control supply voltage | AC 220V (50-60Hz) | AC/DC 12-240V (50-60Hz) | AC 220V (50-60Hz) | AC/DC 12-240V (50-60Hz) | ||||||
Consumed power | ACmax.6va/1.3W | AC 0.09-3VA/DC 0.05-1.7W | ACmax.6va/1.9W | AC 0.09-3VA/DC 0.05-1.7W | ||||||
Power supply allowable fluctuation range | -15%；+10% | |||||||||
Power indicator light | Green LED | |||||||||

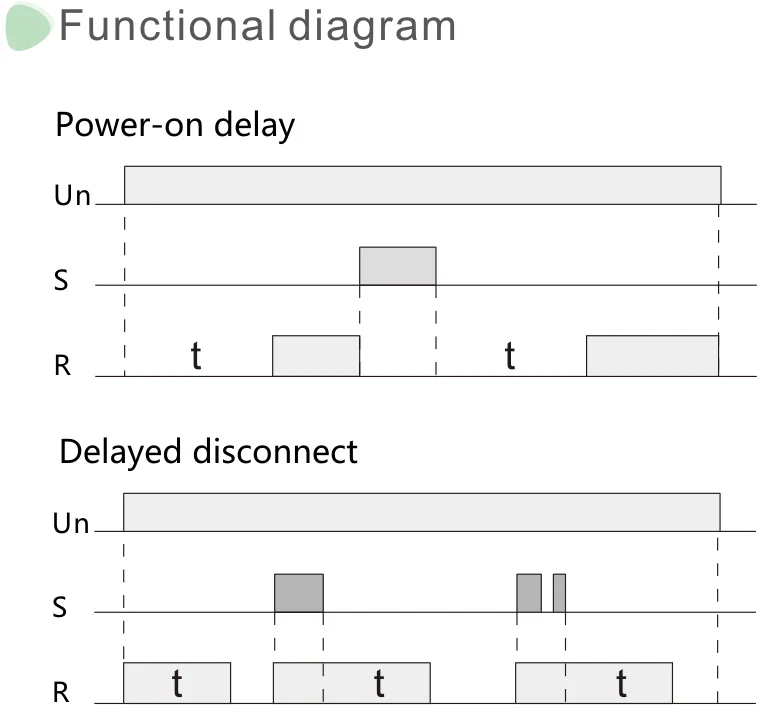

Delay range | 0.1 seconds-10 days, normally open, normally closed | |||||||||

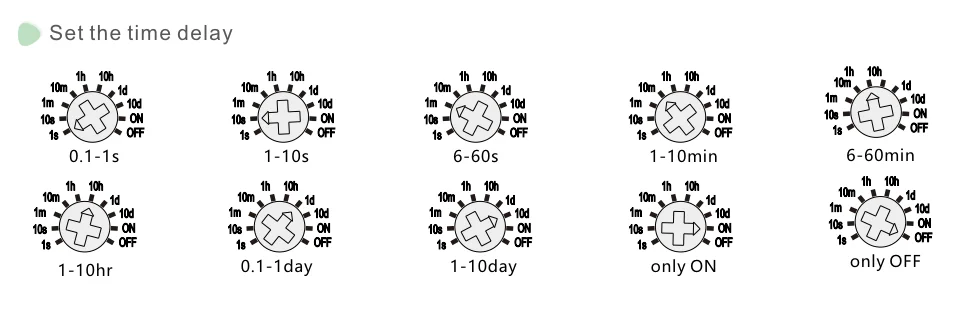

Set way | Knob | |||||||||
Setting precision | 10% | |||||||||
Repeat accuracy | 0.2% | |||||||||
Temperature fluctuation error | 0.05%/℃，at=20℃(0.05%℉,at=68℉) | |||||||||
Minimum switching power | 500mW | |||||||||
Output relay indication | Red LED | |||||||||
Mechanical life | 1×107 | |||||||||
Electrical life (resistive load) | 1×105 | |||||||||
Reset the time | Max 200ms | |||||||||
Operating environment temperature | -20℃～+55℃ | |||||||||
Store and transport ambient temperatures | -35℃～+75℃ | |||||||||
installation | 35mm rail installation | |||||||||
Protection grade | IP20 | |||||||||
Installation position | Arbitrary | |||||||||
Installation altitude | ≤2000M | |||||||||
Pollution levels | 2 | |||||||||
Wiring ability | 1×2.5mm2 or 2×1.5mm2 0.4N.m | |||||||||

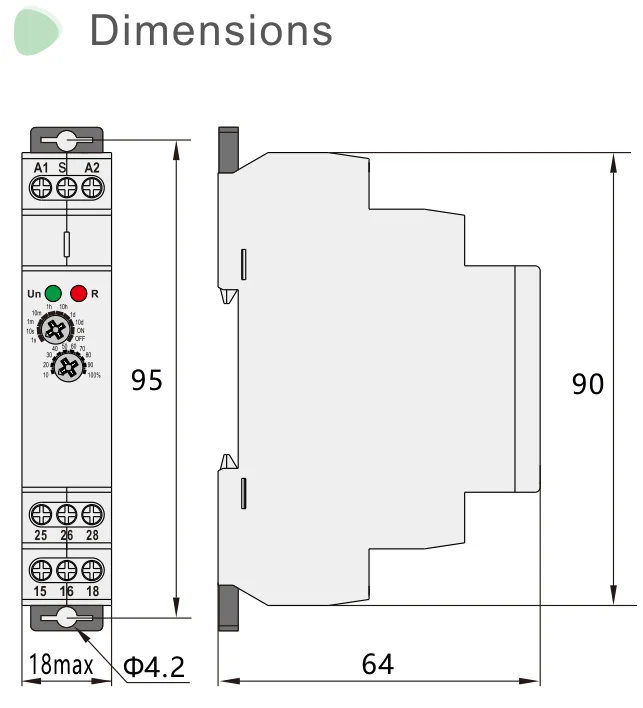

Overall dimensions | 90mm×18mm×64mm | |||||||||
Conform to the standard | GB14048.5,IEC60947-5-1,EN61812-1 | |||||||||
