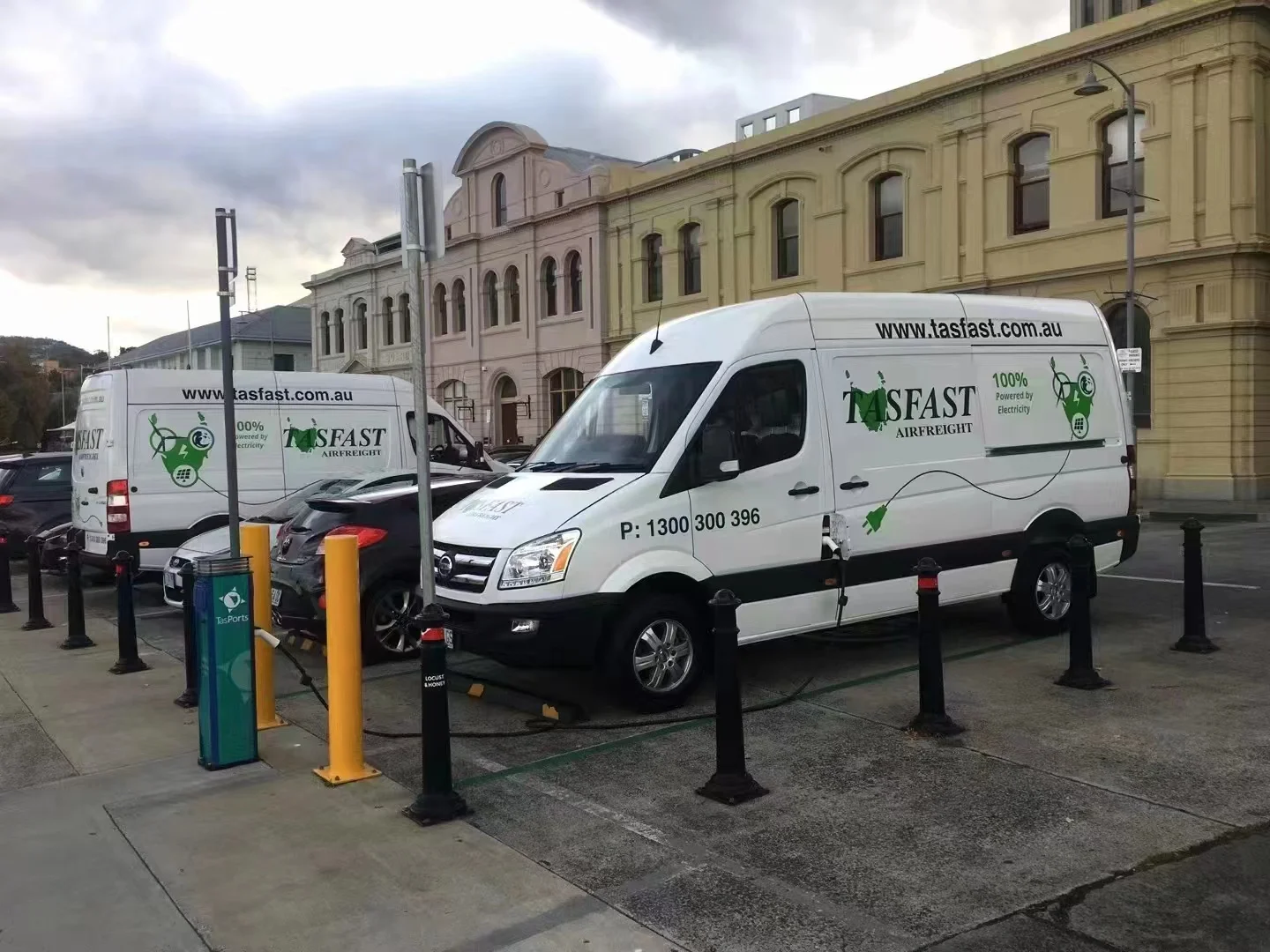

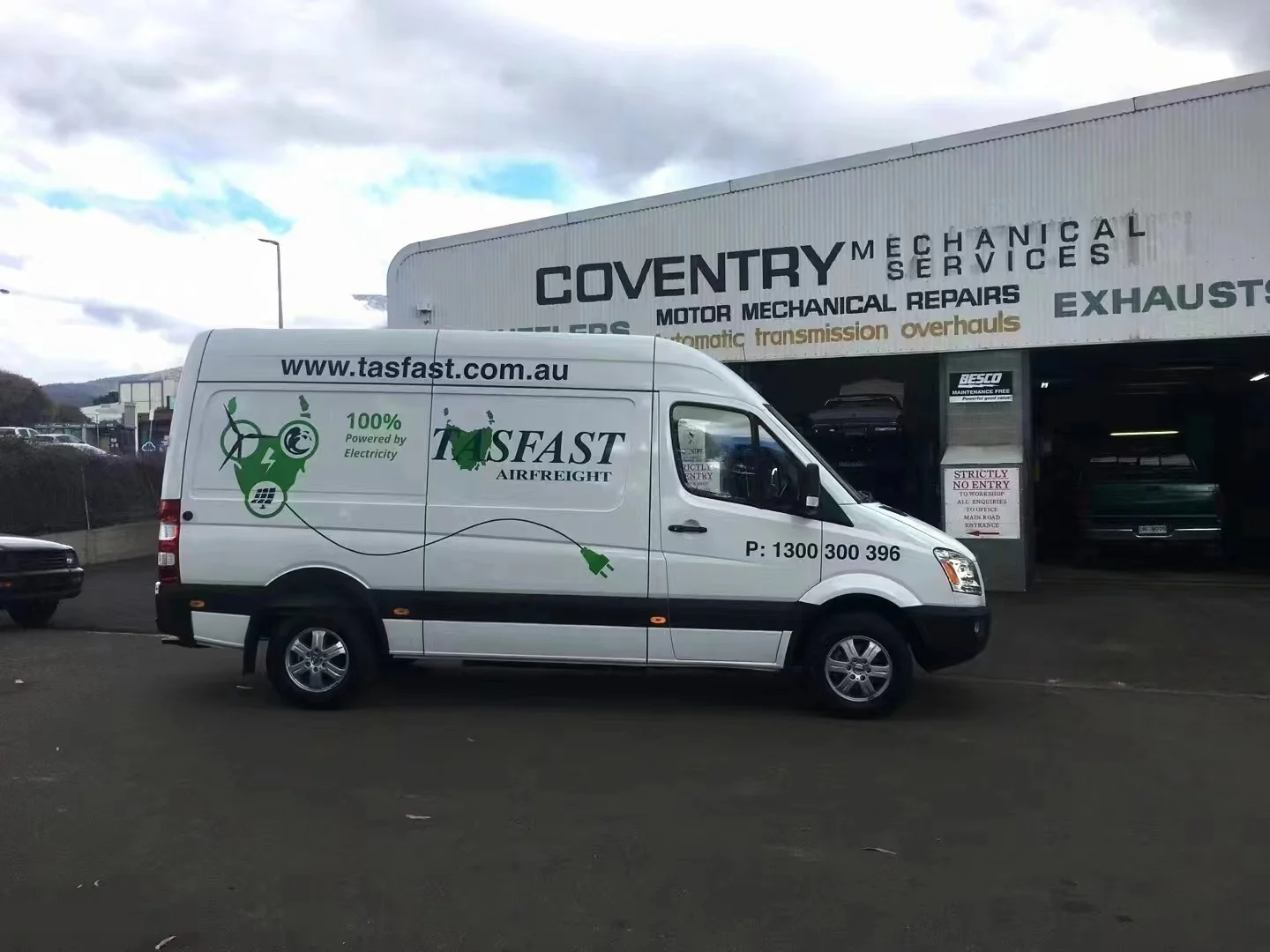

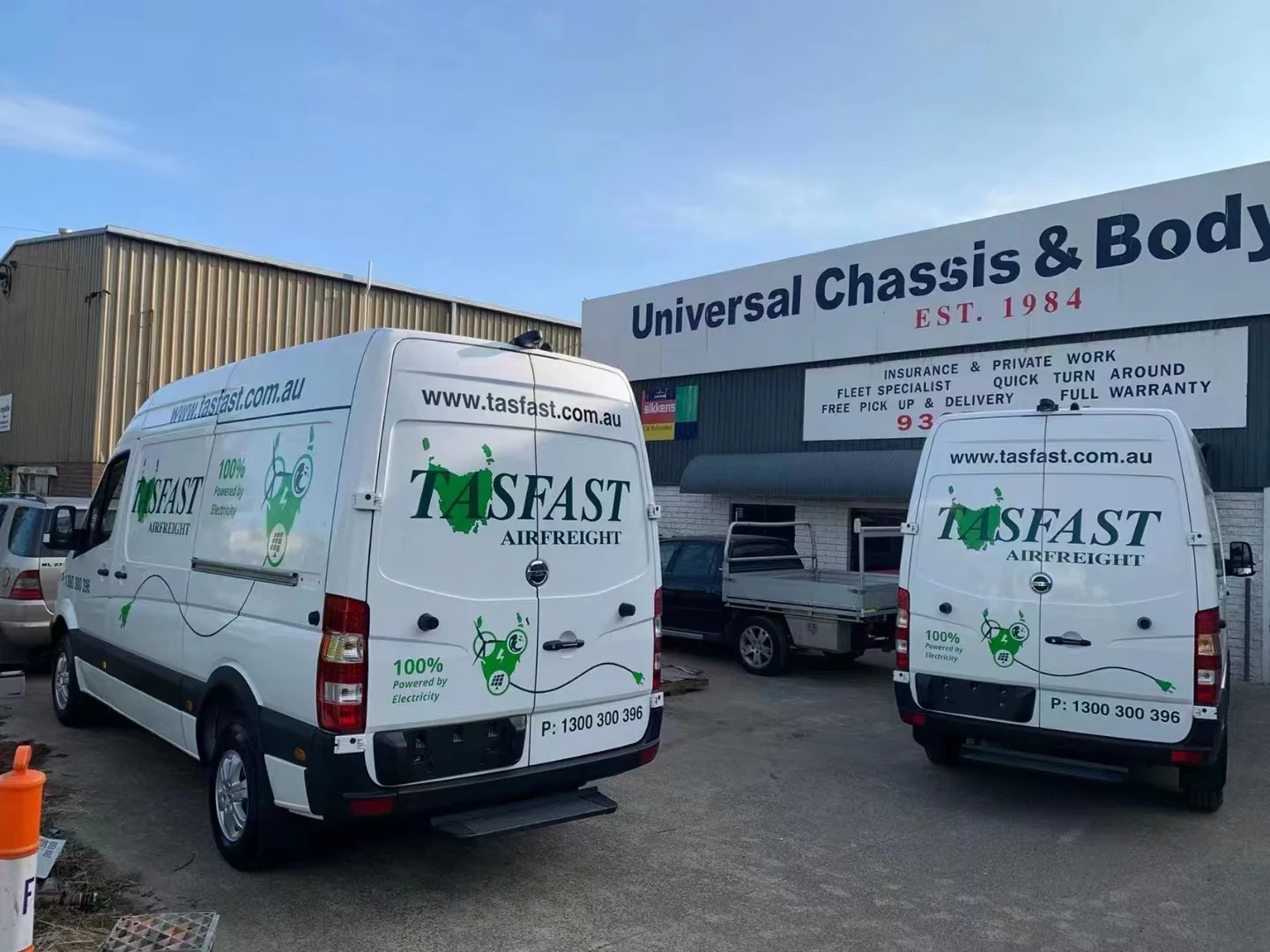

Australian electric transport company

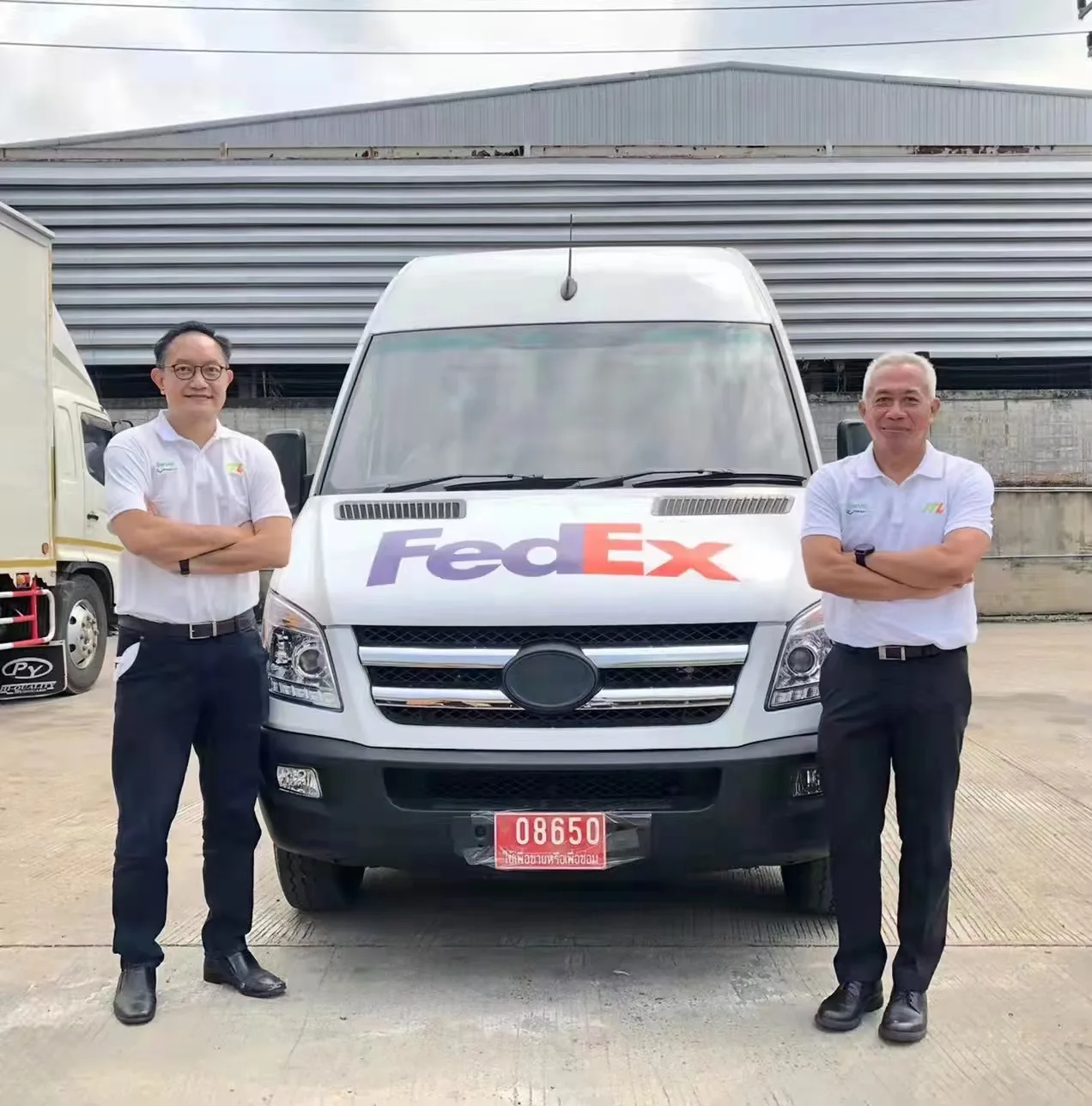

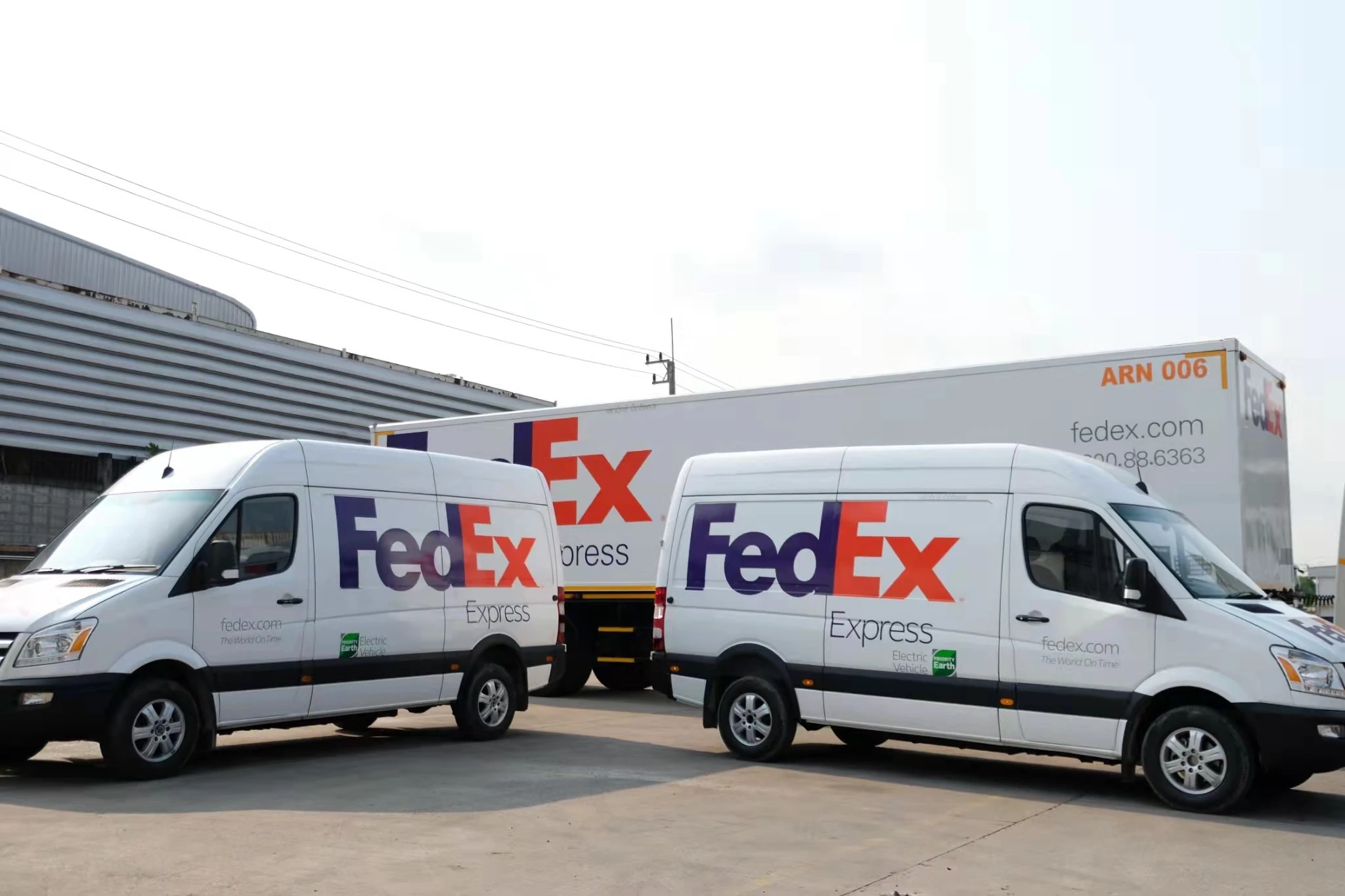

Thailand logistics transportation company
Product Introduction

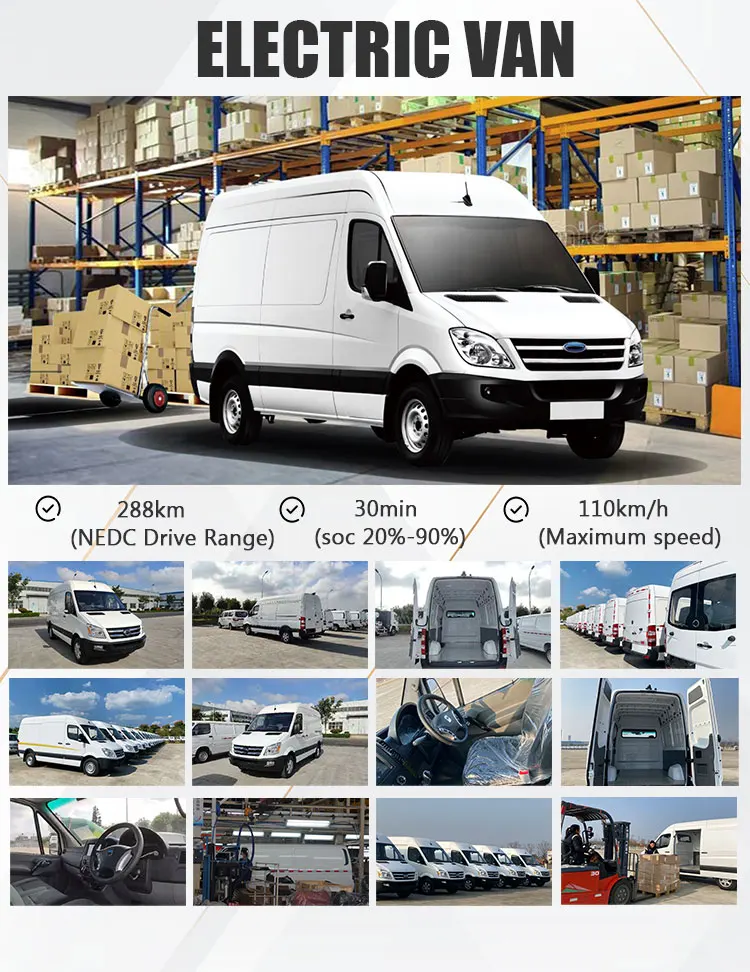

ELECTRIC VAN GO BEYOND EXPECTATIONS
The AE3500EV CARGO VAN is the first proper, completely purpose-built mainstream electric van to go on sale in according with EU design requirements. Designed from the ground-up for electric power only, the AE3500EV CARGO VAN is compact, lightweight and can carry more than 1000kg payload.
AE3500EV（73.6KWH） | ||||||
NO. : AE3500-20210825001 | ||||||
Basic parameters of the vehicle | ||||||
Body parameter | Vehicle model | AE3500EVL | AE3500EVR | |||
Driver cabin | left hand | right hand | ||||
Ambient temperature（℃） | -20~40 | |||||
Body dimension (mm) | 6040×2020×2650 | |||||
Cargo dimension (mm) | 3450×1780×2000 | |||||
Wheelbase (mm) | 3665 | |||||
Curb weight/Gross weight (KG) | 2790 / 3500 | |||||
Approach/departure angle | 21 / 17 | |||||
Front/rear overhang | 1020/1355 | |||||
Front/rear wheeltrack | 1720 / 1716 | |||||
Max speed (km/h) | 110 | |||||
Gradeability/climbing speed (%）/（km/h) | 20 / 20 | |||||
Battery capacity (kWh) | 73.6 | |||||
Cooling mode | Liquid cooling | |||||
Range (Km) | 288 | |||||
Driving motor | Permanent magnet synchronous motor | |||||
Peak power/torque （KW）/（N.m） | 100 / 750 | |||||
Driving mode | Front motor, rear driving | |||||
Rear axle type | Integral | |||||
Front suspension type | Horizontal spring-type independent suspension | |||||
Rear suspension type | Vertical three plates spring-type non-independent suspension | |||||
Power steering type | Electronic hydraulic power system | |||||
Type specification | 215/75 R16LT 12RP | |||||
Wheel | Aluminum alloy wheels/4 pieces | |||||
Front/rear brake type | Front disc, rear drum | |||||
Parking brake | Hand brake | |||||
Body structure | Monocoque | |||||
Door quantity | 4 | |||||
Seat quantity | 2 | |||||
The final interpretation right belongs to Nanjing AE system technology Co., Ltd | ||||||
Super power, 0～50km/h acceleration time 5 seconds;
High-power permanent magnet synchronous motor
The AE3500EV CARGO VAN is equipped with a 100kW electric motor. The peak torque is 750N·m, and it can accelerate from 0-50 kilometers in 6 seconds.
The AE3500EV CARGO VAN is equipped with a 100kW electric motor. The peak torque is 750N·m, and it can accelerate from 0-50 kilometers in 6 seconds.
Large capacity lithium ion battery
AE3500EV CARGO VAN uses lithium-ion battery with large energy density and has excellent cruise performance. The battery box is waterproof, fireproof, anti-leakage, anti-collision, and the waterproof level reaches the highest international civil standard IP67, and the power system is remotely monitored for 24 hours.
Battery technology
AE3500EV CARGO VAN is being the market leaders in battery technology, we have developed a number of battery options for the AE3500EV CARGO VAN, by using various battery cooling methods, which allows us to reduce charging time (DC 30mins (10%-90%) AC5hrs), extend battery life and increase the operating range.
AE3500EV CARGO VAN Compact Efficiency
The width of the compartment is 1780mm. The cargo area offers optimal ease of loading with the short wheelbase for the van of 12.28 cubic metres in cargo capacity.
Safety
safety is paramount and the AE3500EV CARGO VAN meets all European commercial vehicle collision design standards.
Advanced driver assistance system as standard with the latest generation of ESP Electronic Stability Program and delivers comfort and peace of mind in any situation.
Advanced driver assistance system as standard with the latest generation of ESP Electronic Stability Program and delivers comfort and peace of mind in any situation.
Driver's Environment Comfort & Safety
Stay cool at all times with the electric air conditioning system with our ever-changing climate, the importance of a good air conditioning system was always going to be a factor when it came to designing this vehicle. The variable control of the air conditioning system ensures that the temperature can be adjusted to the desired level easily and quickly. So you can always rely on a pleasant work environment, whatever the weather.
Think Big

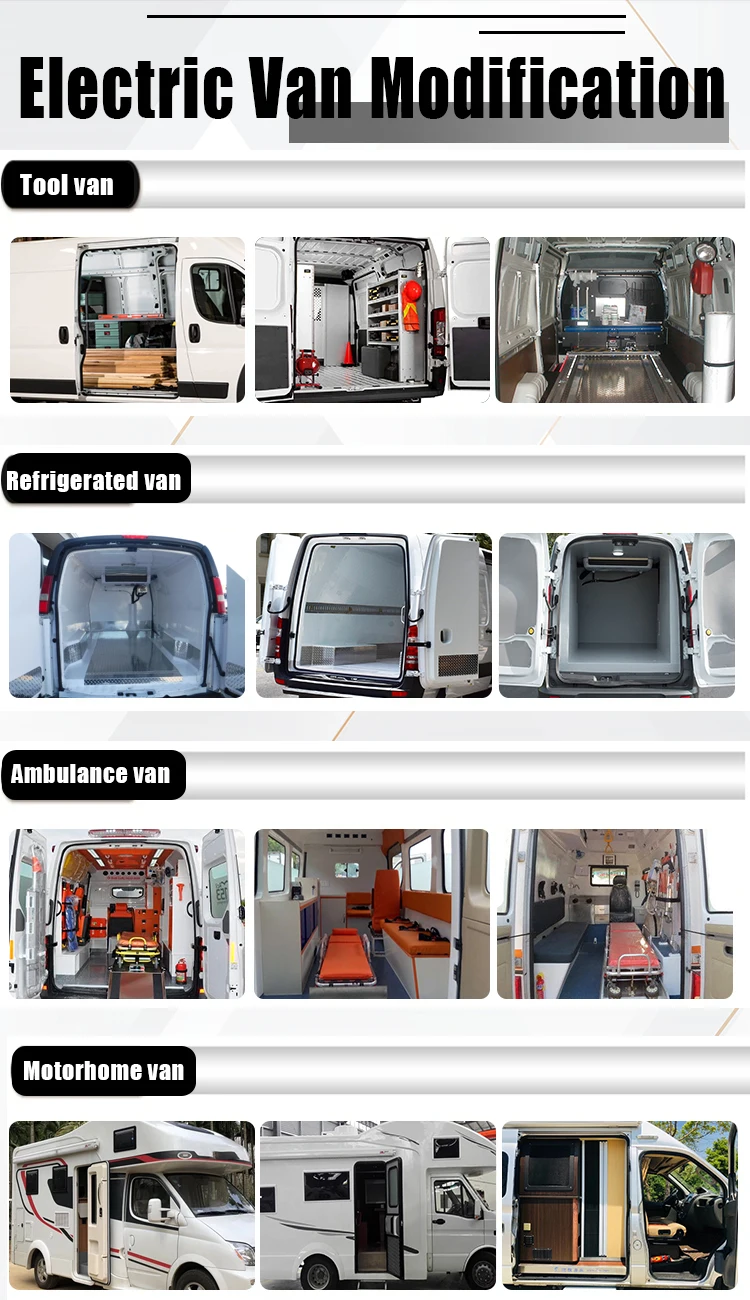

Think Big, Think Agile. Unfold All the Possibilities, Cater to Your Needs
