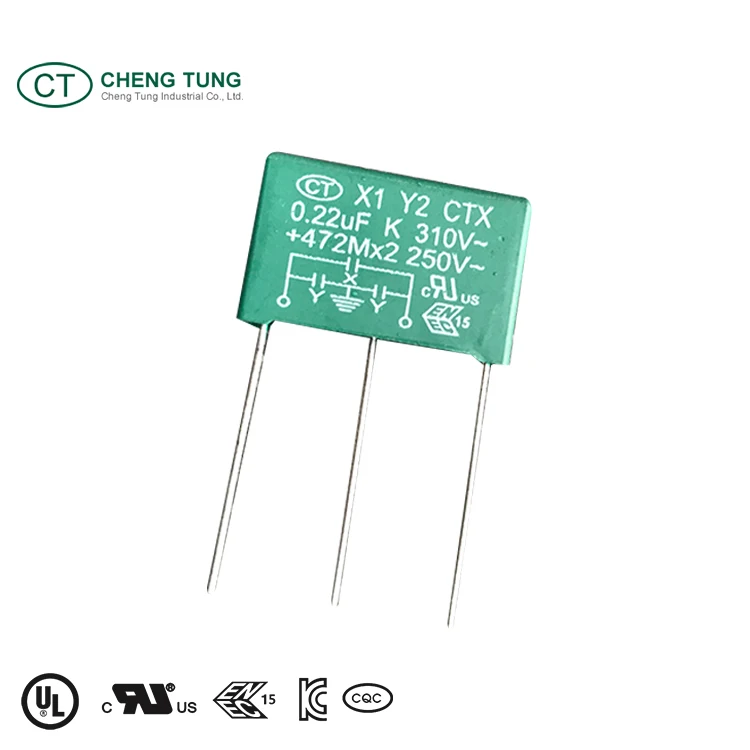

X1 и Y2 композитный защитный

• Provides interference suppression, Overvoltage


• Self-healing properties


• Active and passive flame retardant


• Installed cost saving with single packing design

• Ideal for use in line bypass, antenna coupling, across-the-line and spark killer circuits.


• Available for EMI filter.


• Switching power supply applications.


• Household appliances, such as: mixers, fans, coffee grinders audio and TV circuits.

  SPECIFICATIONS

Dielectric

Polypropylene film

Electrodes

Vacuum evaporated metal

Coating

Encapsulated in flame retardant

 (UL94V-0) plastic case and epoxy resin end seal.

Leads

 Radial leads of tinned wire

Climatic Catalogue

 40 / 100 / 21

Capacitance versus Rated Voltage(U_R)

X1 310V.AC,(50/60Hz)  0.0047uF ~ 1uF

Y2 250V.AC,(50/60Hz)  0.0022uF ~ 0.1uF

Capacitance Tolerance

K = ±10%  M = ± 20%

Dissipation Factor (Tangent of Loss)

<=0.10%   (at20℃,1 KHZ)

<=0.30%   (at20℃,10KHZ)

Voltage Proof

T-T 1333V.DC 1 min or 1700V.DC 1 Sec. for X1

T-T 3000V.DC 1 Sec. for Y2

T-C 2200V.AC 50/60Hz 1 min

Insulation Resistance

C<=0.33uF  IR>=30,000MΩ

C>0.33uF  IR>=10,000MΩ / uF
