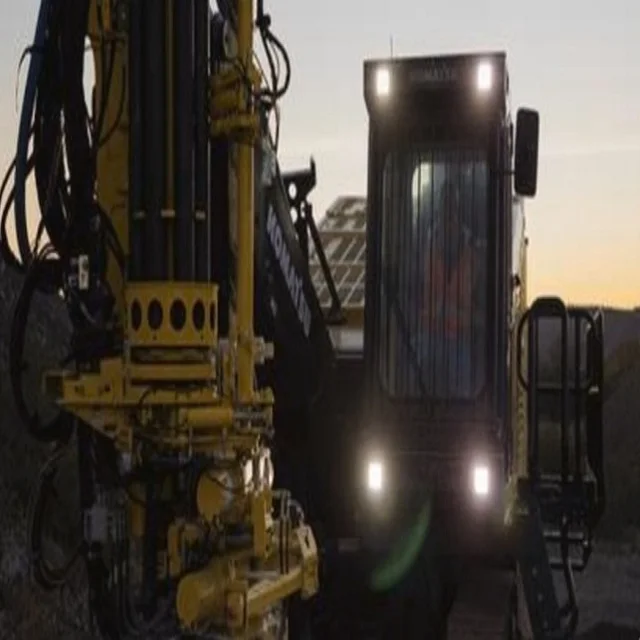

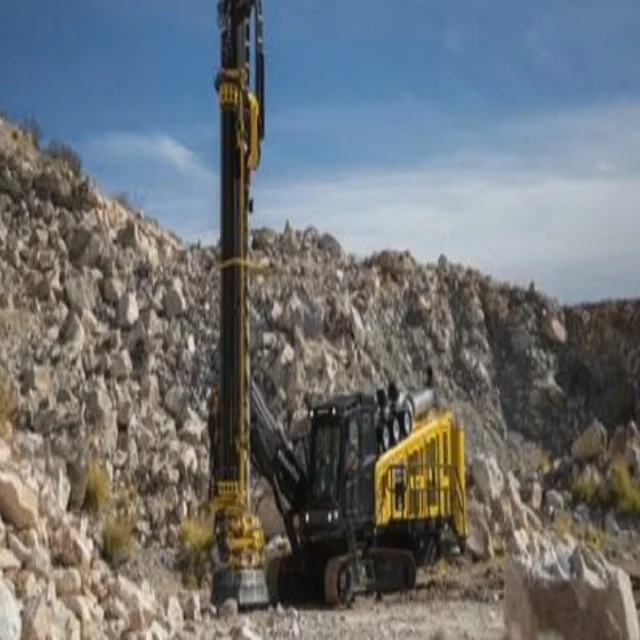

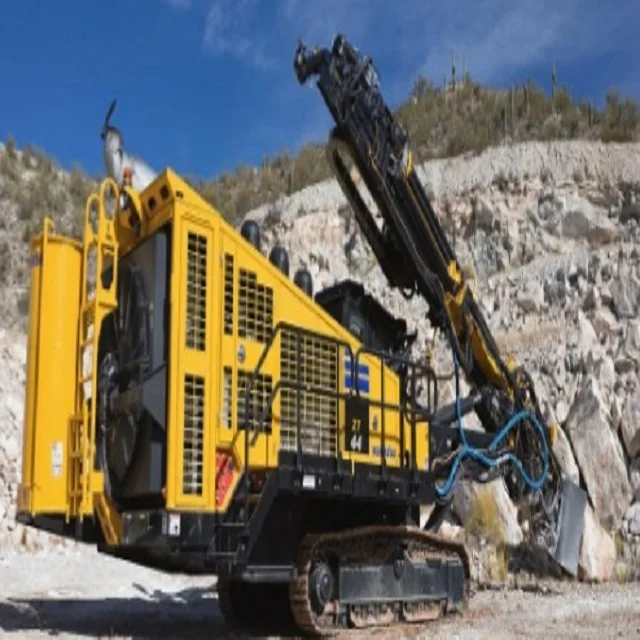

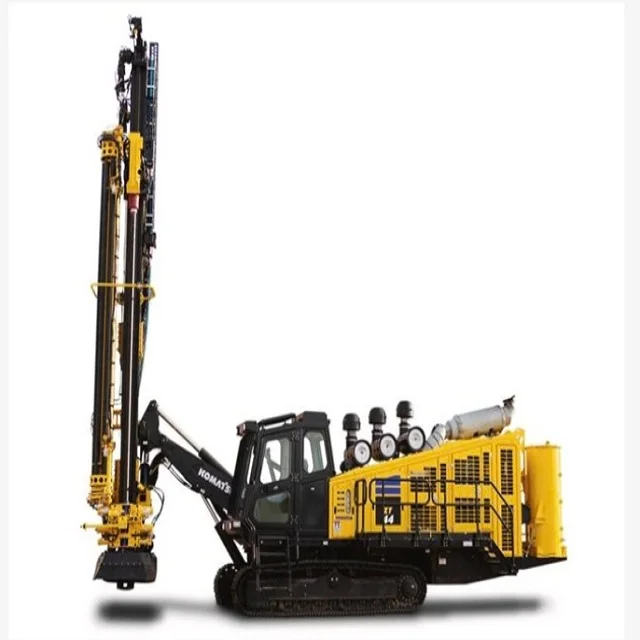

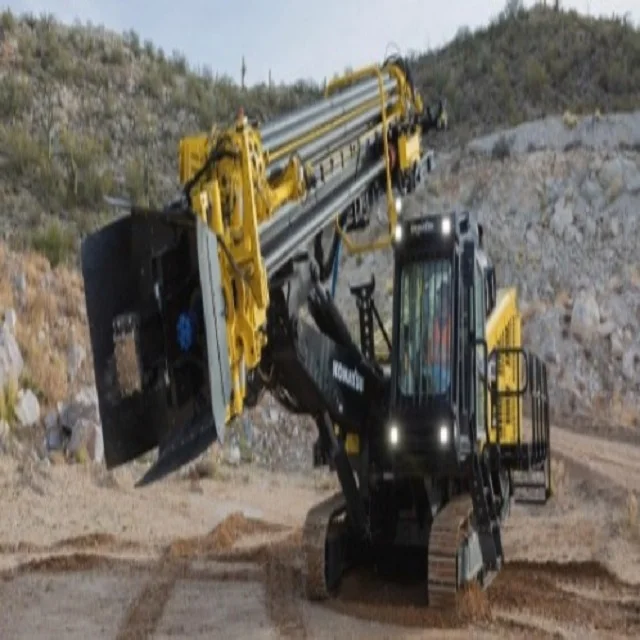

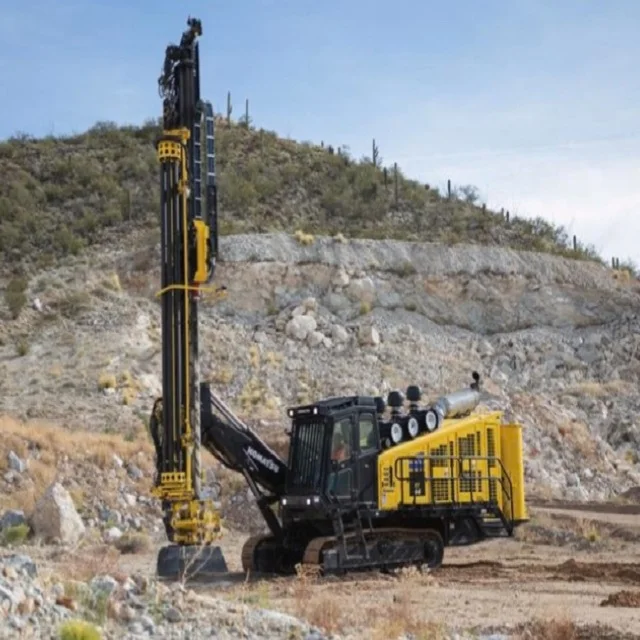

The ZT44 is a Down-the-hole surface drill rig designed for mining-duty applications. It offers high reliability and production with purpose-built structures, a high horsepower engine and large capacity dual-setting compressor that adapts to varying rock hardness conditions. The ZT44 is a versatile machine, used for pre-split, production, auxiliary and other demanding needs.








Products Description

Products Description


















































Product name: separated crawler DTH drilling rig


Name:R84


 Brand Name:Sanrock


Type:Rotary Drilling Rig


Rotary Torque(Max.):2500N.m


 Rated Power:58KW


Drilling Depth:30M


Rotary Speed:0-100rpm


 Drilling Diameter:110-138mm


Working Pressure(bar):0.7-2.5Mpa


Air Consumption:8-20m3/min


Travelling Speed:3km/h


Dimension(L*W*H):5100*2260*2500mm


Weight:5500 KG









Feature: 1.Standard equipped with Yuchai 4 cylinder Diesel engine YCD80 or 45KW Electric Motor 2.All structural parts reinfroced for various work conditions 3.The rotation unit driven by cucloid motor for higher torque and large hole range. 4. New enclosure design for better appearance and convenient for maintenance and service. 5.Optional dry dust collector for dust free drilling, more environment friendly and energy saving. 6. R84 Separateed DTH Drill Rig Standard equipped with plunger piston tramming motor for more powerful climbility & more reliable quality.
