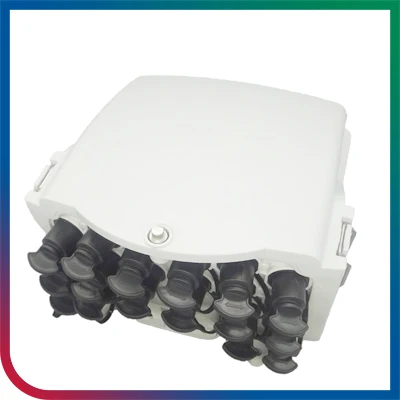

SURELINK outdoor waterproof 16port 16core terminal box for 5g base station FTTH distribution box











Product Feature



1.Overview

Fiber Access Termination Box with the pre-terminated cable could be able to hold up to 16 subscribers.



Fiber Access Terminal Box is used as a termination point for the feeder cable to connect with drop cable in the FTTx network system.

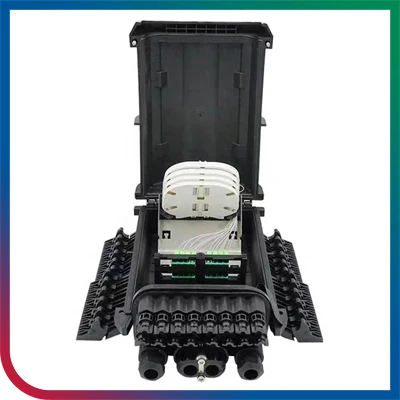

Fiber Access Terminal Box integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box.



Pre-terminated Fiber Access Terminal helps save installation time and labor cost by plugging the pre-terminated cable assemblies into the matching fiber adapters without terminating fiber optic cable in the field again.





2.Technical Index





2.1 Environmental requirement
Working temperature: -40℃~+85℃
Relative humidity: ≤85% (+30℃)
Atmospheric pressure: 70KPa~106Kpa

2.2 Main technical datasheet

Insertion loss: ≤0.15dB
UPC return loss: ≥50dB
return loss: ≥60dB

2.3 Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104MΩ/500V (DC); IR≥2´104MΩ/500V.

The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V





3.Features

3.1 Total enclosed structure, be in nice shape.

3.2 Material: NEW ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

3.3 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

3.4 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter or PLC splitter installation, easy maintenance.
