Product Description


● Adopting high-speed industrial grade dual-core (ARM+DSP) chip, with start-up time ≤ 3 seconds.
● Equipped with 32×Alarm Input interface (supporting short circuit signal input & DC 24V input) for external linkage with fire
alarm system.
● Equipped with 8×Alarm Output (NO contact) interface to be connected with alarm light to indicate the alarm status.
● Multiple IP fire alarm interface modules can be integrated in the same system to increase the number of alarm input interfaces.
● Being able to send the alarm signal to the server software automatically and apply to the server to implement corresponding task
of playing the pre-set emergency evacuation announcement.
● Equipped with standard RJ45 interface, accessible to the system wherever Ethernet is available, supporting cross-segment and
cross-router.




Specification


Power Supply:
AC185V~260V,50~60Hz
Power Consumption:
≤15W
Network Protocol:
TCP/IP、UDP、ARP、ICMP、IGMP
Network Chip Rate:
10/100Mbps Self-adaptive
Interface:
1×RJ45 Ethernet Port、32×Relay Input、8×Relay Output、 1×Power Input
Operatiing Temperature:
-10℃~+55℃ (14℉~131℉)
Operating Humidity:
≤90% RH non-condensing
Dimensions:
483×259×44mm
Weight:
2.7kg
Standard Accessories:
1×Quick Installation Guide、1×Quality Certificate、1×Warranty Card
Optional Accessories:
IEC C13 Power Cord (US/EU/UK/AU)

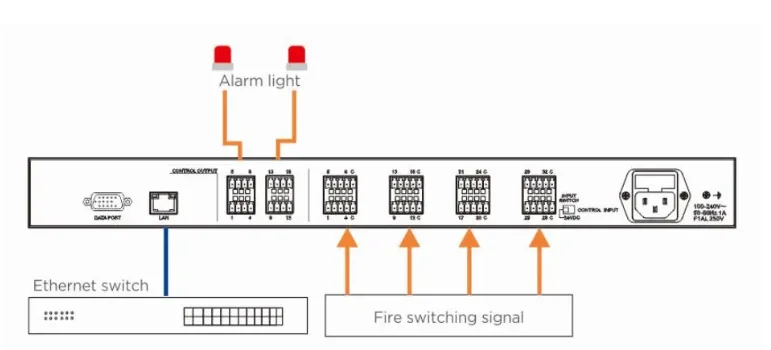

Wiring Diagram

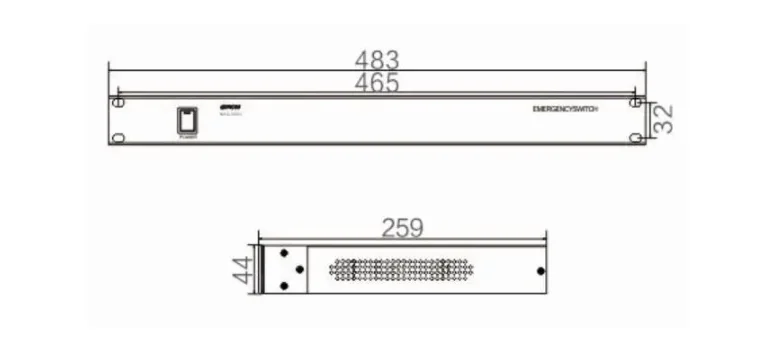

Dimensional Drawing




Company Profile

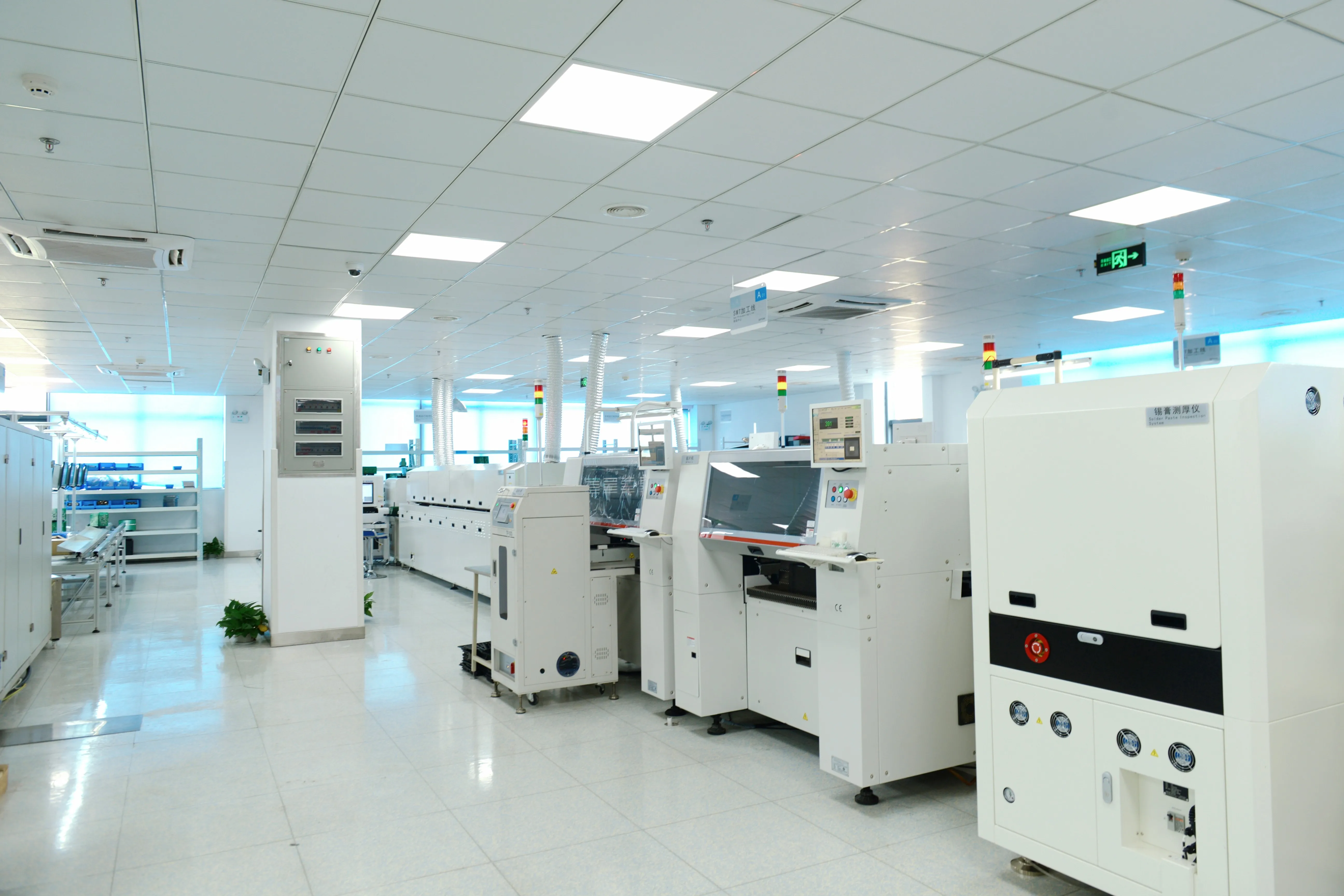

With over 20 years of experience in audio IoT research, development, and production, SPON stands at the forefront of the industry. Our state-of-the-art acoustic noise reduction laboratory, fully automated SMT factory, and spacious company premises spanning 15,000 square meters reflect our commitment to innovation and excellence.


Our Advantages




SPON's advantages lie in our technological expertise, customized approach, extensive experience, comprehensive support, state-of-the-art facilities, and unwavering commitment to quality. These factors set us apart and make us the preferred choice for audio technology solutions in the IoT industry.


SPON's Proud Team




FAQ


Q: How can I contact SPON's customer support team?
A: You can reach out to our customer support team through our hotline, email, or online support platform. Our dedicated team will promptly respond to your inquiries and provide the necessary technical supportand solutions.

Q: Does SPON offer OEM/ODM services?
A: Yes, SPON provides OEM/ODM services. We have extensive experience in working with clients to develop and manufacture customized products according to their specific requirements and branding needs.

Q: What are the benefits of choosing SPON for OEM/ODM services?
A: By choosing SPON for OEM/ODM services, you can benefit from our expertise in audio technology, extensive manufacturing capabilities, and dedicated team of professionals. We can help you bring your ideas to life, offering flexible customization options, quality assurance, and timely delivery of products. Our goal is to collaborate closely with you to create innovative and tailored solutions that meet your unique business needs.
