Product Description

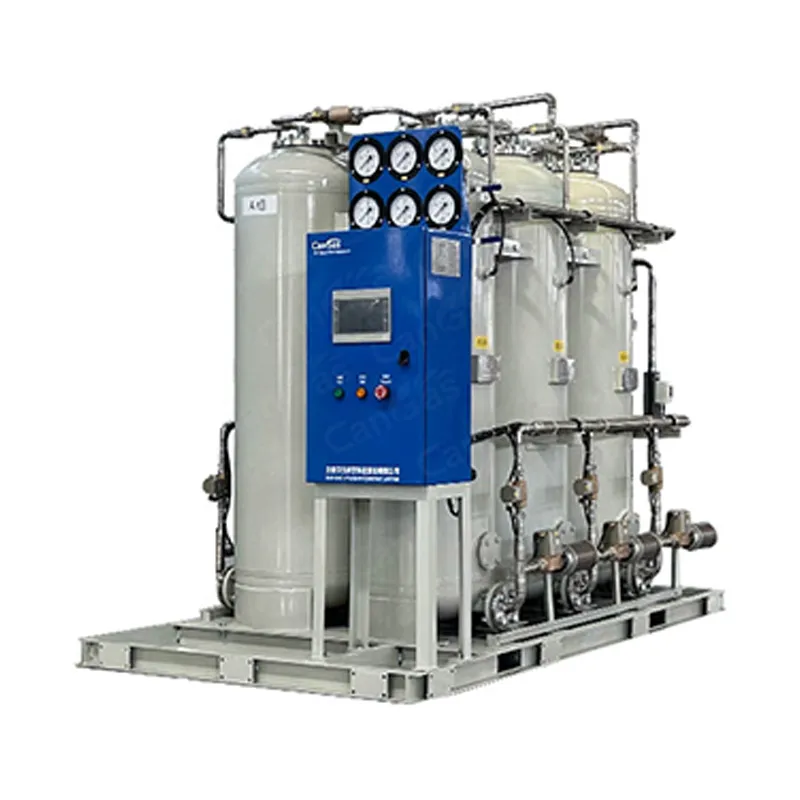

CAN GAS Oxygen PSA Generators separates oxygen (O2) from compressed air utilizing pressure swing adsorption technology. Compressed air, which consists of approximately 21% oxygen and 78% nitrogen, is passed through a bed of zeolite molecular sieve (ZMS). The sieve preferentially adsorbs N2 and moisture over O2 allowing the O2 to pass through as a product gas at pressure. While one of the towers is in the adsorption phase the other tower is regenerated by de-pressurizing, at which time the sieve releases the adsorbed gases to the atmosphere, and the cycle is then repeated.
A solid state programmable controller operates the process valves on an alternating cycle, with built-in logic for automatic
stop/start. Oxygen flow and purity remain constant regardless of the peak usage demands. Under normal operating conditions and with correct maintenance the zeolite molecular sieve will have an almost indefinite lifetime.
A solid state programmable controller operates the process valves on an alternating cycle, with built-in logic for automatic
stop/start. Oxygen flow and purity remain constant regardless of the peak usage demands. Under normal operating conditions and with correct maintenance the zeolite molecular sieve will have an almost indefinite lifetime.
What Are the Benefits of Oxygen Generators in Gold Mining?
There are a lot of indisputable operational, cost-saving, safety enhancing, and environmental benefits to integrating
state-of-the-art onsite oxygen generators for gold mining operations.
More Efficient Mining Operations
Onsite oxygen generators for gold mining ensure that operations will always have a steady and reliable supply of oxygen gas. This eliminates the need to rely on liquid oxygen deliveries, especially considering the remote locations of most gold mining operations and precarious and unpredictable nature of oxygen supply in the current supply chain environment.
Oxygen is a core component of the gold leaching process and must always be available so that mining operations can function at optimal speed and capacity. Time is of the essence when it comes to gold leaching and the sparging process, so it’s important that these tasks are completed on schedule. Even the slightest delay in oxygen supply could pose significant financial risks for the entire mining operation.
Lower Operational Costs
Producing oxygen onsite also lowers operational costs. Onsite oxygen generators eliminate the need to order liquid oxygen and wait for deliveries. Oxygen generators pull in ambient air and separate oxygen out of ambient air while maintaining high oxygen purity levels that are required for various operational processes. Cutting out the middleman reduces your operational costs and prevents downtime caused by delivery delays.
Better Production Recovery
Onsite oxygen generation boosts the gold and mineral recovery rates significantly. The faster oxygen is generated, the more gold can be extracted from ores in less time.
Continuous Oxygen Supply
As mentioned, most gold mining operations need a continuous supply of oxygen for various processes and applications in order to boost the gold yield rate.
From a gold leaching and processing perspective, installing onsite oxygen generators ensures an uninterrupted supply of oxygen.
Onsite oxygen generators eliminate the risks involved in bulk oxygen shipment delays and ensure that mining operations always have a consistent supply of oxygen with varying purity ratings typically ranging from 90% to 95%.
Onsite Oxygen Generators from Can Gas
Can Gas Systems is one of the leading providers of state-of-the-art low energy consuming onsite oxygen generators in China. Our PSA and VPSA oxygen generators offer a cost-effective solution that’s capable of meeting all of your industrial application requirements. Contact us today to learn more about our customizable onsite oxygen generators.
There are a lot of indisputable operational, cost-saving, safety enhancing, and environmental benefits to integrating
state-of-the-art onsite oxygen generators for gold mining operations.
More Efficient Mining Operations
Onsite oxygen generators for gold mining ensure that operations will always have a steady and reliable supply of oxygen gas. This eliminates the need to rely on liquid oxygen deliveries, especially considering the remote locations of most gold mining operations and precarious and unpredictable nature of oxygen supply in the current supply chain environment.
Oxygen is a core component of the gold leaching process and must always be available so that mining operations can function at optimal speed and capacity. Time is of the essence when it comes to gold leaching and the sparging process, so it’s important that these tasks are completed on schedule. Even the slightest delay in oxygen supply could pose significant financial risks for the entire mining operation.
Lower Operational Costs
Producing oxygen onsite also lowers operational costs. Onsite oxygen generators eliminate the need to order liquid oxygen and wait for deliveries. Oxygen generators pull in ambient air and separate oxygen out of ambient air while maintaining high oxygen purity levels that are required for various operational processes. Cutting out the middleman reduces your operational costs and prevents downtime caused by delivery delays.
Better Production Recovery
Onsite oxygen generation boosts the gold and mineral recovery rates significantly. The faster oxygen is generated, the more gold can be extracted from ores in less time.
Continuous Oxygen Supply
As mentioned, most gold mining operations need a continuous supply of oxygen for various processes and applications in order to boost the gold yield rate.
From a gold leaching and processing perspective, installing onsite oxygen generators ensures an uninterrupted supply of oxygen.
Onsite oxygen generators eliminate the risks involved in bulk oxygen shipment delays and ensure that mining operations always have a consistent supply of oxygen with varying purity ratings typically ranging from 90% to 95%.
Onsite Oxygen Generators from Can Gas
Can Gas Systems is one of the leading providers of state-of-the-art low energy consuming onsite oxygen generators in China. Our PSA and VPSA oxygen generators offer a cost-effective solution that’s capable of meeting all of your industrial application requirements. Contact us today to learn more about our customizable onsite oxygen generators.

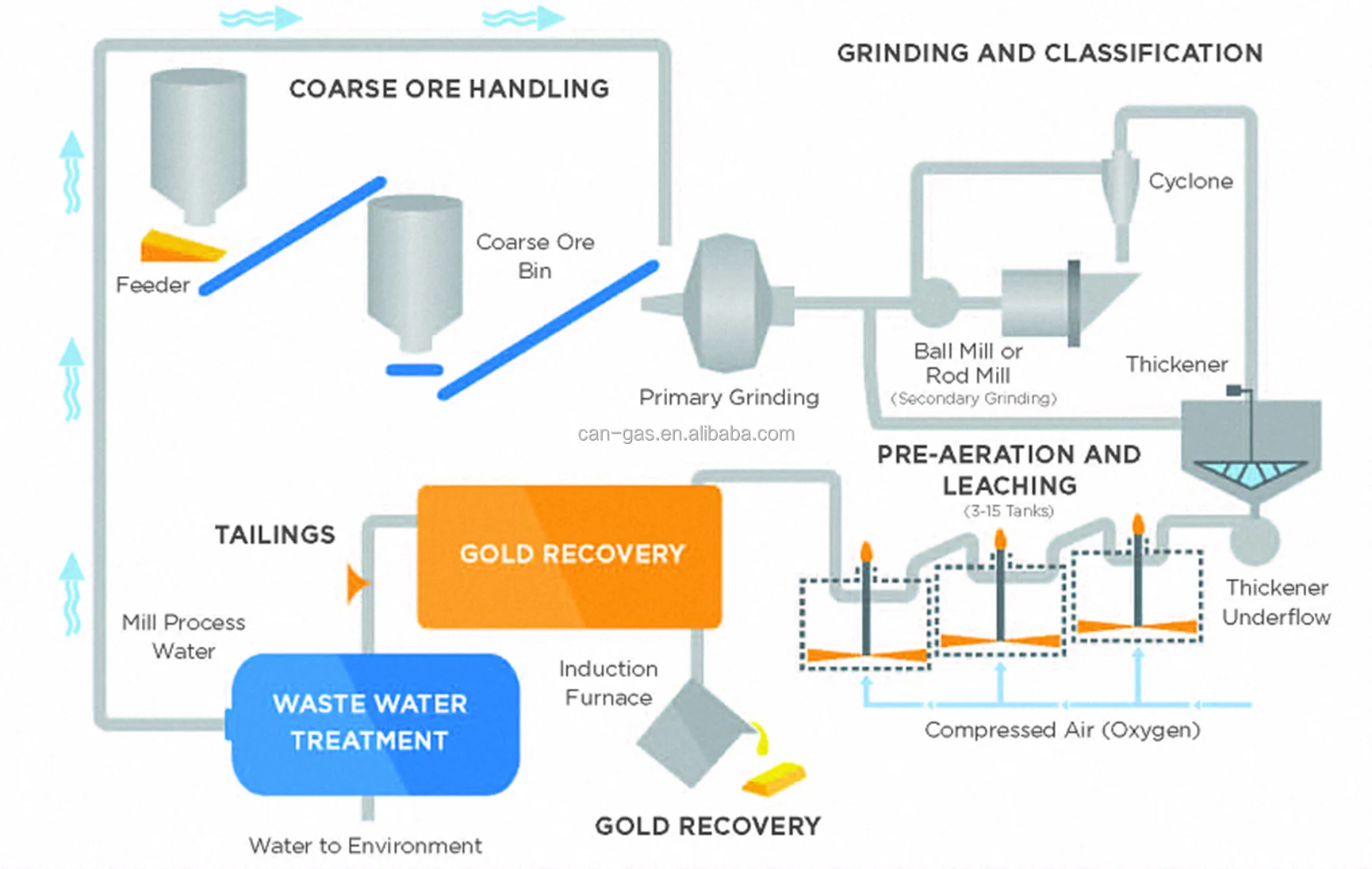

Working Principle
Specification
Model | Capacity （Nm³/h） | Purity （%） | O2 Outlet Pressure （MPa） | Dimensions （mm） | ||||
CAPO-3 | 2.2-3 | 93±3 | 0.3-0.5 | 1200*1000*1840 | ||||
CAPO-5 | 3.5-5 | 1350*1200*2050 | ||||||
CAPO-10 | 6-10 | 1500*1350*2350 | ||||||
CAPO-15 | 11-15 | 1750*1550*2300 | ||||||
CAPO-20 | 16-20 | 1850*1825*2350 | ||||||
CAPO-25 | 21-25 | 2000*1900*2350 | ||||||
CAPO-30 | 26-30 | 2100*2050*2400 | ||||||
CAPO-35 | 31-35 | 2000*1300*2400 | ||||||
CAPO-50 | 47-52 | 1800*1700*2400 | ||||||
CAPO-80 | 72-80 | 2250*1550*2970 | ||||||
CAPO-100 | 91-100 | 2300*1550*3200 | ||||||
CAPO-120 | 120 | 2300*1550*3400 | ||||||
CAPO-150 | 150 | 2300*1550*3500 | ||||||
The above table shows some models of oxygen generators, others can be customizable. | ||||||||
Company Profile
CAN GAS Systems Company Limited, identified as the Beijing Key High-tech Corporation, is one of the initial companies involved in air separation industry. CAN GAS is committed to continuously providing core value to customers in all industries. With 28,000 square meters’ production base, five national patents and ISO9001:2008 Certificate of Quality Management System Certification, CAN GAS has been an integration of R&D, design, manufacture, sales, service. Over the past ten years, CAN GAS has successfully provided over 1000 sets of air separation systems for many industries in over 40 countries and regions.
CAN GAS Systems have a range of PSA nitrogen & oxygen generators, membrane nitrogen & oxygen generators, nitrogen purification systems etc, and are widely used in industries of petroleum, oil & gas, chemicals, electronics, metallurgy, coals,
pharmaceuticals, aerospace, autos, glass, plastics, food, medical treatment, grain, etc. With years research in air separation technology and rich solution experiences in various industries, CAN GAS sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions.
By now we have supplied CANGAS® systems for clients including GE USA, WILMAR International Singapore, DEGUSSA Group Germany, SAMSUNG, ORION Korea, China Petrol, Sinopec, etc. CAN GAS has built up a global distributor system covering Russia, Bangladesh, Indonesia, Pakistan etc. During the 2008 Olympics, CAN GAS was selected by Beijing Food Safety Test Center as the supplier for nitrogen generator to test the Olympic food.
CAN GAS Systems have a range of PSA nitrogen & oxygen generators, membrane nitrogen & oxygen generators, nitrogen purification systems etc, and are widely used in industries of petroleum, oil & gas, chemicals, electronics, metallurgy, coals,
pharmaceuticals, aerospace, autos, glass, plastics, food, medical treatment, grain, etc. With years research in air separation technology and rich solution experiences in various industries, CAN GAS sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions.
By now we have supplied CANGAS® systems for clients including GE USA, WILMAR International Singapore, DEGUSSA Group Germany, SAMSUNG, ORION Korea, China Petrol, Sinopec, etc. CAN GAS has built up a global distributor system covering Russia, Bangladesh, Indonesia, Pakistan etc. During the 2008 Olympics, CAN GAS was selected by Beijing Food Safety Test Center as the supplier for nitrogen generator to test the Olympic food.
Certifications
Service
Warranty: PERIOD of warranty is 18 months after shipment or 12 months after commissioning, whichever occurs first. It is
responsible for CANGAS to analysis, answer breakdowns for users all through the working life of CANGAS oxygen generator. Engineer can be sent on-site for free after-service service if necessary. Please refer to Warranty terms for more information.
Installation & Commissioning & Training: CANGAS service engineer is available to instruct the installation and start up of this plant (6 days at job site with service fee or remotely).If job site service is needed the buyer should prepare flights,
accommodation, food and local transportation for CANGAS service engineer.
responsible for CANGAS to analysis, answer breakdowns for users all through the working life of CANGAS oxygen generator. Engineer can be sent on-site for free after-service service if necessary. Please refer to Warranty terms for more information.
Installation & Commissioning & Training: CANGAS service engineer is available to instruct the installation and start up of this plant (6 days at job site with service fee or remotely).If job site service is needed the buyer should prepare flights,
accommodation, food and local transportation for CANGAS service engineer.
Customer Photos
FAQ
1. What's the order to have an oxygen or nitrogen generator plant ?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Contract confirmation---provide correct contract details.
d. Payment terms
e. Production
f. Shipping
g. Installation and commissioning
h. Conducting routine after sales support
2. How to get a prompt quotation of Oxygen or Nitrogen Generator?
When you send the inquiry to us, pls kindly send it with below technical information.
1) O2/N2 flow rate: _____Nm3/hr( or How many cylinders/ liquid do you consume per day(24hours))
2) O2/N2 purity: _____%
3) O2/N2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/___PH/___HZ
5) Application:
6) Project Location:
7) Job site altitude___, ambient temperature___
8) Machine room availability Y/N
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Contract confirmation---provide correct contract details.
d. Payment terms
e. Production
f. Shipping
g. Installation and commissioning
h. Conducting routine after sales support
2. How to get a prompt quotation of Oxygen or Nitrogen Generator?
When you send the inquiry to us, pls kindly send it with below technical information.
1) O2/N2 flow rate: _____Nm3/hr( or How many cylinders/ liquid do you consume per day(24hours))
2) O2/N2 purity: _____%
3) O2/N2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/___PH/___HZ
5) Application:
6) Project Location:
7) Job site altitude___, ambient temperature___
8) Machine room availability Y/N
