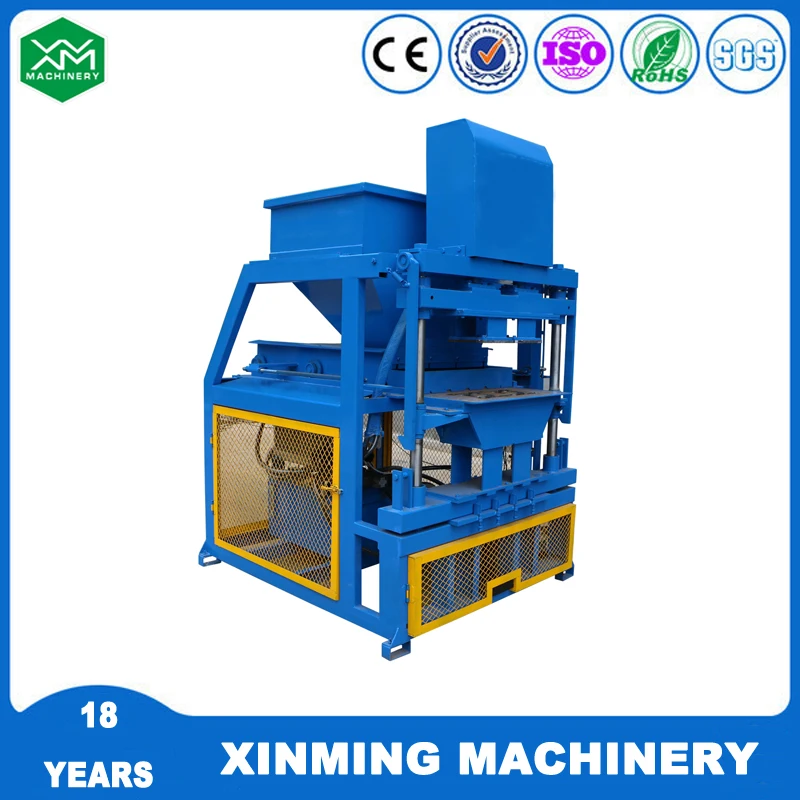

Глины кирпечей из глины почвы Xm4-10 полная автоматическая машина для производства кирпича 15 мин изменить форму простота в эксплуатации
- Категории: Brick Making Machinery >>>
- Поставщик: Linyi,Aiwei,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
1: 100 TON Hydraulic Press, High Strength of Interlocking Brick and pavers
2: 4 Bricks in one time and 10000 bricks in 8 hours
3: Producing Designs of interlocking bricks, hydraform block and interlocking pavers
4: Best Choice for Large-scale Block Factory
5: Total investment for this brick plant: US$15000-25000
6: Professtional manufacturer: produce any designs of mold as required
Other advatange of Myib Interlocking Automatic 10000 pcs Per Day Brick Making Machine Mould Changed Qts4-10 Low Cost Mud Brick
Making Machine
2: 4 Bricks in one time and 10000 bricks in 8 hours
3: Producing Designs of interlocking bricks, hydraform block and interlocking pavers
4: Best Choice for Large-scale Block Factory
5: Total investment for this brick plant: US$15000-25000
6: Professtional manufacturer: produce any designs of mold as required
Other advatange of Myib Interlocking Automatic 10000 pcs Per Day Brick Making Machine Mould Changed Qts4-10 Low Cost Mud Brick
Making Machine

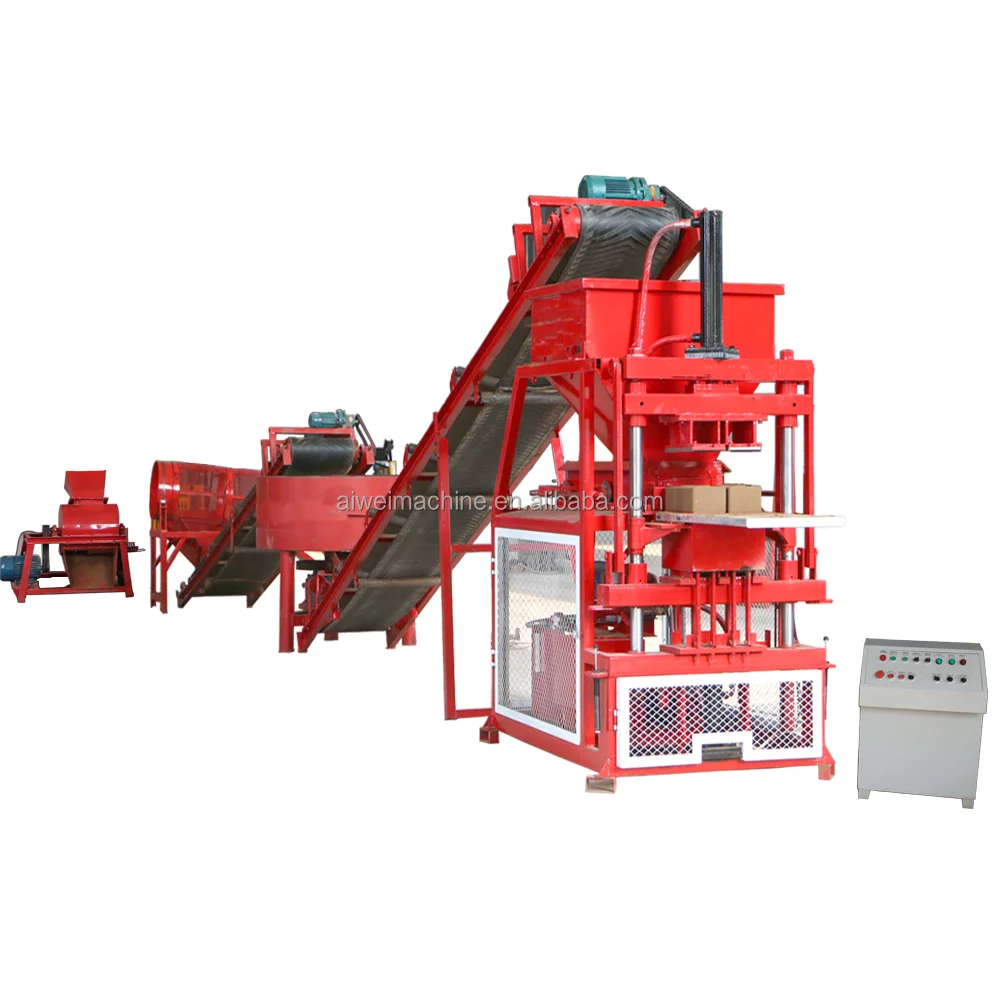

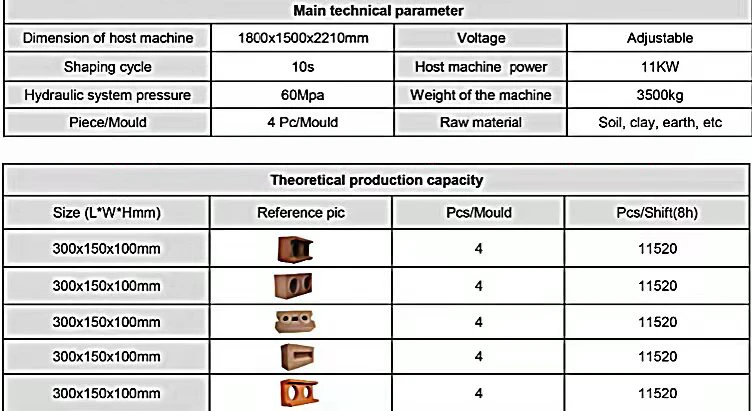

Details for technical parameter XM4-10 Automatic compressed earth block machine

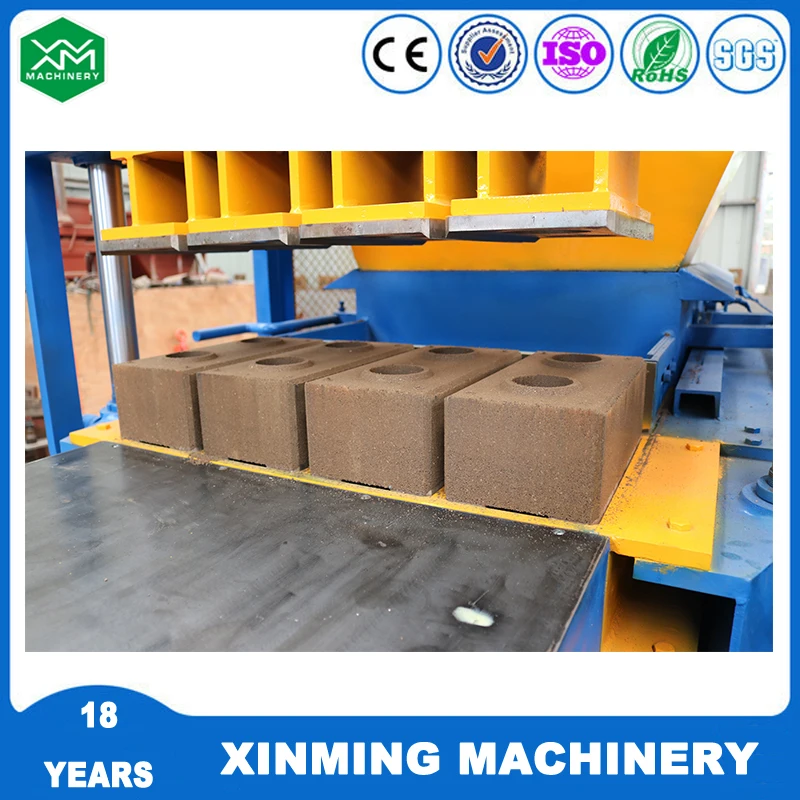

Details Images

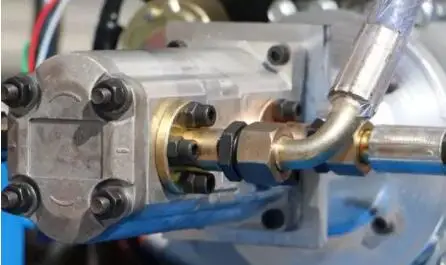

Hydraulic system .
Hydraulic pressure molding technology is adopted by this machine, and the pressure can arrive at 60 MPa, so the blocks produced
are of good quality, large density and high strength.
are of good quality, large density and high strength.

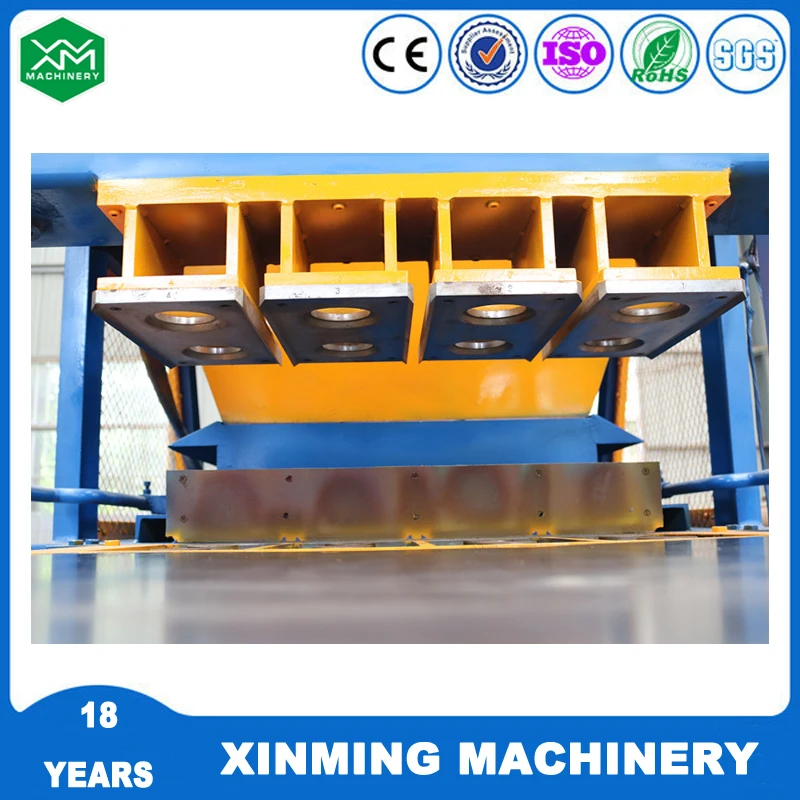

Mould.
With the best steel as raw material, we are elaborately manufactured by advanced wire cutting and carburizing heat treatment
process, and have strong wear resistance
process, and have strong wear resistance

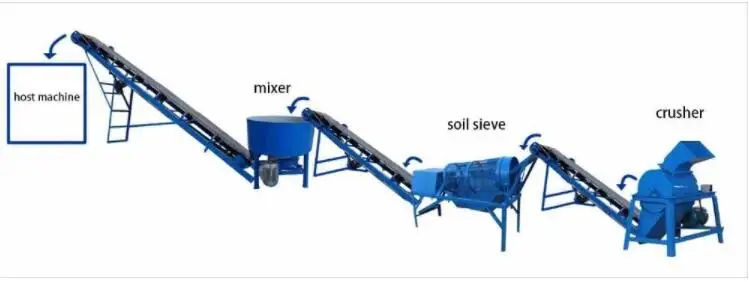

Other details for Clay Soil Fully Automatic Block Making No Need Pallet XM4-10 Ceb Interlocking Brick Making Machine Plant
1: Electric Power List for hby4-10 automatic comressed earth block making machine line
Total power for this FULL PRODUCTION LINE is 29.8KW
220V/380V/415V/440V TRIHASE 50HZ/60HZ
Total power for this FULL PRODUCTION LINE is 29.8KW
220V/380V/415V/440V TRIHASE 50HZ/60HZ
2. Workers number for hby4-10 hydraulic press block machine: 5 Workers in total.
One worker for loading soil to: Belt conveyor for crushing
One Worker for loading cement and water into : JQ500 Mixer
One worker for operating: Brick Machine
Two Worker for Carrying Fresh brick from: brick receiver to curing site
One worker for loading soil to: Belt conveyor for crushing
One Worker for loading cement and water into : JQ500 Mixer
One worker for operating: Brick Machine
Two Worker for Carrying Fresh brick from: brick receiver to curing site
3. Factory Area :1500-2000M2
Shelter Area for machines: 60M2 (10*6m)
4. Material Ratio for Bricks: 5%-10% cement and 90%-95% soil

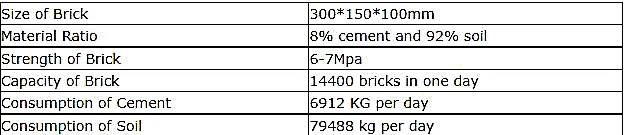

5. Raw Material Consumption in one day
Here we take 300*150*100mm bricks as example and recommend 8% cement.
Shelter Area for machines: 60M2 (10*6m)
4. Material Ratio for Bricks: 5%-10% cement and 90%-95% soil
5. Raw Material Consumption in one day
Here we take 300*150*100mm bricks as example and recommend 8% cement.
Accessories

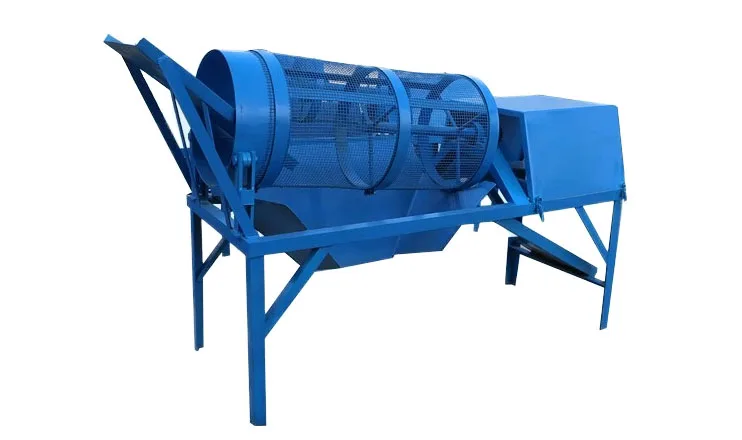

Soil Sieve
Size:dia.500mm
Capacity:400kg/Hour
Rated voltage:Adapt to local voltage
Motor Power:3KW
Total Weigh:300KG.
Capacity:400kg/Hour
Rated voltage:Adapt to local voltage
Motor Power:3KW
Total Weigh:300KG.

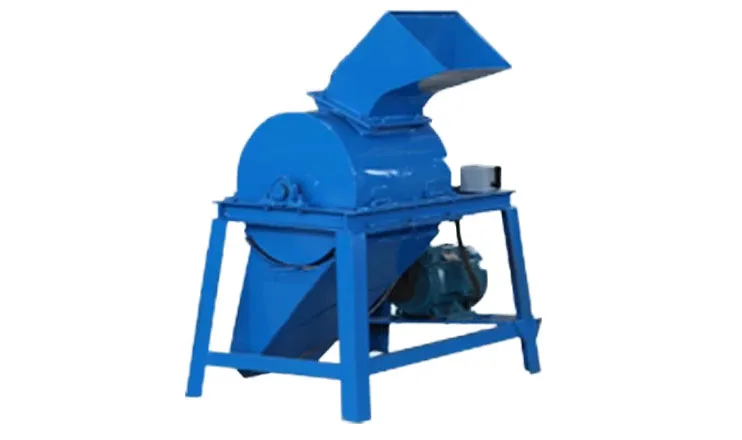

Soil Crusher.
Overall size:1100*1100*1400mm
Motor:3KW
Capacity:500KGS/Hour
Rated Voltage:Adapt to local voltage
Total Weigh:200KGS
Motor:3KW
Capacity:500KGS/Hour
Rated Voltage:Adapt to local voltage
Total Weigh:200KGS

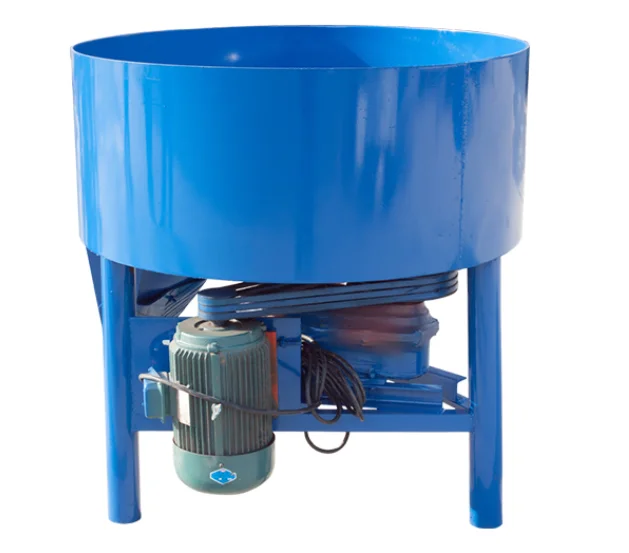

Mixer
Overall Size:1500(H)*1500(dia)mm
Feeding capacity:800L
Discharging volume:500L
Productivity:≥10m3/h
Motor Power:11KW
Total Weight:380KGS
Rated Voltage:Adapt to loacl voltage
Feeding capacity:800L
Discharging volume:500L
Productivity:≥10m3/h
Motor Power:11KW
Total Weight:380KGS
Rated Voltage:Adapt to loacl voltage

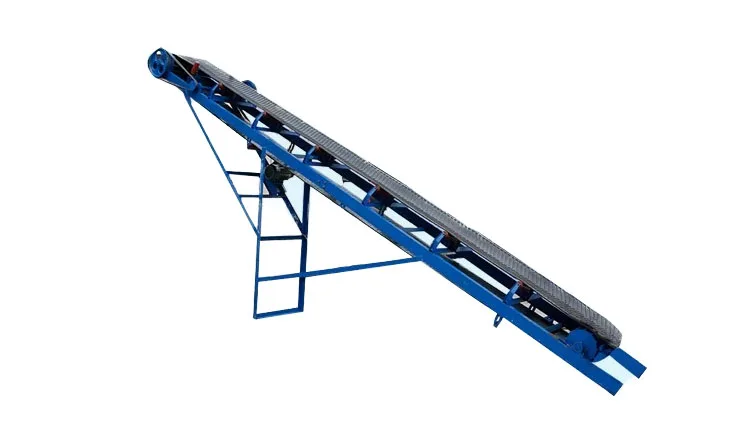

Conveyor Belt Machine
Width:500mm
Thickness:8.6mm
Conveyor Belt Length:4000mm and 6000mm
Motor Power:0.75KW(4000mm) and 1.1KW(6000mm)
Thickness:8.6mm
Conveyor Belt Length:4000mm and 6000mm
Motor Power:0.75KW(4000mm) and 1.1KW(6000mm)

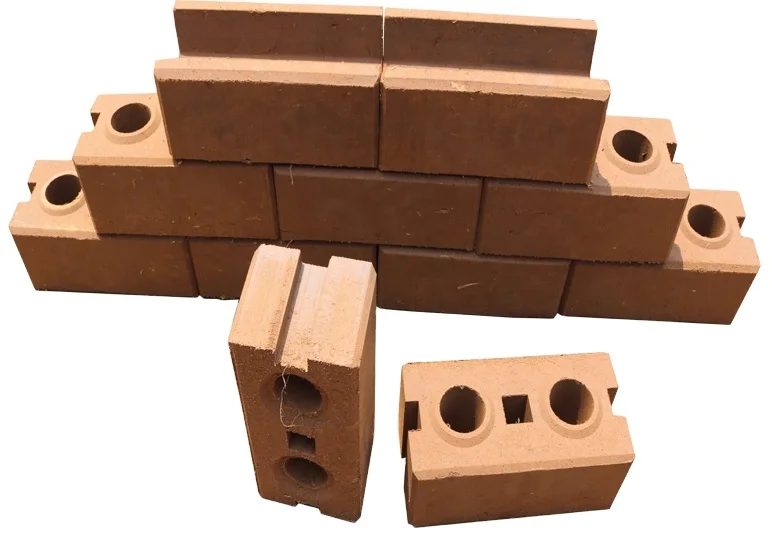

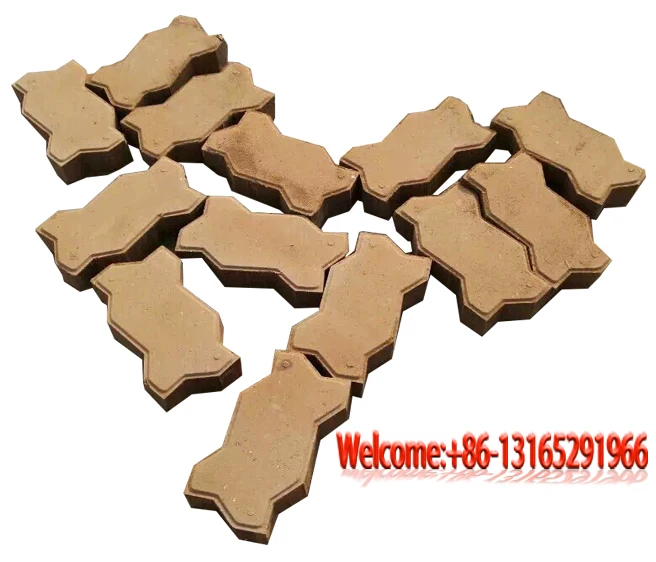

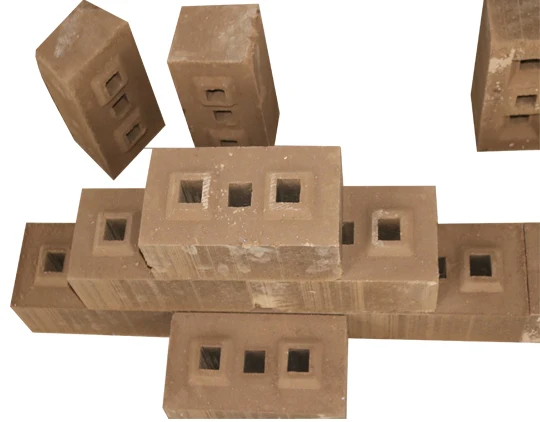

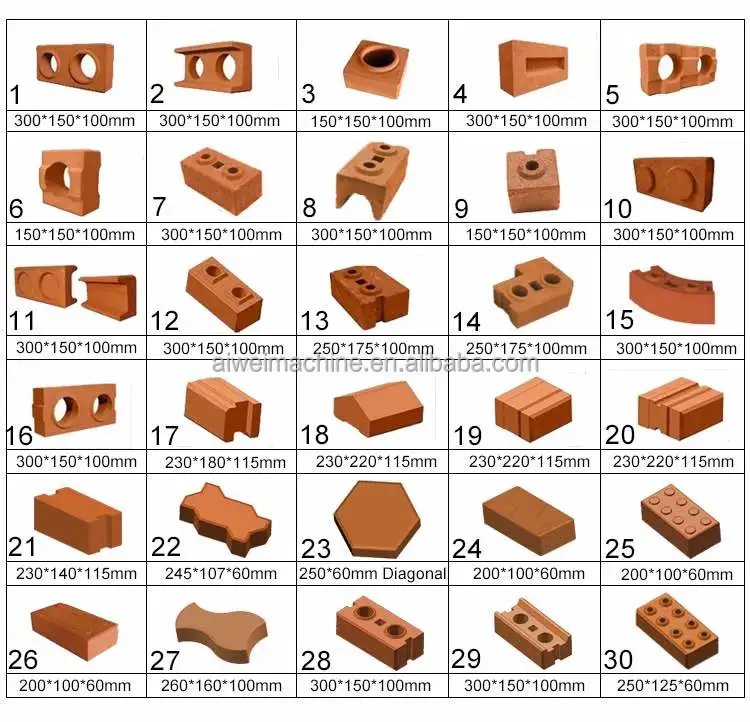

Block Show

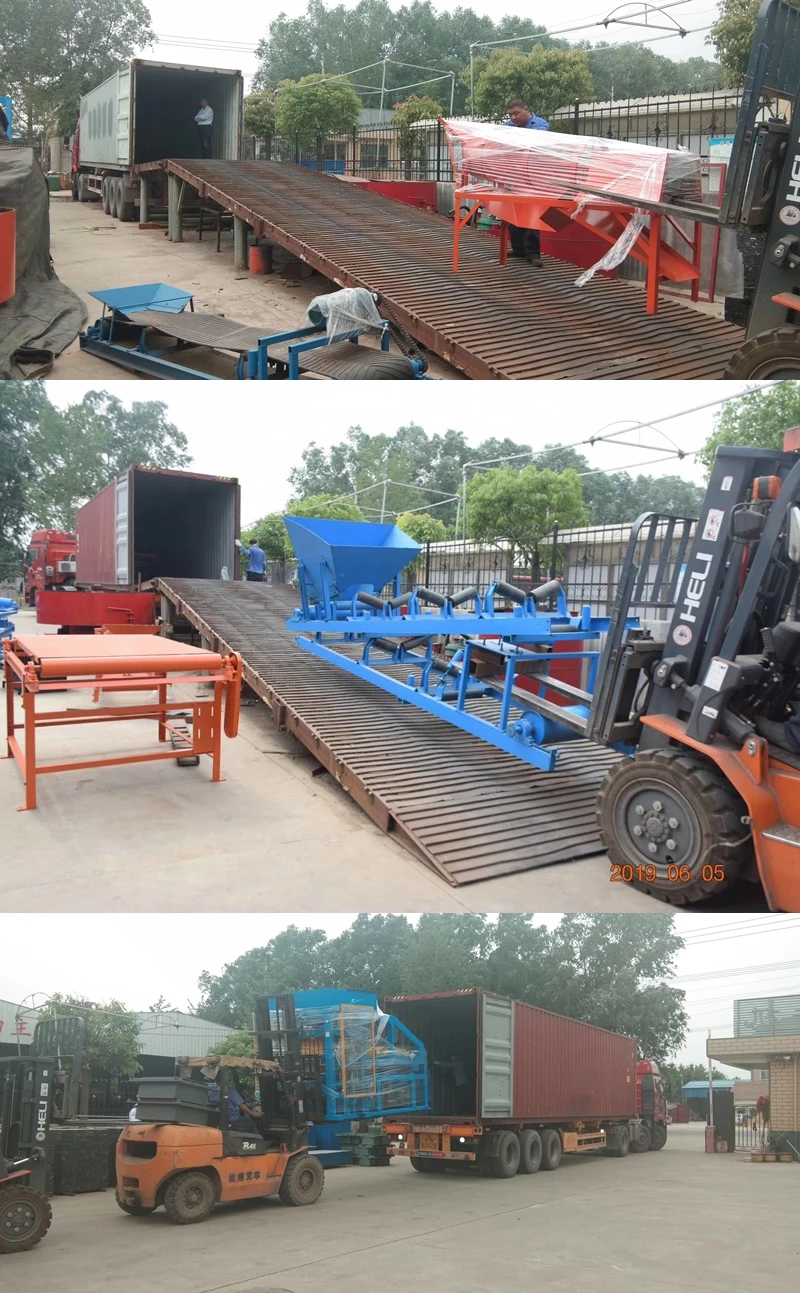

Packing & Delivery
Plywood Box/nude package in container
1. who are we?
We are based in Shandong, China, start from 2019,sell to Africa(50.00%),North America(20.00%),South America(10.00%),Mid East(10.00%),South Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
brick making machine,block making machine,concrete mixer,clay lego brick machine,Earth interlocking block machine
4. why should you buy from us not from other suppliers?
Xinming Machinery Co., Ltd. is located in Lanshan District, Linyi City, Shandong Province. It is a professional enterprise dedicated to the research, development, manufacturing and sales of brick making machines for 23 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,German,Arabic,French,Russian
We are based in Shandong, China, start from 2019,sell to Africa(50.00%),North America(20.00%),South America(10.00%),Mid East(10.00%),South Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
brick making machine,block making machine,concrete mixer,clay lego brick machine,Earth interlocking block machine
4. why should you buy from us not from other suppliers?
Xinming Machinery Co., Ltd. is located in Lanshan District, Linyi City, Shandong Province. It is a professional enterprise dedicated to the research, development, manufacturing and sales of brick making machines for 23 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,German,Arabic,French,Russian

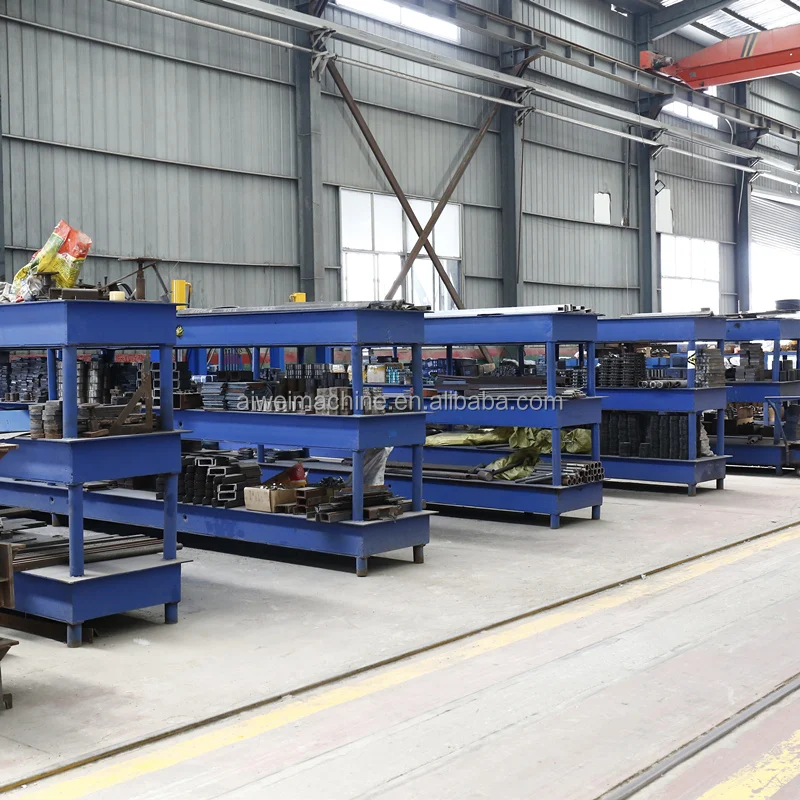

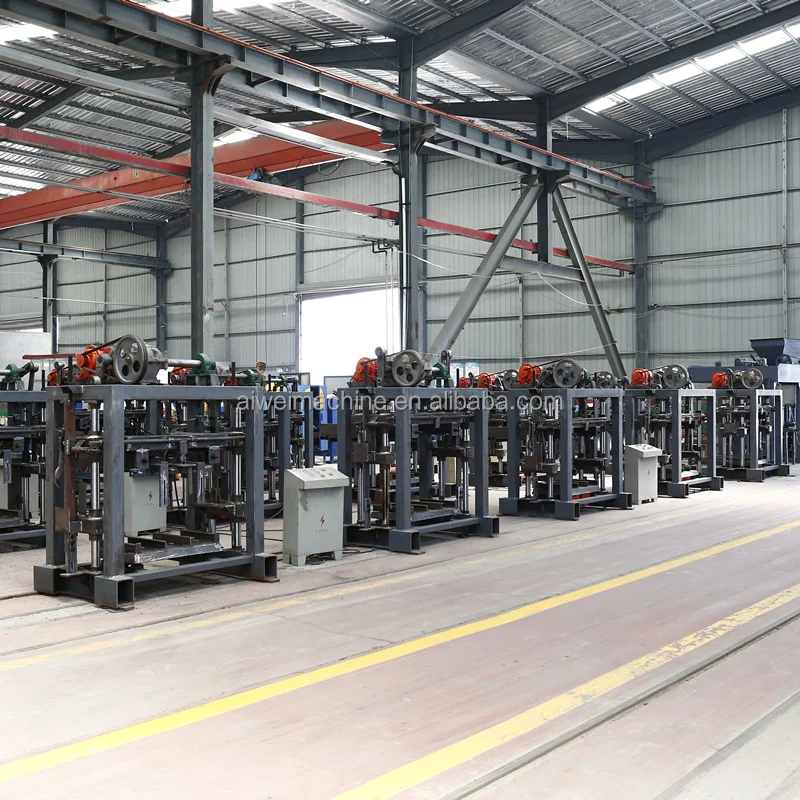

Company Profile
Xinming Machinery Co., Ltd. (XinMing) is located in Lanshan District, Linyi City, Shandong Province. It is a professional enterprise dedicated to the research, development, manufacturing and sales of brick making machines.
We produce concrete brick making machines and clay brick making machines. According to the work needs of different customers, such as model design, raw material use, machine working environment and related accessories can be flexibly designed and manufactured according to user needs.
We produce concrete brick making machines and clay brick making machines. According to the work needs of different customers, such as model design, raw material use, machine working environment and related accessories can be flexibly designed and manufactured according to user needs.
