Special gear


Part name

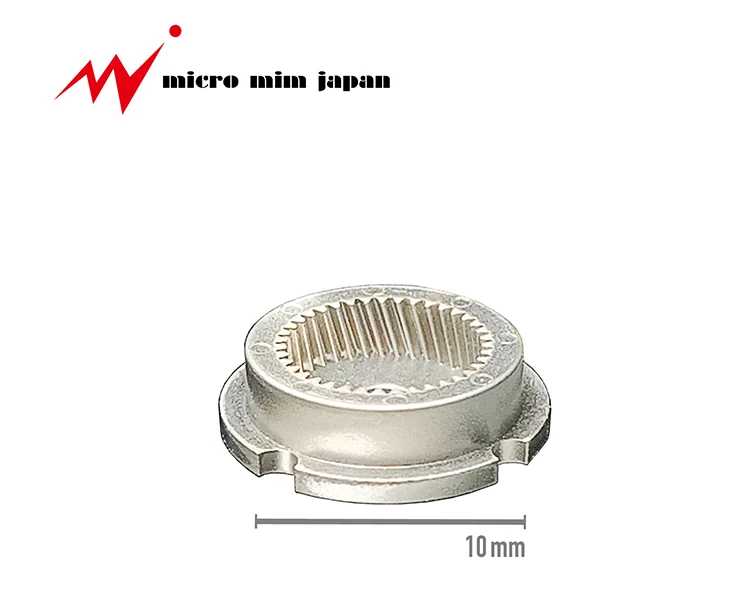

Internal Helical Gear
Materials
Stainless steel 1.4435 (SS316L)
Tolerance
± 0.03 mm
Weight
< 2 g
Size
Number of teeth 39, Module 0.2, Pressure angle 20°





    It is very difficult to assure the tolerance requirement in small gears because its size is too small to use a probe-type measurementsystem or standard optical measurement system.

    We have developed our original quality analysis system to prove our quality. The micro X-ray CT measurement and high-end optical measurement system are employed.

    The measurement data will be analysed using our original analysis software to compare with the 3D-drawing data. This software indicates required data such as the pitch error and tooth line for gear quality assurance.

    Moreover, we will accept the numerical simulation with other gears or systems movement which our product will be assembled.




    It is free from design restriction of the machining tool. Our μ-MIM® technology realises any tooth design for serial production.

    Our production does not require any machining tool in the production process, therefore constant high-quality micro gear production is possible.

    Please contact us, if you have any problem with serial production of small special gear, which is impossible to realise by machining.

    Additionally, we possess state-of-the-art quality assurance systems, which we are proud of.

    Advantage: Realising manufacturing of micro gears impossible with CNC machining

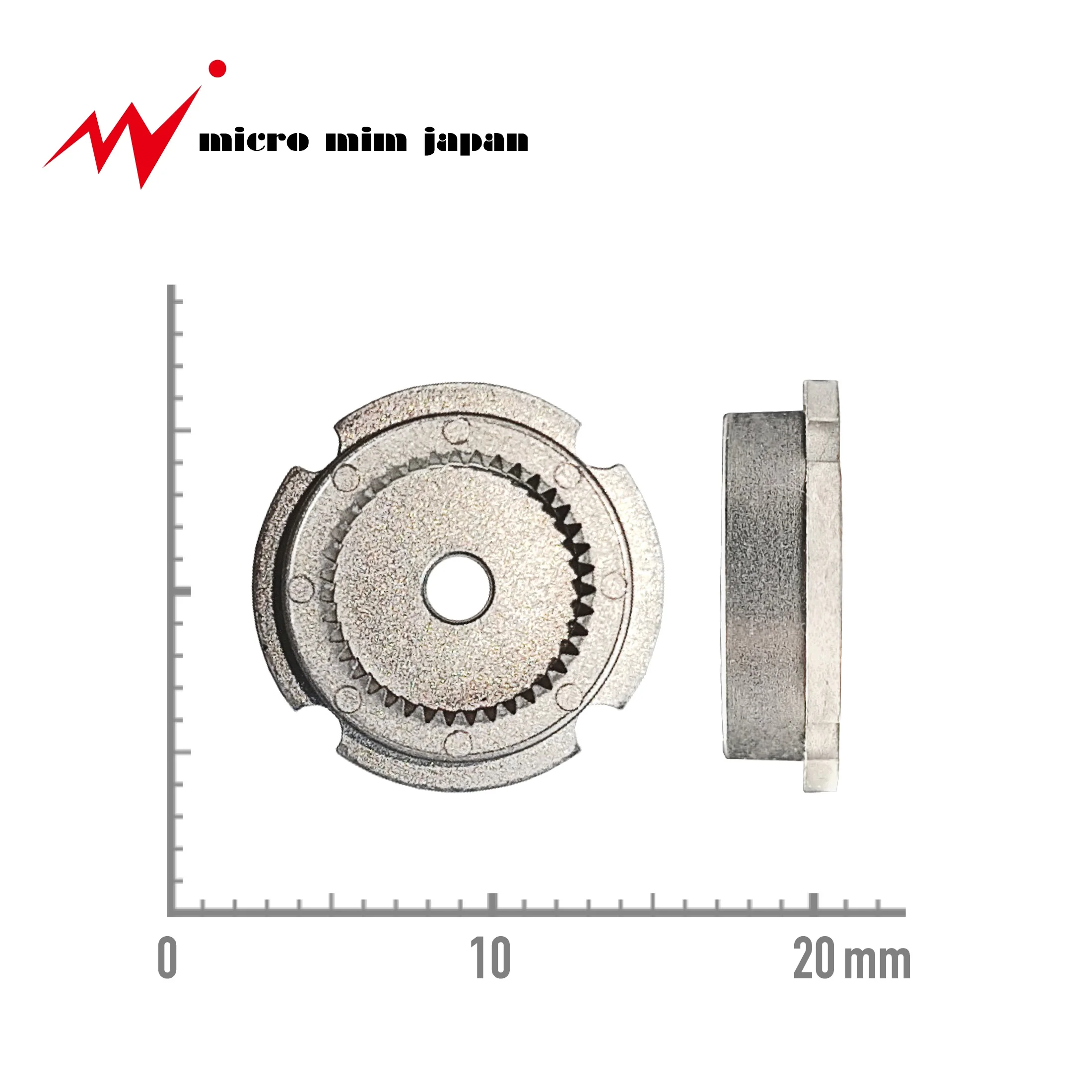

    Characteristics: Internal helical gear with the teeth formed till the edge.




Recommend Products




Gear




Medical forceps




Other
















Micro MIM Japan Holdings Inc. and its group companies cooperate as a team to cater for various needs of our customers from different parts of the world.
Manufacturing section: Taisei Kogyo Co., Ltd., TAISEI KOGYO(THAILAND) CO., LTD.

Taisei Kogyo Co., Ltd. was established in January 1972 as a plastic injection moulding manufacturer. Aside from improving our technology in the plastic injection moulding, we organised an R&D group in Kyoto Research Park about 25 years ago, to start researching on MIM technology. We utilise our knowledge and experience from the plastic injection moulding and developed original MIM material (binder system and feedstock), which makes it possible to manufacture small and complex shaped MIM components for serial production. Taisei Kogyo Co., Ltd. has obtained ISO13485 in May 2019. TAISEI KOGYO (THAILAND) CO., LTD. was established in August 2011 and started its operation in 2012. We maintain the same production standard as Japanese factory.
