3 шт. пневматический вакуумный шаровой кран из нержавеющей
3 шт. пневматический вакуумный шаровой кран из нержавеющей
3 шт. пневматический вакуумный шаровой кран из нержавеющей
3 шт. пневматический вакуумный шаровой кран из нержавеющей

3 шт. пневматический вакуумный шаровой кран из нержавеющей


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики







Our Advantages









Wenzhou COVNA aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.





• 19 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.





• 3 production base, large stock, SHORT LEAD TIME, same day shipping.




• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.





• ISO 9001 certificated, with extra certifications include CE, TUV, RoHS, SGS, BV, explosion & fire safe.





• OEM / ODM  service available.


























GET A QUICK QUOTE












































BodyValve components
Size rangeDN15~DN400Sealing materialPTFE:-30℃~180℃
Body materialStainless steelCore materialStainless steel
End connectionFlangeStem materialStainless steel
Operating pressure1.6, 2.5, 4.0, 6.4MPaApplicable mediaWater, oil, Gas, Liquid, steam, powder, anti-corrosive base
StructureFloating ball core




COVNA pneumatic flange ball valve, 2-way port configuration, default GB standard, ANSI, JIS, DIN or API 6D is available, double-acting standard control mode, single-acting is available, 304 or 316 stainless steel body construction, 2.5 to 8 bar input air pressure, minimum 1/2 inch flanged connection, default PTFE seat, resistant to almost all fluids. Suitable for higher operating pressures and temperatures.

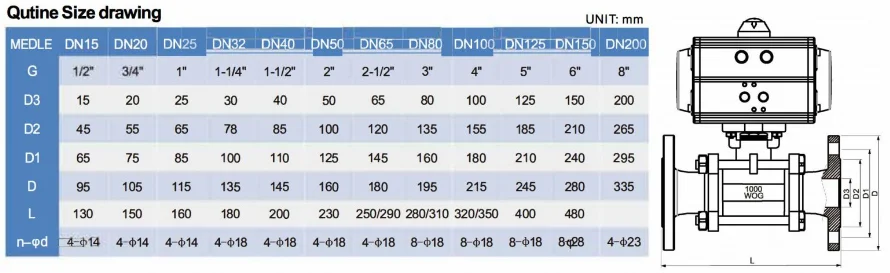

Dimension


















Click to enlarge








With Electro-Pneumatic Positioner

With Manual Operation Mechanism

With F.R.L, Limit Switch and Handwheel

With Filter, Limit Switch and Pneumatic Solenoid Valve











ISO 5211 Mounting Pad













750-224









GET A QUICK QUOTE










Actuator Output Torque Data












































































































[Double Acting] Input Air Pressure (Bar)


Model


2


2.5


3


4


4.5


5


AT52D


8.0


10.0


12.0


16.0


18.0


20.0


AT63D


14.6


18.2


21.9


29.2


32.8


36.5


AT83D



31.4



39.2


47.0


62.7


70.5


78.4


AT105D


66.1


82.7


99.2


132.2


148.8


165.3


AT130D


100.3


125.4


150.5


200.6


225.7


250.8


AT140D


171.0


213.8


256.5


342.0


384.8


427.5


AT160D


266.0


332.5


399.0


532.0


598.5


665.0


AT190D


425.6


532.0


638.4


851.2


957.6


1064.0







For Single Acting Actuator Output Torque Data, please contact us! Our professional team will get back to you within 3 hours!









Accessories

















GET A QUICK QUOTE













Working Principle




















CCW


[Double Acting] Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.





Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A.




CW


Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.


Air to Port B forces the pistons inwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port A.












About Wenzhou COVNA






















Wenzhou COVNA Valve Co., Ltd.


Wenzhou COVNA is one of the top manufacturers of quarter turn actuators and actuated valve products in China with 19 years experience. All COVNA products are designed and manufactured by experienced engineers to provide safe and reliable valves, actuators and solutions. COVNA aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.













Our Certificates





















Global Trusted





















Packing Details

















Packing details: each valve will be packed with foam in carton or in pallet to keep it safe during shipment.


Shipping method: we offer a variety of fast shipping methods, including DHL, Fedex, TNT, UPS, EMS, Airway, etc.


Delivery time: within 15 working days after payment due, stocking items same-day shipping.
