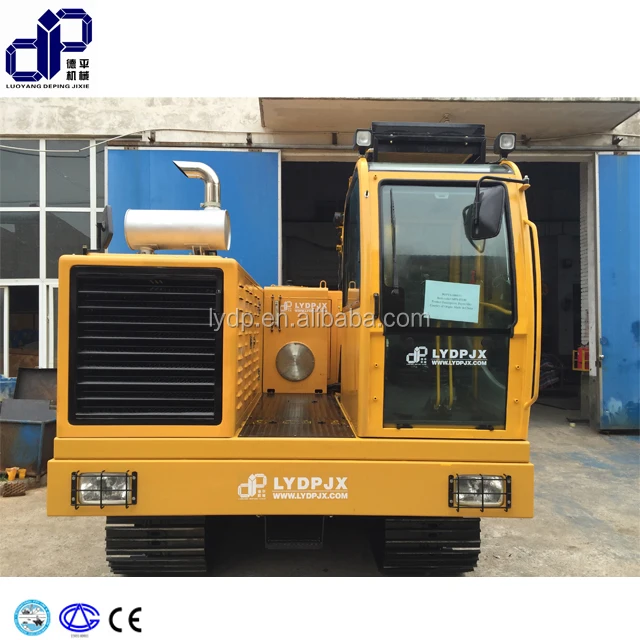

MPS-H100 paywelder | Мобильный сварочный аппарат генератор как источник питания со светодиодом

Описание и отзывы

Характеристики

Main features:

Patented design of rigid straight connecting of engine, generator and hydraulic pump

Powerful cross-country performance supported by 10T excavator chassis with ship type platform frame and 91KN powerful traction

Compared with similar products, our paywelder has an 11.2% improvement in efficiency, also cantilever crane equipped an independent hydraulic system, full rotating 360°ability

Comfortable operating spacei in paywelder cab:safe and low vibrating of YF-3opearting cab

Reducing maintenance cost:incorporate engine, generator with hydraulic pump

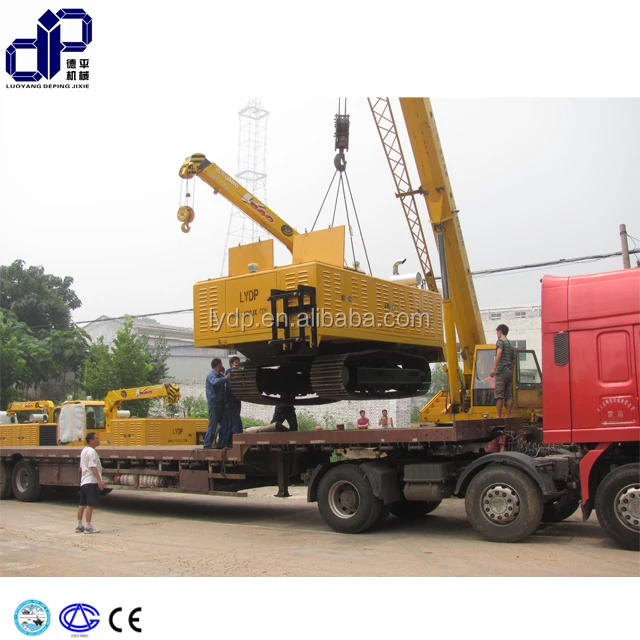

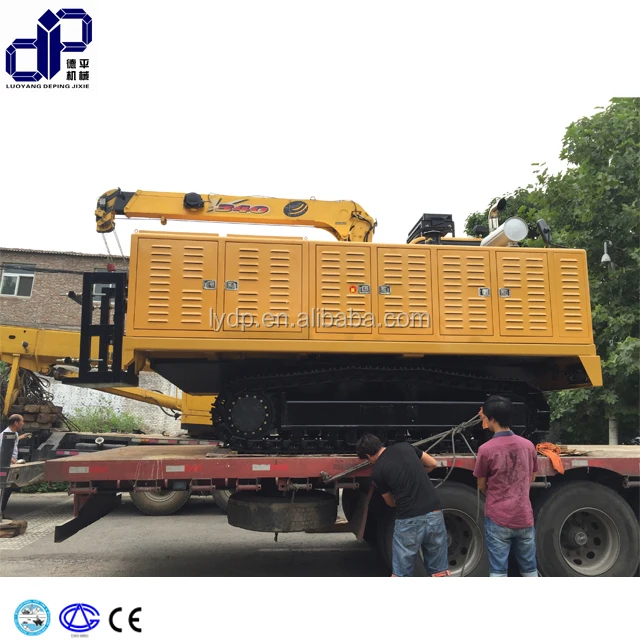

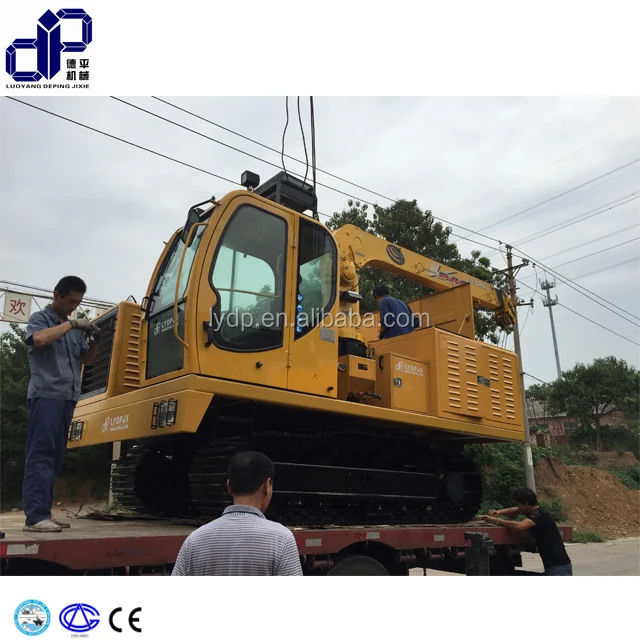

Convenient turning operation :paywelder platform is equipped with the built-in lifting hook, easy hoisting and shipping

Engine :Cummins 6BTA series engines, making it suitable for harsh working condition such as high temperature, high cold temperature and high elevation

Powerful & Stable traction: depending on powerful traction, the paywelder can maneuver easily on uneven terrin, hilly and wetland areas, it has excellent off road performance

Gas bottle mounting frame: The frame can be installed 4~6 gas bottles of oxygen, acetylene, carbon dioxide etc.

It adopts the features of reliable fixation, easy disassembly, rational layout and save space.

Model		MPS-H100
Operating Weight		11500Kg
Overall Dimensions (L*W*H)		5500*2600*3050mm
Engine	Type	Cummins 6BTA5.9-C180 Turbo-charged, Water Cooling
	Power	132KW (at power generating condition: 121KW/1500rpm)
	Rotating Speed	2200 rpm
Generator	Type	Faraday Generator FD3C (50hz/1500rpm)
	Rated Power	100kw
	Rated Capacity	125kva
	Output Type	Three phases 380v
Operating Format	Pressure/ Flux	25mpa/189 L/Min
	Traveling	Indoor hand & foot synchronization joy stick
	Generating	Indoor positioning joy stick
	Lifting	Outdoor joy stick
Travel	Travel Speed(Front & reverse)	2.8/4.6km/h (two shifts ,continuously variable transmission)
	Grade ability	30°
	Ground Pressure	33/25 Kpa 39/32 Kpa
Chassis	Minimum Ground Clearance	490mm
	Track Shoe Width	500mm/600mm
Cantalever Lift	Type	Hydraulic 360°swing ,telescopic boom
	Max Lifting capacity	3200kg
	Crane Radius	2100-5320mm
	Pressure /Flux	20mpa/25L/Min
Main Carrying Capacity		DC400 4 units of Lincoln welding machine; 1 unit of 7.5KW air compressor and 4 units of handwheel polisher (Factory setting: this equipment doesn't carry above items)
