PRODUCT SPECIFICATIONS


Rig Model
ZJ15CZ
ZJ20CZ
ZJ30CZ
ZJ40CZ
Installed Power
HP/KW
540HP
(402KW)
630HP
(470KW)
630 HP×2
(470 KW×2)
630 HP×2
(470 KW×2)
Max.Hook Load
1350kN
1580kN
2250kN
2250kN
Max. Drill String Load
500kN
700KN
1150KN
1150KN
Draw works Rated Power
450HP
600HP
1000HP
1000HP
Transmission Mode
Hydraulic+
Mechanical
Hydraulic+
Mechanical
Hydraulic+
Mechanical
Hydraulic+
Mechanical
Drive Mode
10×8
12×8
14×10
14×10
Nominal Drilling Depth (4 1/2"DP)
1500m
2000m
4000m
4000m
Mast Height
33m
35m
38m
38m
Rig Floor Height
4.5m
4.5m
6m
6m
Wire rope Diameter
Ф26mm
Ф29mm
Ф32mm
Ф32mm
Hydraulic System
14MPa
14MPa
21MPa
21MPa
Pneumatic System
0.8MPa
0.8MPa
0.8MPa
0.8MPa
Travel ling System
5×4
5×4
6×5
6×5
Overall Size (m)
19.37×3.05×4.49m
20.1×3.05×4.49
23×3.2×4.8
23×3.2×4.8
Weight (kg)
52000 kg
58000Kg
85000 kg
85000 kg

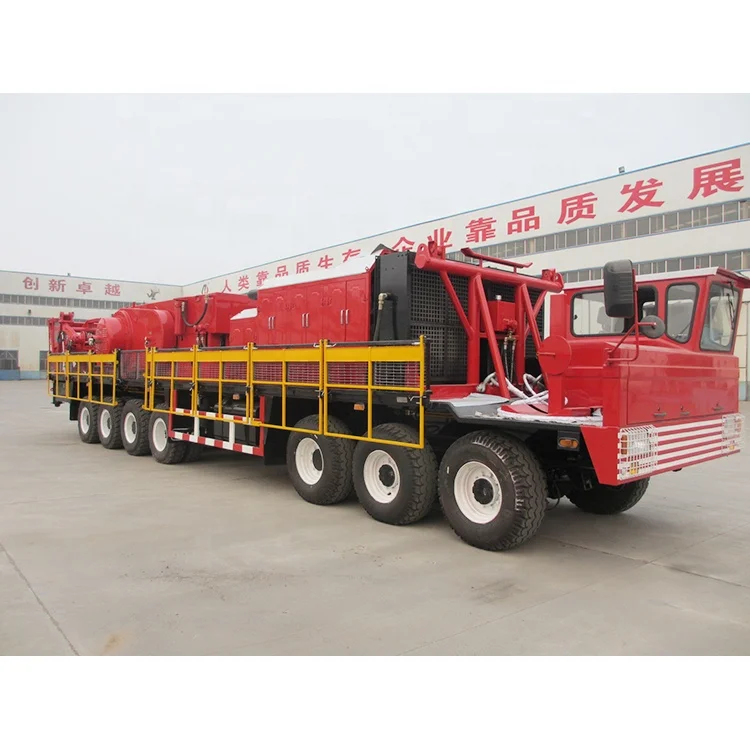

Product Description


XJ series Drilling&Workover Rig is the bestselling heavy duty workover rig of THpetro. Equipped with powerful Cat C18 engine, it can serve as a 2 in 1 rig to perform both workover and drilling operation.
This rig is renowned by the powerful capability, stable performance and great mobility by users in South America, Western Africa
and Middle East area.
The main rig can be customized with well control, solid control and other systematic setup to become your complete solution to workover and drilling operations.


Packing&Shipping




Company Introduction




Shandong Beyond Petroleum Equipment Co., Ltd,
hereinafter referred to as “Beyond”, was established in year 2016 and certified by
ISO9001. Its main business scope is to supply drilling equipment and spares for overseas customers from different sectors, like petroleum, water well, construction and HDD.
Beyond products cover but not limited to: oil drilling & workover rig, water well drilling rig, pile drilling rig, horizontal directional drilling rig, mud pump and spares, solid control system & equipment, and other different drilling materials.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can customize the product supply as per your on-site conditions, and we can offer overseas after-sale services with our strong technical support.
