Model | HL3-36V13Ah | HL3-36V15AH | HL3-36V17.5AH | HL3-36V15AH | HL3-36V17.4AH | ||||
Configuration | 10S5P | 10S5P | 10S5P | 10S6P | 10S6P | ||||
Nominal voltage | 36V | 36V | 36V | 36V | 36V | ||||
Nominal capacity | 13Ah | 15Ah | 17.5Ah | 15Ah | 17.4Ah | ||||
Charge voltage | 42V | ||||||||
Standard charge current | ≤3A | ||||||||
Continuous discharge current | ≤20A | ||||||||
Discharge cut off voltage | 28V | ||||||||
Net weight | 3.5kg | 3.5kg | 3.5kg | 4.0kg | 4.0kg | ||||

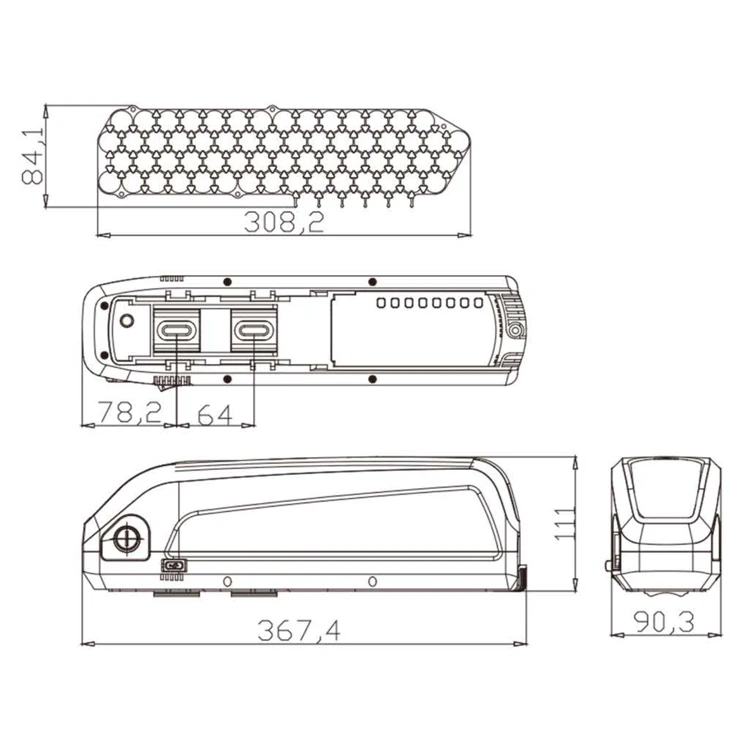

Case dimension | 368*90*111mm | ||||||||
Cycle life | 1000 times | ||||||||
Warranty | 1 year | ||||||||
BMS function | over-charge, over-discharge, over-current,short circuit | ||||||||
Fit motors | ≤500W | ||||||||
Charge temperature | 0 ~ 45°C | ||||||||
Discharge temperature | -20 ~ 60°C | ||||||||
Available colors | Black | ||||||||
Charge port | XLR interface or appointed | ||||||||
Discharge port/Output port | Anderson or appointed/USB |
