Высококачественный автоматический фрезерный и гравировальный станок с ЧПУ от производителя низкая

Описание и отзывы

Характеристики

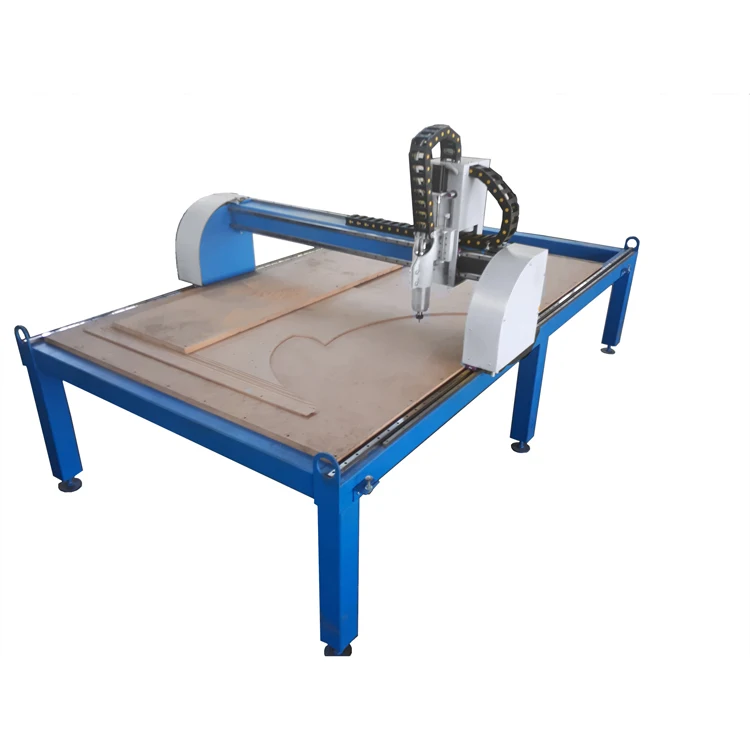

Top quality automatic CNC milling and engraving machine from manufacturer, low price CNC milling machine

The manufacturer company offers a CNC milling and engraving machine.
The size of the desktop is 1250x2500mm, the table can be changed at the buyer's choice. Strong steel frame construction. The equipment is controlled by a program that is convenient for the operator.



The warranty is 1 year.



This model can be used for milling and engraving wood, MDF, fiberboard, plywood, plastics, PVC, plexiglass and other materials. The CNC milling and engraving machine is easy to master.



We will help you choose the optimal modification of the equipment that is most useful for your company. You can contact our specialists through the contact form of the ad.

Personal computer with software and operating system	Yes
Motors	servo-stepper
Maximum stroke of the Z axis	200 mm
Type of torque transfer from the motor to the Z axis	ball-screw pair
Type of torque transmission from the motor on the X and Y axes	gear rack / gear
Motor synchronization	on the X-axis
Used guides	Hiwin profile rails
Max. positioning speed	up to 20,000 mm / min
Positioning accuracy	+ / - 0.05 mm
Repetition accuracy	+ / - 0.05 mm
Spindle power	2.4 kW
The spindle speed	24000 revolutions / minute
Spindle cooling	liquid
Voltage	380 V
Current frequency	50 Hz
Total power consumption	5 kW
The weight of the CNC milling machine	about 500 kg

The plasma cutting machine does not need special installation.	Easy to learn - a few hours are enough to train the operator. The training is free of charge.	Instructions and training video.
Delivery to all regions at the minimum tariff. Call the phone number of this ad. Also, the number +79043056178 is a number in Viber, WhatsApp and Telegram. Also write via the contact form. We will give a link to the website and a demo video of the machines.

Processing time:	5 days
Port:	St. Petersburg
Packaging details:	Wooden Box

The Stankoprom plant is a modern, actively developing company for the manufacture of machine tools and equipment. Many years of experience allows us to fulfill our customers ' orders efficiently and within the time agreed with the Buyer.

The machines produced by our company are successfully operated in different countries. Warranty and post-warranty service. Expert advice and free training of your employees. Also among the competitive advantages of our company is the solution of problems of any complexity. We can change the technical characteristics of the ordered machines at the request of the client.

Transparent pricing policy: the cost of the equipment specified at the conclusion of the contract will not increase under any circumstances in the future. Customers can be sure that our machines will successfully solve all production tasks. When fulfilling each order, we work with full dedication.

Assistance in organizing delivery. Special conditions of cooperation with leading transport companies will help to save significantly when transporting equipment.
