Кран для туалета и кухни TB6120, латунный, 1/2 градусов
US $1.52-$1.64
Лидер продаж соленоидный латунный таймер высокого давления 16 бар
- Категории: Valves >>>
- Поставщик: Ningbo,Yuxin,Pneumatic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

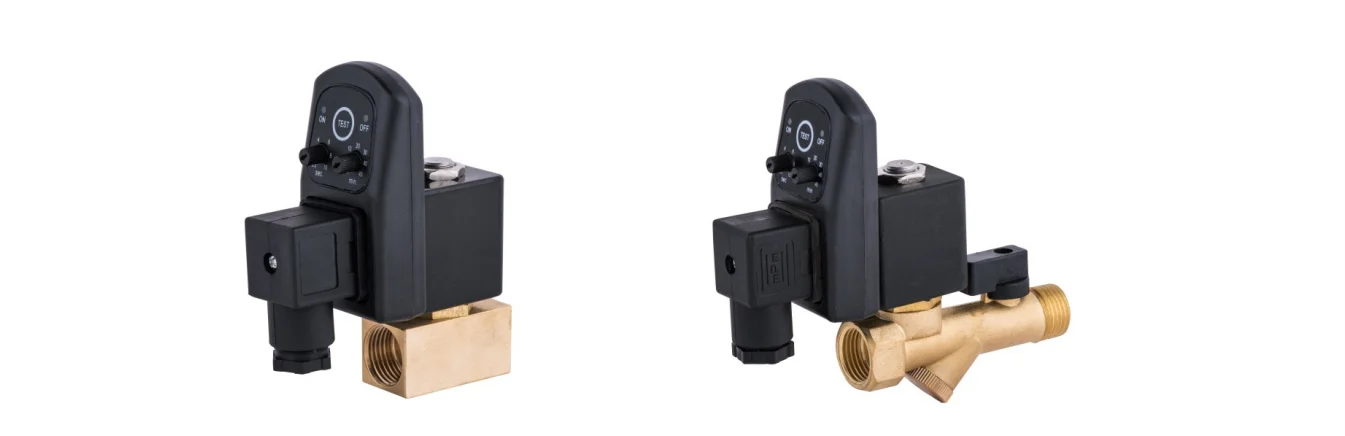

CS series timer solenoid valve
Different Digital timer to choose
Brass body ,16bar,25bar,40bar,80bar pressure range
timer solenoid valve is widely used as spare parts of air comparessor.
solenoid water valves are automatically control fluid flow

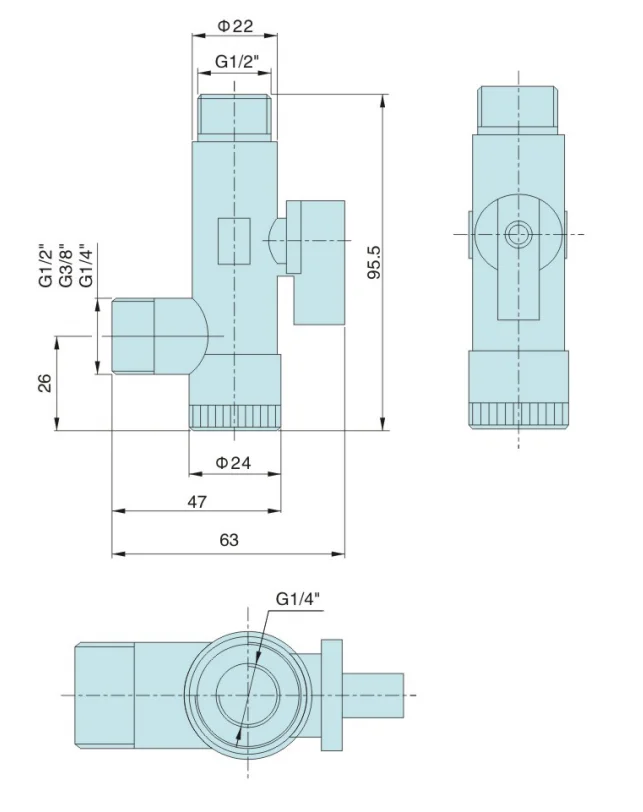

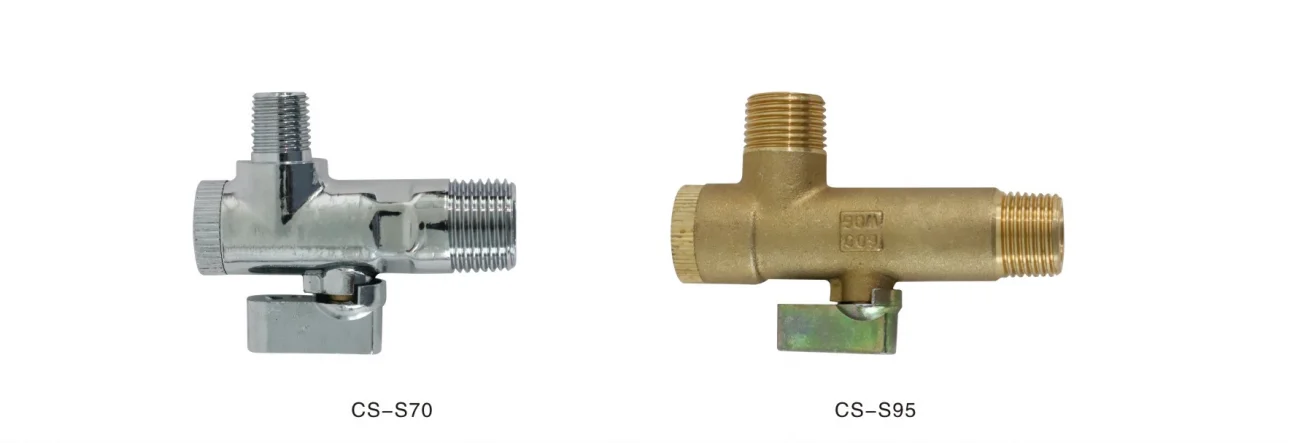

With cooper filter ball valve
Different Digital timer to choose
Brass body ,16bar,25bar,40bar,80bar pressure range
timer solenoid valve is widely used as spare parts of air comparessor.
solenoid water valves are automatically control fluid flow
With cooper filter ball valve
Drain valve with timer XY-720
drain valve with timer XY-720 UL certified
timer electric water valve can control the valve open and close automatically.
NPT thread drain valve is easy to install,working with strainer to protect against impurity from condensate;
230VAC timer solenoid valve are widely used as spare part of air dryer system.
water valve for air compressor;cleaning machine valves.
drain valve with timer XY-720 UL certified
timer electric water valve can control the valve open and close automatically.
NPT thread drain valve is easy to install,working with strainer to protect against impurity from condensate;
230VAC timer solenoid valve are widely used as spare part of air dryer system.
water valve for air compressor;cleaning machine valves.
Automatic drain valves designed as Air compressor valves and compressor parts,auto drain valve is suitable for compressed air
storage tank or other gas pressure vessels to remove water or harmful liquid.
Electic control valve is to control fluid flow open and close;
Water valve with timer ith or without filter ball valves or float type ball valves can be shut off from the compressed air system
enabling easy and safe maintenance ;
The Timer drain valves are used to simulate the solid-state electronic timer and the solenoid valve, so as to realize the
automatic discharge of condensed water.
storage tank or other gas pressure vessels to remove water or harmful liquid.
Electic control valve is to control fluid flow open and close;
Water valve with timer ith or without filter ball valves or float type ball valves can be shut off from the compressed air system
enabling easy and safe maintenance ;
The Timer drain valves are used to simulate the solid-state electronic timer and the solenoid valve, so as to realize the
automatic discharge of condensed water.
Product Paramenters
product name | timer solenoid valve | ||||
working medium | Compressed Air,Water,Light oil | ||||
model | CS-720 | ||||
Valve Style | 2/2 Direct action | ||||
initial status | normally closed | ||||
port size | G 1/4"., G3/8".G 1/2 Female | ||||
way and position | 2 Position 2 way | ||||
material of body | Brass | stainless steel | |||
Operating pressure | 0-16bar | 0-40bar | 0-80bar | ||
orifice | 4.5mm | 2.5mm | 1.9mm | ||
On Time | 0.5 - 10s | ||||
Off Time | 0.5-45min | ||||
Power | AC22VA/DC20W | ||||
working voltage | DC/AC 24~240V 50/60Hz±10% | ||||
Temperature Range | 20℃~60℃ | ||||
Highest Media Temperature | -20 ~ 150° | ||||
Mounting | Any place | ||||

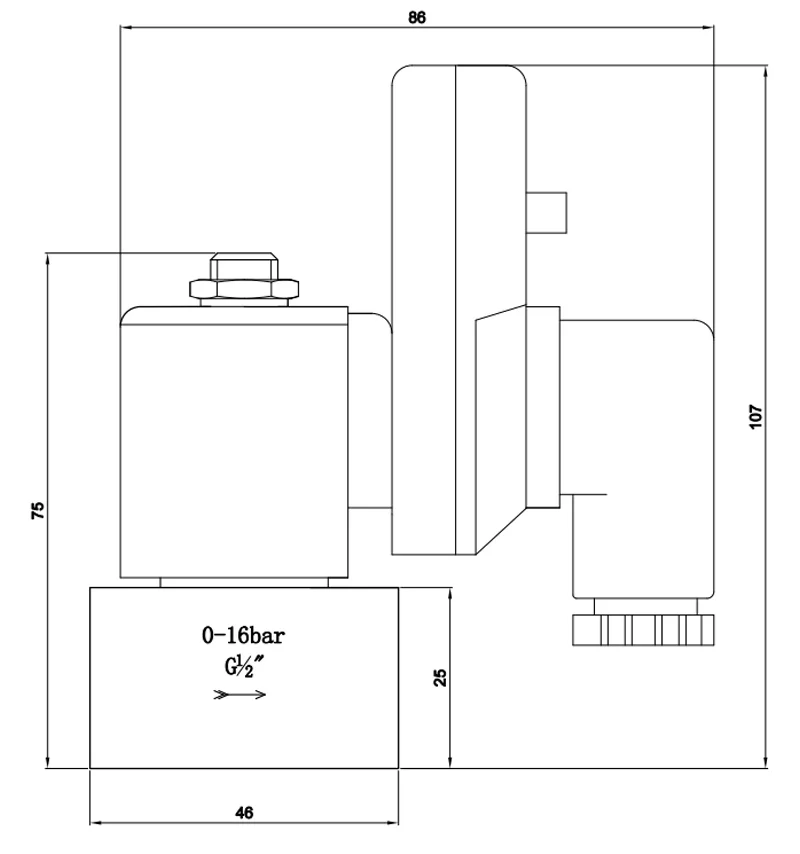

Dimension size
Company information
Company profile:
NINGBO YUNXIN PNEUMATIC Co., Ltd is a factory professionally producing pneumatic components. The products are mainly including pneumatic air valve ,solenoid valve ,2 ways 3 ways 5 ways air solenoid valve,high pressure solenoid valve ,explosion proof solenoid valve ,Namur air valve ,pneumatic pulse valve, flow control valve ,air filter ,air filter regulator , air source treatment units, pneumatic control components, pneumatic actuators, and pneumatic fitting accessories, etc. With reliable are widely used in such fields as metallurgy, food, textile, machinery, chemistry and electronics, etc. Since it was founded, have been pursued, integrity, quality, service principle. We adhering to the "customer first, forge ahead" business philosophy, adhere to the "customers first".

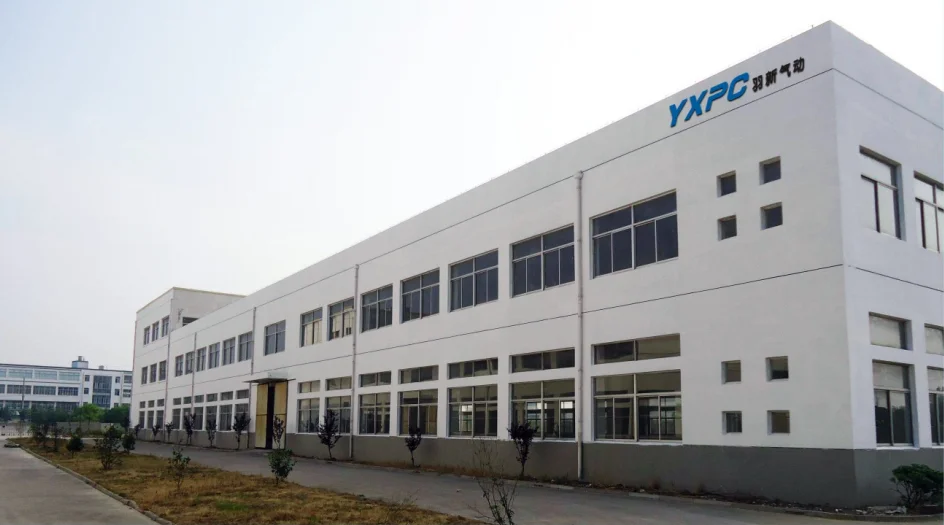

workshop
We are manufacturer for pneumatic components which have own factory and We not only have advanced processing equipment,but also equipped with a consummate testing facilities and strong technical force.
Our Advantages
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Contact information
Feel free to contact us at anytime if you have any problems or questions on your purchase about timer solenoid valve . We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
