Кабельный гранулятор 30-50 кг
- Категории: Recycling >>>
- Поставщик: Changzhou,Optima,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview
Applications:
Copper cable granulator is suitable for processing all kinds of scrap wires and cables, wire and cable with a diameter of 1-200mm,
such as Automobile electrical wire, car electric wire, motorcycle electric wire, power cable, communication cable, signal cables
and other miscellaneous cables which cannot be processed by wire stripping machine.
Description:
OTD copper cable granulator adopts advanced design, rational structure and reliable operation. The characteristics of the
production line can not only deal with thick wires which the normal crusher can process, but also the very thin wire has good separation effect. The present production line by feeding conveyor belt, heavy duty crushing machine, feeding blower, vibrating
screen, pulse dust collector, hydraulic Station and electrical control cabinet and other components.
The waste cables or wires will become plastic pellets and copper particles after been crushed. The mixed will jump and move ahead
like wave type on the vibrating screen mesh surface. With airflow function and screen box straight shock excitation, the sheath and core will be separated, and get copper particles, plastic pellets and mixture from different outlet areas.
Each step is controlled by the PLC program, started and stopped by one button. The operation interface video display the working condition of the important parts, and intelligent display the equipment failure.The max. diameter of scrap cable is 60mm. It is easy to operation and maintenance, the separation purity can reach 99% with single copper core of diameter ≥0.2mm and the input capacity around 300-1000 kg/hr.
Copper cable granulator is suitable for processing all kinds of scrap wires and cables, wire and cable with a diameter of 1-200mm,
such as Automobile electrical wire, car electric wire, motorcycle electric wire, power cable, communication cable, signal cables
and other miscellaneous cables which cannot be processed by wire stripping machine.
Description:
OTD copper cable granulator adopts advanced design, rational structure and reliable operation. The characteristics of the
production line can not only deal with thick wires which the normal crusher can process, but also the very thin wire has good separation effect. The present production line by feeding conveyor belt, heavy duty crushing machine, feeding blower, vibrating
screen, pulse dust collector, hydraulic Station and electrical control cabinet and other components.
The waste cables or wires will become plastic pellets and copper particles after been crushed. The mixed will jump and move ahead
like wave type on the vibrating screen mesh surface. With airflow function and screen box straight shock excitation, the sheath and core will be separated, and get copper particles, plastic pellets and mixture from different outlet areas.
Each step is controlled by the PLC program, started and stopped by one button. The operation interface video display the working condition of the important parts, and intelligent display the equipment failure.The max. diameter of scrap cable is 60mm. It is easy to operation and maintenance, the separation purity can reach 99% with single copper core of diameter ≥0.2mm and the input capacity around 300-1000 kg/hr.
FEATURES AT A GLANCE
Main machines of the recycling line:
1.Single shaft shredder
2.Granulator
3.Vibrating separator
4.Dust collector
1.Single shaft shredder
2.Granulator
3.Vibrating separator
4.Dust collector
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | Production capacity | Power | weight | Size(mm) |
OTD50 | 30-50kg/h | 3kw | 370kg | 1000*1000*1850 |
OTD300 | 100-200kg/h | 26.86kw | 2700kg | 3000*1800*3200 |
OTD400 | 300-400kg/h | 68kw | 7500kg | 6000*3500*3200 |
OTD500 | 400-500kg/h | 70kw | 9000kg | 8000*3500*3200 |
OTD1000 | 800-1000kg/h | 160kw | 15000kg | 20000*7000*3200 |
OTD3000 | 2500-3000kg/h | 516kw | 45000kg | 40000*10000*4500 |
OTD5000 | 4000-5000kg/h | 1012kw | 75000kg | 45000*18000*4500 |
OTD10000 | 8500-10000kg/h | 1986kw | 100000kg | 100000*15000*4500 |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Blade

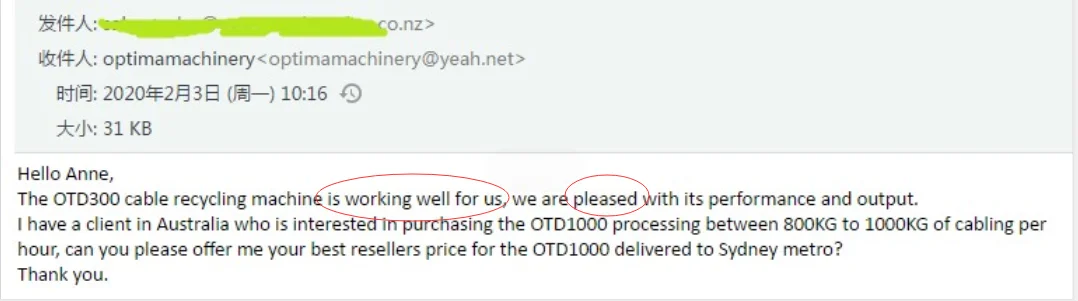

GREAT FEEDBACK
