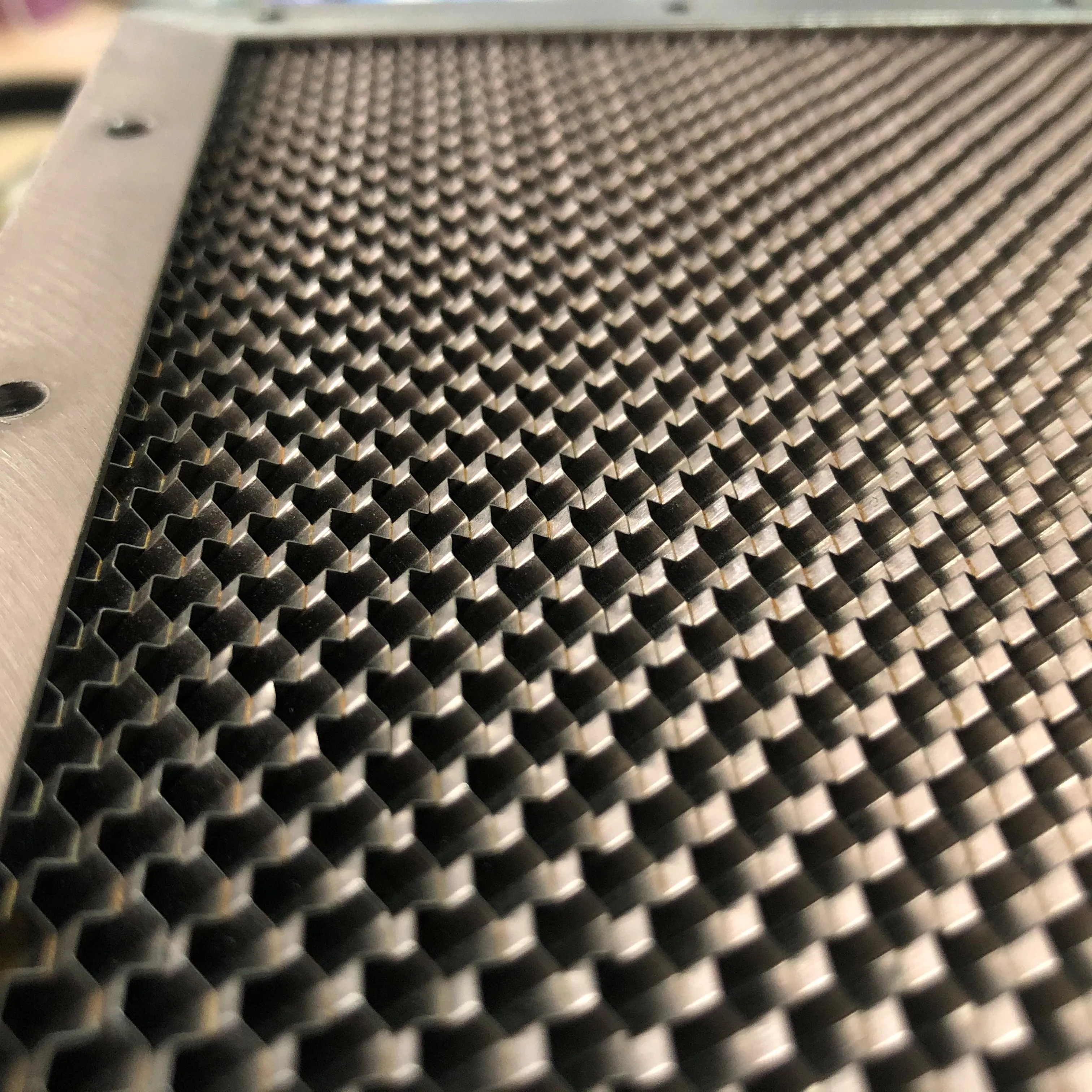

Honeycomb Vent For RF Shielding room and EMC chamber MRI room

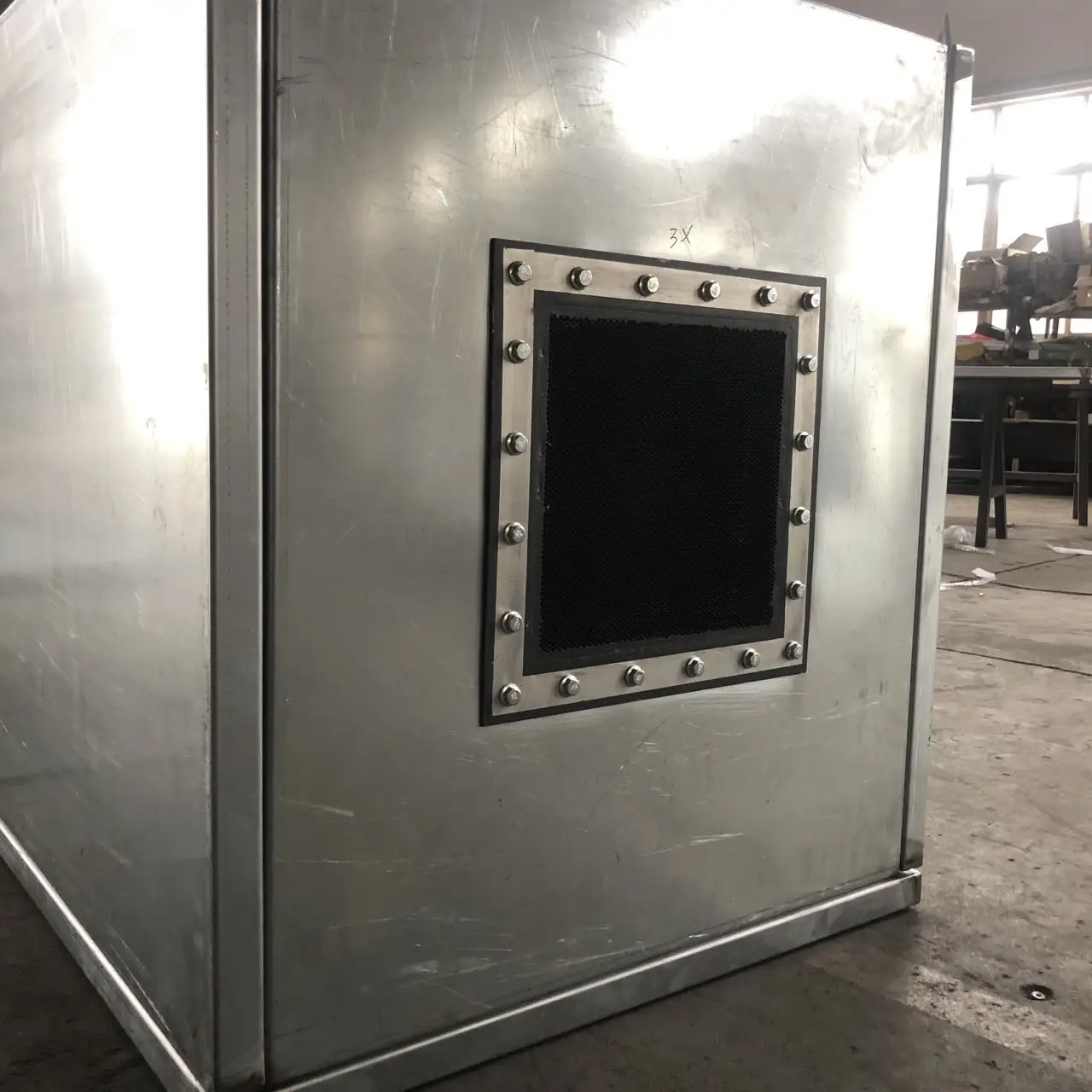

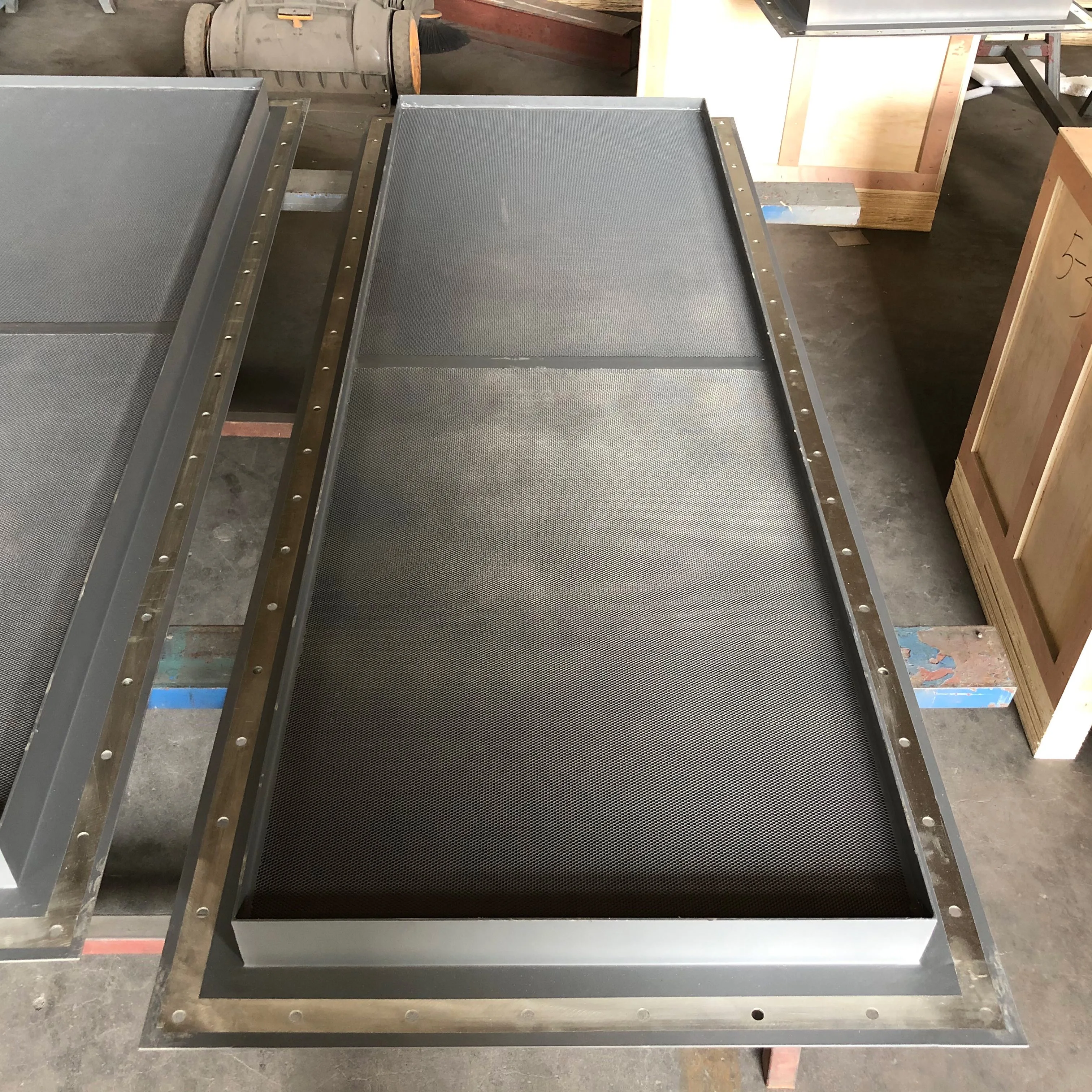

Honeycomb vent are utilized to obtain effective electromagnetic shielding while assuring, at the same time, excellent airflow. The filters may be provided in various materials, with or without frame and gaskets (and environmental sealing), ready for installation. They are used in all apparatus where electromagnetic shielding and airflow are required, such as for example, shielding room, shielding cabinet, shielding box, emc chamber, antenna chamber, military shelter, electrical control panel, etc., air conditioning systems.

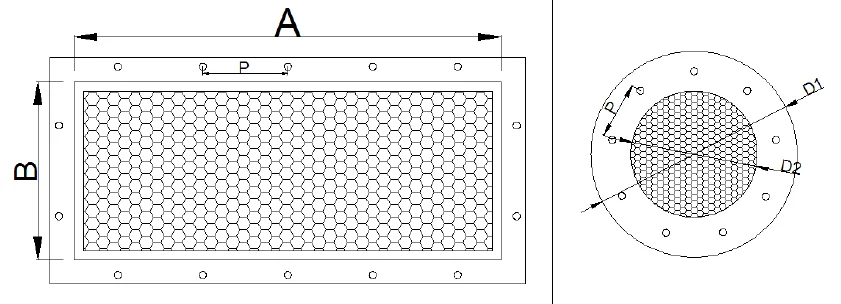

Shape




Rectangular - Squared

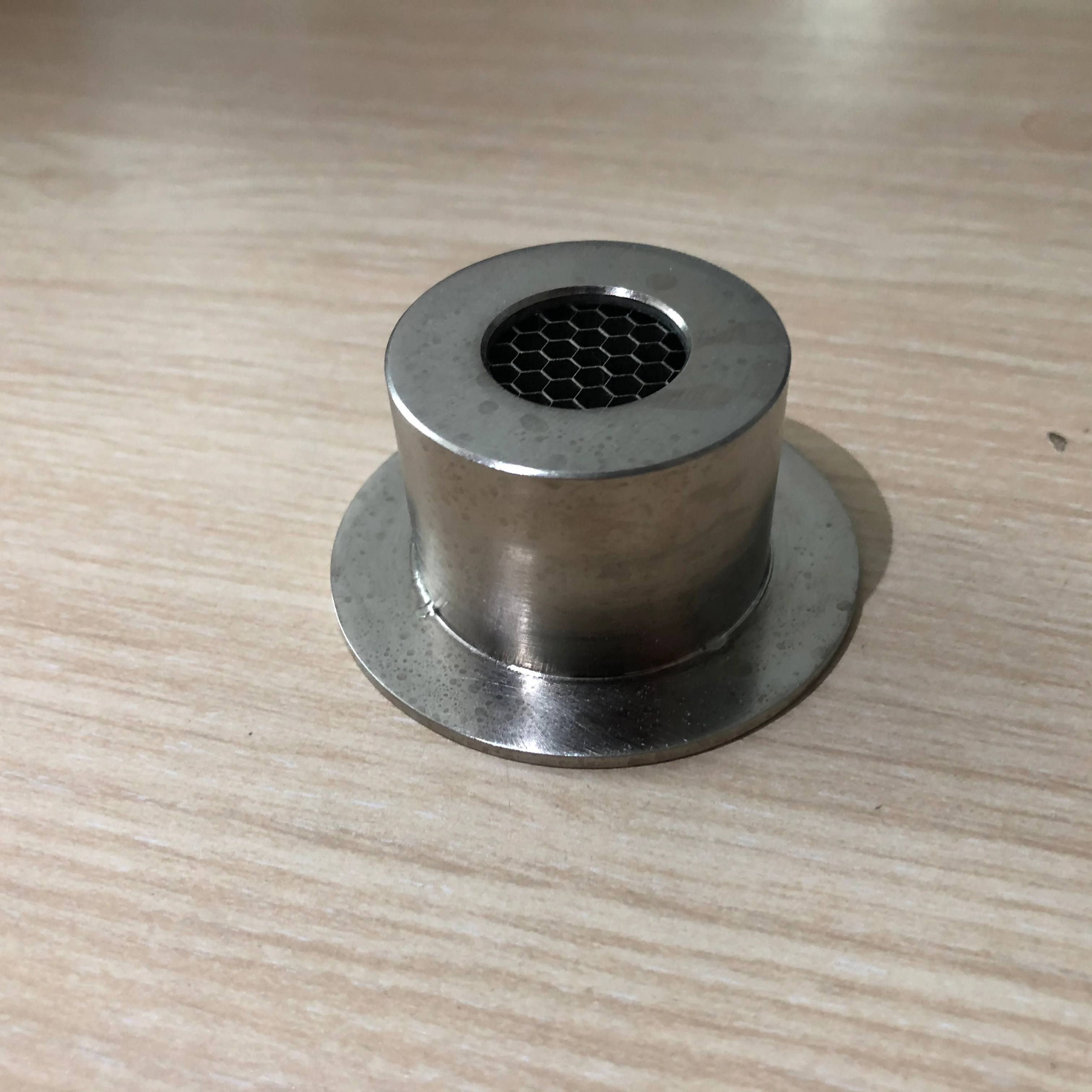

Circular
A, B,: Custom
D1, D2, P: Custom
P :<100mm
P :<100mm

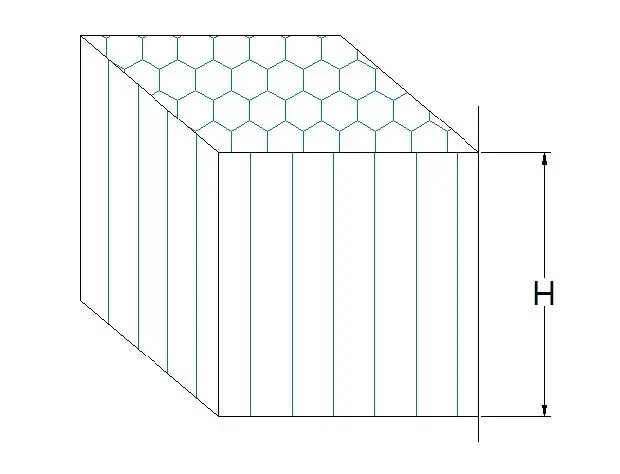

Width


The width of the filter can be 12.5 mm or 25 mm or 50mm.


Materials


BR -Brass
Utilized both in the industrial and military sectors: excellent resistance to corrosion and reasonable costs.
Shielding Effectiveness from 1 KHz to 40 GHz.
S -Steel
This is the type most utilised, both in civil and military applications, for the correct compromise between costs,
performance and corrosion resistance. This resistance may be improved with painted coatings (both conductive
and/or protective from the aggression of external elements).
Shielding Effectiveness from 1 KHz to 40 GHz.
SS - Stainless steel SS304
Utilisation both in civil and military sectors, excellent for all

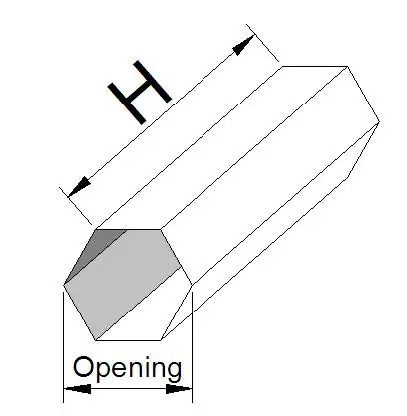

Cell size
The cell size of the filter can be 4.8mm or 4.0 mm or 3.2mm.


Shielding performance


Shielding Effectiveness
MATERIAL
Brass
Brass
Brass
Steel and Stainless Steel
Steel and Stainless
Steel

Frequency
Field
3.2x 25mm
4.0x 25mm
4.8x 25mm
3.2mm x 25mm
4.0mm x 25mm
4.8mm x 25mm
1 KHz
Magnetic
25
23
20
30
30
29
10 KHz
Magnetic
80
80
70
85
80
72
100 KHz
Magnetic
100
100
95
118
110
108
1 MHz
Magnetic
110
110
110
118
110
115
10 MHz
Magnetic
110
110
110
118
110
115
1 KHz
Electrical
110
110
110
111
110
111
10 KHz
Electrical
115
115
115
115
115
115
100KHz
Electrical
120
120
120
120
120
120
1MHz
Electrical
120
120
120
120
120
120
10 MHz
Electrical
120
120
120
120
120
120
100 MHz
Plane Wave
130
130
130
130
130
130
400 MHz
Plane Wave
130
130
130
130
130
130
1 GHz
Plane Wave
120
120
120
120
120
120
6 GHz
Microwaves
120
120
120
120
120
120
10 GHz
Microwaves
120
120
N/A
120
120
N/A
18 GHz
Microwaves
110
110
N/A
110
110
N/A
26 GHz
MM waves
110
N/A
N/A
110
N/A
N/A
40 GHz
MM waves
110
N/A
N/A
110
N/A
N/A


Solution For


* RF Shielding room
* RF Shielding box/cabinet
* EMC Chamber
* Antenna chamber
* Military shelter

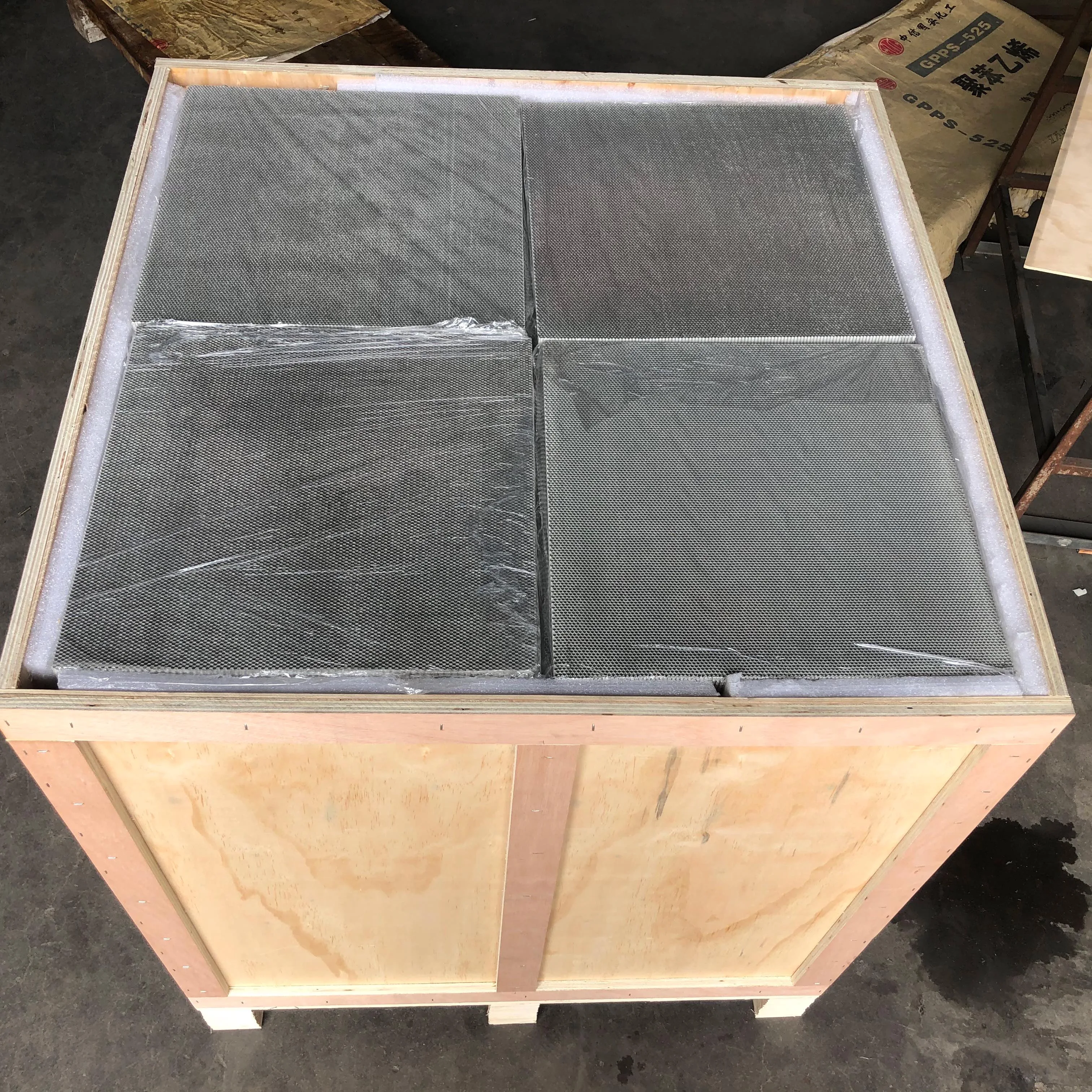

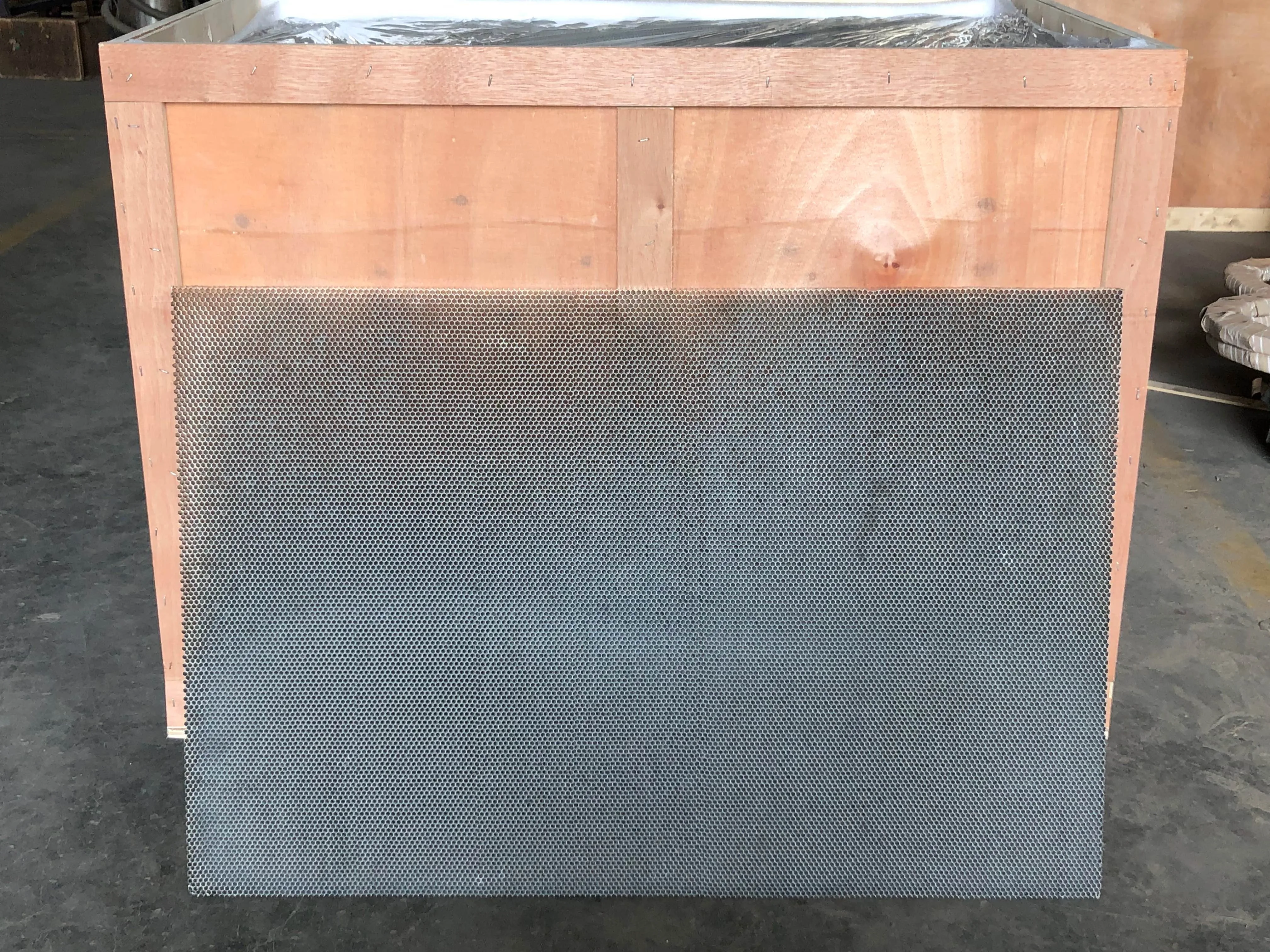

Packing and Delivery
