Product Description

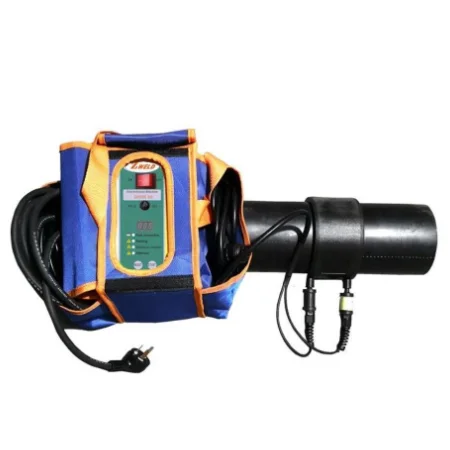

Electro Fusion machine welding HDPE Siphon low Pressure Pipe fittings
The electrofusion welder is suitable for welding low pressure or siphonic fusion tubes in HDPE with a diameter of 32 to 160 mm.
The 160s automatically detects the connection to the parts to be soldered and compensates for the supplied current based on the ambient temperature.
It also detects any faults that may occur before or during the welding process. Compliant with current safety standards and directives, it is lightweight and easy to carry.
The 160s automatically detects the connection to the parts to be soldered and compensates for the supplied current based on the ambient temperature.
It also detects any faults that may occur before or during the welding process. Compliant with current safety standards and directives, it is lightweight and easy to carry.
Specification

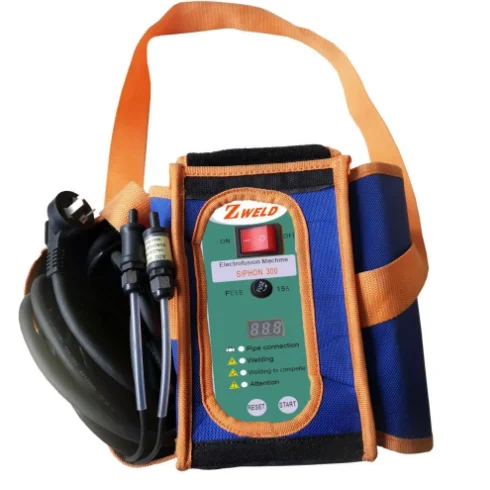

Electro Fusion machine - 160S Description
It is suitable for welding of domestic and international standard siphon and the same layer drainage pipe for HDPE, low-pressure conduits, easy to use. no need to set welding parameters for one-button welding, it is capable of detecting any malfunction that could occur before or during welding procedures and has automatic fault alarm function
Model | 160S | 315S |
Working Range | 30-160mm | 32-315mm |
Dimendions | 245*210*300mm | 245*210*300mm |
Weight | 3.2kg | 3.9kg |
Rated voltage | 220VAC-50Hz | 220VAC-50Hz |
Rated power | 900W | 2450W |
Working power | -5℃-40℃ | -5℃-40℃ |
Rated current | 5A | 10.7A |
Ambinet temperature probe | automatic | automatic |
Packing & Delivery
Key benefits include:
* Welding range of 32 mm to 160 mm pipe diameter E.F. drainage fittings.
* Extremely portable – weighs just 3.2 Kg.
* Display screen is visible in the dark and works in extreme temperatures.
* Easy to use – it can hang by the handle or lay on its back for better access.
* Comes with a canvas carry bag.
* Data input by contact identification.
* In-built welding monitoring system.
* 7 segment characters display screen, to show welding times and error-messages.
* Automatically self-tests upon power-up.
* Audible signal and LED lights indicate the success or failure of the weld.
* Compatible with Geberit, Valsir, Coes Vulcathene-Euro, Akatherm-EUR, and Waviduo fittings up to 160 mm diameter.
* Poly welding machine intended to be used for indoor installation applications only.
* Full Australian maintenance, calibration and repair services by Acu-Tech’s equipment department.
* Extremely portable – weighs just 3.2 Kg.
* Display screen is visible in the dark and works in extreme temperatures.
* Easy to use – it can hang by the handle or lay on its back for better access.
* Comes with a canvas carry bag.
* Data input by contact identification.
* In-built welding monitoring system.
* 7 segment characters display screen, to show welding times and error-messages.
* Automatically self-tests upon power-up.
* Audible signal and LED lights indicate the success or failure of the weld.
* Compatible with Geberit, Valsir, Coes Vulcathene-Euro, Akatherm-EUR, and Waviduo fittings up to 160 mm diameter.
* Poly welding machine intended to be used for indoor installation applications only.
* Full Australian maintenance, calibration and repair services by Acu-Tech’s equipment department.
