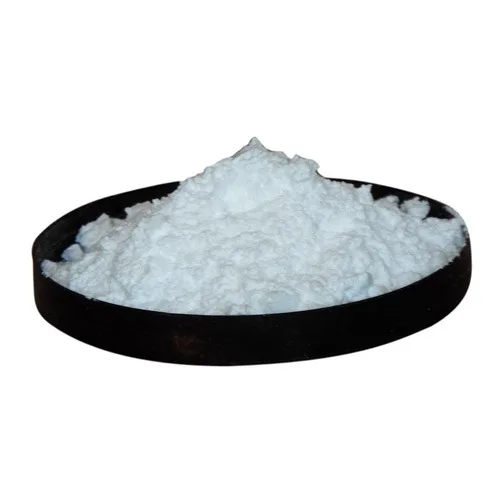

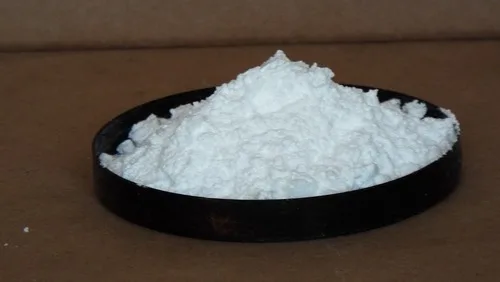

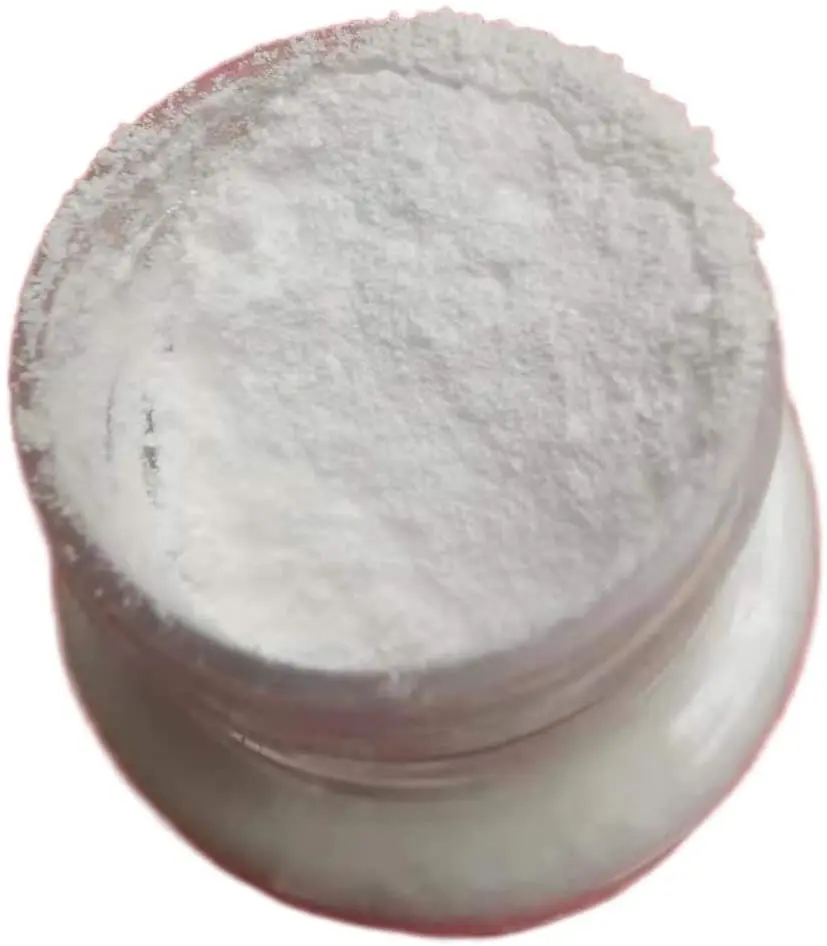

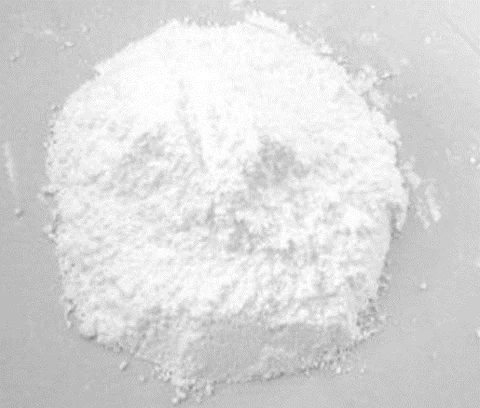

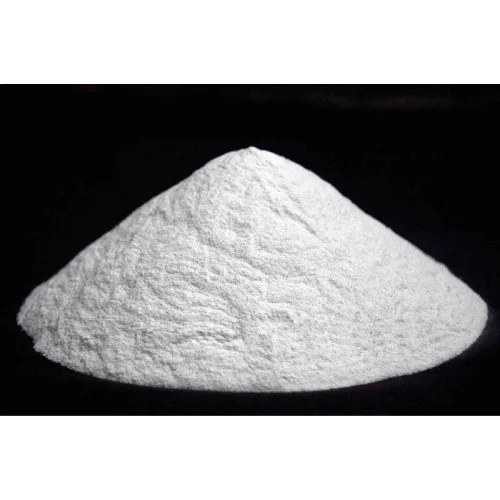

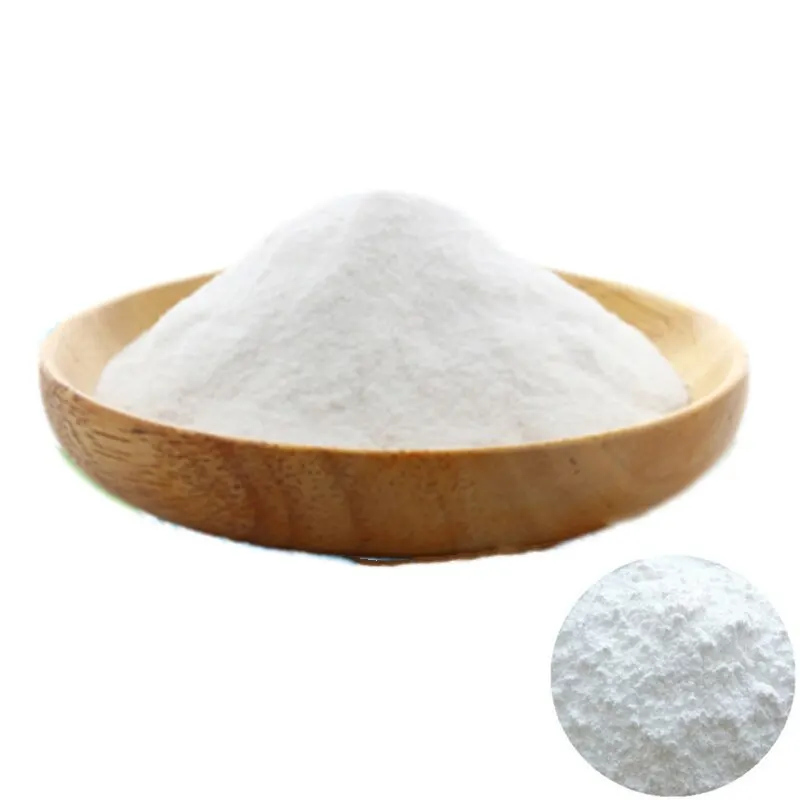

Порошок ПТФЭ 1 6 мкм

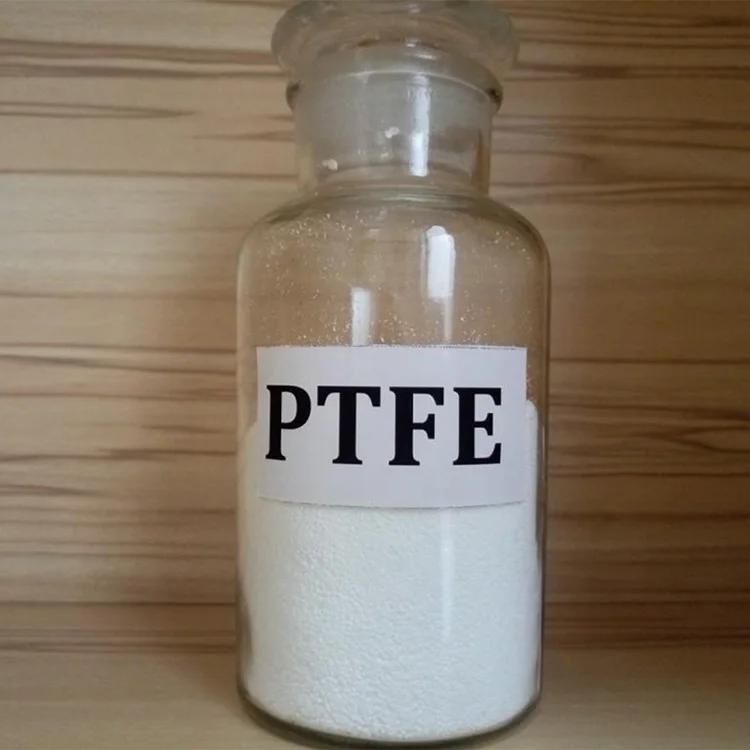

PTFE fine resin

Main Technical Properties

FR-D01

 FR-D02

FR-D03

Appearance

White loose powder

White loose powder

White loose powder

Tensile strength, Mpa

28

20

32

Elongation at break, %≥

350

350

350

Bulk density, g/L

375-575

375-575

375-575

Average size, d50 µ m

400-900

400-900

550-750

Moisture, % ≤

0.03

0.03

0.03

Extrusion pressure(RR100:1)Mpa

5.5+13.9

5.5-13.9

14.5-40.5(RR400:1)

Standard specific gravity

2.14-2.19

2.17-2.20

2.14-2.19

Thermal Instability Index, ≤

30

30

30

Extrusin pressure

Continuous, even,smooth

Continuous, even,smooth

Continuous, even,smooth

Product characters:

1.Has high tensile strength,can make wide seal tape.

2.To make 4-12mm white extruded tube.

3.To make 16mm extruded rod.

 1. Make color wide seal tape, color is unform and no spot.

2. Make various extruded tube, color is uniform.

Make various extruded tube, use repid cooling process to improve tube transparency

Application

Make extruded tube,rod,tensile,film,seal tape, etc

.Make extruded tube, rod, tensile,film, seal tape, etc.

Make extruded tube,rod, tensile,film, seal tape,etc.

FR-F01

FR-F02

FR-F03

Apperance

White powder, no impurities

White powder, no impurities

White powder, no impurities

Tensile strenght(Mpa,≥)

22.5

22.5

22.5

Elongation at Break(%,≥)

275

275

275

Bulk Density (g/L)

750±150

750±150

750±150

Average particle size,d50 (um)

200-400

401-600

601-900

Moisture(%,≤)

0.02

0.02

0.02

Melting point(℃)

375±5

375±5

375±5

S.S.G.

2.13-2.19

2.13-2.19

2.13-2.19

Thermal Instability Index(≤)

30

30

30

Characters

The partial size is small and fluidity is good. It can be added to various small moulds.

Can make mult-angle automatic molding products.

The partial size is round and has good fluidity.It can mix with other resin.

Application

Make molding rod,tub,plate, suitable for automatic estrusion.

Make molding rod, tub,plate,suitable for automatic extrusion.

Make molding rod, tub, plate, can use as engineering plastic additive.
