MODEL
|
Huawei 2288H V5 Server
|
Form Factor
|
2U Rack Server
|
Maxim Processor
|
1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W
1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W
|
RAM
|
24 DDR4 DIMM slots, 2933 MT/s; up to 12 DCPMMs, 2666 MT/s
|
Drive bays
|
Supports the following hard drive configuration options:
* 8 x 2.5-inch SAS/SATA HDDs or SSDs
* 12/16/20 x 3.5-inch SAS/SATA HDDs
* 4, 8, 12, 24, or 28 NVMe SSDs
* 31 x 2.5-inch SAS/SATA HDDs or SSDs
Flash storage:
* 2 M.2 SSDs
|
RAID Support
|
RAID 0, 1, 10, 1E, 5, 50, 6, or 60
Configured with a supercapacitor for cache power-off protection (optional)
RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
|
Network Ports
|
LOM: 2 x 10 GE + 2 x GE ports
Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports
|
PCIe Expansion
|
Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC.
|
Fan Modules
|
4 hot-swappable fan modules with optional N+1 redundancy
|
Power Supply Units
|
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options:
* 550W AC Platinum PSUs
* 900W AC Platinum/Titanium PSUs
* 1,500W AC Platinum PSUs
* 1,500W 380V HVDC PSUs
* 1,200W -48V to -60V DC PSUs
|
Management
|
* Huawei iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault
diagnosis, automated O&M, and hardware security hardening.
* iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on
HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management.
* (Optional) Configured with the Huawei FusionDirector management software to provide advanced management features such as
stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle
management.
|
Operating Temperature
|
5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
|

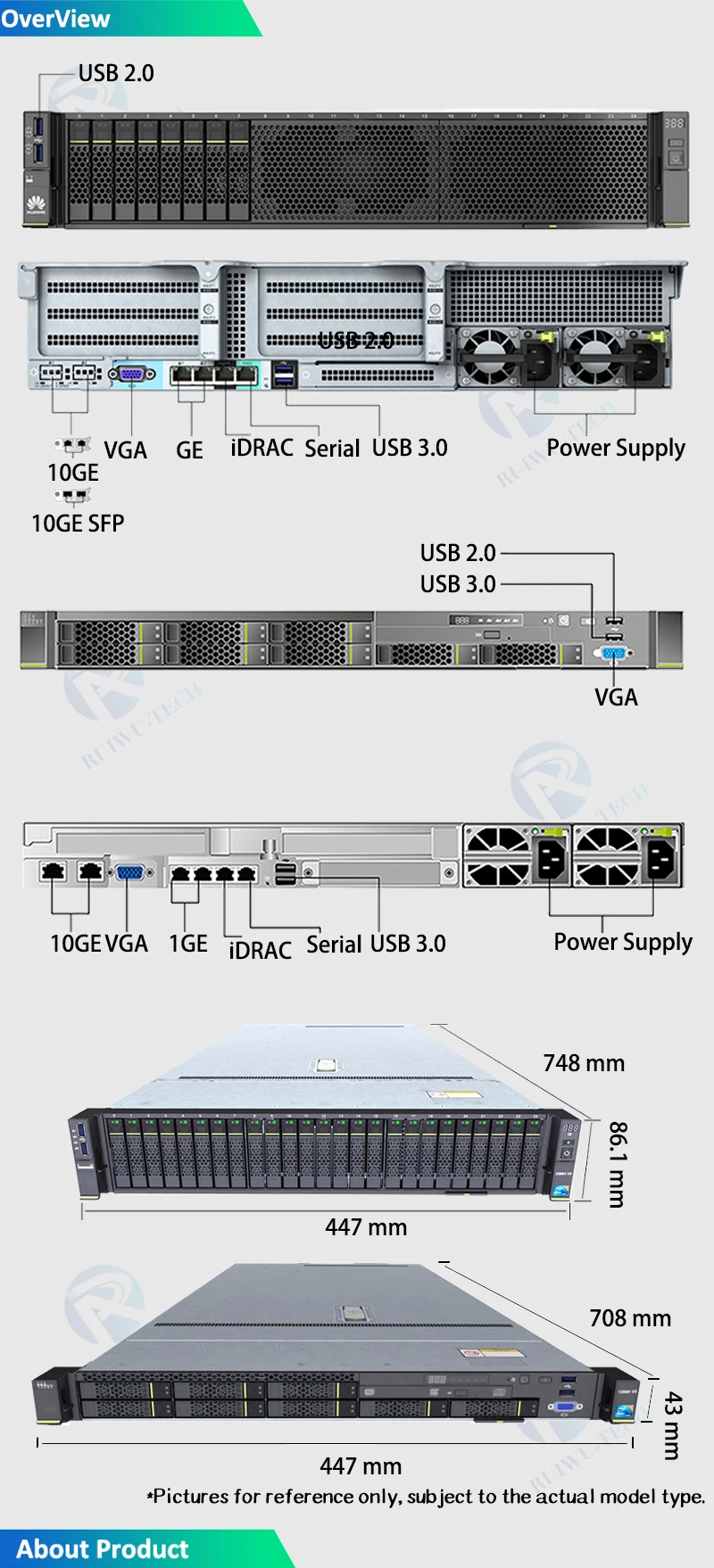

Dimensions
(H x W x D)
|
Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.)
Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
|
Installation suite
|
L-shaped guide rails, adjustable guide rails, and holding rails
|
