Product Description
Hot selling 180kg 300lbs holding force Single Doors Electric Magnetic Lock for Access Control smart electromagnetic lock

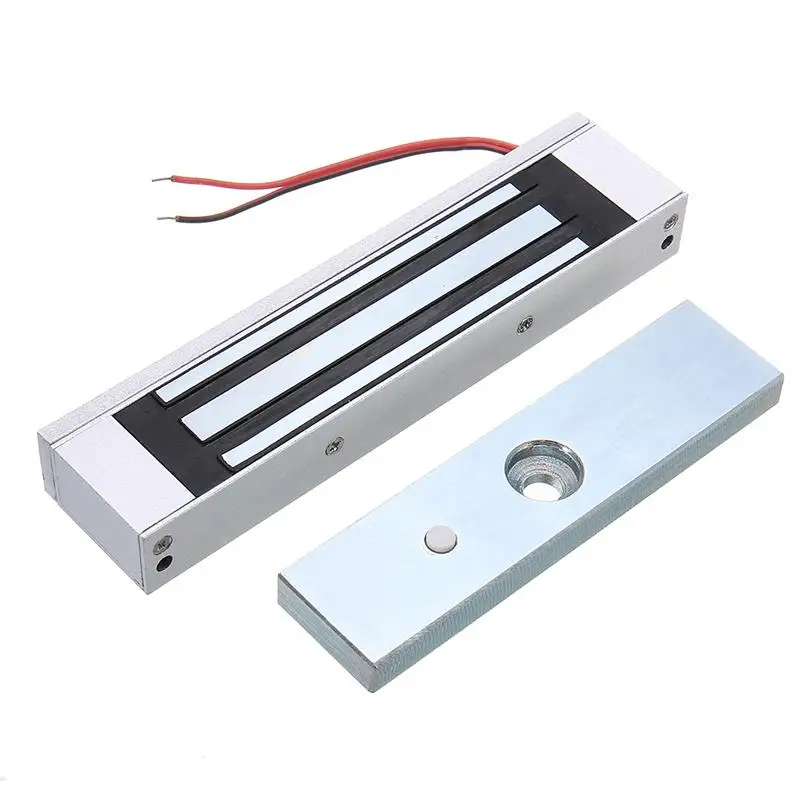

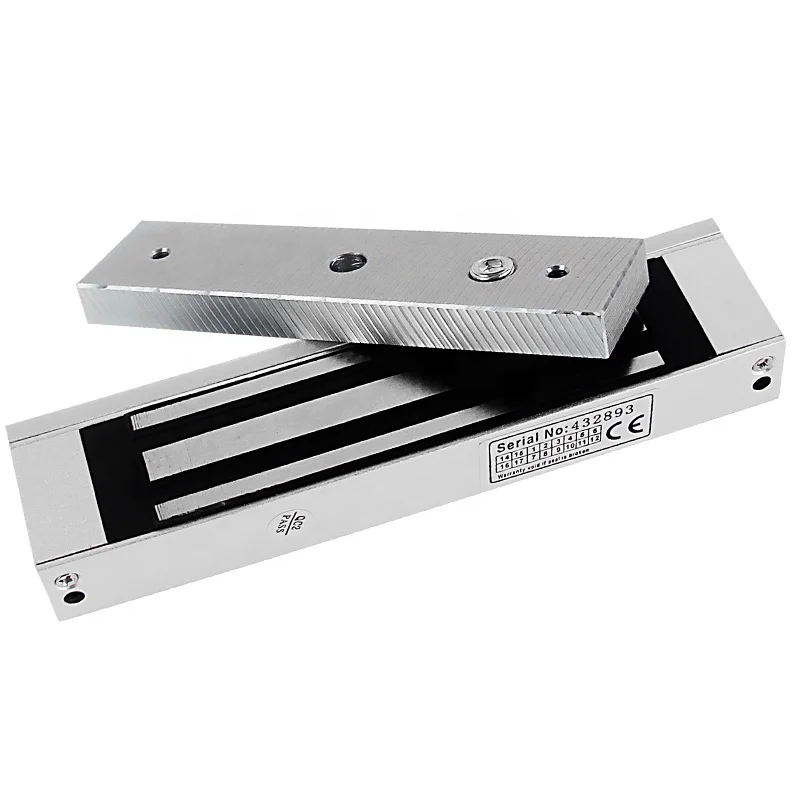

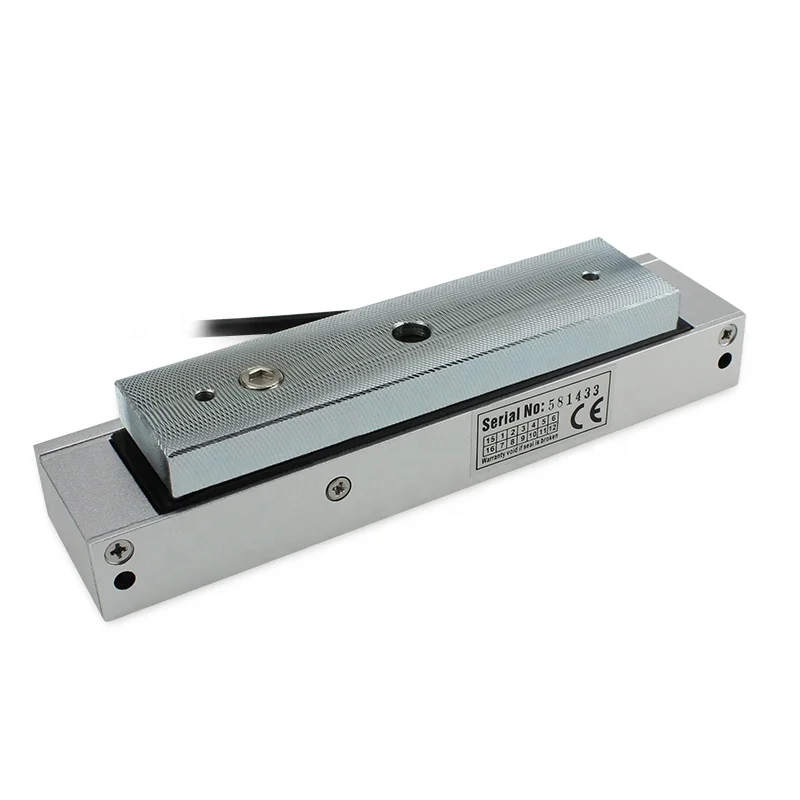

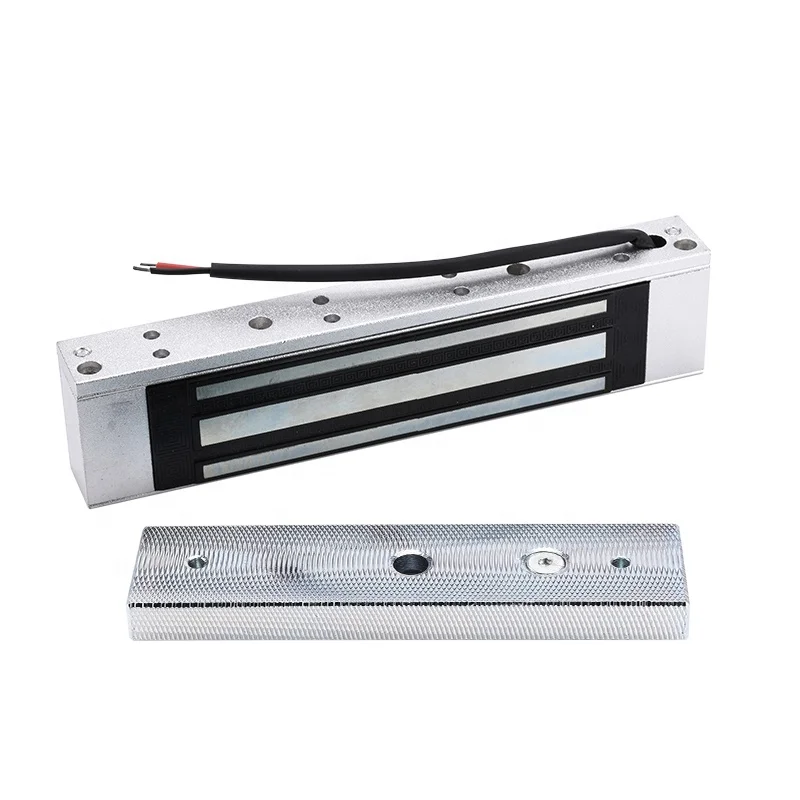

Magnetic lock with 300lbs (180kg) holding force for single door
Product Parameter | Parameter Description | ||||
Lock Size : | 170Lx40Wx21H(mm) | ||||
Armature plate: | 190Lx190Lx45Wx11H(mm) | ||||
Holding Force : | 180kg (300Lbs) | ||||
Input Voltage : | 12/24VDC Dual Voltage | ||||
Suitable for door: | Wooden door , Glass door ,Metal door , Fireproof door | ||||
Singal Output : | Lock singal Status NO/NC/COM/+/- | ||||
Feature: | Fail Safe, Timer delay, feedback signal, 12V/24VDC dual voltage | ||||
LED: | Red shows unlocked, Green shows locked | ||||
Weight: | 1.4kgs | ||||
Certification: | CE /MA | ||||
Product Advanatge
- Collinear Load Test 180kg, 300pounds.
- Dual Voltage 12 or 24 VDC(optional).
- The Standard Voltage is 12VDC when Finished.
- MOV Provides Reverse Current Protection.
- Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
- LED Indicates the door Status.
- Lock Status sensor(NO/NC/COM)
- Door Status sensor(NO/NC/COM)
- Anti-Residual Magnetism Designed.
- High Strength Material,Anodized Aluminum Housing.
- Design without Mechanical Failure.
- Increase the holding Force,Dual Insulative Housing.
- CE Certificate by European Union,MA Certificate by China Public Security Office
Detailed Images , OEM/ODM available
Our lock is with LED light to show the working statue , light is green when it locked , Red when unlocked . The light statue can be changed .
ACM-Y280 is with signal output . The PCB board can be customized . We can make the lock with 12v&24v dual voltage and with 7 wire connection . Following photo is the PCB board optional .If you want to customize the lock ,please tell us your detail request , we will send your detail quotation after knowing all your requirement .
Instalation Diagram
FAQ
1. what is your MOQ ?
Usually our MOQ is 500 pcs. But we accept lower quantity for your trial order.
2. Can we provide sample ?
Sure. We usually provide existing sample for free. But a lttle sample charge for custom designs. Sample charge is refundable when order is up to certain quantity.
3.How long is the sample LEAD TIME?
For existing samples, it takes 1-2 days. They are free. If you want your own designs, it takes 3-7 days, subject to your designs whether they need new printing screen, etc.
4. How long is the production lead time?
It takes 10-15 days for MOQ.
5. How much is the freight charge?
To save cost for you and in order that you can get goods earlier, we suggest to deliver by express for small quantity.For large quantity, we suggest to deliver by sea.
6. What format of the file do you need if I want my own design?
We have our own professional designers. So you can provide JPG, Al, CDR or PDF, etc. We will draw artwork for mold or printing screen for you.
Usually our MOQ is 500 pcs. But we accept lower quantity for your trial order.
2. Can we provide sample ?
Sure. We usually provide existing sample for free. But a lttle sample charge for custom designs. Sample charge is refundable when order is up to certain quantity.
3.How long is the sample LEAD TIME?
For existing samples, it takes 1-2 days. They are free. If you want your own designs, it takes 3-7 days, subject to your designs whether they need new printing screen, etc.
4. How long is the production lead time?
It takes 10-15 days for MOQ.
5. How much is the freight charge?
To save cost for you and in order that you can get goods earlier, we suggest to deliver by express for small quantity.For large quantity, we suggest to deliver by sea.
6. What format of the file do you need if I want my own design?
We have our own professional designers. So you can provide JPG, Al, CDR or PDF, etc. We will draw artwork for mold or printing screen for you.
