Products Description

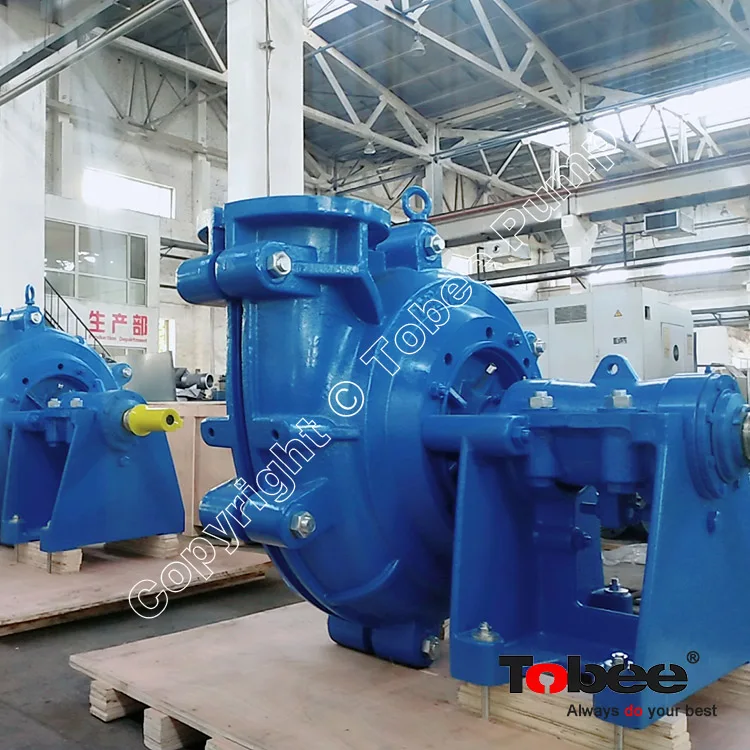

Tobee® Heavy Duty Slurry Pumps
Tobee® Heavy Slurry Pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, minerals processing, coal preparation, dredging, metallurgy, power plant, chemical and general industry applications. The wet end parts materials designed by High abrasion and corrosion resistance alloy, rubber or polyurethane etc, Especially for handling high abrasive, high density slurry. are wildly used on Iron Ore Dressing Plant, Copper Concentration Plant, Gold Mine Concentration Plant, Molybdenum Concentration Plant, Potash Fertilizer Plant, Other Mineral Processing Plants, Alumina Industry, Coal Washing plant, Power Plant, Sand Excavation, Building Material Industry, Chemical Industry and Other industries
Size: 1" to 22"
Capacity: 3.6-5400 m3/h
Head: 6-125 m
Max Power: 1200kw
Handing solids: 0-130mm
Concentration: 0%-70%
Seal Arrangement: Gland Packing Seal, Expeller Seal, Mechanical Seal
Materials: Hyper chrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel etc.
Usage: Mining, Metallurgy, Electric Factory, Chemical Industry, Qarrying, Sand and Gravel,
Fertilizers, Dewatering, Recycling, etc.
Pump Desigh Features
Tobee® Heavy-Duty Slurry Pump Transmission Options:

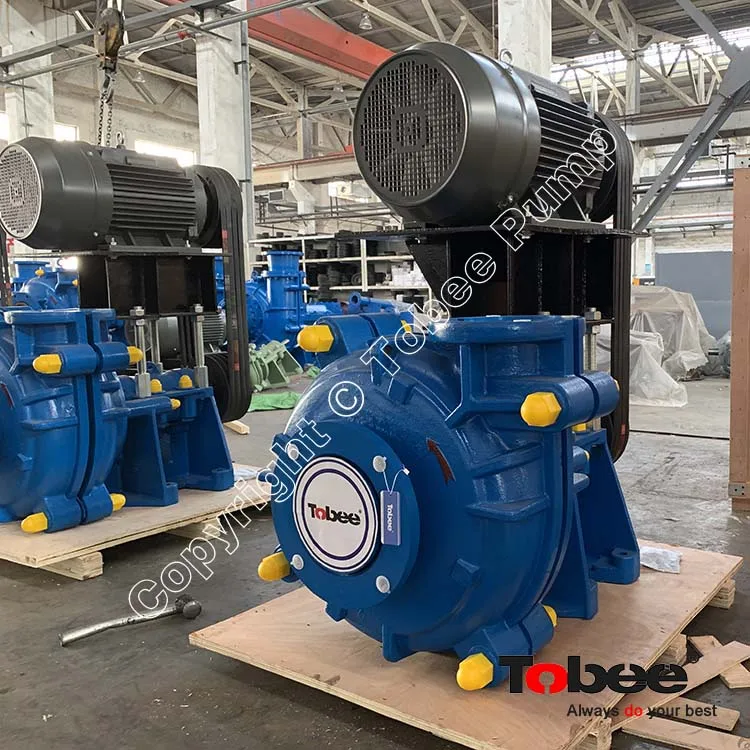

CV Type: The pump is driven by a belt connected to the crankshaft of the engine. This way of connection allows for saving space, easy installation, and fast adjustment of pumping speed. The motor is fixed to the motor support frame which is located on the bearing support above the slurry pump.
ZV Type: Another type of belt drive that allows easy adjustment of pumping speed. The motor is directly fixed to the bearing support. This way of installation is suitable for motors with larger horsepower than is possible with CV type of installation. Due to the installation of motor onto the bearing support, this method helps save installation space.
CR Type: This type of belt drive makes it easier to adjust pumping speed. The installation allows both the motor and slurry pump to be fixed to the ground. The motor is installed to the side of the pump. This installation method is suitable for large-power motors.
Tobee® Heavy-Duty Slurry Pumps Shaft Seal Arrangement:
• Packing Seal is a general shaft seal.It applys to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high temperature conditions.Using ceramic shaft sleeve,For high abrasion conditions, The ceramic shaft sleeve is available.
• Expeller Seal is an impeller force of reversed centrifugal force, preventing slurry leakage. Expeller seal can be used on the single-stage pump when the positive pressure of pump inlet is no more than 10% of pump outlet pressure or on the first-stage pump in the pump series.
• Mechanical Seal is advanced sealing technique without sealing leakage, The advantages are integrating construction, convenient installation & replacement, The design of mechanical seal and seal box is suitable for liquid flow condition,So it has high abrasion and vibration resistance, Mechanical seal can be used in various severe conditions.

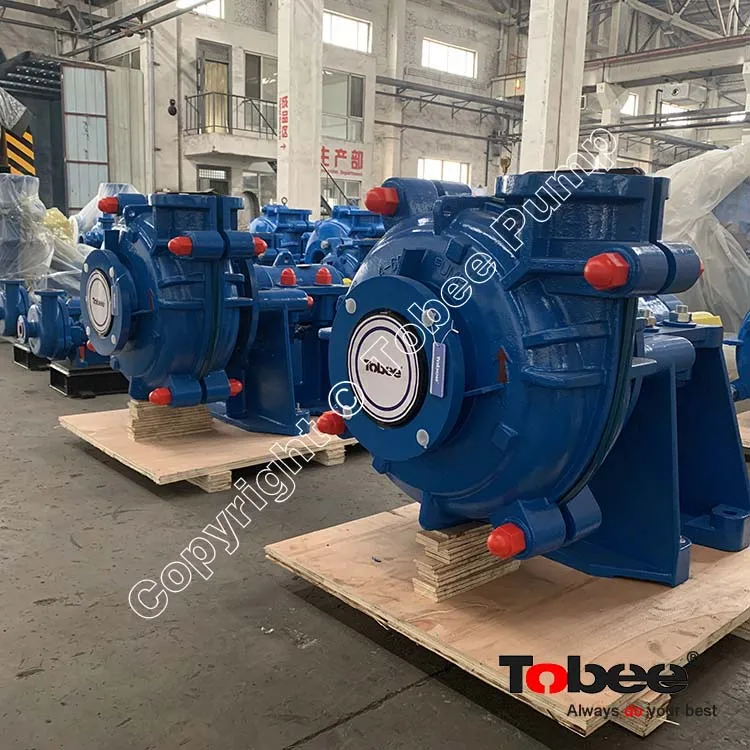

Customer Photos
The slow running speeds of the Tobee Heavy Duty Slurry Pump, together with the comprehensive choice of abrasion resistant
alloys and elastomers, provide unrivalled performance and service life for all abrasive mining and minerals processing applications.
alloys and elastomers, provide unrivalled performance and service life for all abrasive mining and minerals processing applications.
Such as Copper Mine, Gold Mine, Silver Mine, Tungsten Mine, Coal Washing, Iron Ore Processing, Silica Sand, etc.
Other applications
Ni acid slurry pumps, Coarse sand pumps, Coarse tailings pumps, Phosphate matrix slurry pumps, Scrubber slurry Pump, Minerals
concentrate pumps, Heavy media slurry pumps, Dredging Sand slurry pumps, Bottom ash slurry pumps, Fly ash pumps, Lime grinding pumps, Screen feed Pump, Oil sands pumps, Fine tailings pumps, Tailings booster Pump, Thickner Tailings Pump, Process recycle Pump, Pipeline transfer pumps, etc
concentrate pumps, Heavy media slurry pumps, Dredging Sand slurry pumps, Bottom ash slurry pumps, Fly ash pumps, Lime grinding pumps, Screen feed Pump, Oil sands pumps, Fine tailings pumps, Tailings booster Pump, Thickner Tailings Pump, Process recycle Pump, Pipeline transfer pumps, etc
Recommend Products
Cyclone feed pump | Hydrocyclone dewatering | thickener underflow pumps | Chemical industry pumps |
Company Profile
Hebei Tobee Pump Co.,Limited, is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, Pipes & Fittings, Valves etc. Our factory is located in the High tech Development Zone, Shijiazhuang City, China. We specialized in Horizontal slurry pumps, Vertical slurry pumps, Gravel sand pumps, Dredging pumps, Sand pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Submersible sewage pumps, Slurry Pump spare parts, Pipes & fittings and Valves in domestic and over 80 countries in the world.
