Products Description
HPE PROLIANT DL560 GEN10 SERVER
The HPE ProLiant DL560 Gen10 Server is a high-density, four-socket (4S) server with high performance, scalability and reliability, all in a 2U chassis. Supporting the latest 2nd generation Xeon® Scalable processors, the HPE ProLiant DL560 Gen10 Server offers greater processing power, up to 6 TB of faster memory, IO of up to eight PCIe 3.0 slots, up to 12 TB of HPE Persistent Memory plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 5.
The HPE ProLiant DL560 Gen10 Server is the ideal server for business critical workloads, virtualization, server consolidation, database, business processing, and general 4P data-intensive applications where data center space and the right performance are paramount.
The HPE ProLiant DL560 Gen10 Server is the ideal server for business critical workloads, virtualization, server consolidation, database, business processing, and general 4P data-intensive applications where data center space and the right performance are paramount.
WHAT'S NEW
* Supporting the second generation Xeon® Scalable processor family with up to a
7% per-core performance gain [4] over first generation and with memory speeds up to
2933 MT/s .
*HPE Persistent Memory offers the flexibility to deploy as dense memory or fast storage
using Intel® Optane™ DC Persistent Memory and enables per-socket memory capacity of
up to 3.0 TB. Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
* HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
* Segment-optimized processors that offer flexibility and improved performance for specific workloads.
7% per-core performance gain [4] over first generation and with memory speeds up to
2933 MT/s .
*HPE Persistent Memory offers the flexibility to deploy as dense memory or fast storage
using Intel® Optane™ DC Persistent Memory and enables per-socket memory capacity of
up to 3.0 TB. Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
* HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
* Segment-optimized processors that offer flexibility and improved performance for specific workloads.
Product Specification
Processor Name | Xeon® Scalable processors |
Processor family | Xeon® Scalable 8200 series Xeon® Scalable 6200 series Xeon® Scalable 5200 series Xeon® Scalable 8100 series Xeon® Scalable 6100 series Xeon® Scalable 5100 series |
Processor core available | 28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 6 or 4, per processor, depending on model |
Processor cache | 13.75 MB L3 or 16.50 MB L3 or 19.25 MB L3 or 22.00 MB L3 or 24.75 MB L3 or 27.50 MB L3 or 30.25 MB L3 or 33.00 MB L3 or 35.75 MB L3 or 38.50 MB L3, depending on model |
Processor speed | 3.8 GHz, maximum depending on processor |
Power supply type | 4 HPE Flexible Slot Power Supplies, maximum depending on model |
Maximum memory | 6.0 TB with 128 GB DDR4, depending on processor model 12.0 TB with 512 GB Persistent Memory, depending on processor model |
Memory slots | 48 DIMM slots maximum |
Drive supported | 8SFF SAS/SATA/SSD or Premium 6SFF and 2 NVMe SAS/SATA/SSD or 8SFF NVMe or 2SFF Premium HDD Front NVMe/SAS/SATA |
Detail Images
HPE ProLiant DL560 Gen10 Server - Front View
1. Optional Optical drive. Requires Universal Media bay
2. Quick removal access panel
3. Power On/Standby button and system power LED button
4. Health LED
5. NIC status
6. UID button
7. iLO Front Service Port
8. USB 3.0
2. Quick removal access panel
3. Power On/Standby button and system power LED button
4. Health LED
5. NIC status
6. UID button
7. iLO Front Service Port
8. USB 3.0
9. Serial label pull tag
10. Drive Box 3. (8 SFF or 6SFF+2NVMe optional)
11.Drive Box 2. (8 SFFor 6SFF+2NVMe or 8 NVMe SSD optional)
12. Drive Box 1.(Optional Universal Media bay or 8 SFF bay or 6 SFF+2NVMe optional)
13. Optional front Display Port(via Universal Media Bay)
14. Optional 2 SFF HDD, requires optional Universal Media bay
15. Optional USB 2.0 (via Universal Media Bay)

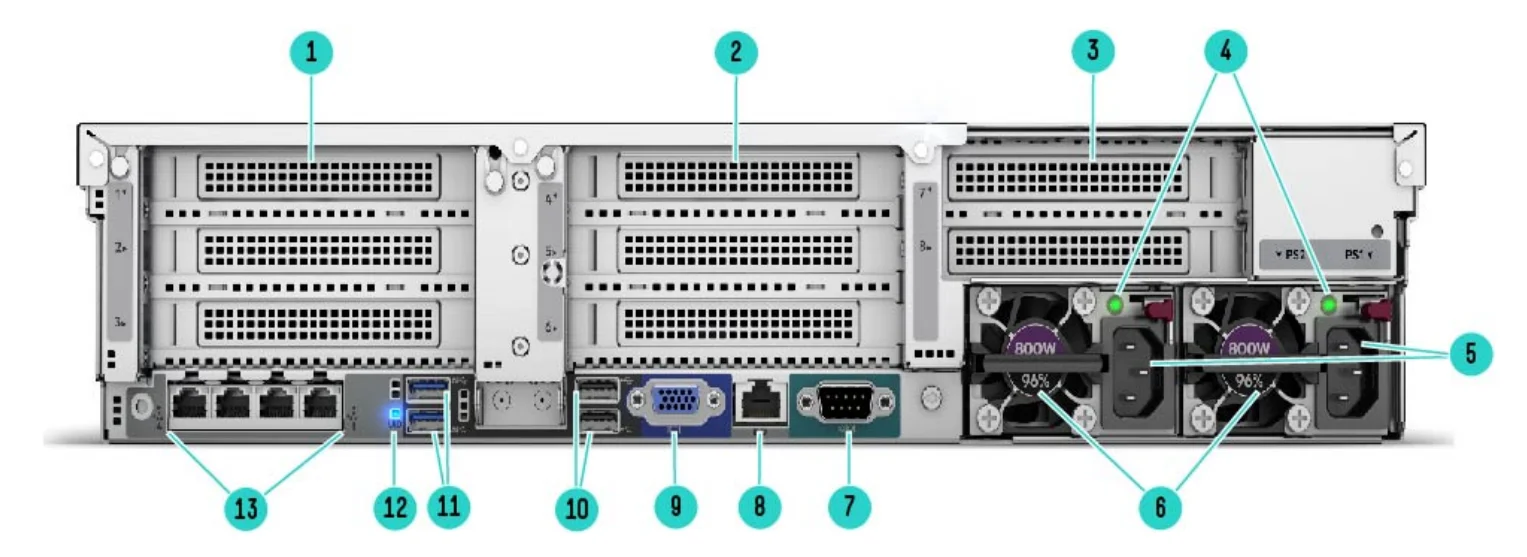

Rear View – DL560 Gen10
1. PCIe Slots (Slots 1-3 top to bottom, riser shipped standard)
2. PCIe Slots (Slots 4-6 top to bottom, requires second riser card and second processor)
3. PCIe Slots (Slots 7-8 top to bottom), requires tertiary riser card and second processor, Not available with 4x Flex Slot
power supplies
4. Power supply power LEDs
5. Power supply power connections
2. PCIe Slots (Slots 4-6 top to bottom, requires second riser card and second processor)
3. PCIe Slots (Slots 7-8 top to bottom), requires tertiary riser card and second processor, Not available with 4x Flex Slot
power supplies
4. Power supply power LEDs
5. Power supply power connections
6. HPE Flexible Slot Power Supply bay 1 and 2 (800W PS shown)
7. Serial connector
8. Dedicated iLO connector7. Serial connector
9. VGA (video) connector
10. USB connectors 2.0 (2)
11. USB connectors 3.0 (2)
12. Unit ID LED
13. FlexibleLOM ports (Port 1 on right side)
Internal View: DL560 Gen10 with upper CPU mezzanine tray
1. Left connector used for DL560 4-port NVMe Mezzanine card (Daughter card)
2. Upper CPU Mezzanine Board Kit
3. 2 Processors, heatsink showing on upper CPU mezzanine board kit
2. Upper CPU Mezzanine Board Kit
3. 2 Processors, heatsink showing on upper CPU mezzanine board kit
4. DDR4 DIMM slots on upper CPU mezzanine board kit. Shown fully populated in 24 slots (12 per processor)
5. Optional secondary PCIe riser
6. Default primary PCIe riser
7. UPI connectors for upper CPU mezzanine board kit
8. 2 Processors, heatsink showing
5. Optional secondary PCIe riser
6. Default primary PCIe riser
7. UPI connectors for upper CPU mezzanine board kit
8. 2 Processors, heatsink showing
9. DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor)
10. Fan cage shown with 6 standard Hot-plug fans
11. HPE Smart Storage Battery 1 or HPE Smart Storage Hybrid Capacitor
12. HPE Smart Storage Battery 2
13. (Under) Hot Plug redundant HPE Flexible Slot Power supplies
14. Optional Tertiary riser
15. Handle for removing upper CPU Mezzanine Board Kit
Product Comparison
DL560G9 | DL560G10 | |
Processor | Xeon® E5-4600 v4 product family Xeon® E5-4600 v3 product family | Xeon® Scalable 8200 series Xeon® Scalable 6200 series Xeon® Scalable 5200 series Xeon® Scalable 8100 series Xeon® Scalable 6100 series Xeon® Scalable 5100 series |
Expansion slots | 7 maximum | 8 maximum |
Power supply type | (2) Common Slot | 4 HPE Flexible Slot Power Supplies, maximum depending on model |
Memory, maximum | 3.0TB | 6.0 TB with 128 GB DDR4, depending on processor model 12.0 TB with 512 GB Persistent Memory, depending on processor model |
