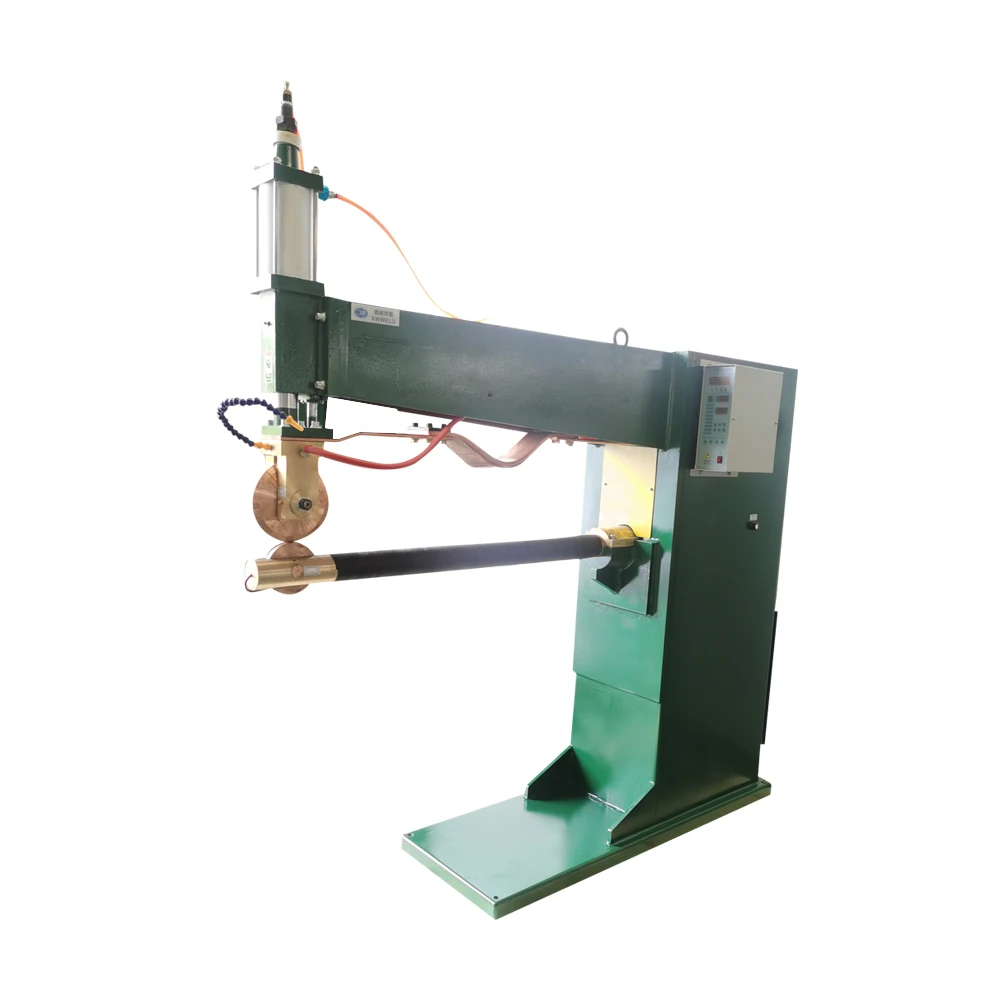

Product Display
Seam welding machine is composed of main body, workpiece positioning mechanism, workpiece pressing mechanism, welding wheel longitudinal running mechanism, cooling system, welding power supply, pneumatic system and electrical control system.
Model Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
Voltage input | V | 380 | 380 | 380 | 380 | 380 |
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
Weight | Kg | 380 | 510 | 630 | 530 | 700 |
1.The welding process is stable and and the joint is smooth.
2.The welding wheel can move left and right, front and back so as to meet the welding requirements.
3.The whole machine adopts PLC and AC frequency conversion speed regulation to ensure the reliability.
Welding forms can be preset, stored and transmitted. You can easily change parameters and state transitions.
2.The welding wheel can move left and right, front and back so as to meet the welding requirements.
3.The whole machine adopts PLC and AC frequency conversion speed regulation to ensure the reliability.
Welding forms can be preset, stored and transmitted. You can easily change parameters and state transitions.

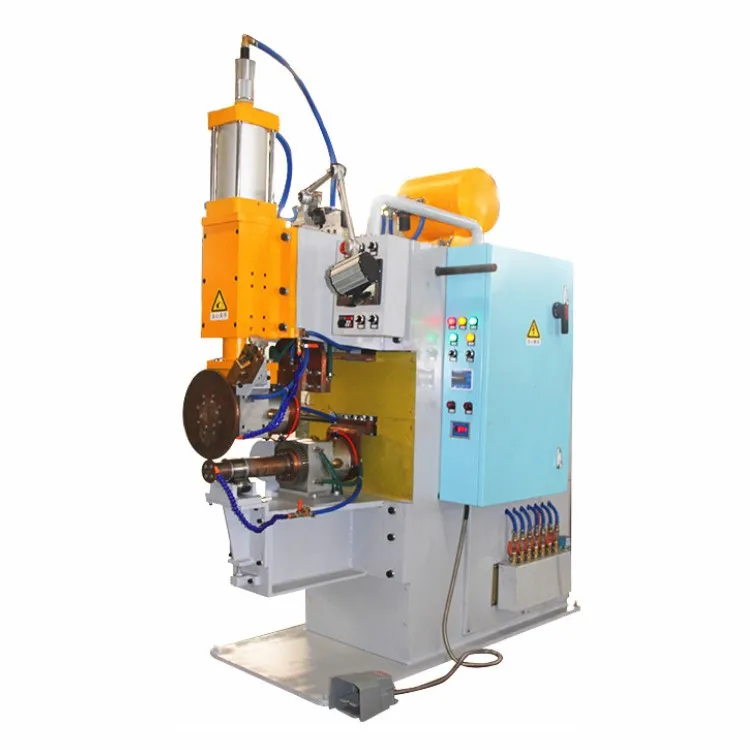

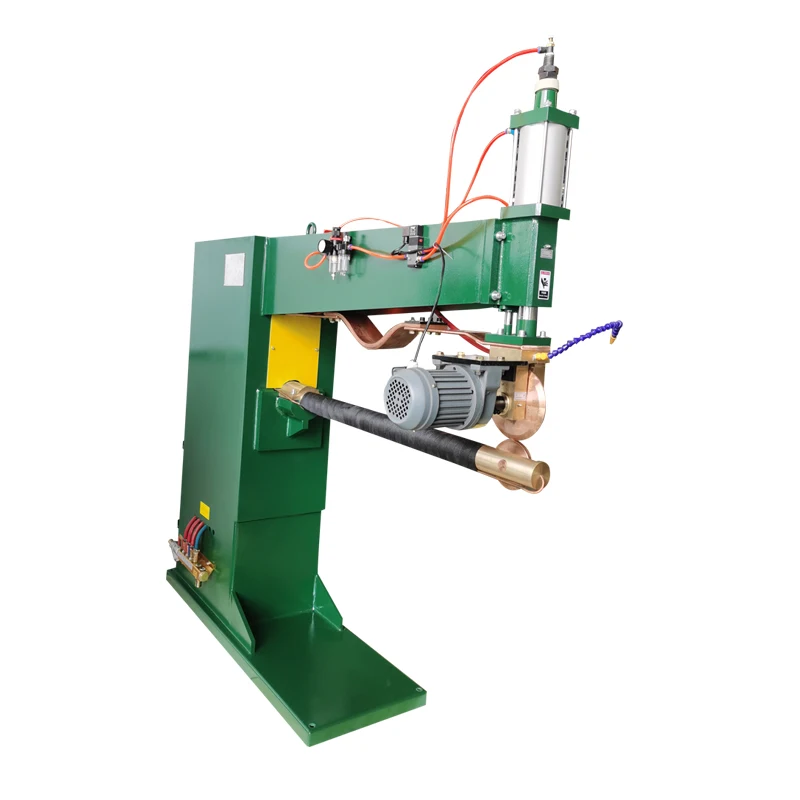

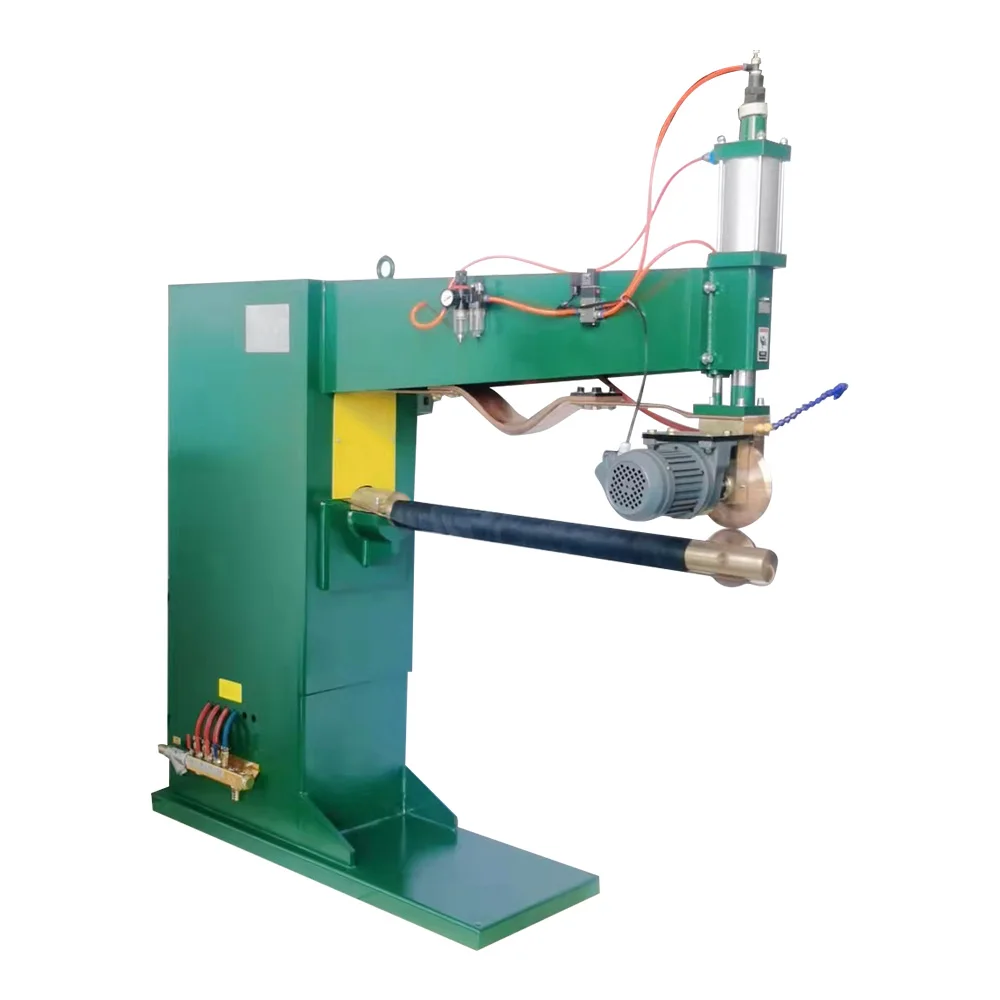

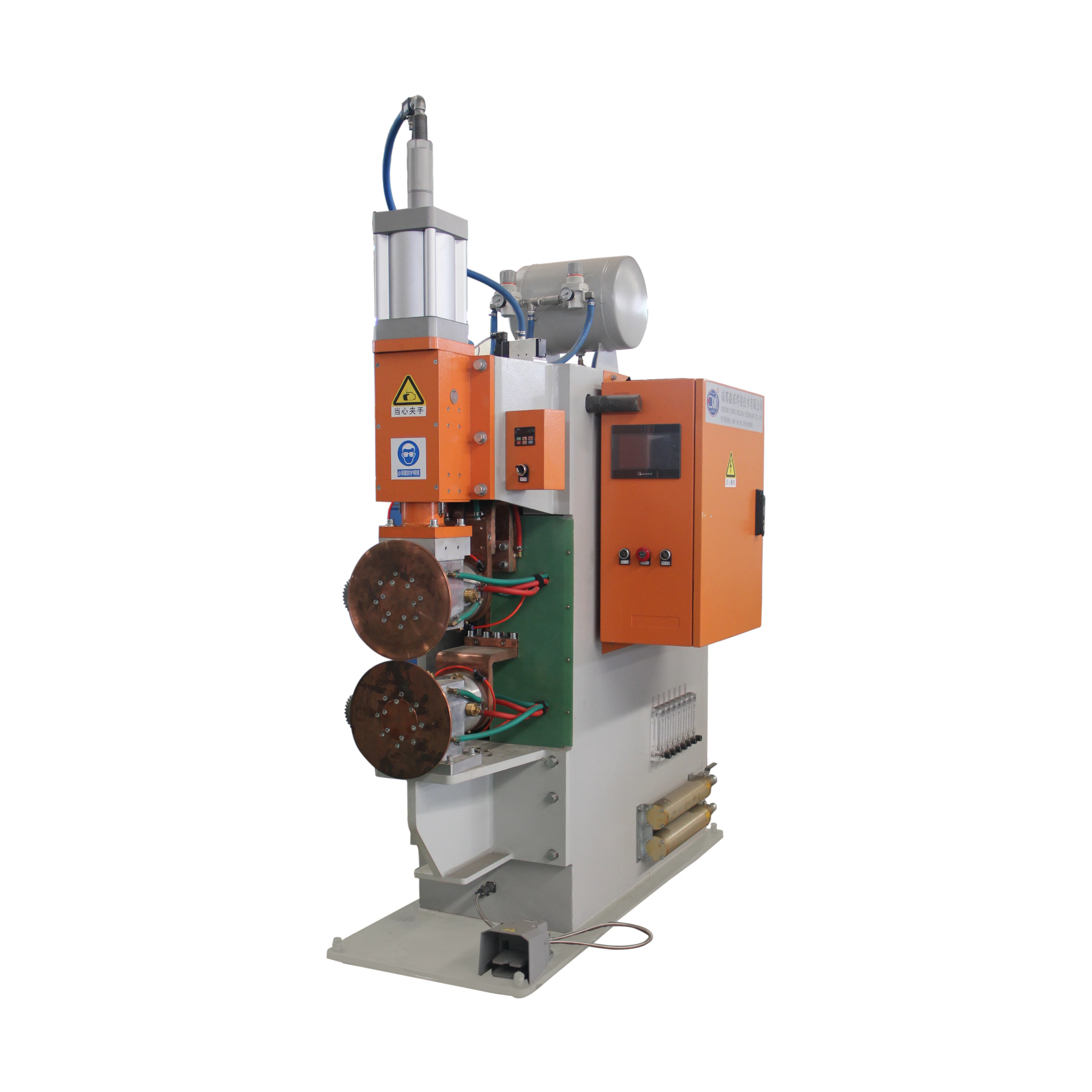

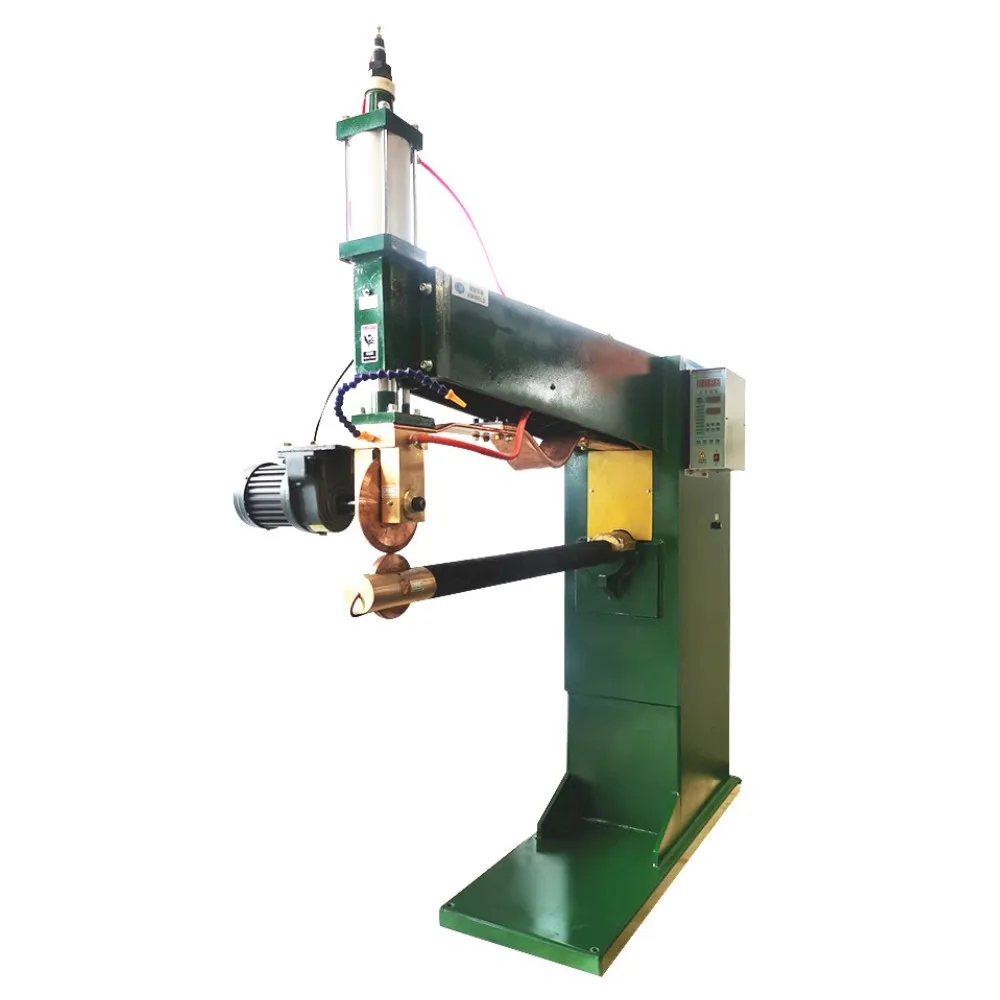

Different Angles
Can Be Customized According To Your Kinds Of Needs
Seam welder can weld stainless steel, titanium alloy, aluminum alloy, carbon steel, low alloy and other materials. The welding technology and tools used depend on the specific length and thickness of the workpiece.
Wooden case is non-fumigation, more convenient for transport
