Заводская цена топливные масляные танкеры полуприцеп грузовик
- Категории: Trailers >>>
- Поставщик: SHANDONG,YIHAI,SPECIAL,VEHICLE,CO.,LTD.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Description
Tanker trailer is also known as tanker, highway tanker, etc. It is mainly used for transportation and storage of oil products such as petroleum derivatives, gasoline, diesel, crude oil, lubricating oil and coal tar. Tanker trailers are widely used in oil depots, gas stations, oil fields, chemical plants, food plants, asphalt plants, etc.
Product Parameters
Model | YH-TT-40 |
Brand | Yihai |
SIZE | 10800*2500*3690mm, 10900*2500*3820mm, 11300* 2500*3700mm |
Volume | 28000-60000L |
GVW(kg) | 40000 |
Payload | 28T - 70tons |
Axle distance | 5180* 1310* 1310 |
Tank /Thickness | 5/7MM |
Discharge vale | 4" API Adaptor Valve or 3" Spherical Valve |
Bottom valve | 3", 4" Contral by Pneumatic Block |
Handrail | Manual, Pneumatic |
Main Beam | Q345 Carbon steel material |
Axles | 2 - 4 pcs 13 - 20tons BPW or Fuwa Axles |
Suspension | Mechanical, Air, Bogie |
Landing Leg | JOST E100 |
Brake system | 6pcs T30/30 Brake Chambers, WABCO relay valve |
Tire | 11.00R20 12PR,12R22.5 12PR |
King Pin | JOST 2" or 3.5 " Bolting Type |
Rear wheel distance | 1840/1840/1840 |
Product Advantages
Product Advantage
1.The vehicle body is made of high-quality steel, Laser welding fixed-point welding ,strong welding force ,beautiful welding seam.
2.The tank adopts advanced fluidized tube structure, the internal chute Angle is large, the discharging speed is fast, and the residual rate is low.
3.They are inspected and used in strict accordance with the requirements of quality system documents to ensure the good performance of the vehicle.
4.The car structure is reasonable, in strict accordance with the requirements of quality system documents for inspection, reliable performance.
5.The use of ADR system can timely and safely cut off the power supply, prevent the occurrence of electric arc, electric spark, and avoid the occurrence of safety accidents.
6.Various specifications of accessories, can be equipped with different materials.
2.The tank adopts advanced fluidized tube structure, the internal chute Angle is large, the discharging speed is fast, and the residual rate is low.
3.They are inspected and used in strict accordance with the requirements of quality system documents to ensure the good performance of the vehicle.
4.The car structure is reasonable, in strict accordance with the requirements of quality system documents for inspection, reliable performance.
5.The use of ADR system can timely and safely cut off the power supply, prevent the occurrence of electric arc, electric spark, and avoid the occurrence of safety accidents.
6.Various specifications of accessories, can be equipped with different materials.

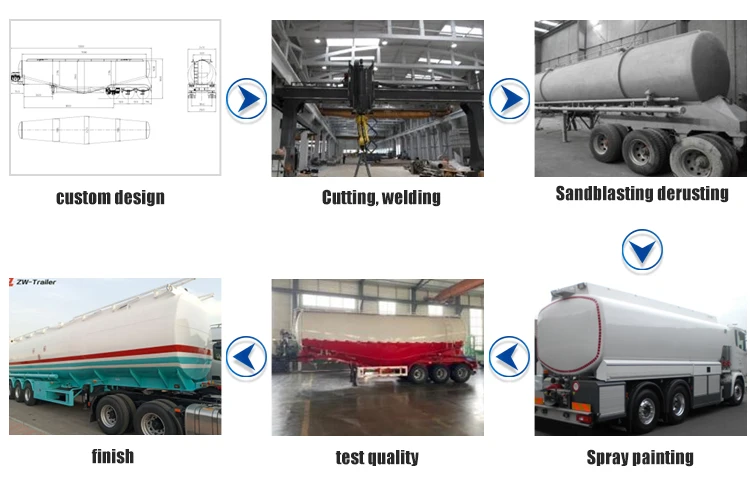

Product Process
Company Profile
Shandong Yihai International Trade Co. LTD is a comprehensive company intergarting R & D, production and trade. Located in the"China Trailer (Special Vehicle) Production Base"Liangshan Country Shandong Province and the workshop covers an area of about 50,000 square meters. Our products are strictly produced and examed by ISO9001:2000 International Quality Management System. As a professional manufacturer of trailer axles, suspension, other trailer parts and semi trailer etc...
Packaging &Transportation
FAQ
Q1: Can I paint my logo on trailer?
A1: Of course, you can send me your company logo, then we will design it.
Q2. Do you test all your goods before delivery?
A2: Yes, we have 100% test before delivery
Q3. What is your terms of delivery?
A3: EXW, FOB, CFR, CIF, DDU...As for the payment terms,it depends on the total amount.
Q4. What is the average delivery time?
A4: Usually takes about 10-20 days . The specific delivery time depends on the items and the quantity of your order.
Q5. What is the Payment term?
A5: By T/T before shipment or By L/C at sight.
Q6. During shipping, if there is a damage to products, how do you get replacement?
A6:Firstly, we should investigate the reason cause the damage. At the same time, we will claim for the insurance by ourselves or assist the buyer. Secondly we will send the replacement to the buyer. The responsible person for above damage will take charge of the cost of the replacement.
A1: Of course, you can send me your company logo, then we will design it.
Q2. Do you test all your goods before delivery?
A2: Yes, we have 100% test before delivery
Q3. What is your terms of delivery?
A3: EXW, FOB, CFR, CIF, DDU...As for the payment terms,it depends on the total amount.
Q4. What is the average delivery time?
A4: Usually takes about 10-20 days . The specific delivery time depends on the items and the quantity of your order.
Q5. What is the Payment term?
A5: By T/T before shipment or By L/C at sight.
Q6. During shipping, if there is a damage to products, how do you get replacement?
A6:Firstly, we should investigate the reason cause the damage. At the same time, we will claim for the insurance by ourselves or assist the buyer. Secondly we will send the replacement to the buyer. The responsible person for above damage will take charge of the cost of the replacement.
