Product Description

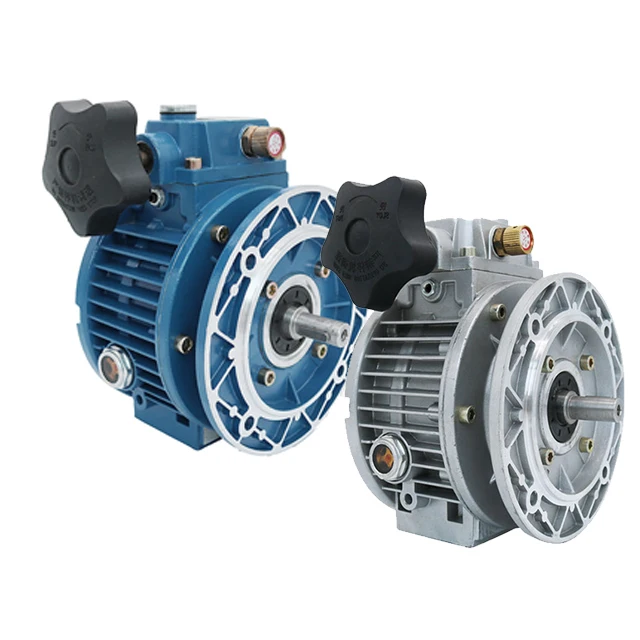

UDL series stepless speed variators are widely used for foodstuffs, ceramics, packing, chemicals, pharmacy, lastics, paper-making, machine-tools, and all kinds of automatic lines, pipelines and assembly lines which need speed regulation.
1. High speed-regulating ,with precision: up to 0.5-1 rotation.
2. Large speed –changing range: The speed ratio ranges from 1:1.4 to 1:7 freely.
3. High in strength and long service life.
4. Convenient to regulate the speed.
5. Continuous in running, front-to-back in running direction, smooth in driving, stable transmission with lower noise.
6. Fully sealed and suitable for different working temperature
7. Compact structure and small volume.
8. Aluminium alloy and cast iron housing
9. Wide range of adaptation. UDL series stepless speed variators can be combined with all kinds of speed reducers,so as to achieve low stepless speed changing.
1. High speed-regulating ,with precision: up to 0.5-1 rotation.
2. Large speed –changing range: The speed ratio ranges from 1:1.4 to 1:7 freely.
3. High in strength and long service life.
4. Convenient to regulate the speed.
5. Continuous in running, front-to-back in running direction, smooth in driving, stable transmission with lower noise.
6. Fully sealed and suitable for different working temperature
7. Compact structure and small volume.
8. Aluminium alloy and cast iron housing
9. Wide range of adaptation. UDL series stepless speed variators can be combined with all kinds of speed reducers,so as to achieve low stepless speed changing.
Click here for the latest quotation!
UD Model & Mark: | UDL | UD | 0.75 | 2 | C | 5 | B5 |

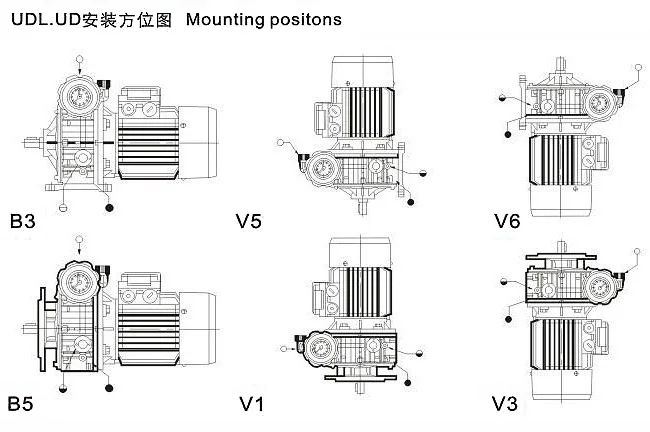

UDL 0.75 -2 -C -5 –B5 | Planetary mechanical speed variator,aluminium casing | Planetary mechanical speed variator, cast iron casing | Motor power | Two-staged gear matched; no mark stands for one-stage gear matched | Code of one-staged or two-staged gear | Reduction ratio for the matched gear | Mounting position |
