Product Description

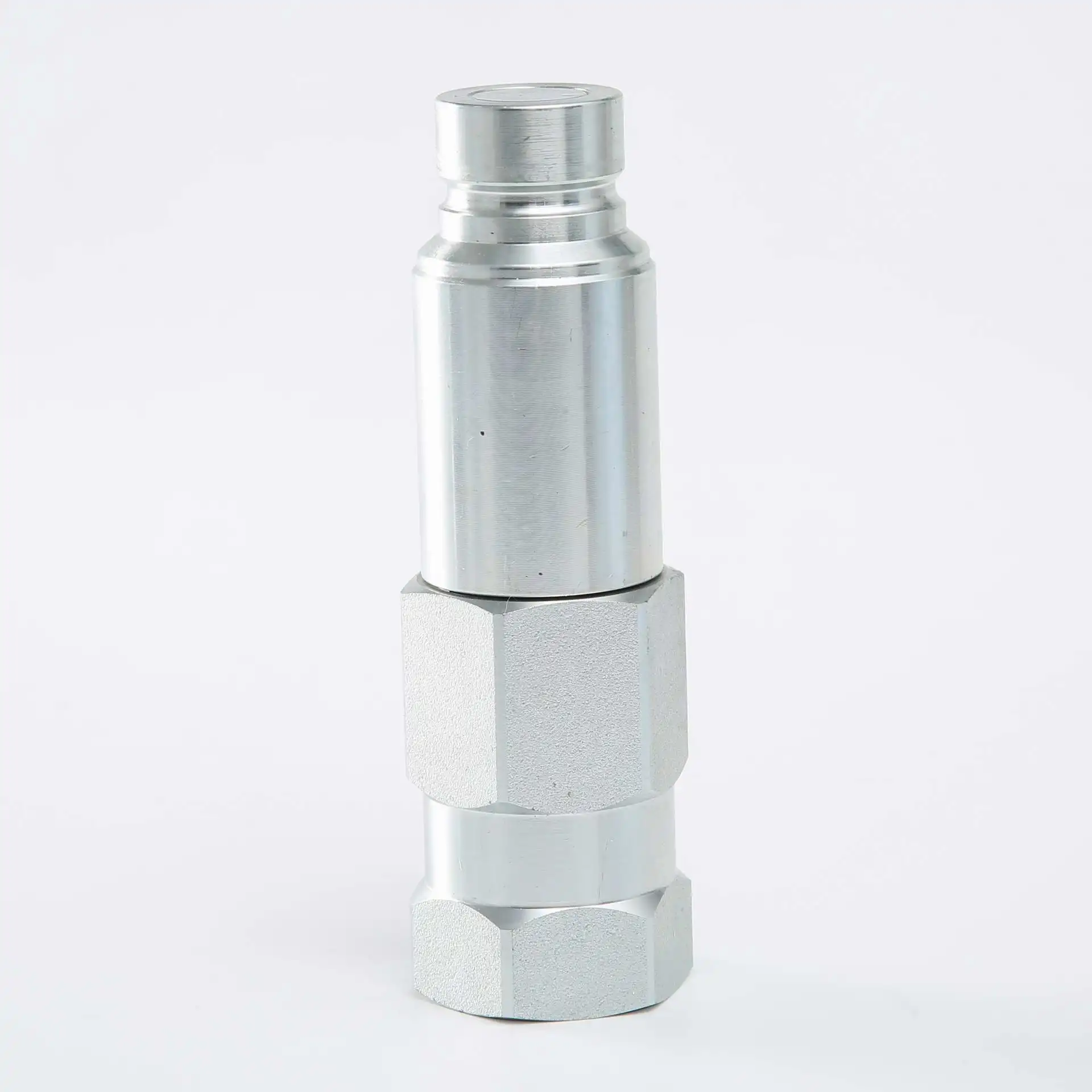

Free Fit old style KIT flat face type hydraulic quick couplings, direct replacement for 6679837 and 6680018, Male and Female Hydraulic Flat Face Quick Coupler, for 4BD4FH Manifold Block (46mm Thread Diameter), allows connection under pressure. Fit for Skid Steer Loaders, Excavators, Telescopic Handlers.
Specifications
Coupler Body Size | 1/2" |
Dash | 12 |
Thread Outer Diameter | 46mm |
Coupler Plating Type | Zinc plated Steel |
Flow Rate | 145 L/min |
Spillage | 0.02 ml |
Force to Connect | 230 N |
Burst Pressure | 125 MPa |
Pressure Rating | 350 bar |
Thread Type | SAE |

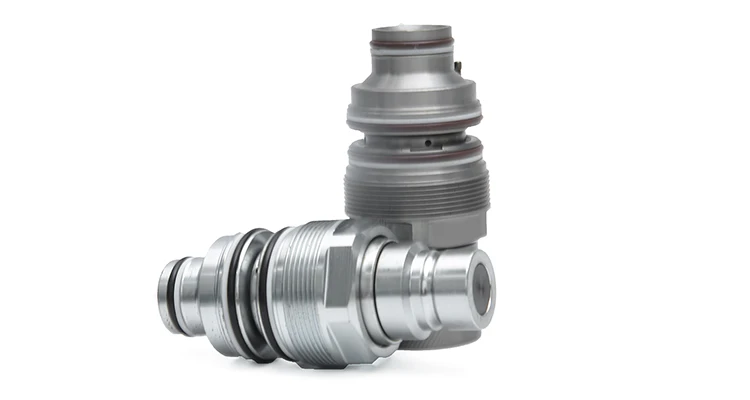

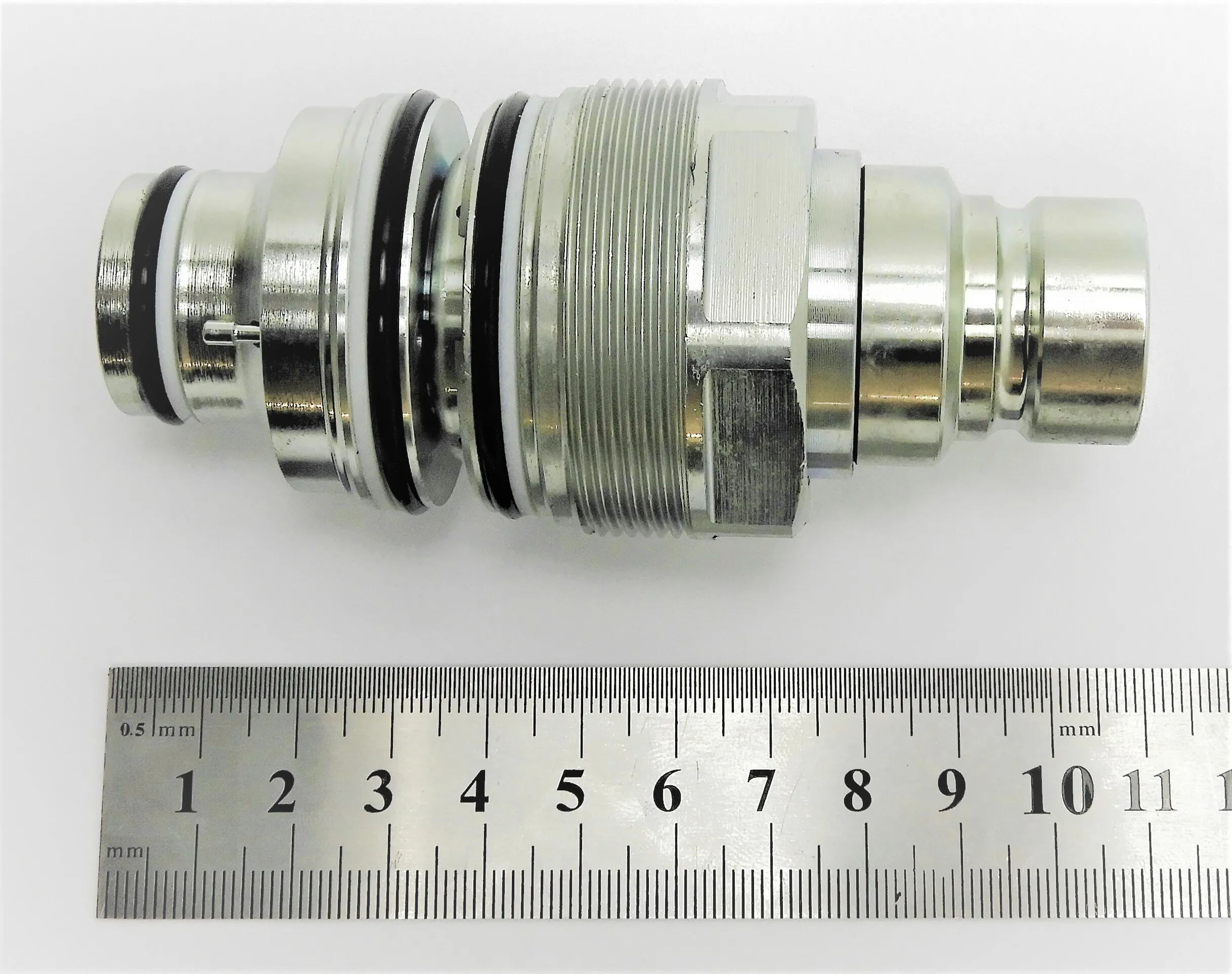

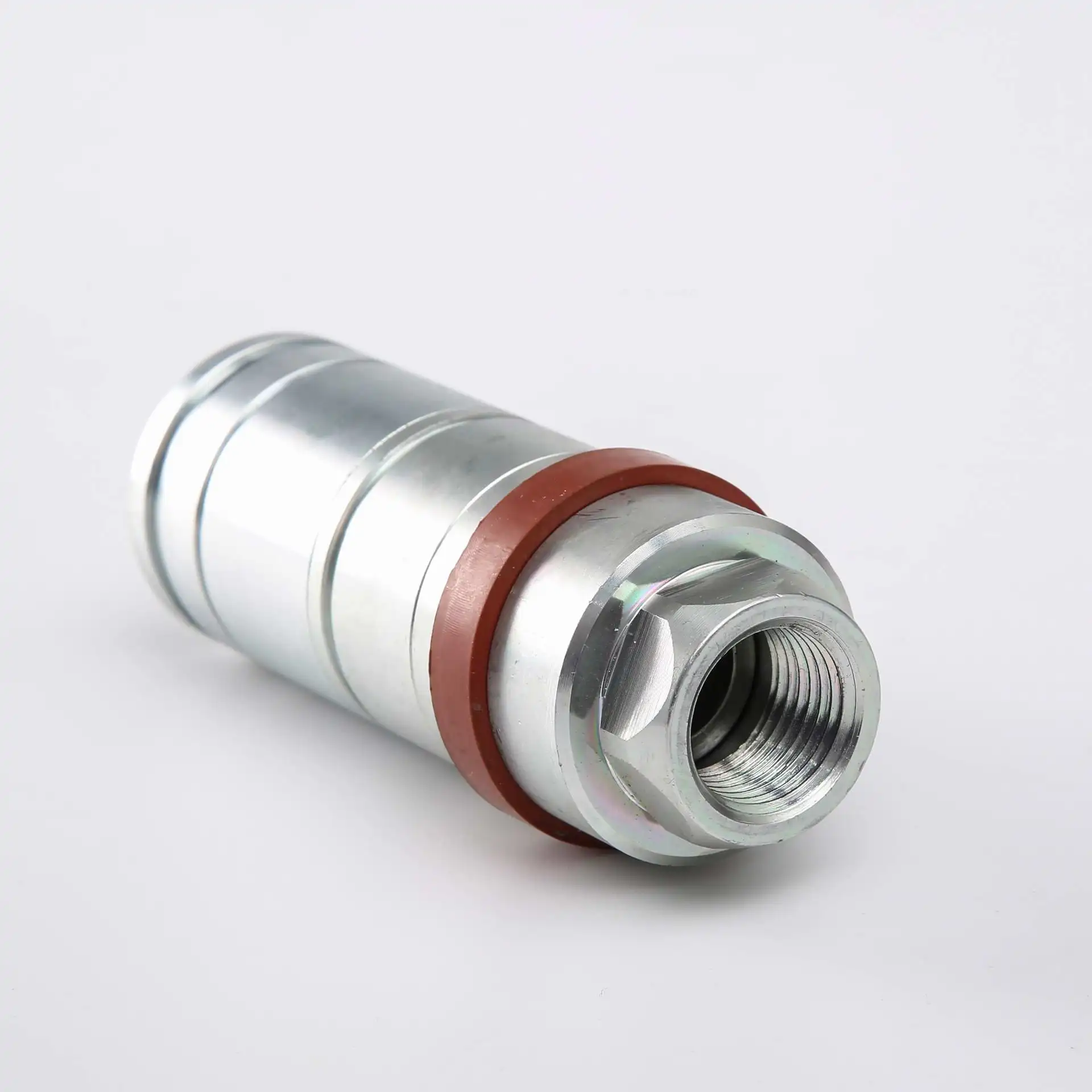

Product Show
Application

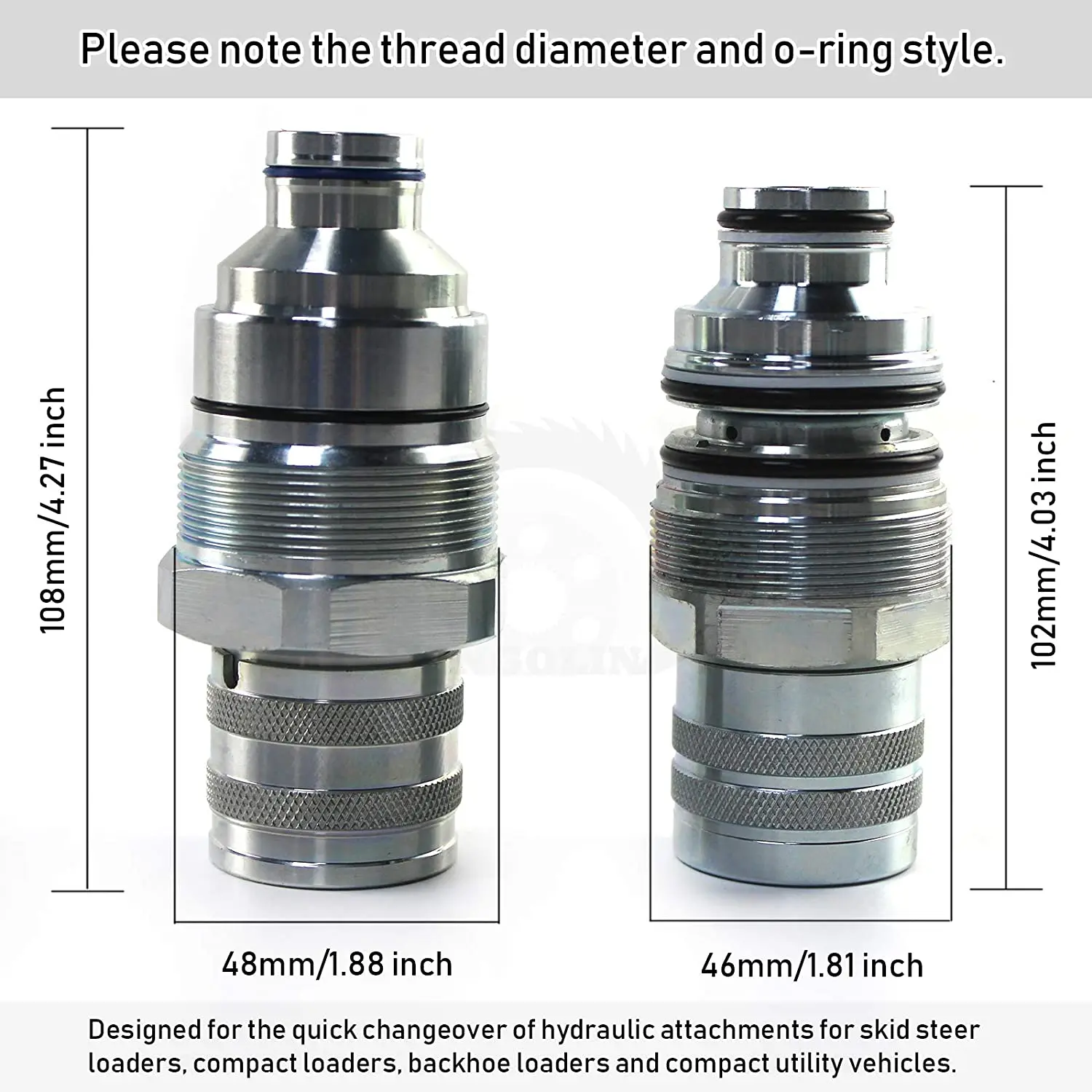

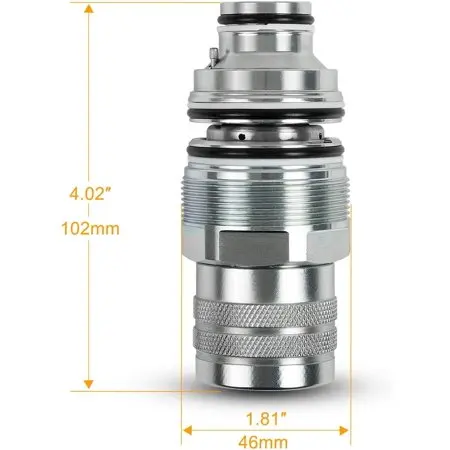

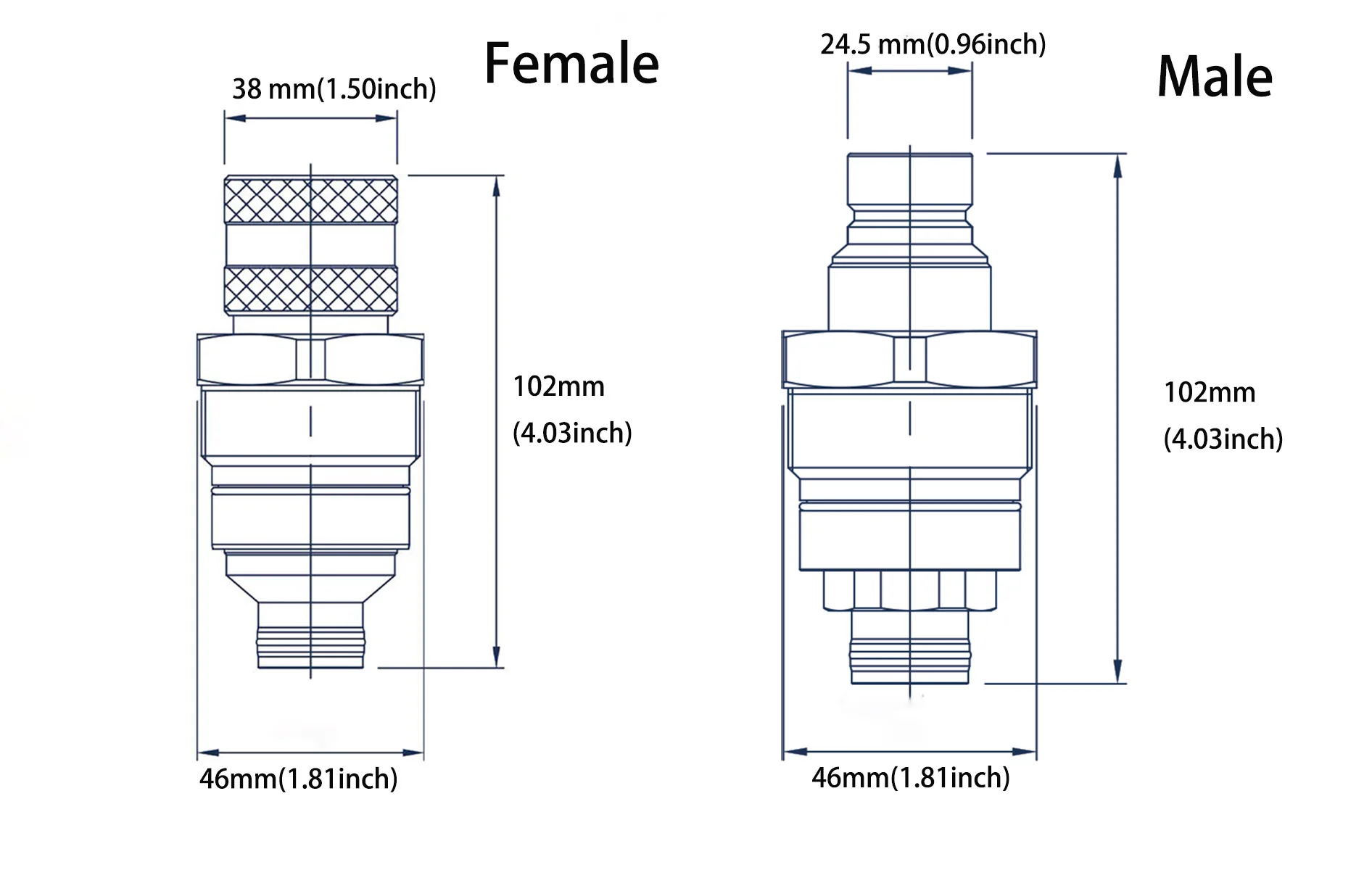

For 4BD4FI Manifold Block, Outside Thread Diameter: 46mm (1-13/16″)
Male coupling of Bobcat parts no: 6679837
Female coupling of Bobcat parts no: 6680018

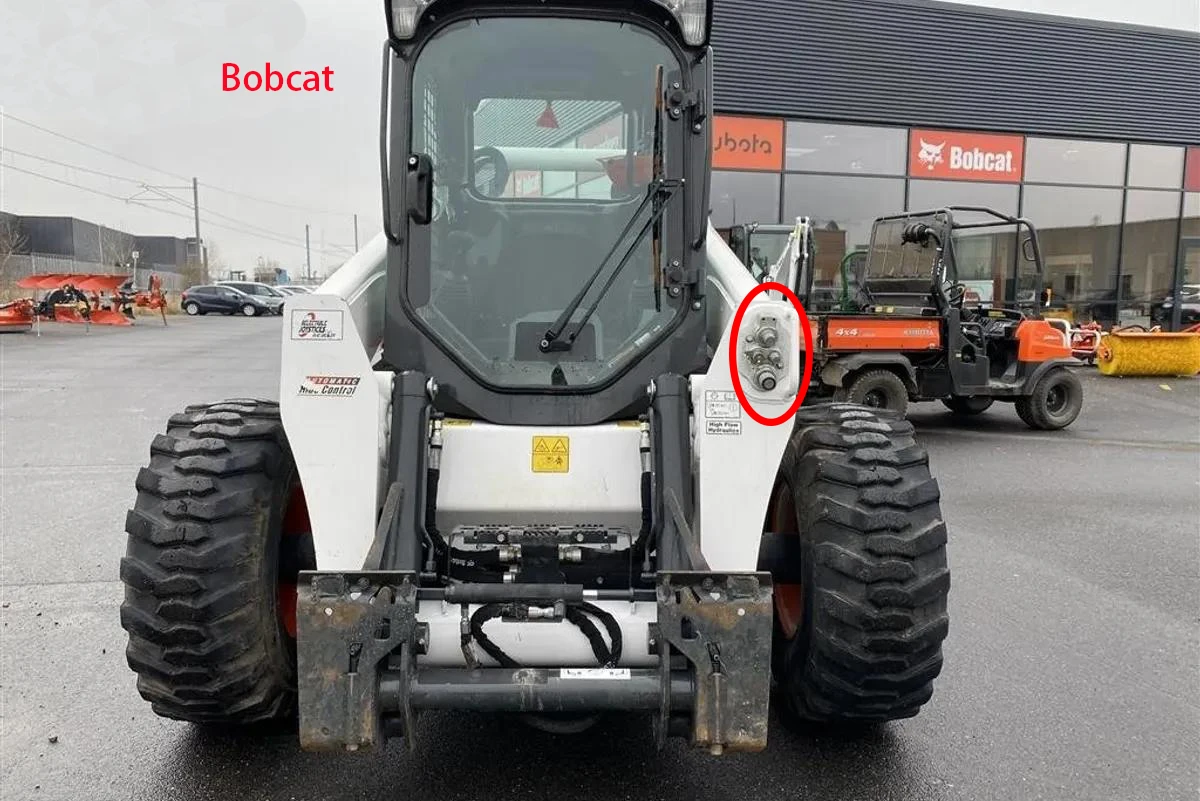

Compatible with Bobcat Skid Steer Loaders:
753, 763, 773, 863, 864, 883
A220, A300, A770
S130, S150, S160, S175, S185, S205, S220, S250, S300, S330, S450, S510, S530, S550, S570, S590, S630, S650, S750, S770, S850
T140, T180, T190, T200, T250, T300, T320, T450, T550, T590, T595, T630, T650, T750, T770, T870
Compatible with Bobcat Excavator(s):
325, 328
Compatible with Bobcat Telescopic Handler(s):
TL35.70, TL360, TL38.70HF, TL470, TL470HF
Compatible with Bobcat Work Machine(s):
5600, 5610
For 4BD4FI Manifold Block, Outside Thread Diameter: 46mm (1-13/16″)
Male coupling of Kubota parts no: V0511-77140(V051177140)
Female coupling of Kubota parts no: V0511-77150 (V051177150)
Female coupling of Kubota parts no: V0511-77150 (V051177150)

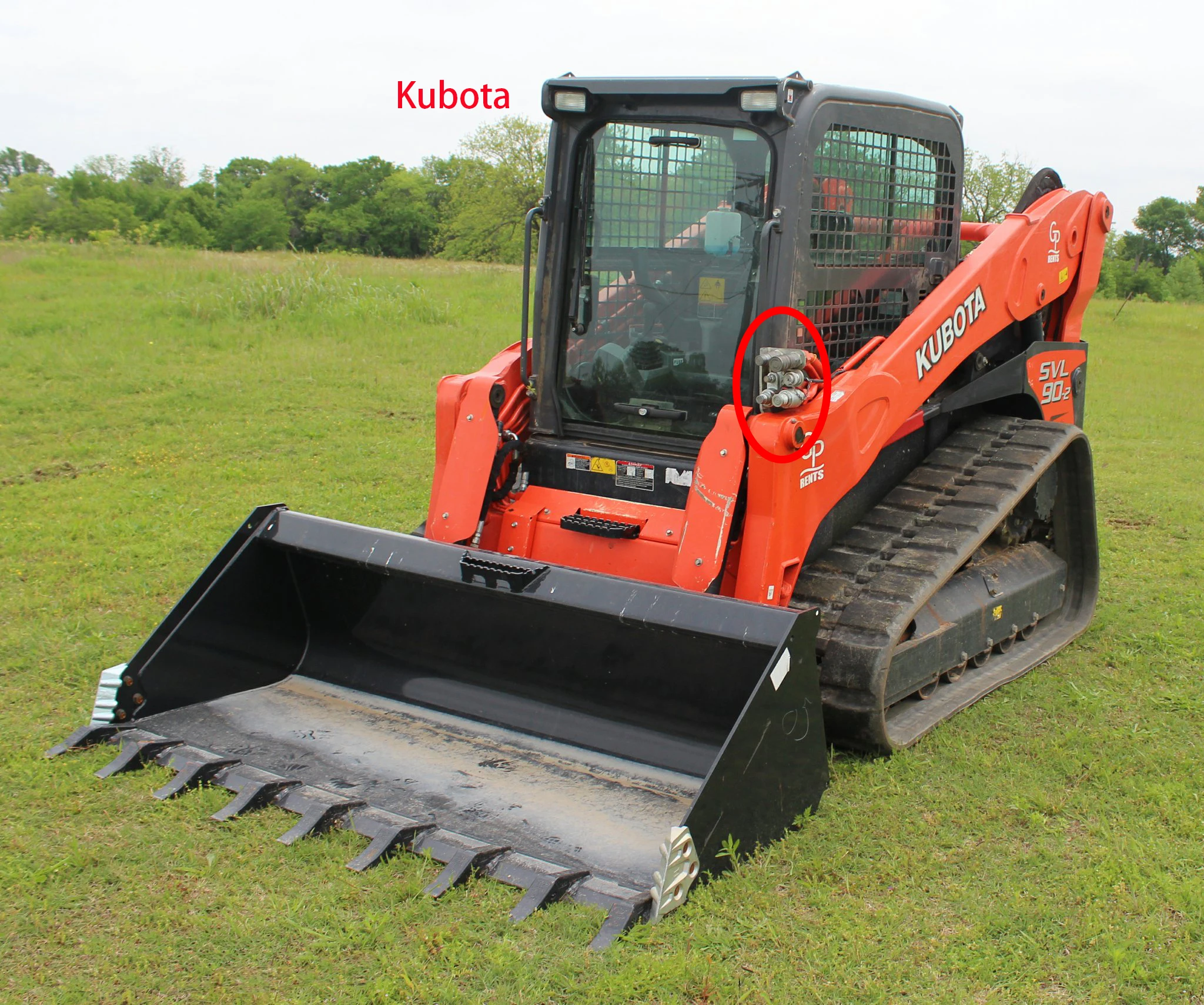

Compatible with Kubota Compact Track Loader:
SVL75, SVL75-2, SVL75-2C, SVL75C, SVL90, SVL90-2, SVL90-2C, SVL90C
For 4BD4FI Manifold Block, Outside Thread Diameter: 46mm (1-13/16″)
Male coupling of Case parts no: 84390117
Female coupling of Case parts no: 84390118
Female coupling of Case parts no: 84390118

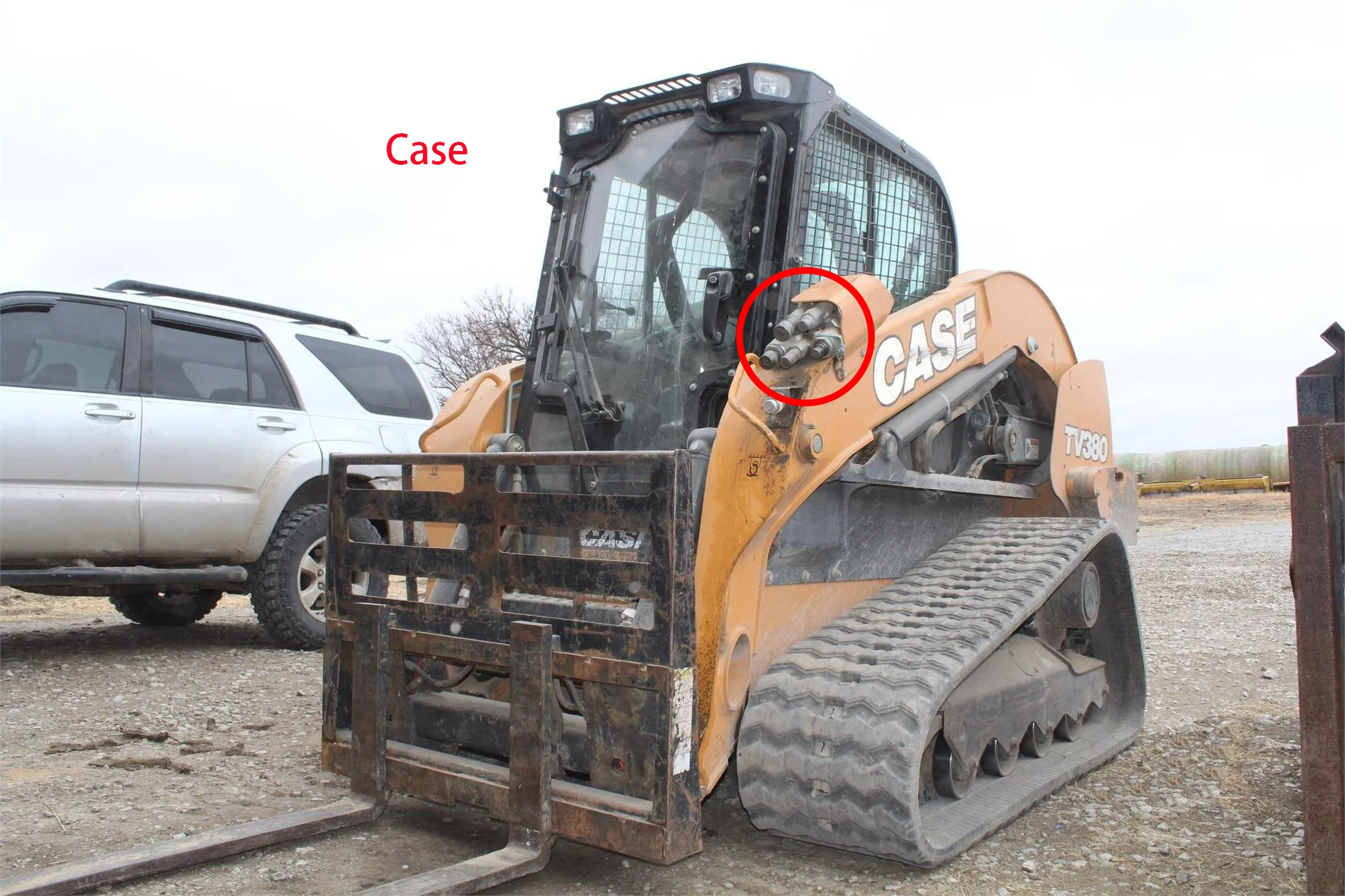

Compatible with Case compact track Loader(s):
TR270, TR310,TR320, TV380
Compatible with Case Skid Steer Loader:
SR130, SR150, SR175, SR200, SR210, SR220, SR250, SV185, SV250, SV300
For 4BD4FI Manifold Block, Outside Thread Diameter: 46mm (1-13/16″)
Male coupling of New Holland parts no: 84390117
Female coupling of New Holland parts no: 84390118
Female coupling of New Holland parts no: 84390118

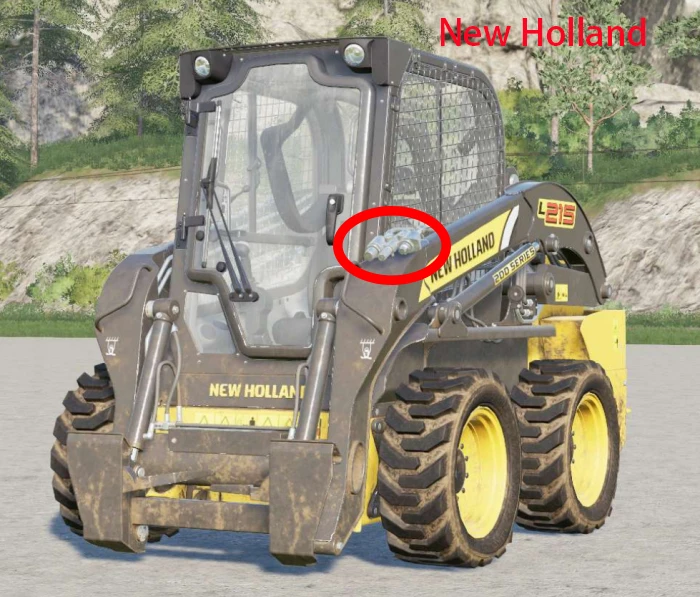

Compatible with New Holland Track Loader(s):
C227, C232, C238, L213, L215, L218, L220, L221, L223, L225, L230
