6101,6201 алюминиевый провод для электромонтажа
US $2200-$2800
Лидер продаж провод из сплава FeCrAl высокой температуры 0 1 мм-4 мм Электрический
- Категории: Aluminum Wire >>>
- Поставщик: Heyuan,Xinda,Quartz,Electric,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Parameters
FeCrAl high resistance and electric heating alloy
FeCrAl resistance & heating alloy with the characteristics of high resistance, low temperature coefficient of electric resistance,high operating temperature, good corrosion resistance under high temperature, as well as the lower price.
It is widely used in industrial electric furnace, household electrical appliance and far infrared ray device.
It is widely used in industrial electric furnace, household electrical appliance and far infrared ray device.
Physical and Mechanical Properties of Sundear FeCrAl Resistance Alloy wire | ||||||||||||||||
Model Properties | 0Cr21Al4 | 0Cr25Al5 | 0Cr21Al6 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | 0Cr23Al5 | ||||||||||
0Cr19Al3 | ||||||||||||||||
Nominal Composition% | Cr | 17-21 | 23-26 | 20-22 | 21-23 | 26.5-27.8 | 20.5-23.5 | |||||||||
Al | 4-6 | 4.5-6.5 | 5-7 | 5-7 | 6-7 | 4.2-5.3 | ||||||||||
Fe | Balance | Balance | Balance | Balance | Balance | Balance | ||||||||||
Mn | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ||||||||||
C | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ||||||||||
Si | ≤0.7 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.4 | ≤0.6 | ||||||||||
Nb | - | - | - | 0.5 | - | - | ||||||||||
Mo | - | - | - | - | 1.8-2.2 | |||||||||||
Max Continuous Operating Temperature ℃ | 1100 | 1300 | 1300 | 1350 | 1400 | 1300 | ||||||||||
Melting Point ℃ | 1500 | 1500 | 1500 | 1520 | 1520 | 1500 | ||||||||||
Resistivity PW 10-6Ω.M | 1.23 | 1.42 | 1.42 | 1.45 | 1.53 | 1.35 | ||||||||||
Density g/cm3 | 7.35 | 7.25 | 7.1 | 7.1 | 7.1 | 7.25 | ||||||||||
Tensile Strength Mpa | >600 | >600 | >600 | >650 | >680 | >600 | ||||||||||
Elongation % | Diameter 0.1-3.0mm | >12 | >12 | >12 | >10 | >10 | >12 | |||||||||
Diameter >3.0mm | >15 | >15 | >15 | >12 | >10 | >15 | ||||||||||
Thermal Conductivity W/(m·K) | 13 | 13 | 13 | 13 | 13 | 13 | ||||||||||
Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | ||||||||||
Magnetic Properties | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | ||||||||||

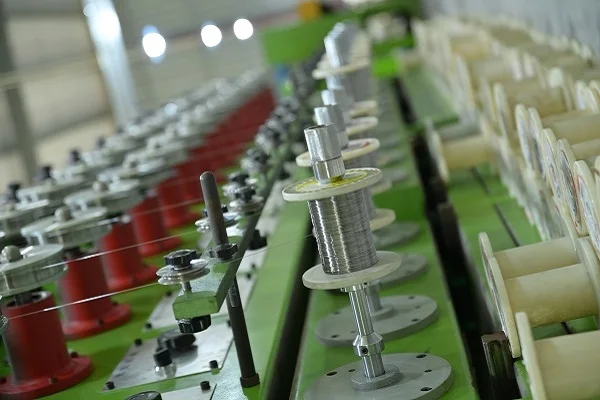

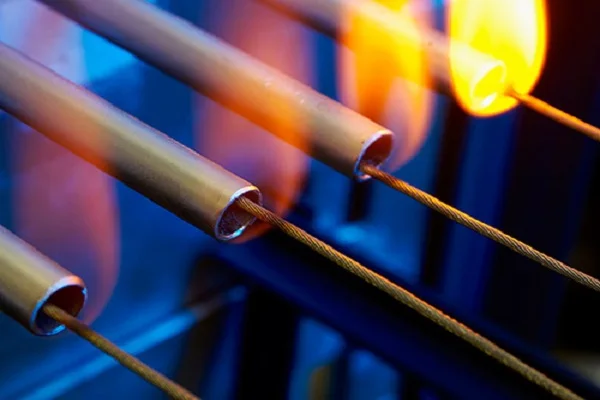

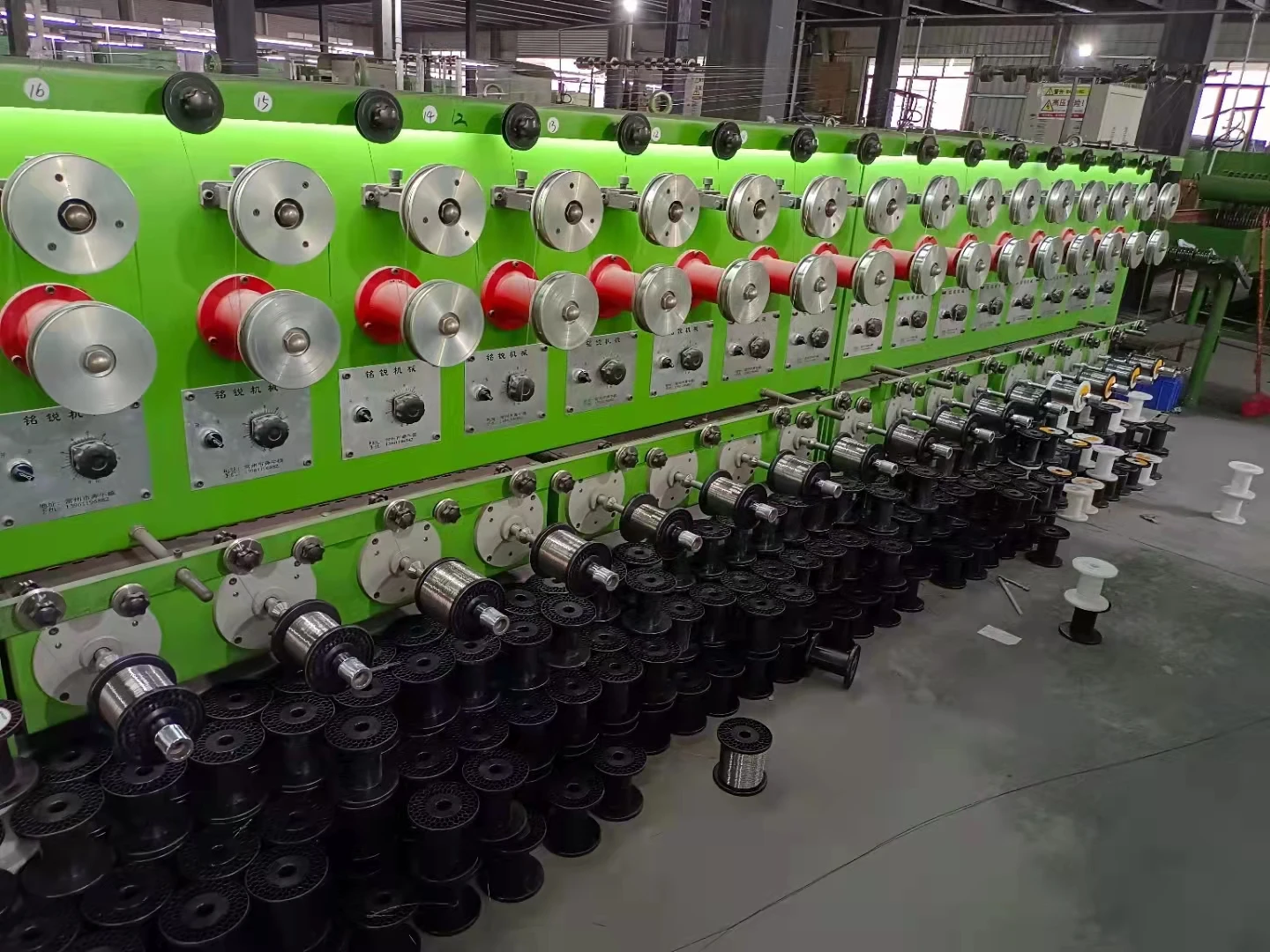

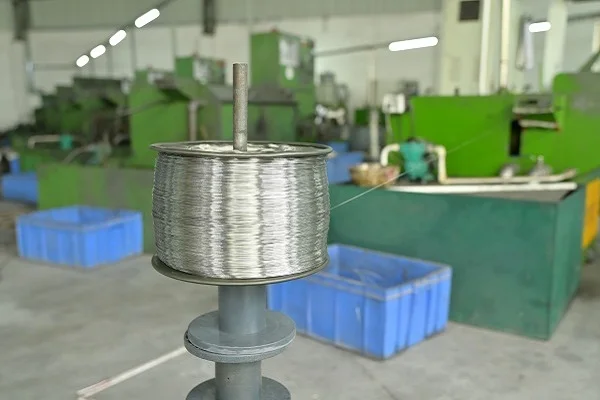

Product Process

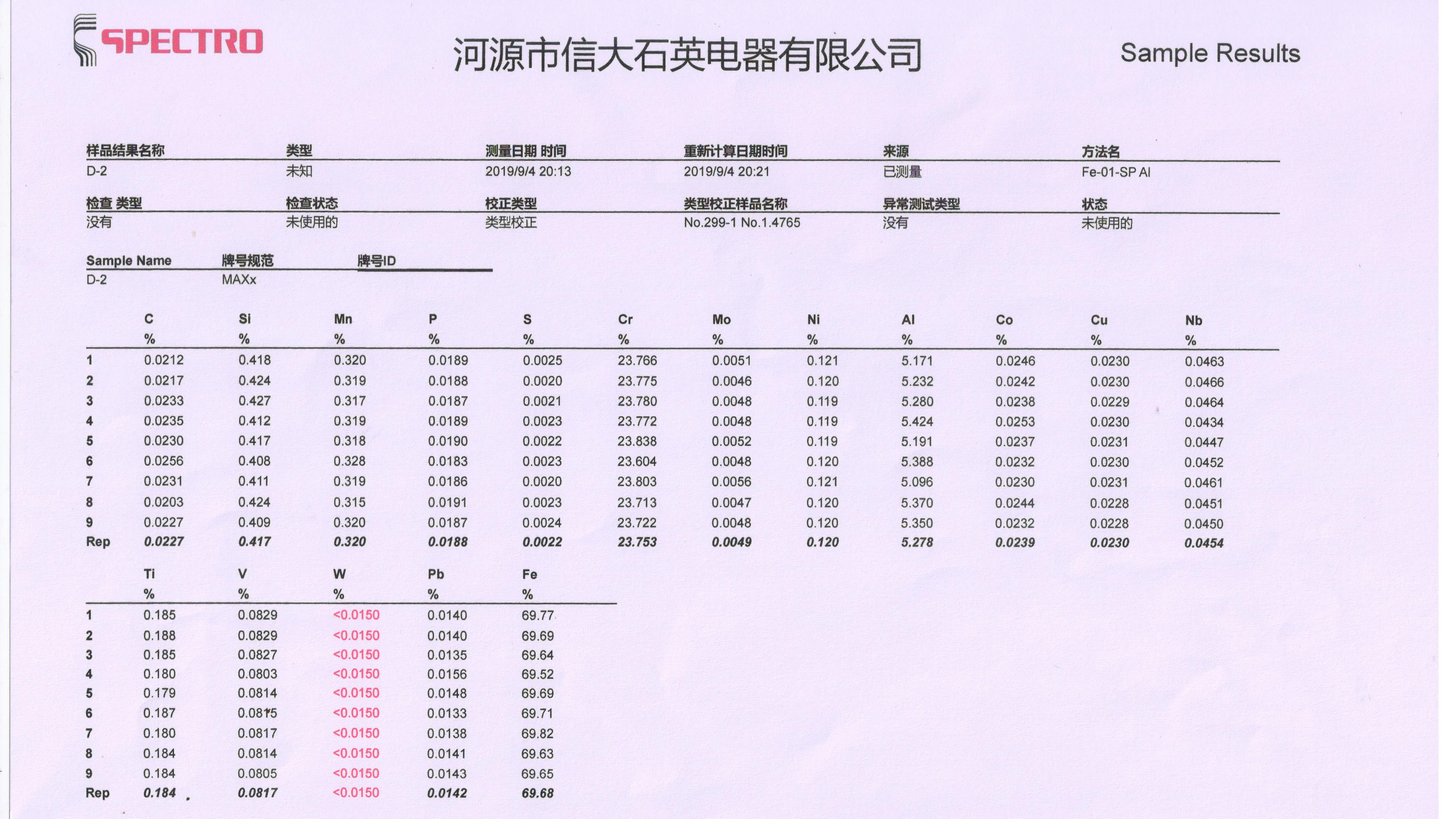

Spectro Report
Shipping
Company Profile

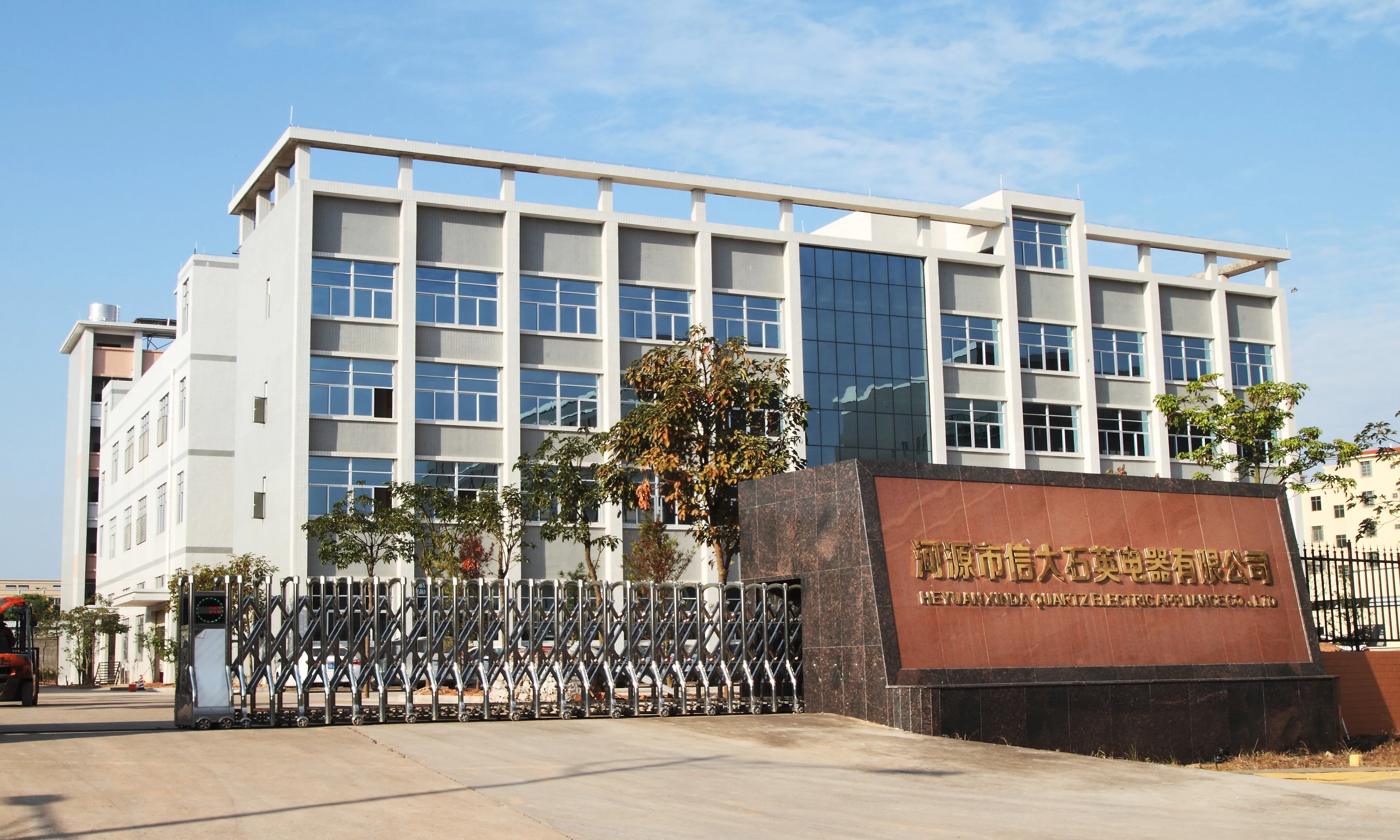

Heyuan Xinda Quartz Electric Appliance Co., Ltd.
Heyuan Xinda Quartz Electric Appliance Co., Ltd. is the world's leading manufacturer of far infrared heaters, quartz tubes, resistance wires and quartz heating tubes. We are a high-tech enterprise in Guangdong Province, and also the engineering technology research center of high-efficiency energy-saving far-infrared radiation devices in Guangdong Province.
Quality-first" and the principle of "customer satisfaction". Sundear is specialized in manufacturing infrared heater, patio heater，space heater and raw material of quartz tube and resistance wire. We take the whole process control from raw material to finished product. We are one-stop infrared heating expert. Sundear has been focusing on infrared heating industry since 1988 with 30+ years experience in heating filed.
The company covers an area of 40,000 square meters and has accredited ISO9001:2015 and BSCI, ISO 14401.
We are not only a manufacturer, we are also a heating solution provider with our strong R&D team.
Quality-first" and the principle of "customer satisfaction". Sundear is specialized in manufacturing infrared heater, patio heater，space heater and raw material of quartz tube and resistance wire. We take the whole process control from raw material to finished product. We are one-stop infrared heating expert. Sundear has been focusing on infrared heating industry since 1988 with 30+ years experience in heating filed.
FAQ
Are you a manufacturer or a trade company?
We are a manufacturer who started our producing for quartz tube, resistance wires and quartz heating tube since 1988.
How can you make sure your quality?
First check the appearance, second check the uniformity of the heating wire, third check the resistance of the heating wire,
fourth check the energization of all the heating tubes, and finally do the life span test. 5 steps quality control system, 100%
guarantee stable quality.
fourth check the energization of all the heating tubes, and finally do the life span test. 5 steps quality control system, 100%
guarantee stable quality.
How can I get samples? Is it free?
Please contact us at any time for free samples.
