PowerVault ME5 arrays support SAN-attached Fibre Channel (16/32 Gb) and iSCSI (10/25Gb) connectivity. A switch-attached solution (or SAN) places a Fibre Channel or Ethernet switch between the servers and the controller enclosures within the storage system. Using switches, a SAN shares a storage system among multiple servers reducing the number of storage systems required for a particular environment. Using switches increases the number of servers that can be connected to the storage system to scale to greater than four servers, which is the limit for a direct-attached environment.
When designing a SAN, we recommend using two switches. This practice enables you to create a redundant transport fabric between the server and the PowerVault ME5 storage. This configuration also allows you to take an individual switch out of service for maintenance, or due to failure, without impacting storage-access availability.
When cabling the PowerVault ME5 controllers in a switched environment, pay close attention to the layout of the cables in both Fibre Channel and Ethernet fabrics. In the following figure, controller A (the left-most PowerVault ME5084 controller) has ports 0 and 2 connected to the top switch, and ports 1 and 3 are connected to the bottom switch. This configuration repeats in a similar fashion with controller B. The servers are configured with each server having connections to each switch. This cabling ensures that access to storage remains available between an individual server and the PowerVault ME5 array during switch maintenance.




Connecting two hosts to a PowerVault ME5084 array using two switches

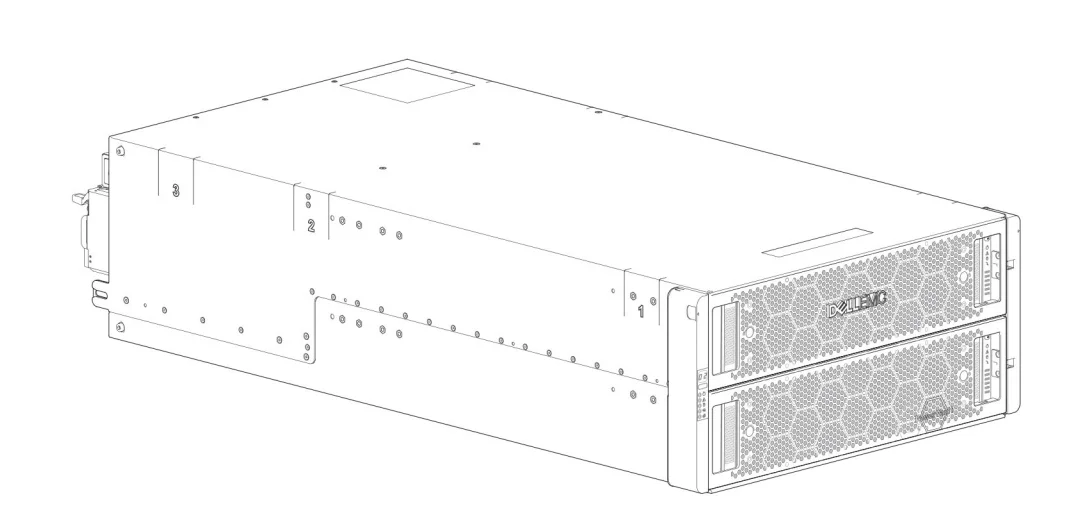

5U84 enclosure system—front orientation

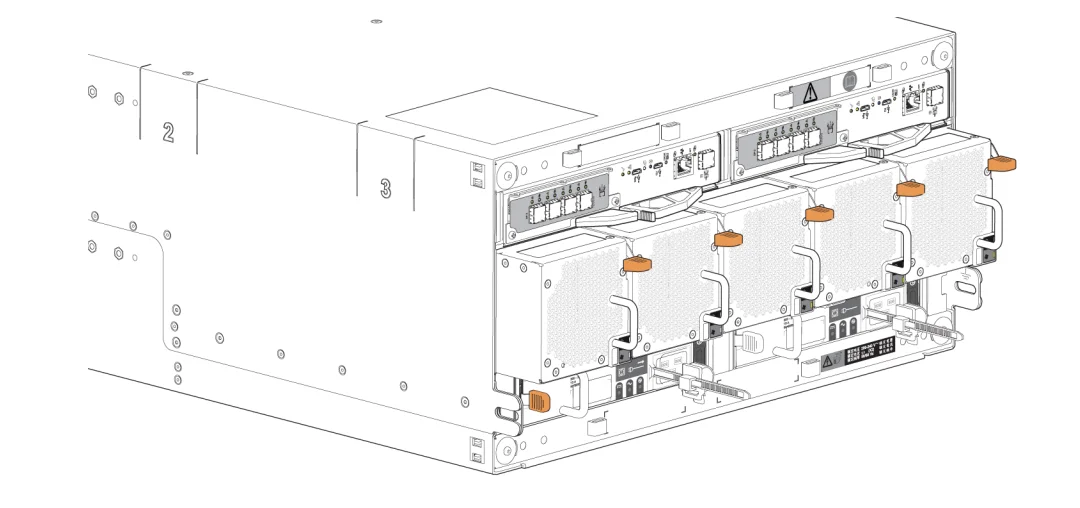

5U84 enclosure system—rear orientation

This figure shows a plan view of an enclosure drawer that is accessed from the enclosure front panel. The conceptual graphics are simplified for clarity.

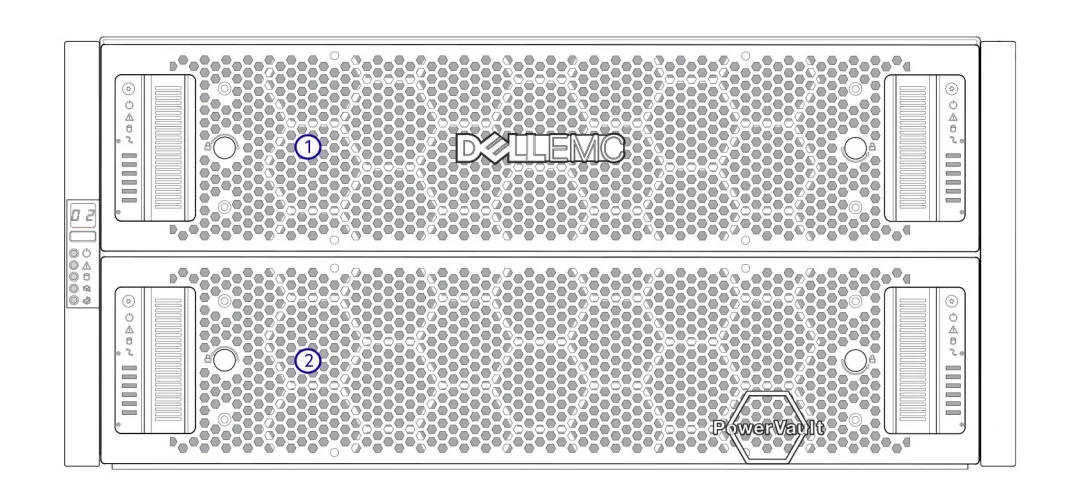

5U84 enclosure—front panel components
1. 5U84 enclosure drawer (slot 0 = top drawer) 2. 5U84 enclosure drawer (slot 1 = bottom drawer)

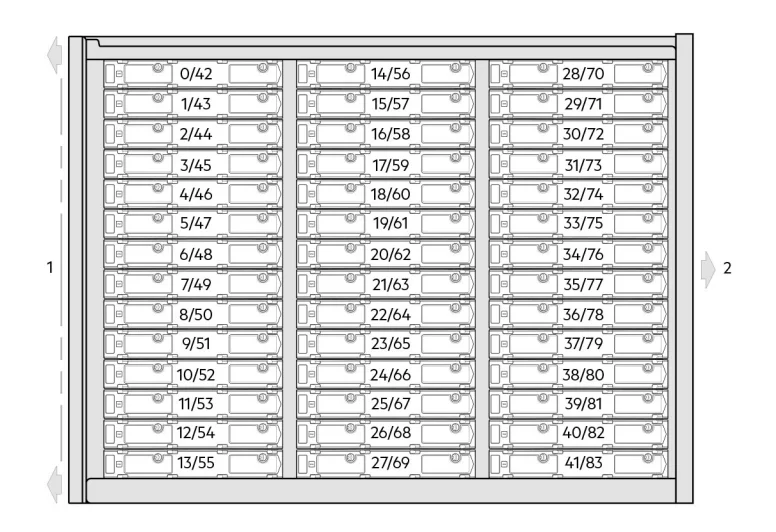

5U84 enclosure system - plan view of drawer
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


The controller modules and IOMs use alphabetic designators, and the Power Supply Units (PSUs) and Fan Control Modules (FCMs) use numeric designators to identify the slots in a 5U84 enclosure.

5U84 controller enclosures support dual-controller module configuration only. If a partner controller module fails, the controller fails over and runs on a single controller module until the redundancy is restored. Both controller module slots must be occupied to ensure sufficient airflow through the controller during operation.

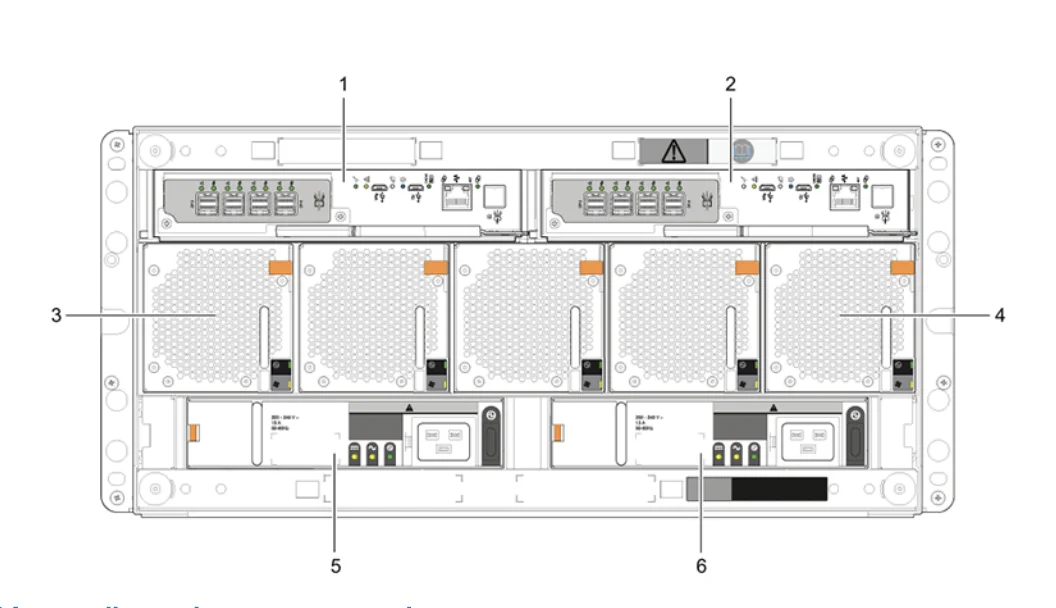

5U84 controller enclosure—rear panel components
1. Controller module A
2. Controller module B
3. FCM 0
4. FCM 4
5. PSU 0
6. PSU 1

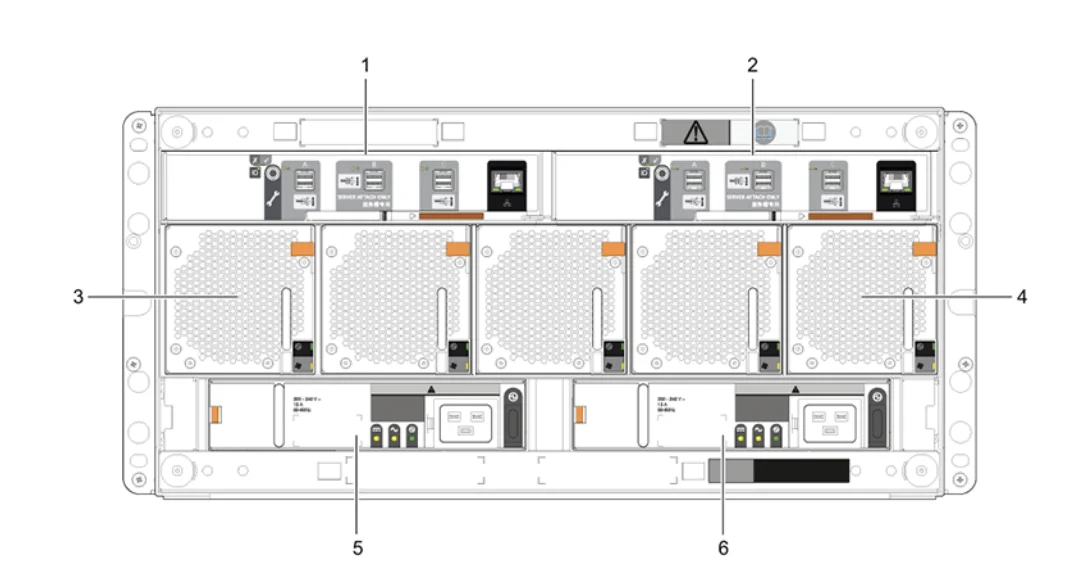

5U84 expansion enclosure—rear panel components
1. IOM A
2. IOM B
3. FCM 0
4. FCM 4
5. PSU 0
6. PSU 1


The 5U84 controller enclosure uses the same controller modules that are used by 2U12 and 2U24 enclosures.
The top slot for holding controller modules is designated slot A, and the bottom slot is designated slot B. The face plate details of the controller modules show a module aligned for use in slot A. In this orientation, the controller module latch is shown at the bottom of the module and it is in a closed/locked position. See 12 Gb/s controller module LEDs for information about the indicators on the controller module.


Controller module details
1. Host ports
2. USB serial port (service only)
3. USB serial port (CLI)
4. Ethernet port for management network
5. SAS expansion port
Expansion enclosure IOM details
1. 3.5 mm serial port (service only)
2. SAS expansion port A
3. SAS expansion port B (disabled)
4. SAS expansion port C
5. Ethernet port (disabled)


This figure shows the power supply unit that is used in 5U controller enclosures and optional 5U84 expansion enclosures.

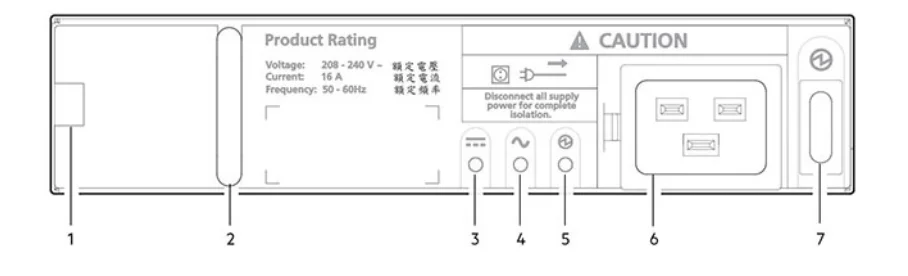

Power supply unit (PSU)
1. Module release latch
2. Handle
3. PSU Fault LED (Amber/blinking amber)
4. AC Fail LED (Amber/blinking amber)
5. Power OK LED (Green)
6. Power connect
7. Power switch


Drawer bezel details
1. Left side
2. Right side
3. Anti-tamper lock
4. Sideplane OK/Power Good
5. Drawer fault
6. Logical fault
7. Cable fault
8. Drawer activity
9. Drawer pull handle
Fan cooling module (FCM)
1. Module release latch
2. Handle
3. Module OK LED (Green)
4. Fan Fault LED (Amber/blinking amber)
