Product Description:
Laser cleaning Machine is a new generation of industrial surface cleaning laser system. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process. Widely used for the surface laser degreasing, laser paint removal, laser removal of zinc, laser film removal, laser cleaning, such as coating, etc


Main Features of Laser cleaning machine:
1)No damage to the base of the material due to the no-touch surface cleaning performance.
2)Precise cleaning technic for the specific area in a selected area.
3)No need of chemistry or other added supplies.
4)Easy to be operated, can be hand-held or auto-cleaned by installing a robotic arm.
5)Small cleaning time consumption and comes with a high quality finishing result.
6)Stable and impacted integrated design which results to no extra maintenance.


Laser source
|
Raycus fiber laser
|
Laser power
|
50W/100W/200W/300W/500W
|
Supply voltage
|
Single-phase 220V±10%, 50/60Hz AC
|
Machine power consumption
|
2500W(within water chiller)
|
Setting up environment
|
Flat, no vibration, no impact
|
Working temperature
|
0ºC~40ºC
|
Working humidity
|
≤80%
|
Average laser power
|
≥200 W
|
Power range (%)
|
10-100(adjustment )
|
Repeat frequency (KHz)
|
10-50(adjustment)
|
Cleaning efficiency (m2/h)
|
12
|
Focal length (mm)
|
210/160 changeable
|
Cooling mode
|
Water cooling
|
Size
|
1100mm×700mm×1150mm
|
Weight
|
270Kg
|
Scanning width
|
10-80mm
|
Mobile mode
|
Handheld
|

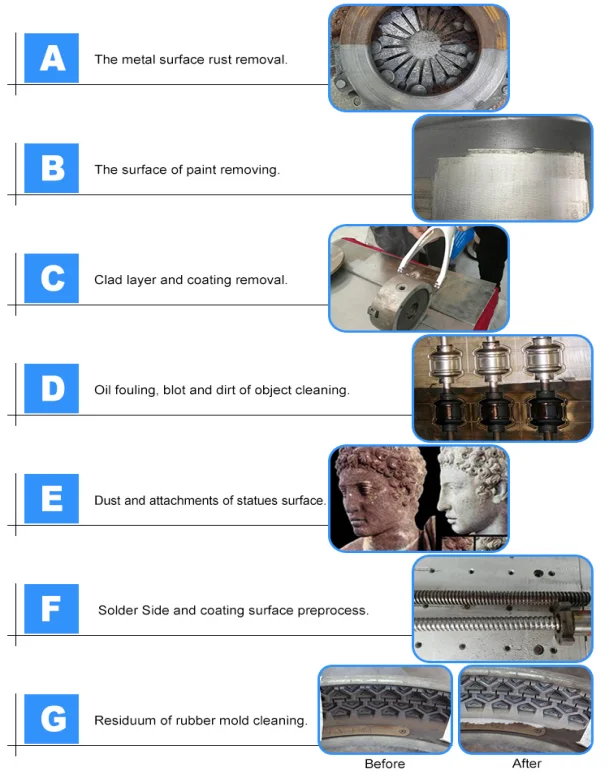

Cleaning Machine Applicable:

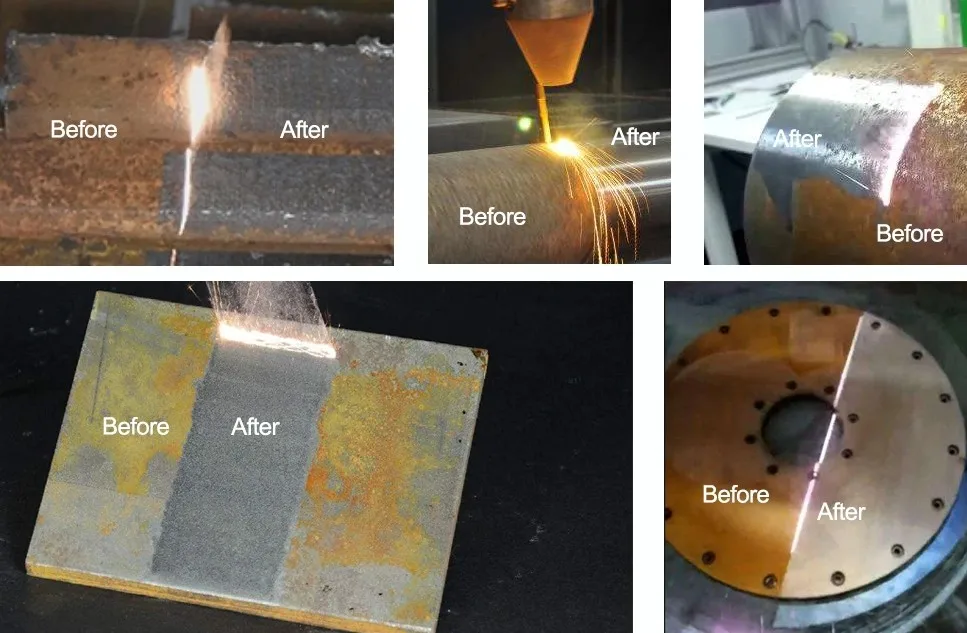

Cleaning Samples:
Packing & delivery:

Our Cercificate:
