kneader machine for  bentonite

AVAILABLE PRODUCTS:

DOW Corning, Silicone sealant, adhesive, ink, dope, pigment, dye, carbon, CMC, cosmetic, foodstuff, battery, medicine, plastic and other viscosity fluid etc.

CHARACTER:

1) Available models normal pressure, high pressure and vacuum.

2) Temperature adjustment: heated by oil, steam or electricity, cooled by water.

3) Discharge method: tilt dump, bottom dump and screw discharge.

4) The seal of shaft agitator is adopted with unique balance construction of vacuum box, Which owns patent.

5) The cover is controlled by hydraulic system.

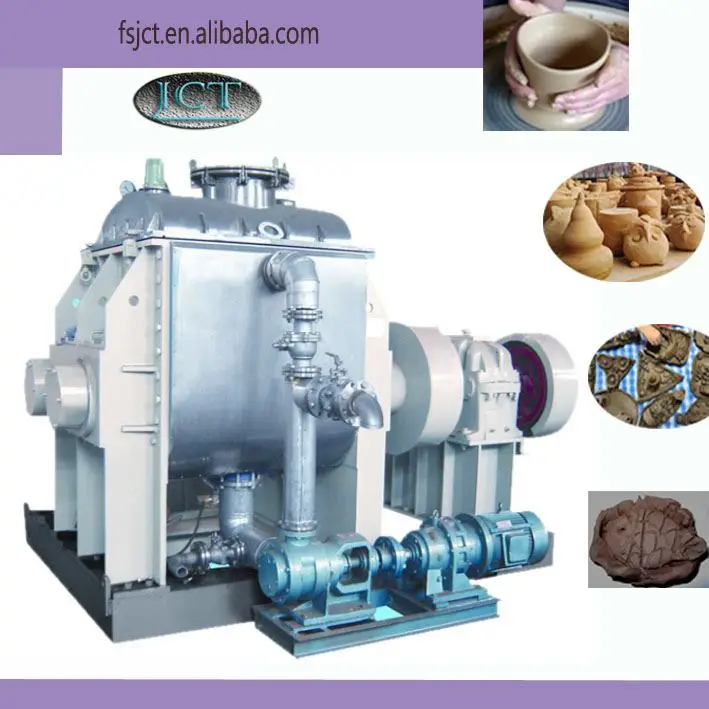

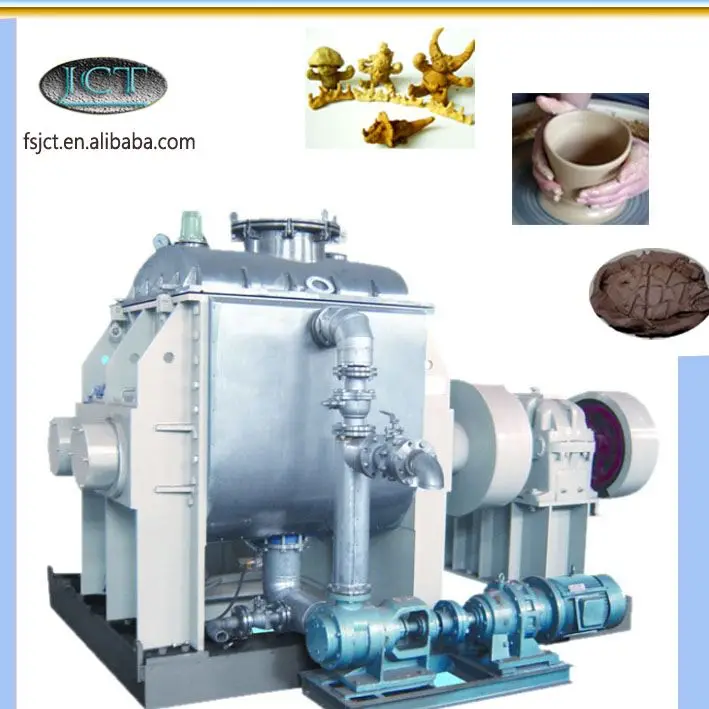

Kneader picture and its products:















MAIN FUNCTION:

Kneader is a equipment for mixing, kneading, crushing and dispersing viscosity fluid.

Type           AVAILABLE CAPACITY:

NHZ-5L                 3L

NHZ-20L               12L

NHZ-50L               30L

NHZ-100L              60L

NHZ-200L             120L

NHZ-300L             180L

NHZ-500L             300L

NHZ-1000L             00L

NHZ1500L             900L

NHZ-2000L           1200L

NHZ-3000L           1800L

Technical parameters:

Model	Cylinder volum(L)		Drive motor power (KW)	Stirring speed (rpm)	Discharge mode			Heating
	Full volume	Feeding amount		Paddle fast / slow paddle
NHZ5	5	3	2.2-4	75/50	Turn cylinder			Hot  oil	Power	Steam
NHZ20	20	12	3-5.5	63/42	Turn cylinder
NHZ50	50	30	4-7.5	63/42	Turn cylinder
NHZ100	100	60	5.5-7.5	43/29	Turn cylinder
NHZ200	200	120	7.5-15	43/29	Turn cylinder	The material under	Screw the material
NHZ300	300	180	11-18.5	43/29
NHZ500	500	300	18.5-30	43/29
NHZ1000	1000	600	22-55	32/22
NHZ1500	1500	900	30-90	32/22
NHZ2000	2000	1200	45-110	32/22
Remarks: 1,Temperature range: 0-300° 2, Pressure range:-0.1-0.6MPa













































Kneader in our factory:

















Our team and clients:



Please feel free to contract me:
