JCT vacuum kneader

Company Information

1. Company profile

  three roll calender

1). China Foshan JCT Machinery Co., Ltd.



2). A professional chemical machinery manufacturer.



3). Specialize in reaction vessels, kneading machine, dispersion mixers, planetary mixers, powder mixers, high speed dispersers.



4). Set up in 2005, now with a 50-technicians, 10-senior-engineers and 2-specialists designing & manufacturing team, and 15-sales team.



5). Main markets: Chian, Middle East, Europe, Africa, South America and South Asia.



Product Descriptions Kneader mixer

2. Introduction

1). Kneading machine does very well in mixing, kneading, crushing and dispersing for high-viscosity liquid materials, with no dead point.



2). Two sigma or Z-type blades.



3). Equipped with inverter for frequency control.



4). Vacuum and high pressure are available.



5). The cylinder is opened hydraulically.



6). Discharge mode: Hydraulic tilting, Bottom pumping,or Screwing.



7). With jacket outside of the cylinder, for heating or cooling.



8). Heating mode: Hot oil, Electric or Steam/



9). All the parts that contact with material are made of stainless steel.



10). Widely used in high viscosity sealant, silicone rubber, CMC, adhesive, also used in batteries, ink, pigments, dyes, pharmaceuticals, resins, plastics, rubber, cosmetics ect.m

 three roll calenderkneader.

3. JCT's credo and mission: three roll calender

Our credo - "QUALITY and SERVICE first, PROFIT second!"

Our mission- to serve you better, to try our best to establish a win-win situation with you!

4.Technical parameters:



Model



Chamber Volum(L)

Drive motor power

(KW)

Mixing Speed   (rpm)

 Discharge   mode

 Heating

Full volume

Feeding amount

Paddle fast /   slow paddle

 Optional parameters

Optional parameters

NHZ-5

5

3

2.2-4

75/50

Manual /   Hydraulic tilting

Running Hot

oil

Electrical   heating

Pressure Steam

NHZ-20

20

12

3-5.5

63/42

NHZ-50

50

30

4-7.5

63/42

NHZ-100

100

60

5.5-7.5

43/29

NHZ-200

200

120

7.5-15

43/29

Hydraulic   tilting

The bottom   pumping

Screw extruding

NHZ-300

300

180

11-18.5

43/29

NHZ-500

500

300

18.5-30

43/29

NHZ-1000

1000

600

22-55

32/22

NHZ-1500

1500

900

30-90

32/22

NHZ-2000

2000

1200

45-110

32/22

NHZ-3000

3000

1800

55-130

33/22

Remarks:

1,Temperature   range: 0-300°,

2, Pressure   range:-0.1-0.6MPa,

3,Inverter for   frequency control if necessory.

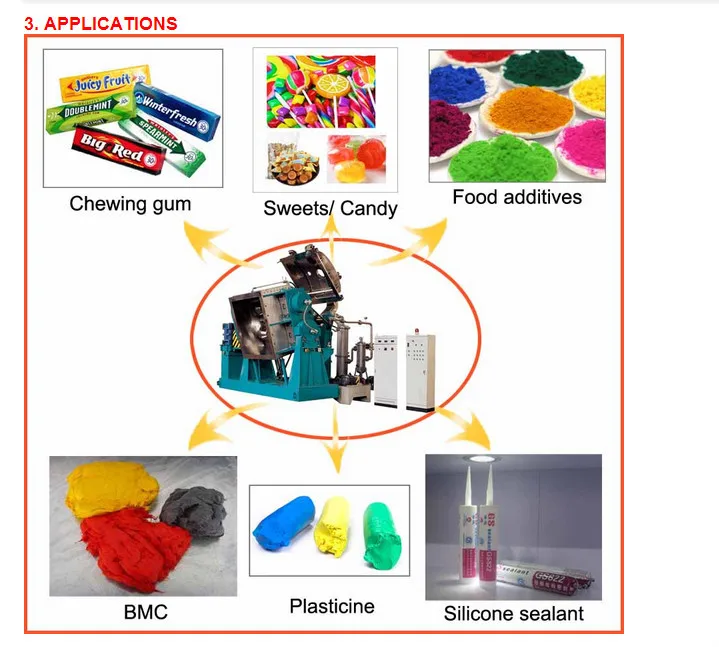

5. Products range



Chemicals Industry:

 three roll calender

Sealant, rubber, glue/ adhesive, paint, dye, CMC, battery, pigment.



Food Industry:



Bubble gum, chewing gum, soft candy, cheese etc.



Pharmaceutical:



Some medicines and medical materials.



Cosmetics industry.



According to stattistics, JCT vacuum kneaders are most widely used in making:



Silicone sealant, Hot melt adhesive, Bubble/ chewing gum, Silicone rubber & Compound rubber, CMC

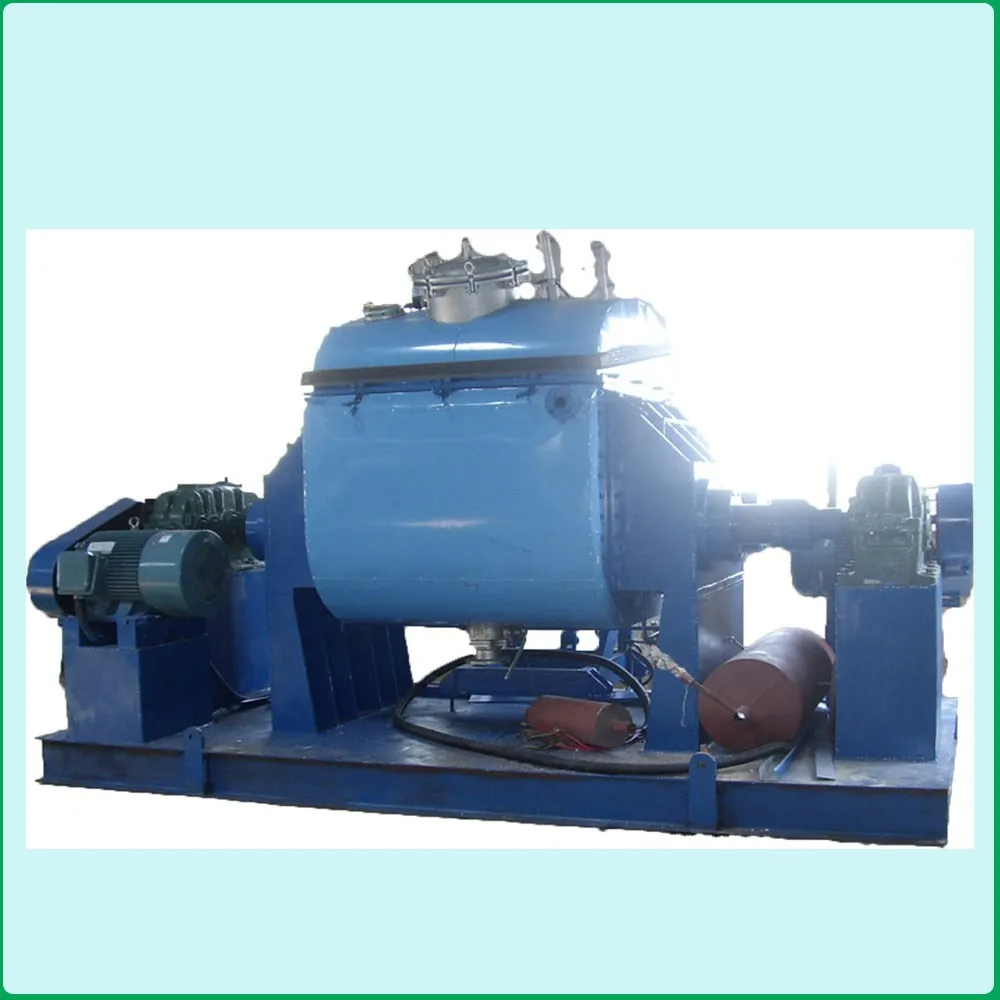

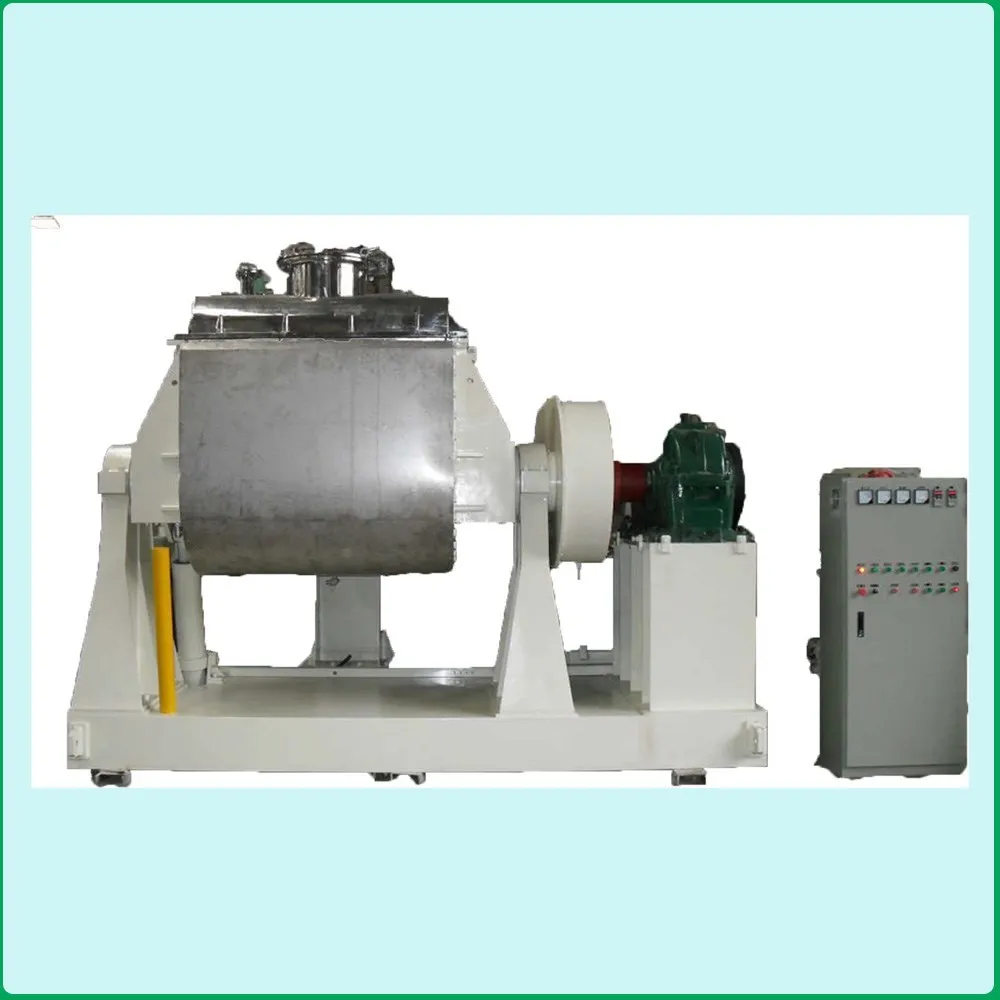

6. Pictures of the NHZ-2000L kneading machine   three roll calender



three roll calenderthree roll calenderthree roll calender

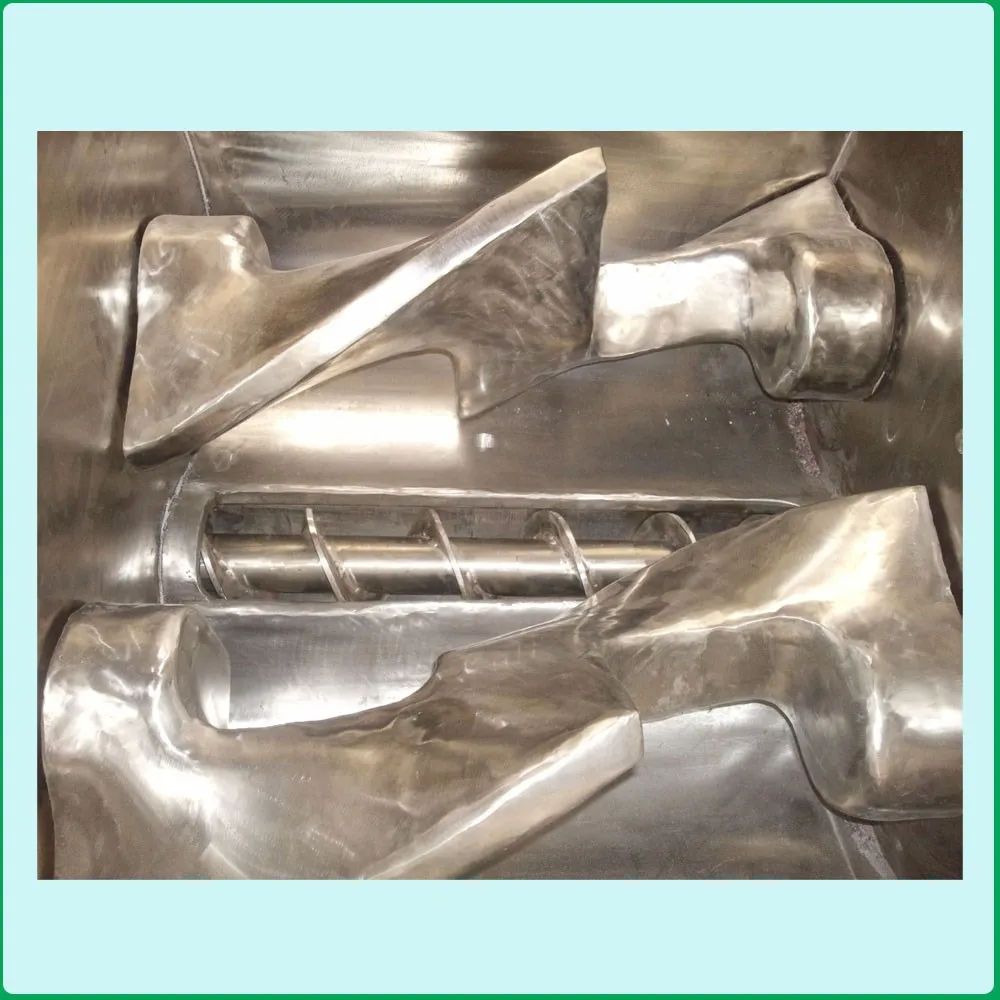

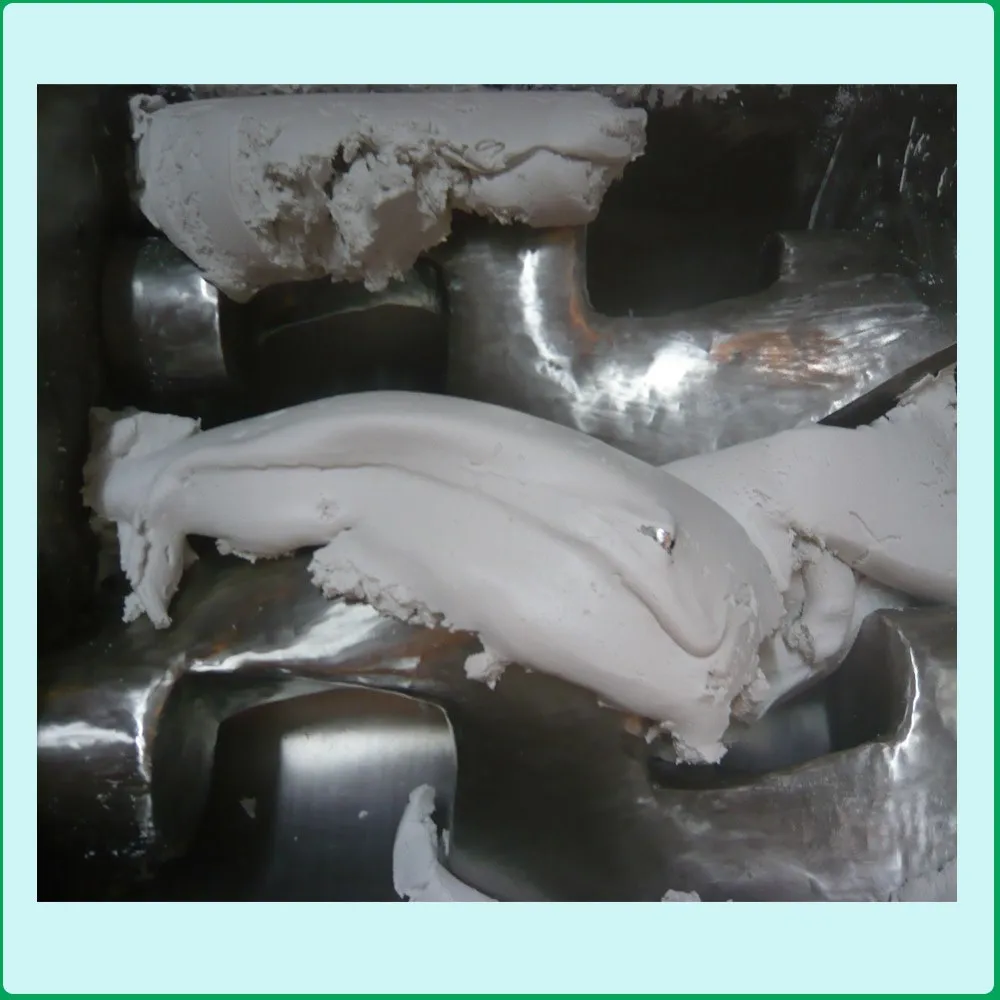

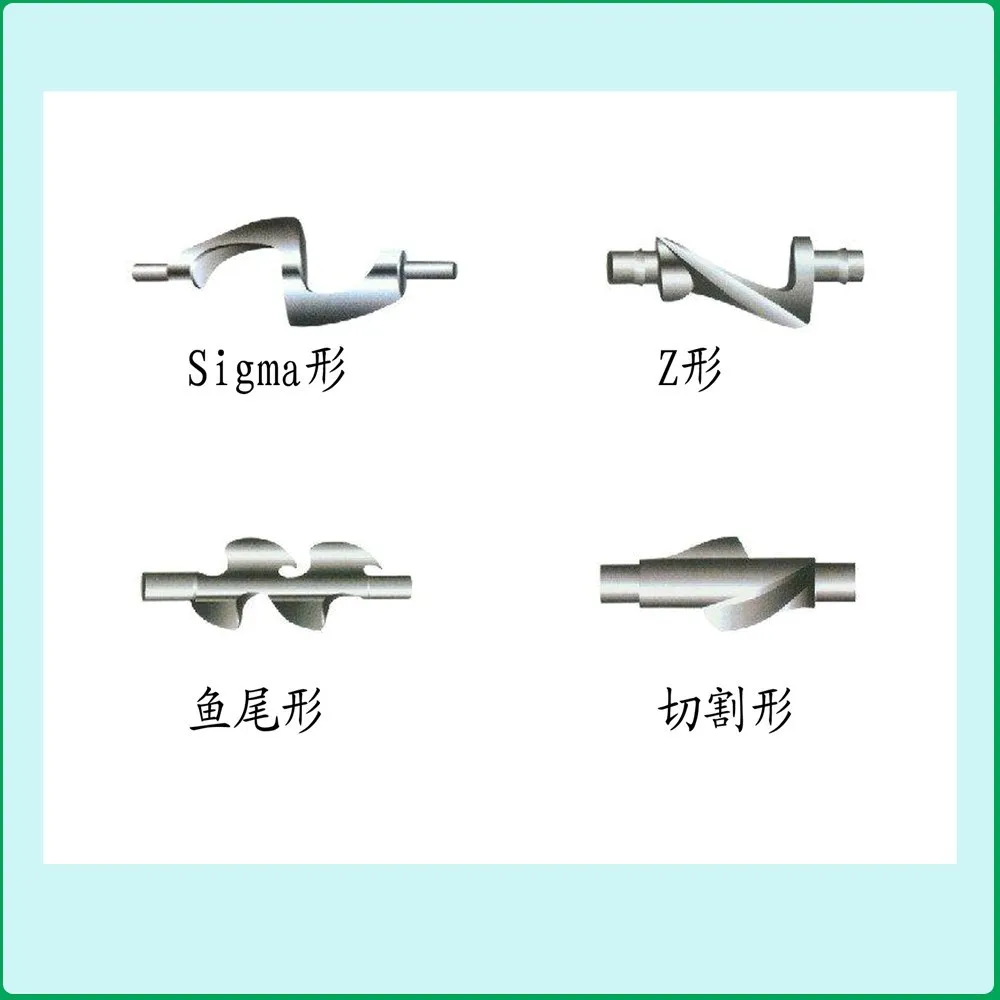

The  diferent blades of the vacuum kneader.



three roll calenderthree roll calender

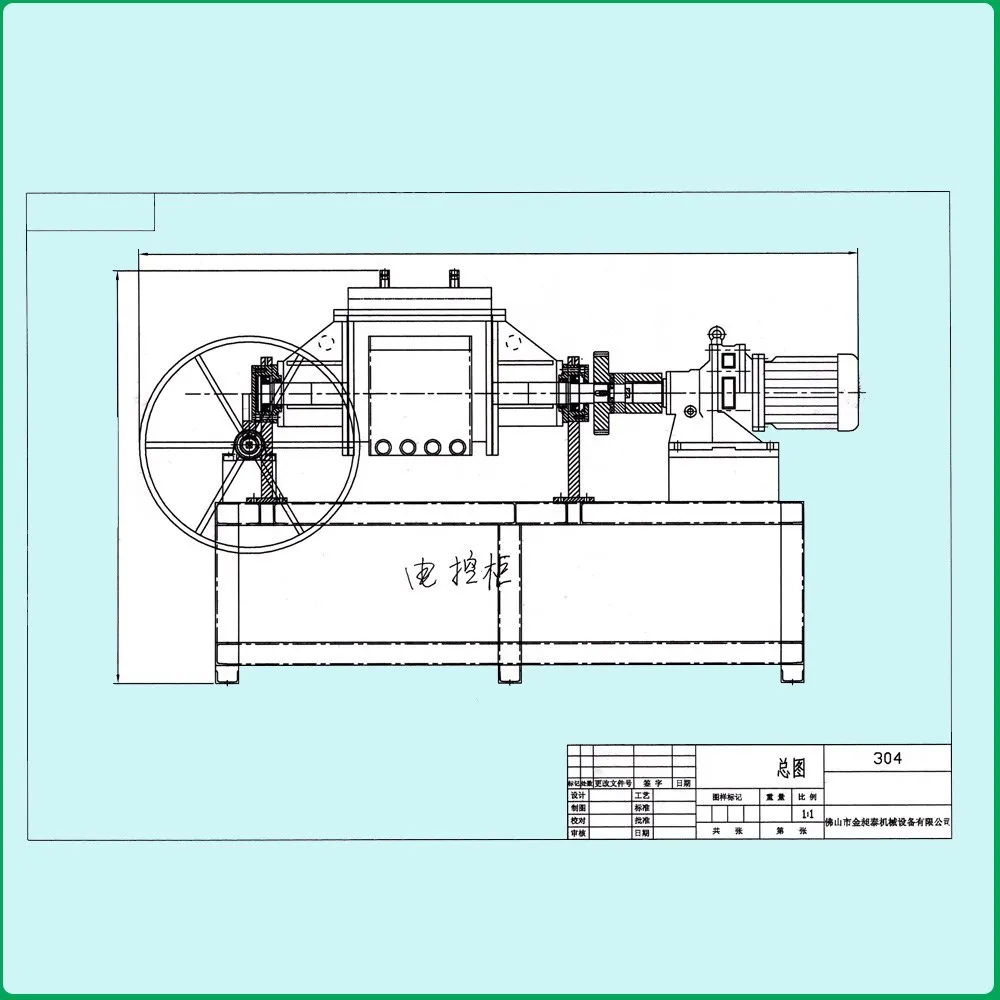

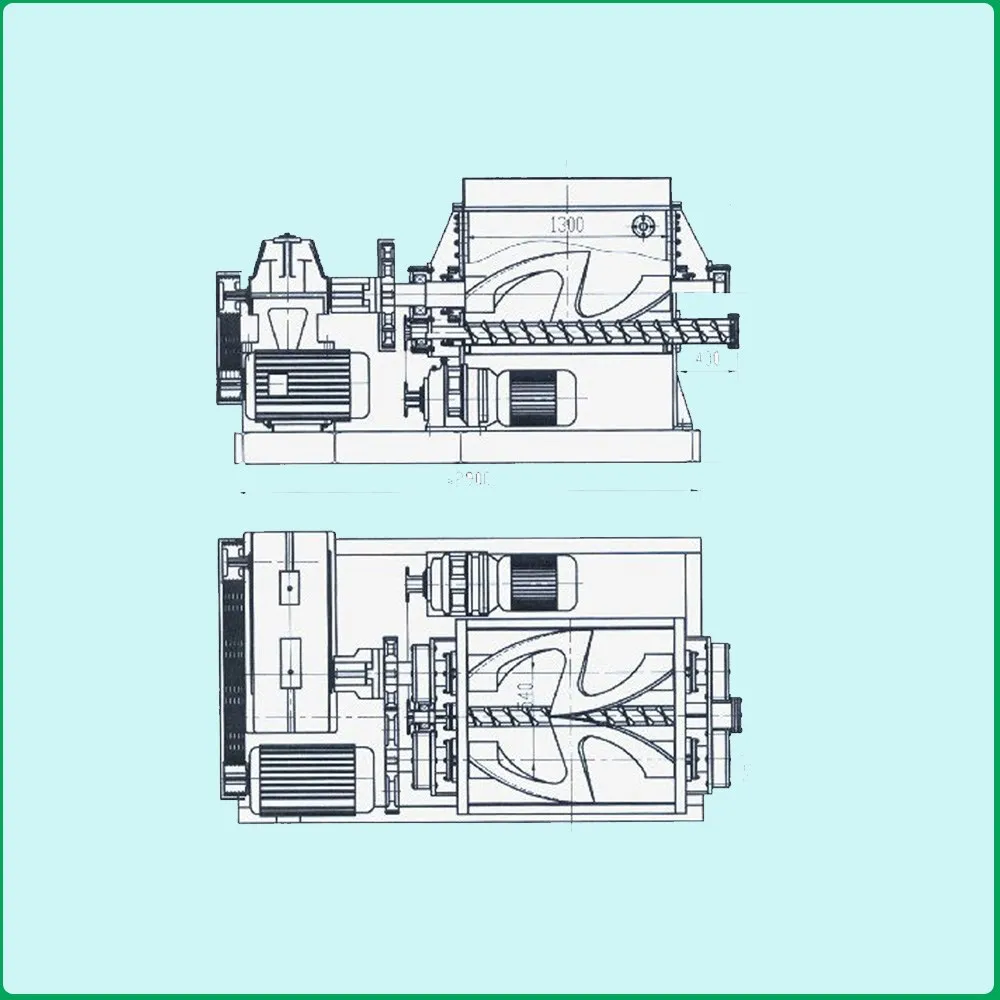

The structural drawings of JCT vacuum kneader.



three roll calender



7. Why choose us?

  three roll calender

1). Profession:

We have focused on this area for over 10 years, and the boss of JCT is a professional engineer who has 20 years’ experience in what we are

concentrating on!

 three roll calender

2). Powerful team:

A 5-experienced-engineer designing team + a 35-skilled-technician team + a 10-passionate-sales team make up the JCT big team.

three roll calender

3). Achievement: Kneader mixer

JCT was set up at 2004, through about 10 years’ endeavor, our products has been sold to most important industrial district in China, such as

Guangdong, Shangdong, Jiangsu, Zhejiang, Fujian and so on. And we have edged ourselves into the top 5 in China.

From 2009, JCT started the international marketing. Now, we have set our feet in North America, Europe, South Aria, Africa etc.

three roll calender

Some official documents and certificate of JCT Mahicnery Co., Ltd.

three roll calender

Some happy moments shared with our clients.

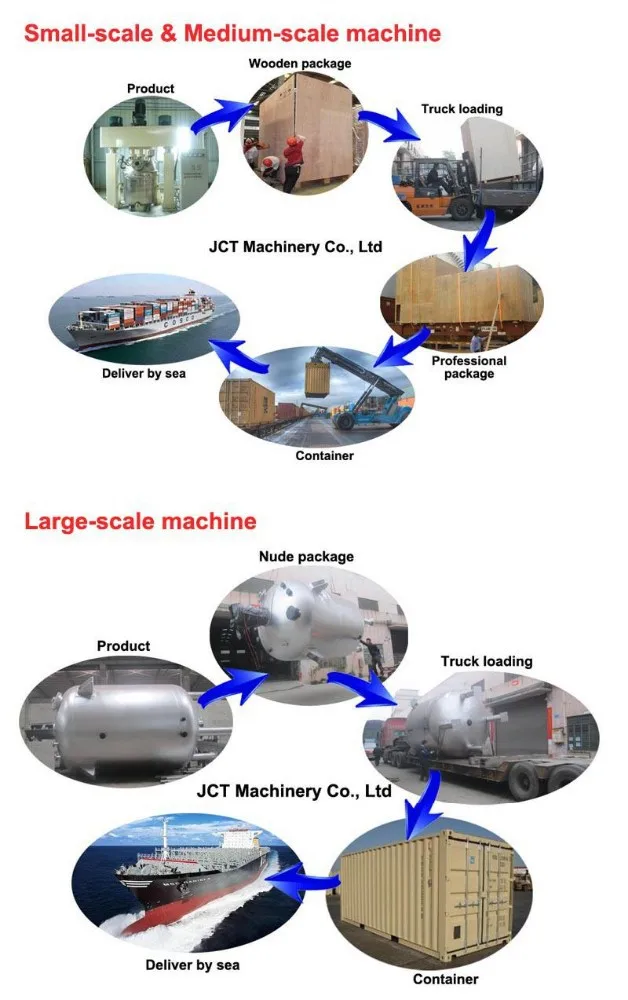

Packaging & Shipping



  three roll calender



8. Contact information



Please feel free to contact us.

  three roll calender
