HRDZ Thermal Imaging Camera Smart Sensor Body Temperature Detector System Machine for School
Product Description

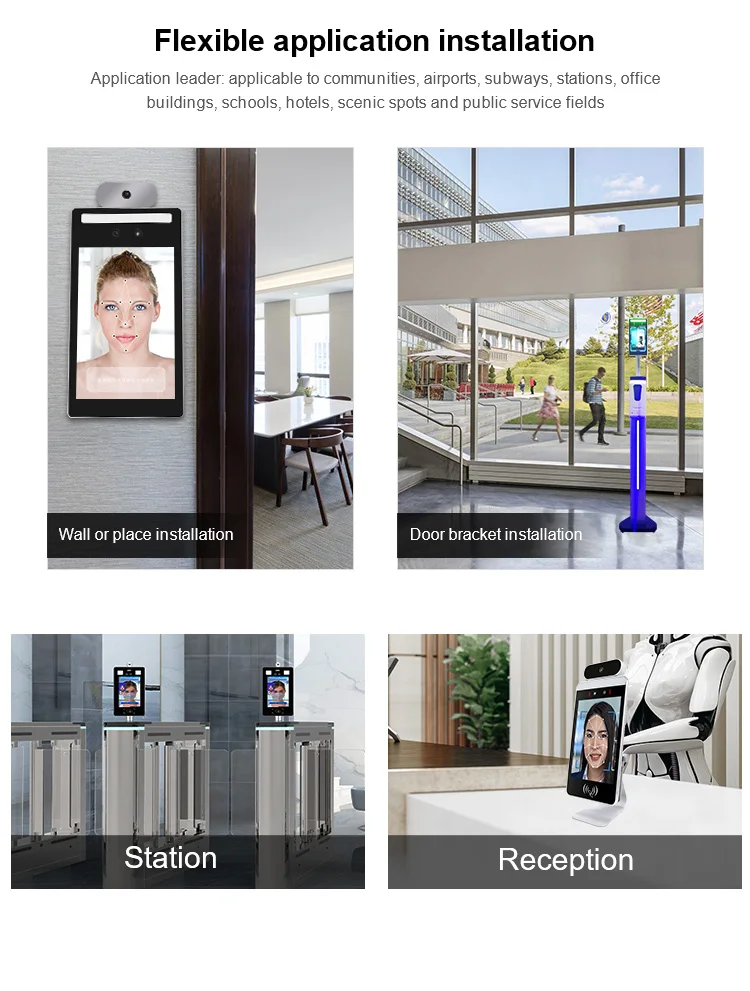

Application Scenario： Suitable for office areas, hotels, access gates, office buildings, schools, shopping malls, shops, communities, public service and management projects and other places where face access control is required.
Product Features:2.Industrial-class appearance, waterproof and dustproof design which is stable and reliable.
3.Supports 30,000 face database. The 1: 1 comparison recognition rate is more than 99.7%, the 1: N comparison recognition rate is more than 96.7%@0.1% misrecognition rate, and the live detection accuracy rate is 98.3%@1% misrejection rate. Face recognition pass speed is less than 1 second. 3.Supports accurate face recognition and comparison while wearing a face shield. 4.Using industrial-grade binocular wide dynamic camera, night infrared and LED dual photo flood lamp. 5.Support processors with strong performance: Rockchip RK3288 quad-core processor, Rockchip RK3399 six-core processor and Qualcomm MSM8953 octa-core processor. 6.It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality. 7.Attendance temperature measurement data is exported in real time. 8.Supports various peripheral expansions such as ID card reader, fingerprint reader, IC card reader, two-dimensional code reader, etc. 9.The documentation is complete and supports secondary development. 10.Support system level, APP offline level, APP + background network level multiple API docking.
Notice:This product is not used as medical equipment!!!
Product number | HR100-D3 | |
Screen | ||
Size | 8 Inch, IPS LCD Screen | |
Brightness | 350 LU | |
Resolution | 800*1280 HD Screen | |
Camera | ||
Resolution | 2 million pixels | |
Focusing distance | 50-150cm | |

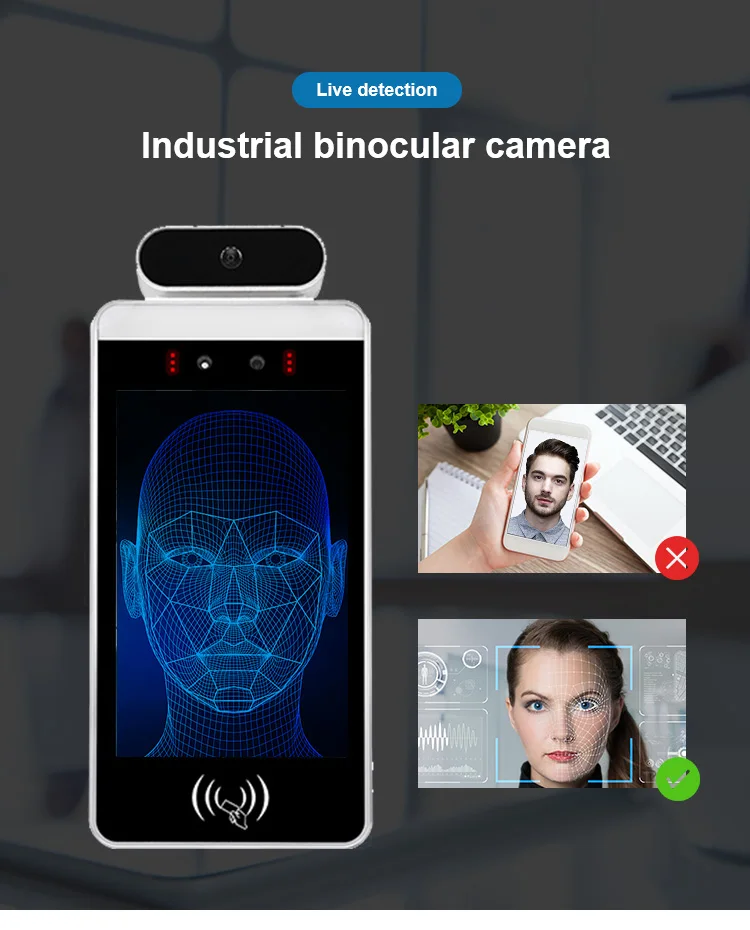

Type | Binocular wide dynamic camera | |
Aperture | F2.4 | |
Photo flood light | LED and IR dual photo flood light | |
White balance | Automatic | |
Wide dynamic | Support | |
Core parameters | ||
CPU | RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core) | |
Device Interface | 2GB memory, 8GB storage | |

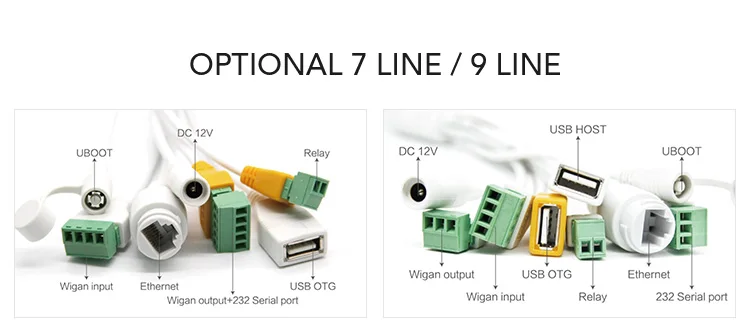

Interface | ||
Audio | 2.5W / 4R speakers | |
USB | 1 USB OTG, 1 USB HOST standard A port | |
Serial Communication Interface | 1 RS232 serial port | |
Relay Output | 1 door open signal output | |
Wigan Output | 1 Wiegand output interface, supports Wiegand 26 and 34 | |
Wigan Input | 1 Wiegand output interface, supports Wiegand 26 and 34 | |
Network module | Ethernet and wireless (WIFI) | |
Upgrade button | Support Uboot upgrade button | |
Wired network | 1 RJ45 Ethernet socket | |
General parameters | ||
Installation method | Screwed by wall mount bracket | |
power supply | DC12V（±10%） | |
Operating temperature | -20℃～60℃ (Optional thermostat)） | |
Working humidity | 10%～90 % | |
Power consumption | 13.5W MAX | |
Size | Standard：274.24*128*21.48（mm） IC card / ID card：296.18*132.88*25（mm） | |
Related Products
Why Choose Us
1. Over 10 years of experience.
2. Huarong provide OEM/ODM services.
3. MOQ: 1pc, sample order are welcome for your evaluation
4. Abundant inventory.
5. Huarong trade assurance limit: US $423000, Still rising.
6. 1 year warranty.
7. Free design products.
8. Super high cost performance.
9. Professional quality inspection team.
Certifications
Company Profile
Shenzhen Huarong Electronic Technology CO., LTD.is a large-screen manufacturer integrating R & D, production, and sales. It specializes in DID LCD splicing screens, DLP rear-projection large screens, small-pitch LED displays, LCD monitors, and touch all-in-one machines. High-end display products are in a leading position in the large-screen display industry. At the same time, the HUARONG brand large screens produced have been recognized by the industry and praised by customers for their good quality. After years of rapid development, it now has self-built standard factories. Equipped with a variety of general and special production equipment, high-speed automated production lines, and Japan's imported testing and analysis instruments, while employing high-quality management personnel and R &
D technicians in the industry.
D technicians in the industry.
The company cooperates with domestic and foreign merchants with rigorous work attitude, high-quality products and integrity, and a win-win business purpose. The company has always been adhering to the development concepts of "talent is the foundation of the enterprise" and "building a first-class enterprise, creating a first-class brand", and always keeps "quality is life". Based on market management ideas, we strive to make the [HUARONG] brand a well-known brand with international competitiveness.
