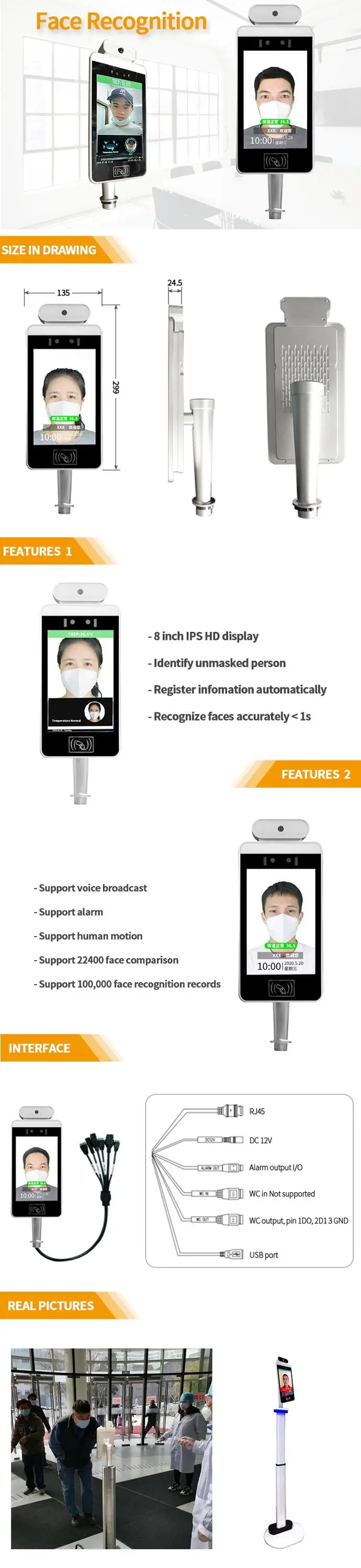

Face Recognition | ||
Height & Distance | 1.2-2.2 M, angle adjustable & 0.5-3 Meters | |
View angle | Vertical ±30 degree | |
Reco. Time | <500ms | |
Function | Support 22400 faces database and 100000 records | |
Temperature | ||
Range & Accuracy | 30-45(℃) & ±0.3(℃) | |
Distance & Response time | Distance ≤0.5M & Response time<300ms | |
Hardware | ||
Chipset & RAM | Hi3516DV300 & RAM: 16G EMMC | |
System | Linux operation system | |
Image sensor & Lens | 1/2.7" CMOS & Lens: 6mm | |
Camera Parameters | ||
Camera | Binocular camera supports live detection | |
Effective pixel | 2Mega pixel,1920*1080 | |
Min. lux | Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 | |
SNR | ≥50db(AGC OFF) | |
General | ||
Power input | DC 12V/3A | |
Power consumption | 20W(MAX) | |
Dimension | 154(W) * 89(H) *355.4(L)mm | |
Weight | 2.1 kg | |
Column Aperture | 33mm |
