Слюдяной лист прямо с
- Категории: Электронные аксессуары и принадлежности >>>
- Поставщик: Ningbo,Ram,Electric,Material,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Type |
Muscovite Mica sheet | |
Mica paper |
Muscovite | |
Binder |
Silicon resin | |
Mica content | ≥ 90% | |
Binder content | ≤ 10% | |
Thickness(mm) | 0.10 ~ 2.0 | |
Thickness tolerance(mm) | Average | ±0.02 - ±0.05 |
Individual | ±0.05 - ±0.08 | |
Density(g/cm3) | 1.6-2.2 | |
Heat loss at 500 °C % | ≤0.60 | |
Flexural strength(kgf/mm2) | ≥16 | |
Dielectric strength(KV/mm) | >18 | |
Insulation resistance(MΩ) | 100 - 600 | |
Work temperature ( °C ) | 500°C | |
Standard size(mm) | 1000 × 600 1000 × 1200 1000x2400 | |
Standard reference | GB5019 - 85, IEC371 | |
Description:

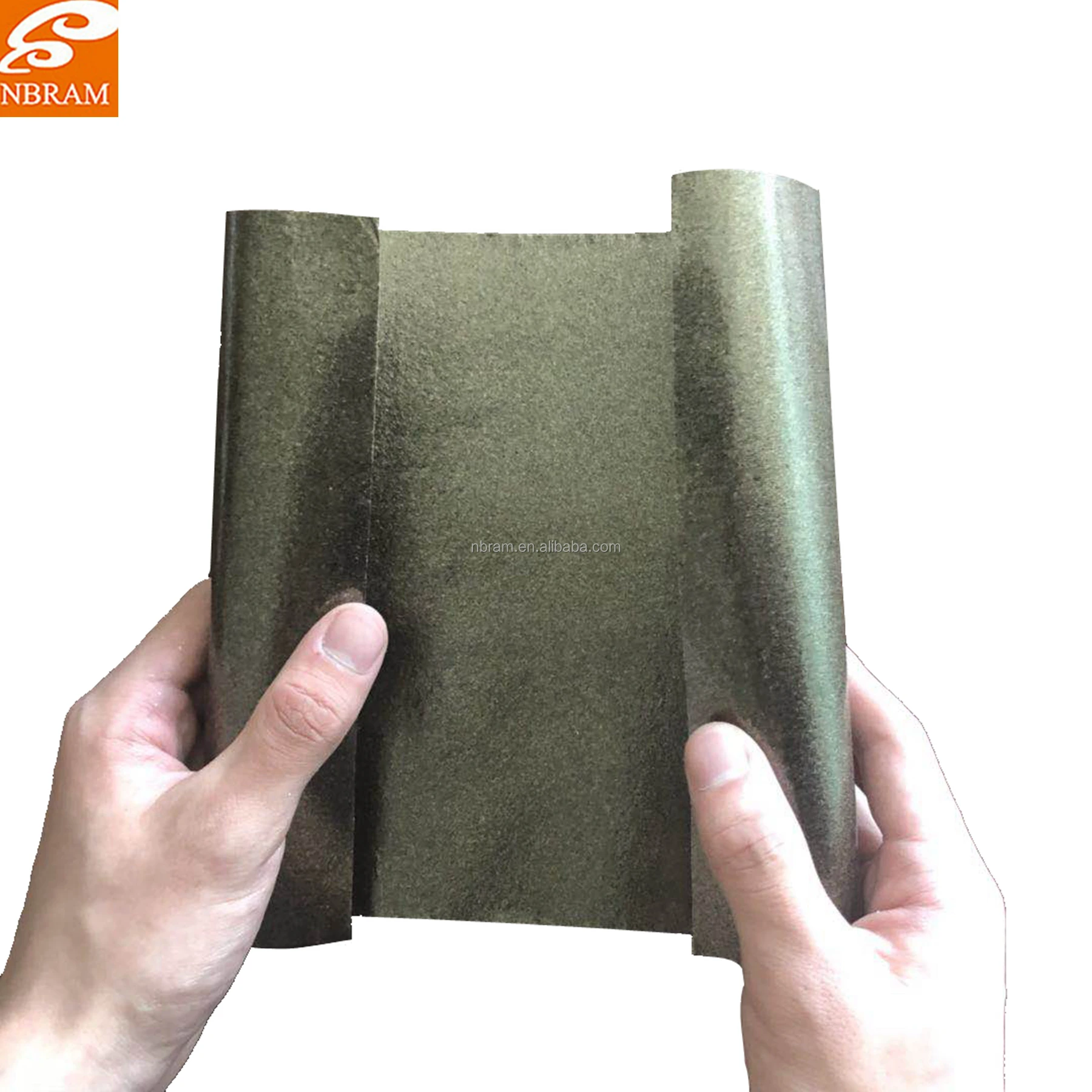

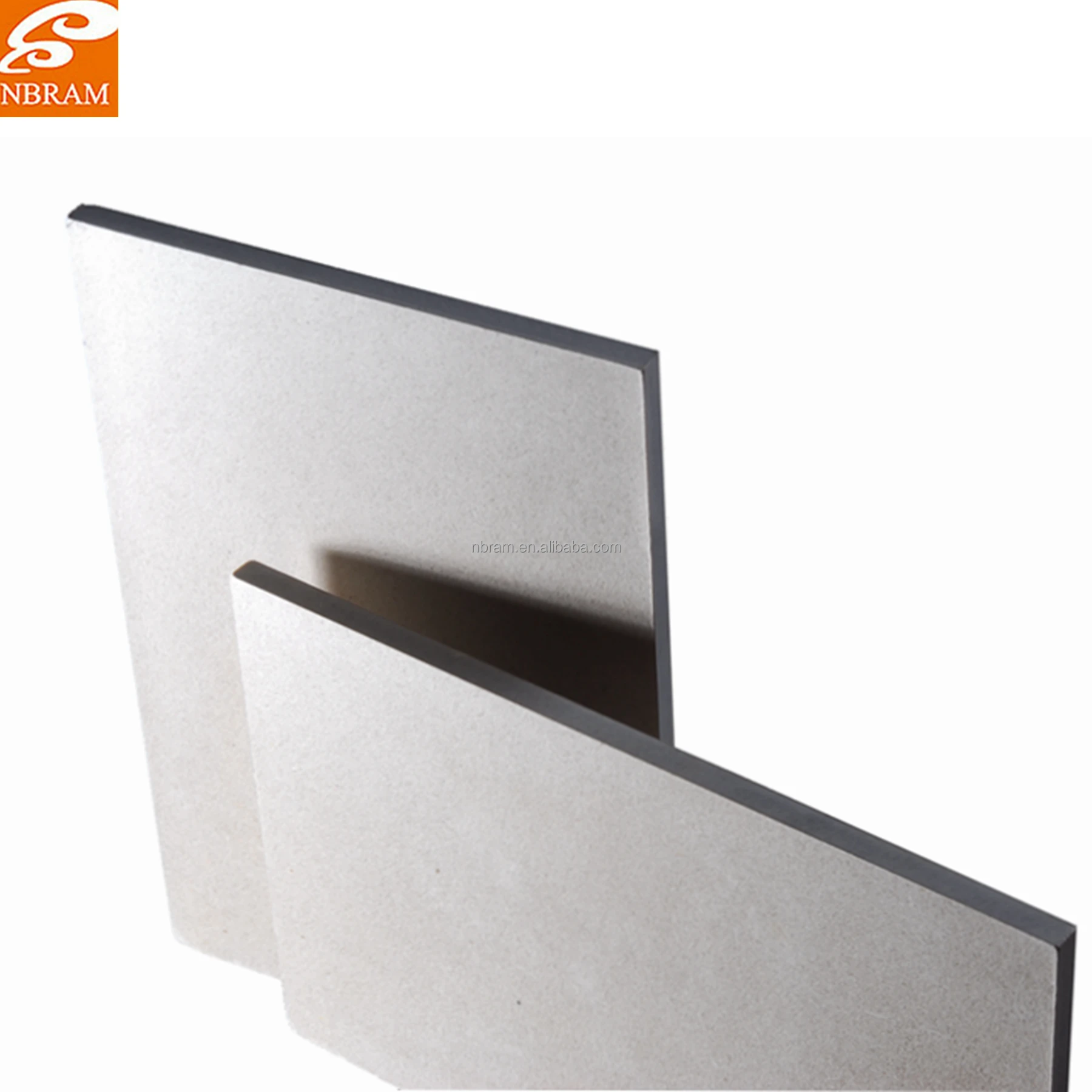

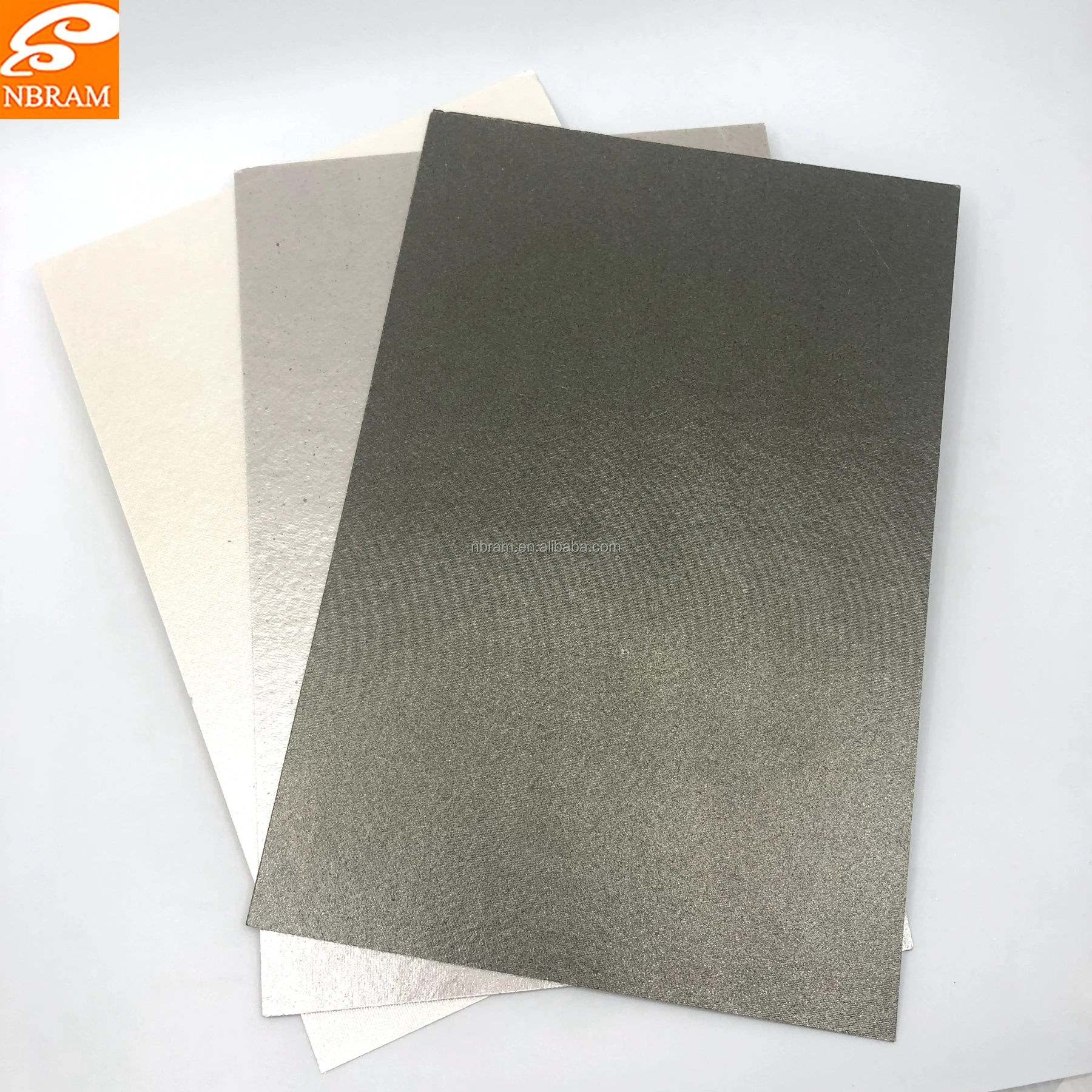

Muscovite mica plate
NBRAM series mica sheet is a high temp insulating material made of quality mica materials and high performance organic silicon resin after melting and laminating process, widly used in electrical appliances such as toaster, hair dryer and warm air blower,etc and other electric heaters which require high temp electro insulation.
