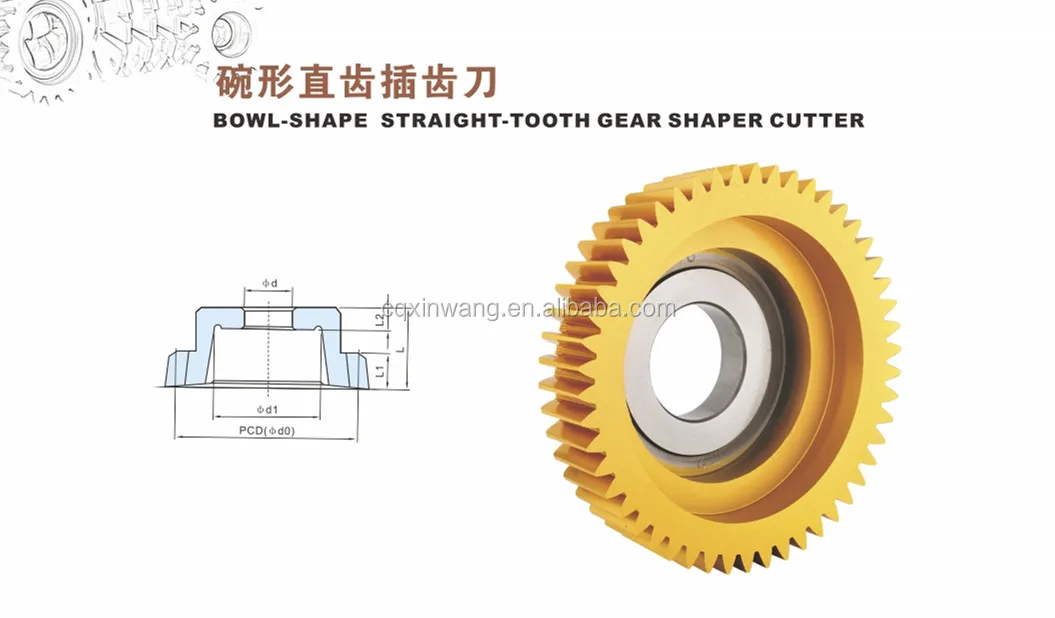

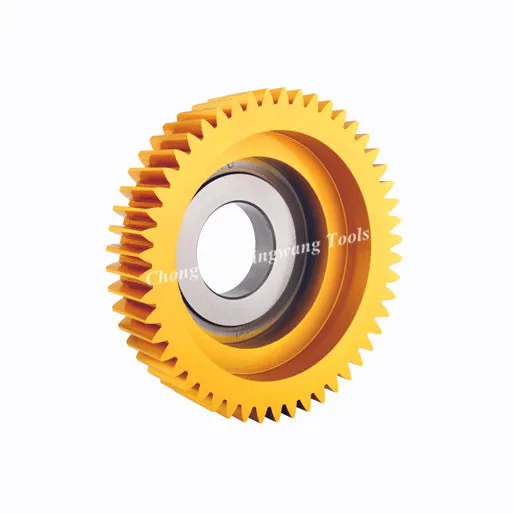

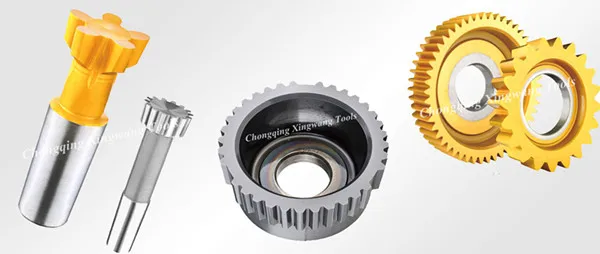

Hub type / Deep Counterbore Type Shaper Cutter

Basic Parameters of Gear Shaper Cutters

Module: m0.8-m18,DP; with Pressure Angle: PA20,PA30

Tooth profile to DIN3972 standard

Accuracy: Class A, AA to DIN1829

SURFACE COATING: TiN, TiAlN and AP

Material: HSS M2, M35, M42, ASP30, ASP52, and S390





Regular Sizes for Hub Type/Deep Counterbore Type Gear Shaper Cutters with Module

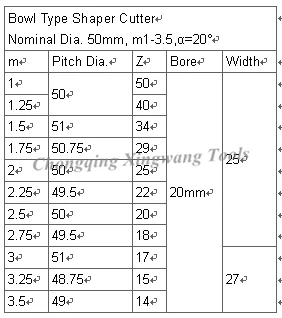

Hub Type/Deep Counterbore Type Shaper Cutter: PCD50mm

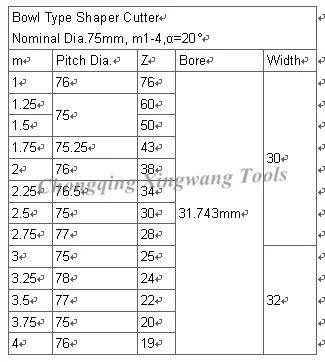

Hub Type/Deep Counterbore Type Shaper Cutter: PCD75mm

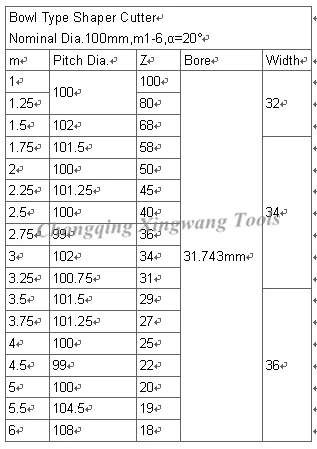

Hub Type/Deep Counterbore Type Shaper Cutter: PCD100mm

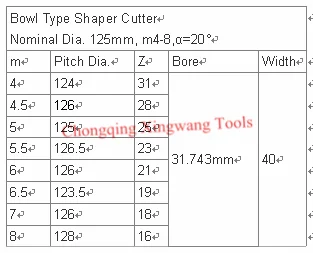

Hub Type/Deep Counterbore Type Shaper Cutter: PCD125mm

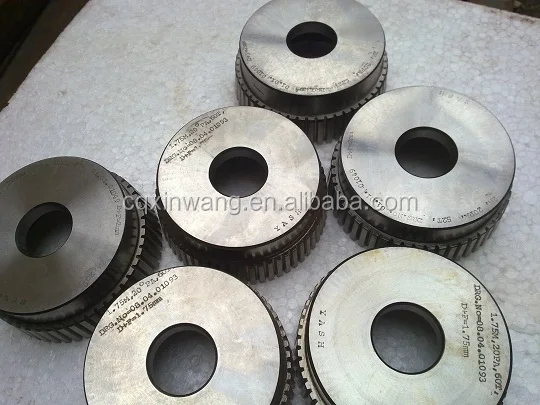

These cutters can be used for roughing and finishing external gears where it is not feasible to use external disc type.

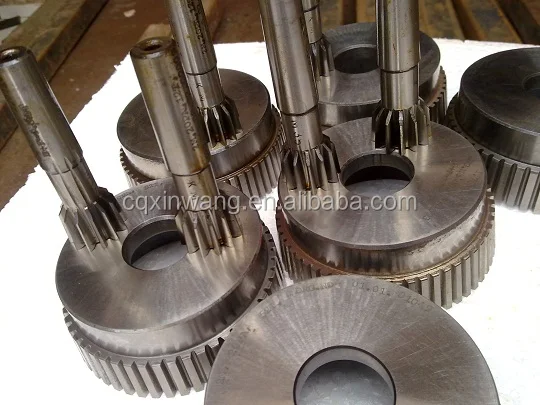

Gear Shaper cutters are designed and produced for cutting any type of gear, internal or external, spur or helical. They can also be designed to cut splines, serrations, sprockets or other involute forms.

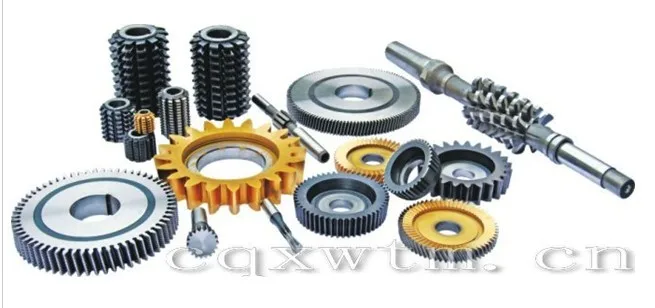

Chongqing Xingwang Tools is a quality manufacturer and exporter of HSS Gear Cutting Tools since 2001. Our cutting tools are mainly including: Gear Hob, Shaving Cutter, Shaper Cutter, Involute Spline Hob, Roller Chain Sprocket Hob, Timing Pulley Hob, Parallel Side Spline Hob, Worm Gear Hob, Carbide Hobs, Milling Cutters and Broaches, etc tools.

Please do contact us for more details on gear hob and cutters when you have new inquiry.
