Центрифуга с корзиной для извлечения конопляного масла PBZ400P
US $9900-$10900
Центрифуга TG18G для
- Категории: Лабораторная центрифуга >>>
- Поставщик: Hunan,Kaida,Scientific,Instruments,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
medical lab centrifuge
TG18G Bench top high speed Refrigerated Medical Lab centrifuge Features:
Product Description
Features:
1. Microprocessor control, operated by touch panel, LED display, operated data can be saved automatically, RCF value can be set directly for working, easy to use.
2. Brushless converter motor which has high torque, High speed bearing from Europe, smoothly running and maintenance-free.
3. Multistage damping system, low noise and slight vibration,green.
4. Steel body, stainless steel centrifugal chamber, imports of key components, durable and easy to clean.
5. Overspeed, door interlock, imbalance protection. The rotor can be disinfected at high temperature & high pressure, ensure safety.
6. Proprietary air current design, small temperature-rise of centrifuge chamber, effective protection of the sample.
7. Adjustable acceleration and deceleration from grade 0 to 9, 40 kinds of self-defining operating programs can be stored and recall, achieving the best centrifugal result.
8. Hold-on and transient centrifuging, easy to diverse centrifugation
Technical Parameter:
Model | TG18G |
Max Speed | 18600r/min |
Max RCF | 23950 x g |
Max Capacity | 400ml |
Speed Accuracy | ±20r/min |
Time Range | 0-999min/sec |
Power Supply | AC 220V 50Hz / 110V 60Hz, 18A |
Noise | ≤ 60dB |
Dimension | 460 x 350 x 350mm |
Weight | 25kg |

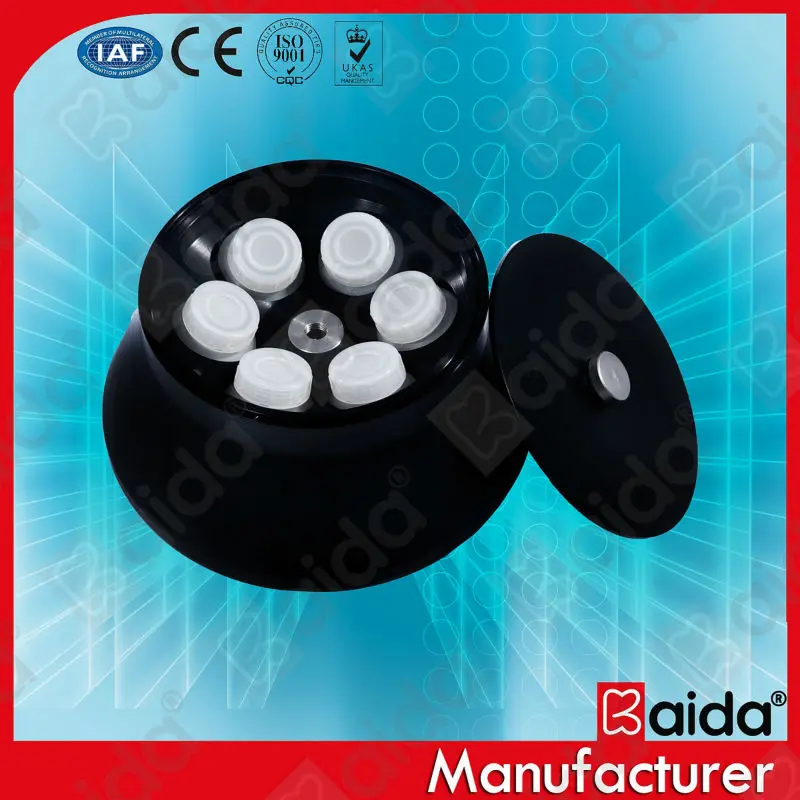

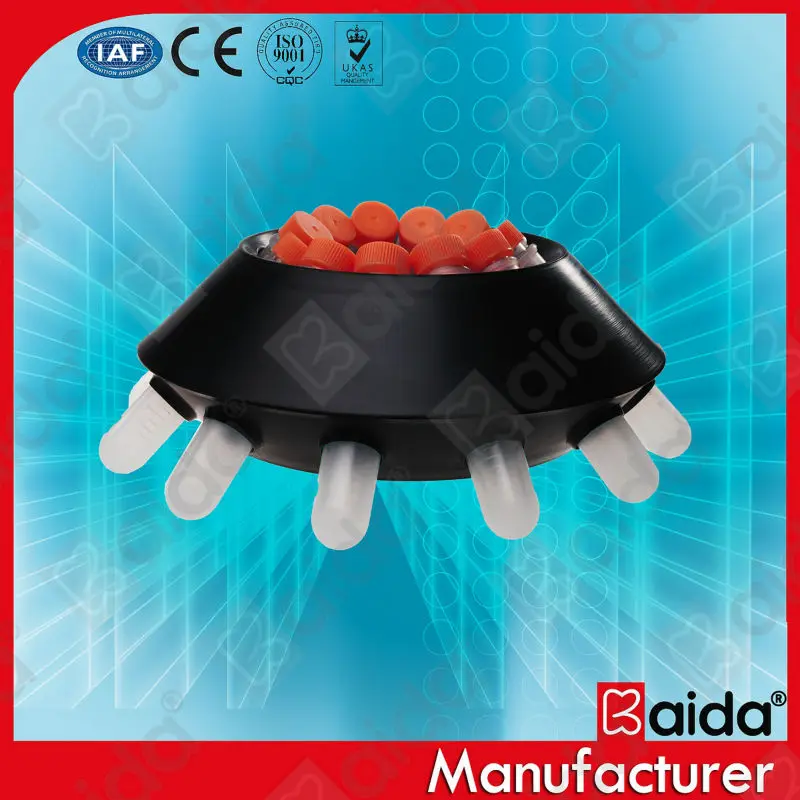

Rotor Options:
Rotor Type | Number | Capacity | Max Speed (r/min) | Max RCF (×g) | Dimension of tube (mm) |
Angle Rotor | No.6 | 12×1.5/2.0ml | 18600 | 23950 | Φ10×42 |
No.11 | 18×0.5ml | 18600 | 23950 | Φ8×32 | |
No.9 | 24×1.5/2.0ml | 15000 | 21000 | Φ10×42 | |
No.12 | 10×5ml | 13000 | 11500 | Φ14×54 | |
No.18 | 48×0.5ml | 13000 | 14740 | Φ8×32 | |
No.23 | 12×10ml | 12000 | 14800 | Φ16×81 | |
No.22 | 6×50ml | 12000 | 14800 | Φ28×105 | |
No.30 | 8×15ml | 10000 | 10300 | Φ16×115 | |
No.31 | 4×100ml | 10000 | 9690 | Φ38×124 |
Product photos :

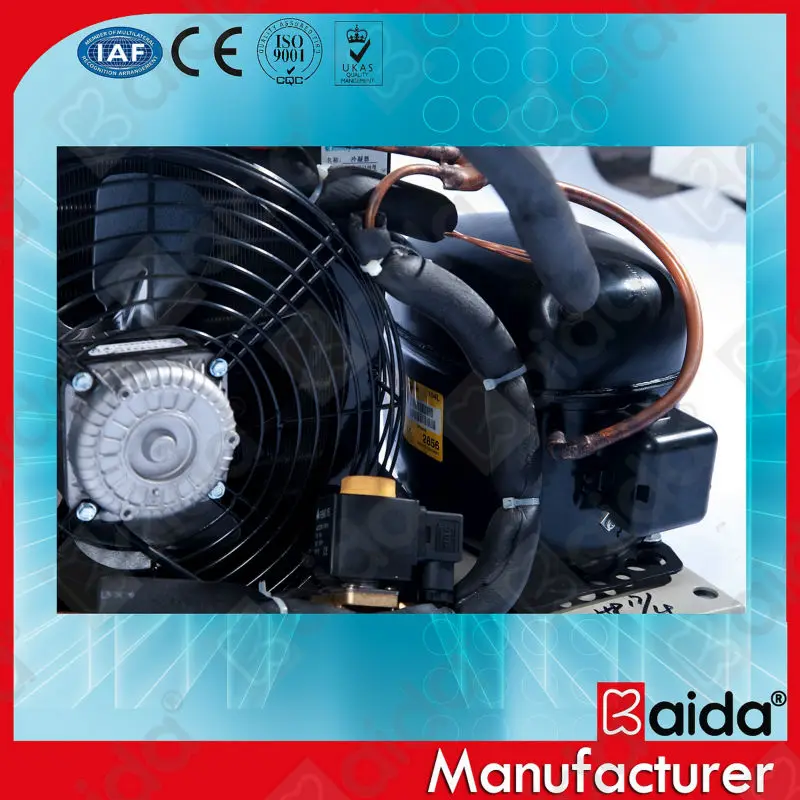

Compressor unit for centrifuge

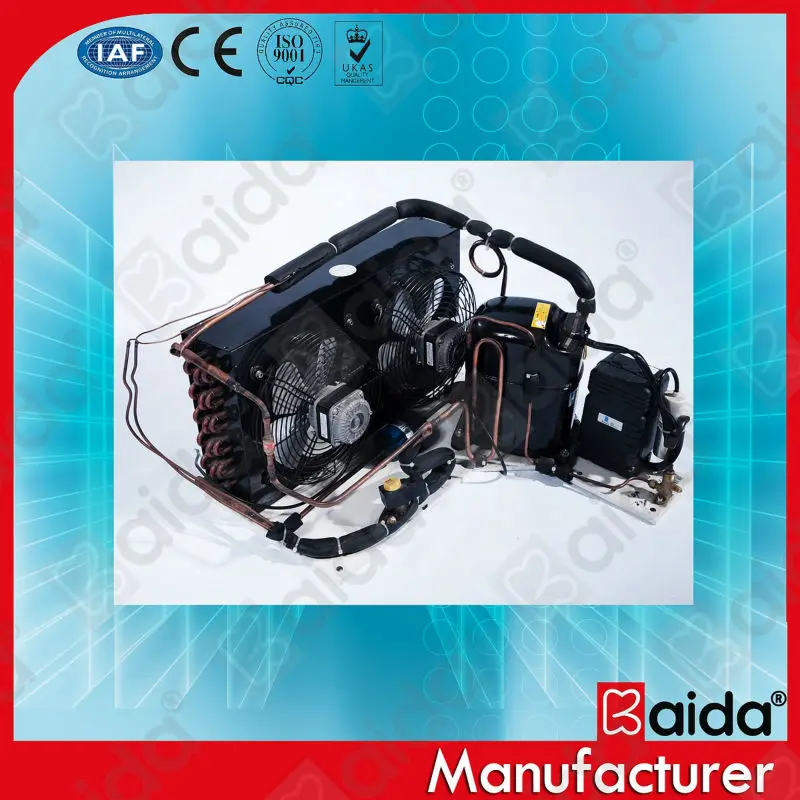

Compressor unit-2 for centrifuge
non-return valve for centrifuge

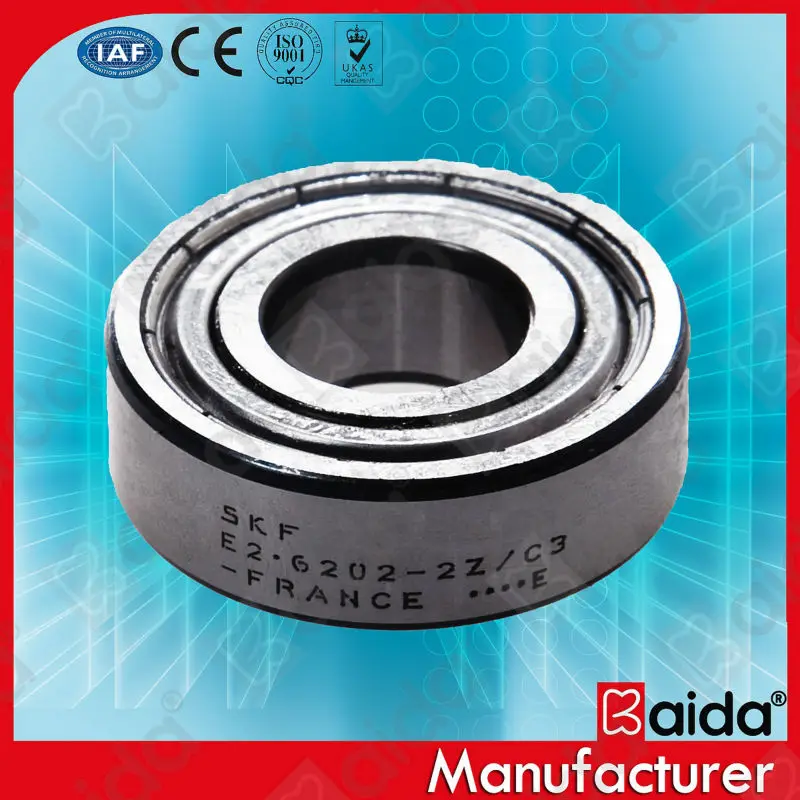

axle bearing for centrifuge

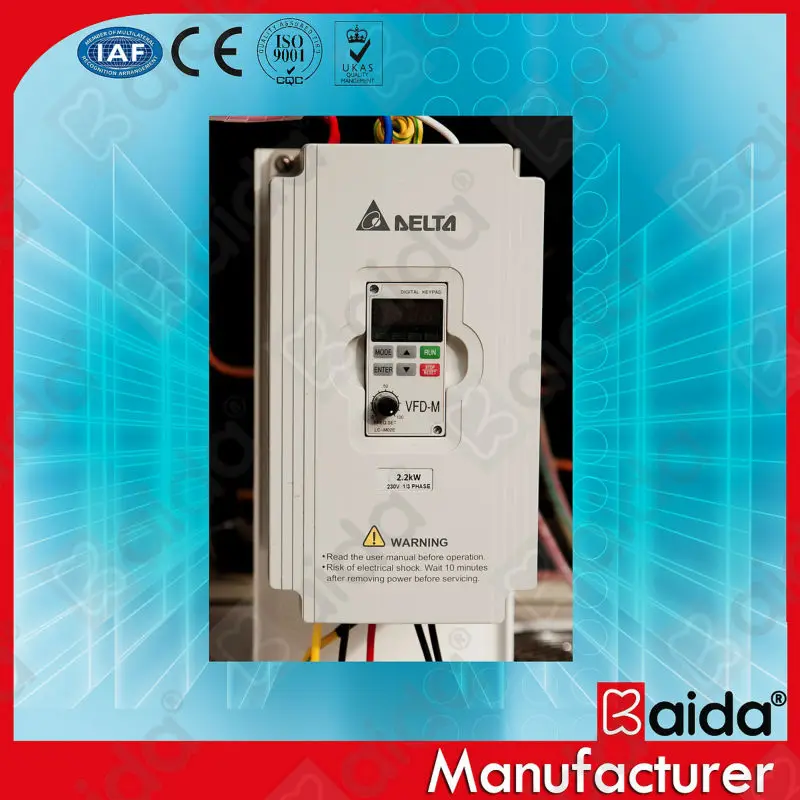

frequency converter for centrifuge

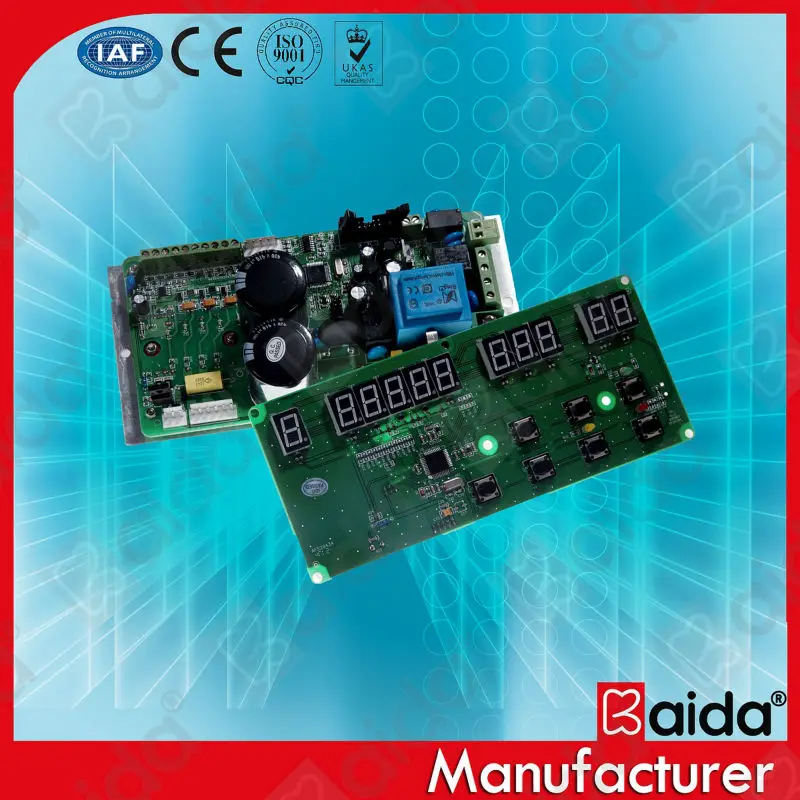

control pannel for centrifuge
In 2008 the program in China for aid to Cuba, Kaida is the only one centrifuge supplier in this program and sold 102 sets of DL6M to Cuba blood center.
packing&delivery
