Juice sterilization machine



Main machine:

UHT-1 Type Ultra Temperature Instantaneous Sterilizer

   It is suitable for the liquid material, such as fresh milk, fruit milk, wine, soybean milk and Chinese medicine, as well as the sticky material (for example, sweat condensed milk) upon completing with high-pressure homogenizer.



Our factory adopts advanced stainless steel 304 welding technology abroad, selecting the fine polished stainless steel tube, which has improved greatly comparing with the former products we manufactured.



Main structure and work principle

Ultra-high temperature sterilizer structure: the main machine contains a pressure vessel-high temperature bucket, used as a pressure steam container. The main set of barrel is thread-shaped double-pipe, used as the hot and cold exchange for inlet and outlet materials; The main set inside barrel is spiral tube, used as indirect heating.

Sterilizationprocess : Materials through the feeding pumpintotheouter flow channel of double coiled pipe , the material from inside with indirectheating for preheat, when materials goes into the hightemperature coiled pipe set in the hightemperature barrel , due to the steam in the barrel is indirect heated to be a needed sterilizationtemperature, and insulates in the single pipe out of barrel to kill the materialsbacteria, when steam is back to the double coiled pipe, the material flows to the inside flow channel and cooled by the outside material, which makes the outlet material’s temperature decline significantly ( Ordinary lower than 65°C). If it needs to raise or lowerthe outlet material temperature in theprocess, youcanenableAngleTypeGlobeValve, made it get through to hot source (heatsteam) or cold source (water or icewater) to go into the outerlayer flow channel in thebottom of thedoublecasing.



Main Technology data:

Treatment Capacity	1 (t/h)
Sterilizing Temperature	115-135 (°C)
Inlet temperature	<65°C
Outlet Temperature	<45°C (Using chilling water to low down temp)
Heating time	4-6s
Steam Pressure	<0.78 Mpa
Steam consumption	<0.15kg/L material
Material	SUS304
Area (m2)	0.9
Motor Power	1.5kw
Overall Dimensions	1250*825*1480 (mm)
Weight	410 kg





1. Steam heating UHT sterilizer (1T/H)

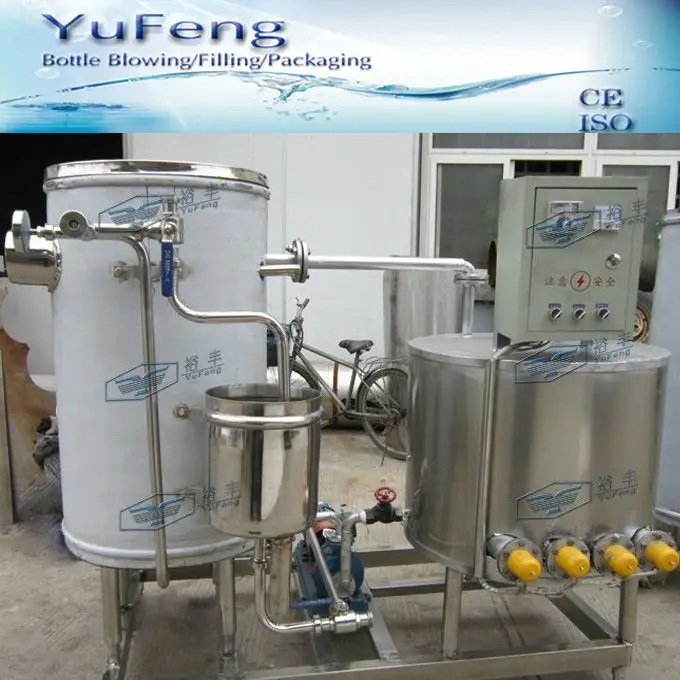

2. Electric heating UHT sterilizer (1T/H)

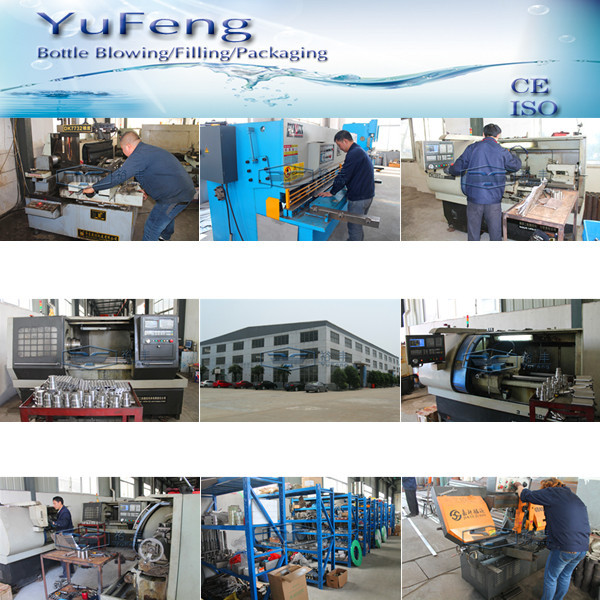

Factory production workshop:
