Маленький роторный винтовой воздушный компрессор с ременным приводом для общей промышленности 15 л.с. 11
- Категории: Air-Compressors & Parts >>>
- Поставщик: Elang,Industrial,(shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

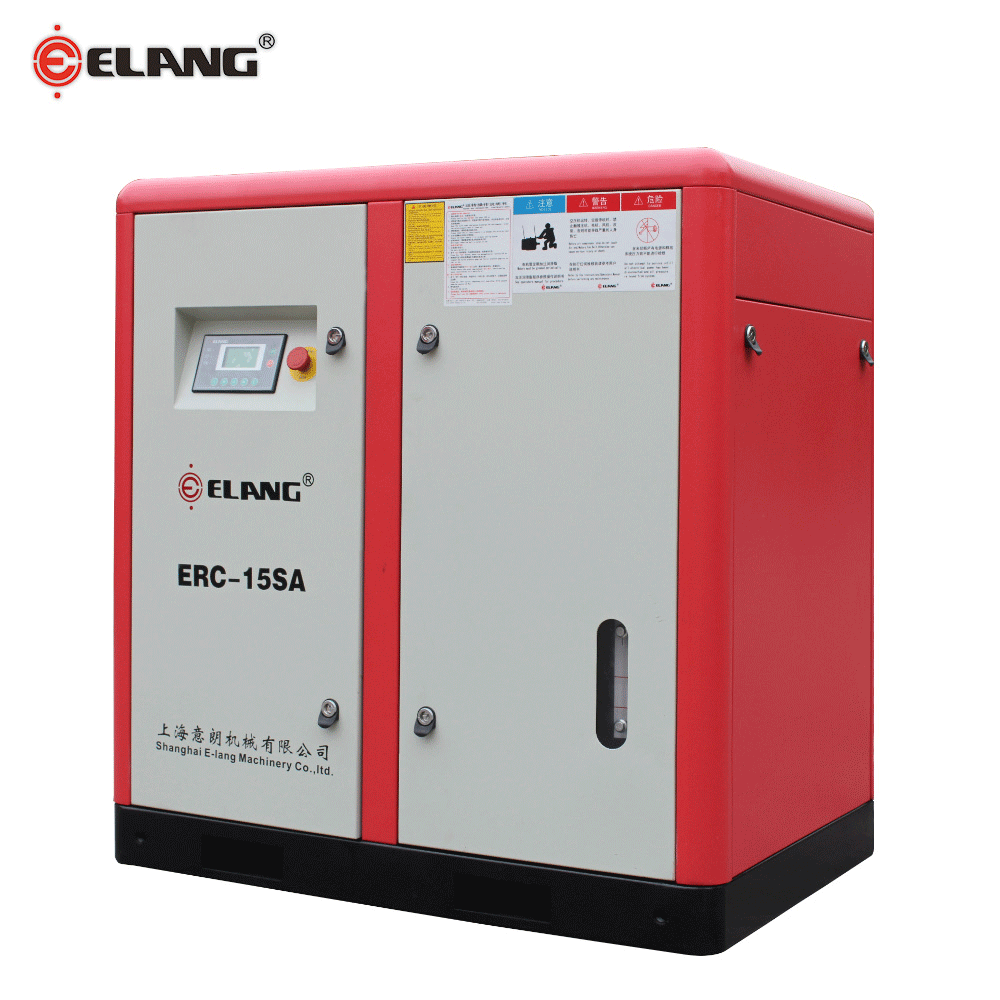

15HP 11kw Belt Driven Small Rotary Screw Air Compressor for General Industry
Product Name:
15HP 11kw Belt Driven Small Rotary Screw Air Compressor for General Industry
Working Pressure: 7 - 12.5bar (100 - 181psi)
Air Delivery: 1.3 - 1.8m3/min
Type of Driving: Belt Driven
Type of Cooling:
Air Cooling/Water Cooling
Dimension: 1150*750*1180mm
Weight: 450kg
Output pipe Diameter: 1"
There are more parameters below.
15HP 11kw Belt Driven Small Rotary Screw Air Compressor for General Industry
Working Pressure: 7 - 12.5bar (100 - 181psi)
Air Delivery: 1.3 - 1.8m3/min
Type of Driving: Belt Driven
Type of Cooling:
Air Cooling/Water Cooling
Dimension: 1150*750*1180mm
Weight: 450kg
Output pipe Diameter: 1"
There are more parameters below.

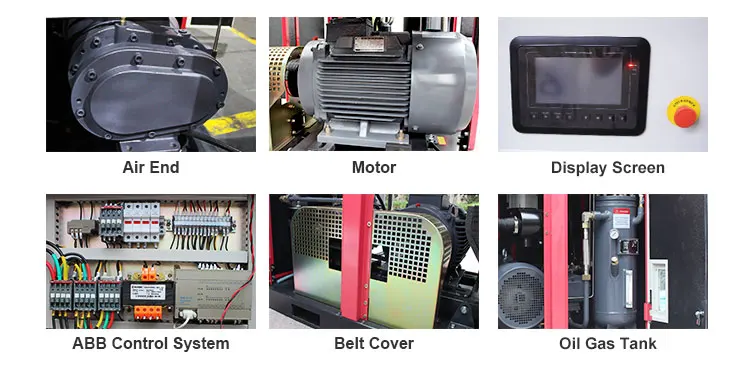

Advantages
- Control Panel: Intelligent microcomputer-based control technology can monitor and control in all aspects the complete machine following your instructions.Remote control realizes unattended operation.
- Oil filter: Rotary filters are applied to completely remove the impurities in the lubricating oil,easy to replace and free of oil impregnate.
- Cooler: It is designed for low temperature difference to increase heat exchang area,and ideal to be applied to high-temperature and high-humidity operating environment.
- Motor: First-class motors are adopted,with the level of protection being lp54 and insulation level being F.
- Acoustic enclosure: It is designed into fully-closed mute box,in which soundabsorbing sponge are attached for effective absorption of noise,thereby making the noise 3-5dB(A)lower than that made by the compressors of the same kind. It is reasonably structured overall and very easy to maintain and repair.
| Model | Working Pressure | Air Delivery | Motor Power | Type of Driving | Type of Cooling | Dimension(mm) | Weight (kg) | Output pipe Diameter | ||||||
| psig | bar | cfm | m3/min | kw/hp | L | W | H | |||||||
| ERC-10SA | 100 | 7 | 38.8 | 1.1 | 7.5/10 | Belt driven | Air Cooling / Water Cooling | 850 | 640 | 880 | 350 | 3/4" | ||
| 116 | 8 | 35.3 | 1 | |||||||||||
| 145 | 10 | 30.0 | 0.85 | |||||||||||
| 181 | 12.5 | 24.7 | 0.7 | |||||||||||
| ERC-15SA | 100 | 7 | 63.6 | 1.8 | 11/15 | 1150 | 750 | 1180 | 450 | 1" | ||||
| 116 | 8 | 58.3 | 1.65 | |||||||||||
| 145 | 10 | 53.0 | 1.5 | |||||||||||
| 181 | 12.5 | 45.9 | 1.3 | |||||||||||
| ERC-20SA | 100 | 7 | 84.7 | 2.4 | 15/20 | 1150 | 750 | 1180 | 460 | 1" | ||||
| 116 | 8 | 77.7 | 2.2 | |||||||||||
| 145 | 10 | 74.2 | 2.1 | |||||||||||
| 181 | 12.5 | 63.6 | 1.8 | |||||||||||
| ERC-25SA | 100 | 7 | 109.5 | 3.1 | 18.5/25 | 1200 | 880 | 1450 | 620 | 1" | ||||
| 116 | 8 | 102.4 | 2.9 | |||||||||||
| 145 | 10 | 95.3 | 2.7 | |||||||||||
| 181 | 12.5 | 81.2 | 2.3 | |||||||||||
| ERC-30SA | 100 | 7 | 134.2 | 3.8 | 22/30 | 1200 | 880 | 1450 | 640 | 1" | ||||
| 116 | 8 | 127.1 | 3.6 | |||||||||||
| 145 | 10 | 113.0 | 3.2 | |||||||||||
| 181 | 12.5 | 88.3 | 2.5 | |||||||||||
| ERC-40SA | 100 | 7 | 187.1 | 5.3 | 30/40 | 1250 | 1000 | 1360 | 900 | 11/4" | ||||
| 116 | 8 | 176.6 | 5 | |||||||||||
| 145 | 10 | 151.8 | 4.3 | |||||||||||
| 181 | 12.5 | 127.1 | 3.6 | |||||||||||
| ERC-50SA | 100 | 7 | 233.0 | 6.6 | 37/50 | 1350 | 1000 | 1640 | 1060 | 11/4" | ||||
| 116 | 8 | 218.9 | 6.2 | |||||||||||
| 145 | 10 | 201.3 | 5.7 | |||||||||||
| 181 | 12.5 | 162.4 | 4.6 | |||||||||||
| ERC-60SA | 100 | 7 | 282.5 | 8 | 45/60 | 1300 | 1000 | 1470 | 1150 | 11/2" | ||||
| 116 | 8 | 271.9 | 7.7 | |||||||||||
| 145 | 10 | 243.6 | 6.9 | |||||||||||
| 181 | 12.5 | 211.9 | 6 | |||||||||||
| ERC-75SA | 100 | 7 | 370.8 | 10.5 | 55/75 | 1950 | 1320 | 1570 | 1750 | 2" | ||||
| 116 | 8 | 346.0 | 9.8 | |||||||||||
| 145 | 10 | 307.2 | 8.7 | |||||||||||
| 181 | 12.5 | 257.8 | 7.3 | |||||||||||
| ERC-100SA | 100 | 7 | 480.2 | 13.6 | 75/100 | 1950 | 1320 | 1570 | 1840 | 2" | ||||
| 116 | 8 | 459.0 | 13 | |||||||||||
| 145 | 10 | 399.0 | 11.3 | |||||||||||
| 181 | 12.5 | 356.6 | 10.1 | |||||||||||
| ERC-120SA | 100 | 7 | 572.0 | 16.2 | 90/120 | 2100 | 1320 | 1700 | 2030 | 2" | ||||
| 116 | 8 | 543.8 | 15.4 | |||||||||||
| 145 | 10 | 466.1 | 13.2 | |||||||||||
| 181 | 12.5 | 395.5 | 11.2 | |||||||||||
| Motor Efficiency Class: Ultraefficient/IE3/IE2 as per your required Motor Protection Class: IP23/IP54/IP55 or as per your required Certification: CE/ISO9001/TUV/UL/SGS/ASME Voltage: 380V/3PH/50HZ/60HZ, 220V/3PH/50HZ/60HZ, 400V/3PH/50HZ/60HZ, 440V/3PH/50HZ/60HZ, 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ, dual voltage is also ok | ||||||||||||||
Q1: Why customer choose us?
A: ELANG INDUSTRIAL (SHANGHAI) CO., LTD., with 18 years old history, we are specialized in Rotary Screw Air Compressor. Germany Standard and 10years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Shanghai,China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 3 to 7 days, if urgently order, pls contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except consumble spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
Q6: What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc.
Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.
Q8: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable.
