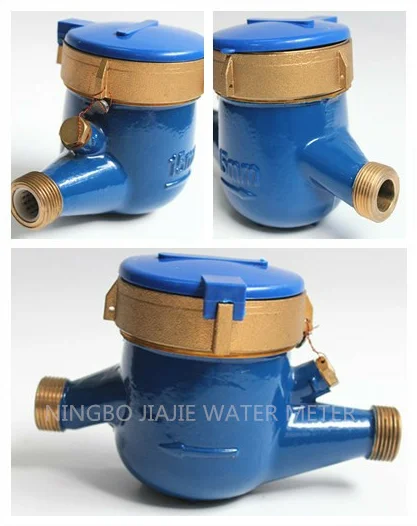

Многоструйный сухой циферблат для бытового использования высококачественный латунный счетчик холодной

Описание и отзывы

Характеристики

Feature

 1.Dry-dial

2.Multi-jet

3.Magnetic drive

4.Vacuum sealed register.The reading can be kept clear in longterm service.

5.Antimagnetic construction

6.Measuring accuracy is up to class B of ISO4064 Standard.

7.Selected high quality material ,copper shell.

8.Series universal use. Easy interchange & maintenance.



Main Technical Date

mm	Qn	QT	Qmin	MAX	Min
	M3/h	M3/h	M3/h	Reading	Reading
15	1.5	0.12	0.03	9999	0.0001
20	2.5	0.2	0.05	9999	0.0001
25	3.5	0.28	0.07	9999	0.0001
32	6	0.48	0.12	9999	0.0001
40	10	0.8	0.2	99999	0.001
50	15	1.2	0.3	99999	0.001













Working Conditions

Water temperature ≤ 35 ℃

Water pressure ≤ 1 Mpa /1.6 Mpa
